T3R48J-C6AS-ME PRS SERIES SLIMCAT CAT6A KEYSTONE SOCKET

TOOLLESS

Code: 30633720

12PK
Call for Availability!
$188 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

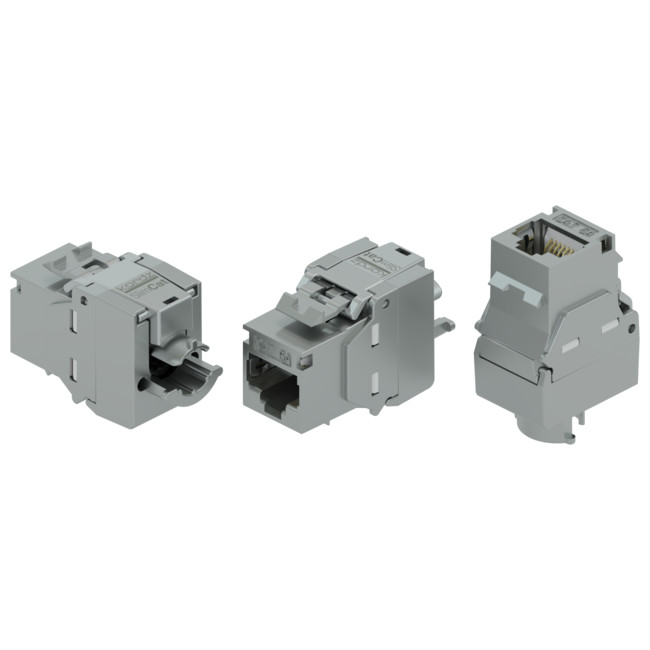

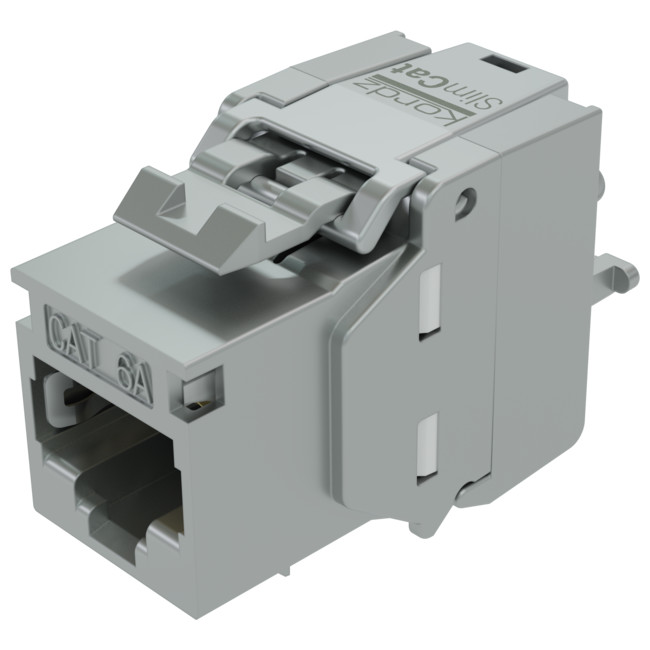

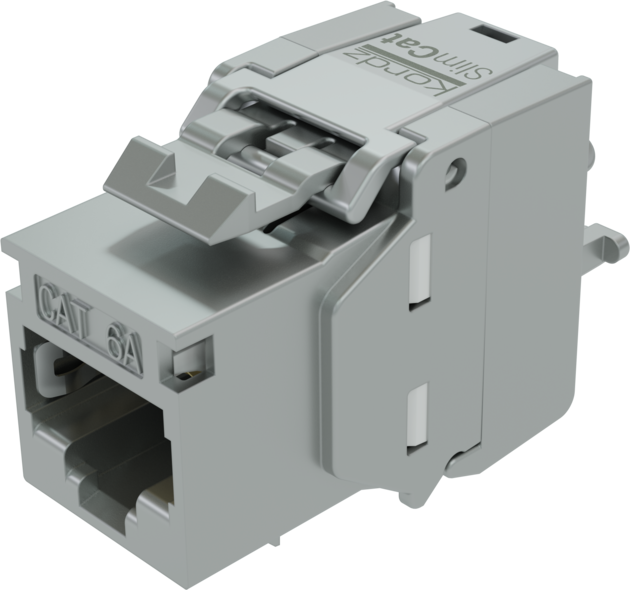

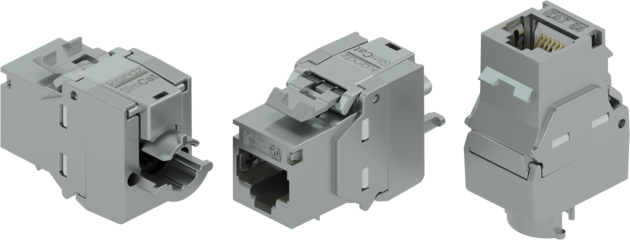

Kordz T3R48J-C6AS-ME PRS Series SlimCat™ CAT6A Toolless Keystone Socket - Box of 12

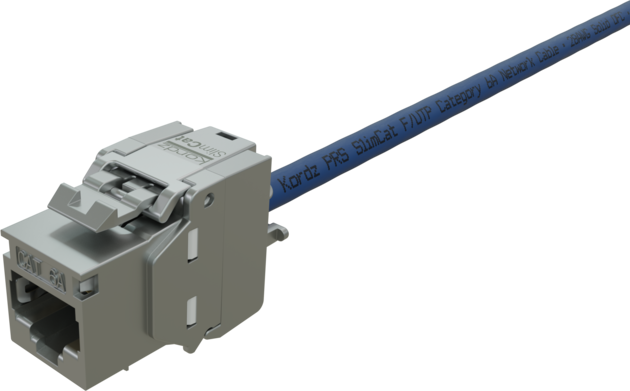

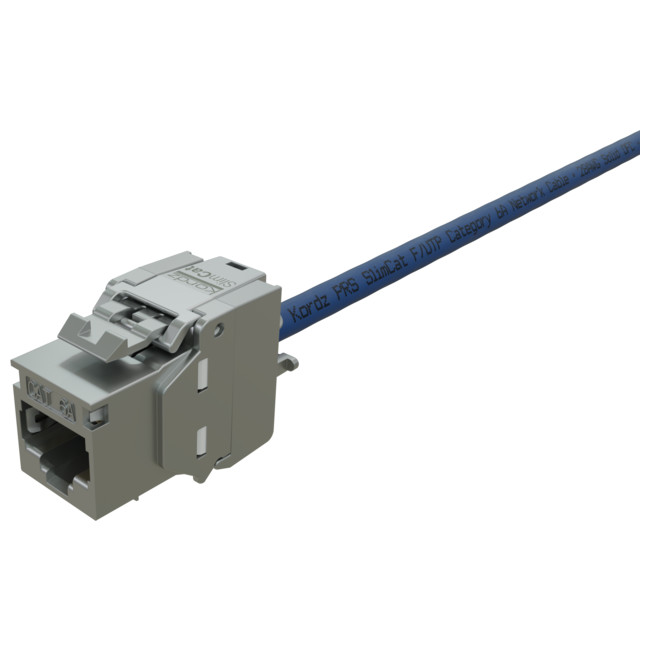

The Kordz PRS SlimCat™ Cat6A RJ45 Keystone Socket is designed specifically for use with the Kordz PRS SlimCat™ Network Cable, enabling professional integrators to deliver ANSI/TIA-568.2-D Cat6A permanent link performance up to 50 metres. Featuring a die-cast zinc-alloy metallic clamshell design and metal latching mechanism, Kordz PRS SlimCat™ Keystones make installation easier, support PoE at 100W and fit standard keystone panel cut-outs.

Match with other Kordz PRS SlimCat™ Cat6A components for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

  • Enables delivery of ANSI/TIA-568.2-D Cat6A permanent link performance up to 50m when paired with Kordz PRS SlimCat™ Cat6A Network Cables
  • Contacts and wire manager customised for 28AWG conductors
  • Easy to terminate with metal latching mechanism
  • die-cast zinc-alloy metallic clamshell design
  • 3bt 100W PoE capable
  • UL94 V-0 fire-rated
  • Eco-friendly packaging
  • Manufactured with quality materials and using advanced manufacturing methods
  • Lifetime warranty

Technical Info

General Information

Connector Part No.: T3R48J-C6AS-ME
Guaranteed Performance Category: Category 6A
Applicable Standards: ANSI/TIA-568-C.2
Housing material: Zinc Alloy
Flammability Rating: UL 94 V-0
Contact TypeThree Prong for Solid / Stranded wires
Contact Material: Copper
Contact Plating IDC: Phospher bronze, Tin Plated
Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
Housing Colour: Transparent
Shielding Type: Shielded
Operating Temperature: -10° to 66°C

Mechanical

Keystone Body Length: 37.65mm | 1.48in
Keystone Body Width: 17.10mm | 0.67in
Keystone Body Height: 23.64mm | 0.93in
Panel Mating Height: 16.10mm | 0.63in
Panel Mating Width: 14.50mm | 0.57in

Electronic

Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
Contact Resistance: ≤ 20m?
Insulation Resistance: ≥ 500M?
RJ45 Cycle: 750 times
Insertion IDC: 20 times
Wire Gauge min/max: 28AWG
Conductor Diameter:0.5mm Ø
Cable Jacket Diameter: 5.5mm Ø
