T3R58M-6A2S-CL PRS SLIMCAT CAT6A SHIELDED CRIMP CONNECTOR - 100PK

RJ45 28AWG 2-PIECE CLEAR- BOX OF 100

Code: 30633730

100
Call for Availability!
$251 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

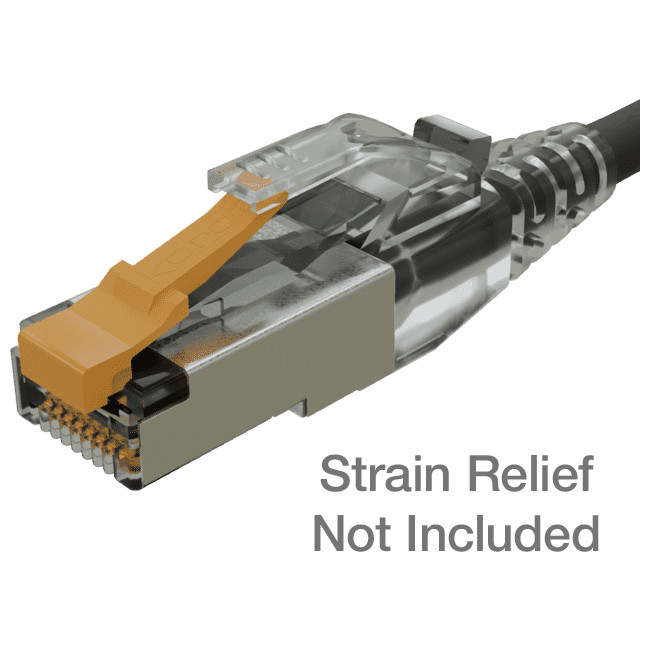

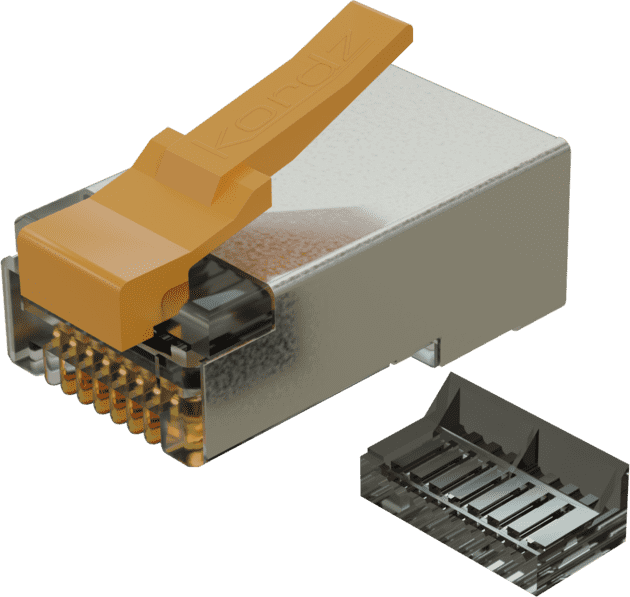

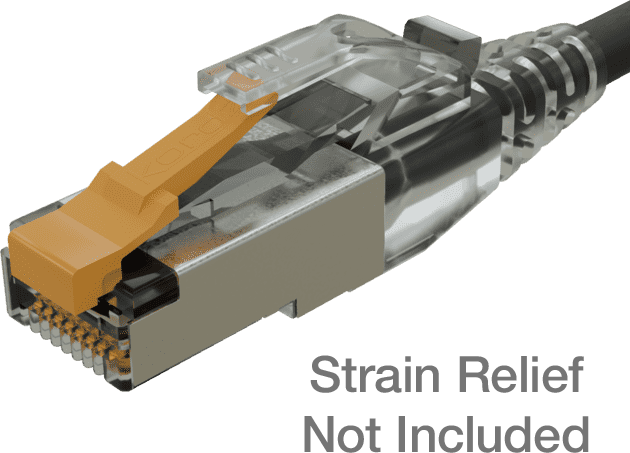

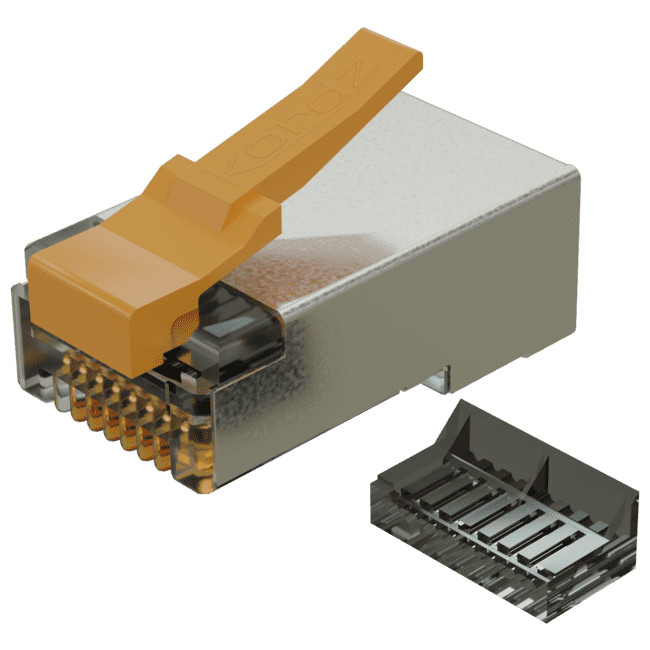

Kordz T3R58M-6A2S-CL PRS Series SlimCat™ CAT6A Crimp Connector- Box of 100

The Kordz PRS SlimCat™ Shielded RJ45 Crimp Connector is designed specifically for use with the Kordz PRS SlimCat™ Cat6A Network Cable and features an innovative composite construction that incorporates a shielded nickel body and a durable ‘snap-proof’ nylon latch and is compatible with the PRO SlimCat™ Strain Relief. This connector is rated for IEEE802.3bt PoE at 100W.

Match it with other Kordz PRS SlimCat™ Cat6A components for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.

Compatible Strain Relief: PRO Series SlimCat Strain Relief

  • Enables delivery of ANSI/TIA-568.2-D Cat6A performance up to 50m
  • Durable ‘snap-proof’ nylon latch
  • Nickel-plated metal shielding
  • Transparent polycarbonate body for termination ease
  • Tinted wire-manager for handling ease and insertion verification
  • Optional PRO strain relief available featuring a removable locking pin
  • 3bt 100W PoE capable
  • UL94 V-0 fire-rated
  • Eco-friendly packaging
  • Lifetime warranty

Technical Info

General

Guaranteed Performance Category: Category 6A
Applicable Performance Standards: ANSI/TIA-568.2-D
Power over Ethernet Performance: IEEE 802.3bt PoE (max 100W)
Power over Ethernet Tested Standards: IEC11801
Shielding Type: Shielded
Shielding Material: Brass with nickel plating
Wiring Method: T568A | T568B

Dimensions

Body Length: 22.50mm
Body Width: 11.68mm
Body Height: 6.6mm

Mechanical

Housing material: Polycarbonate & Nickel Plating
Flammability Rating: UL 94 V-0
Housing Colour: Transparent
Contact Type: 3 Prongs, Solid / Stranded
Gold Plating: 50 ”
Liner: Included
