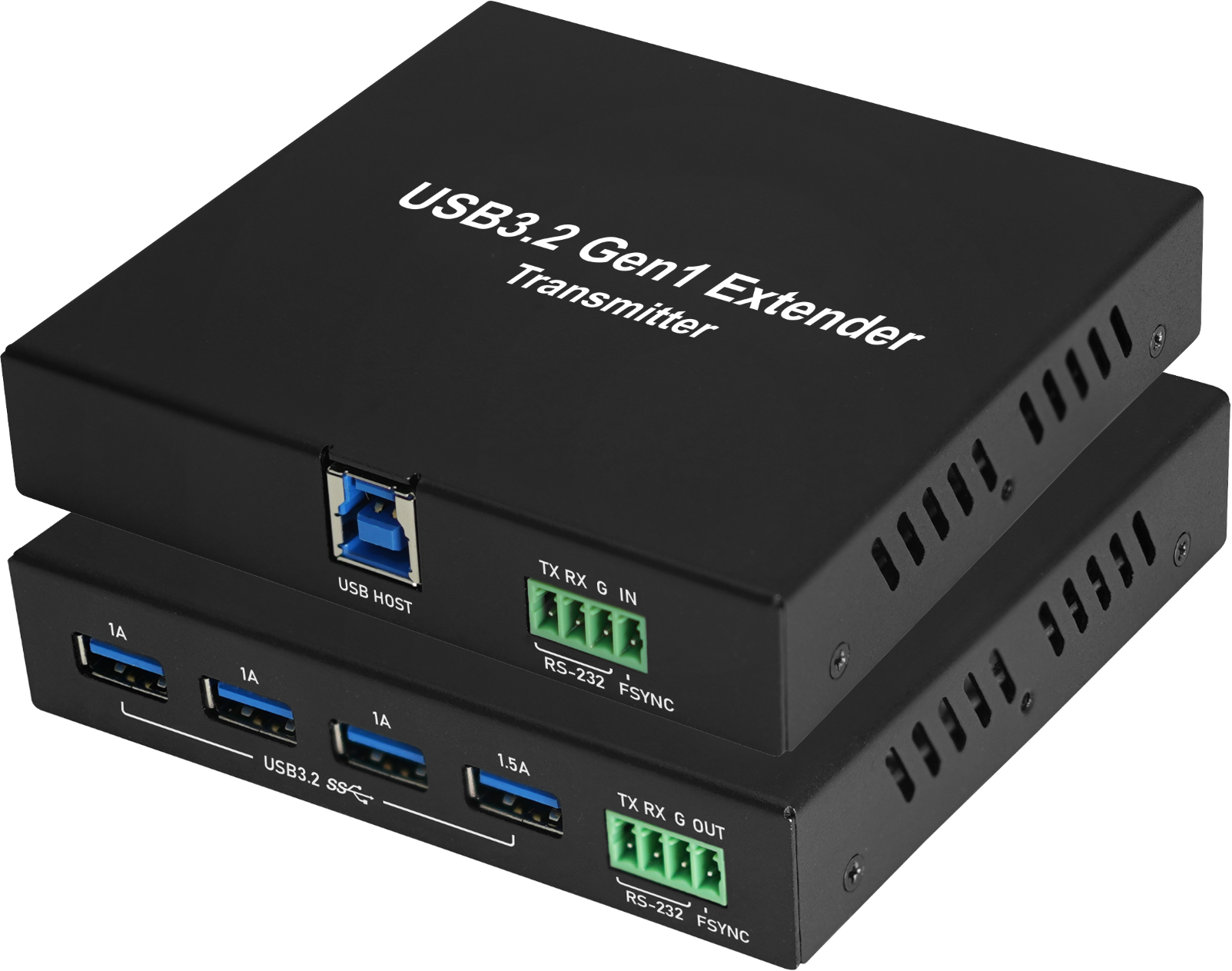

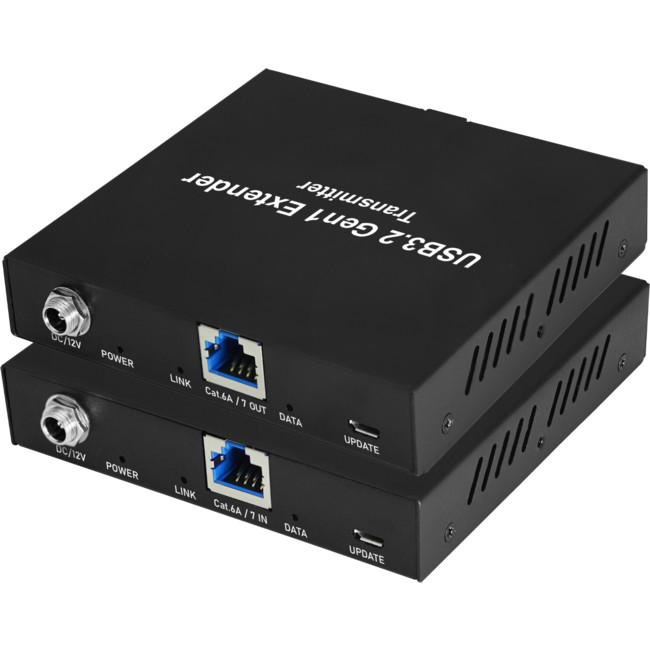

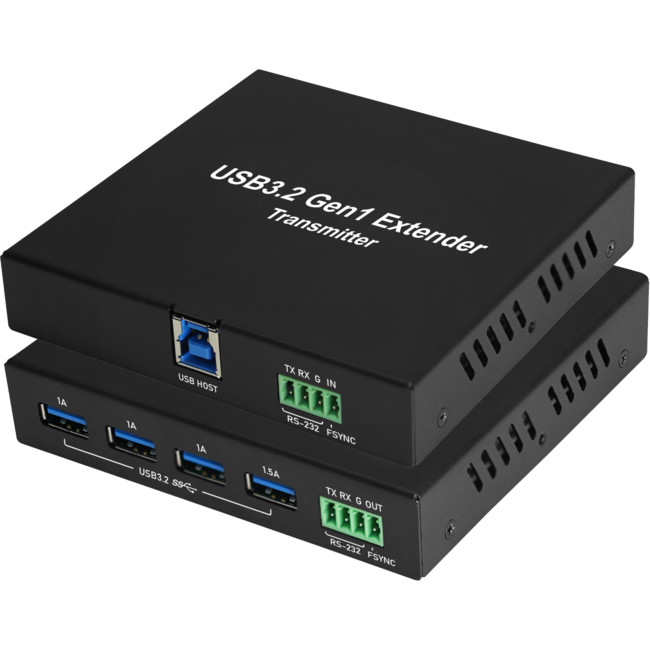

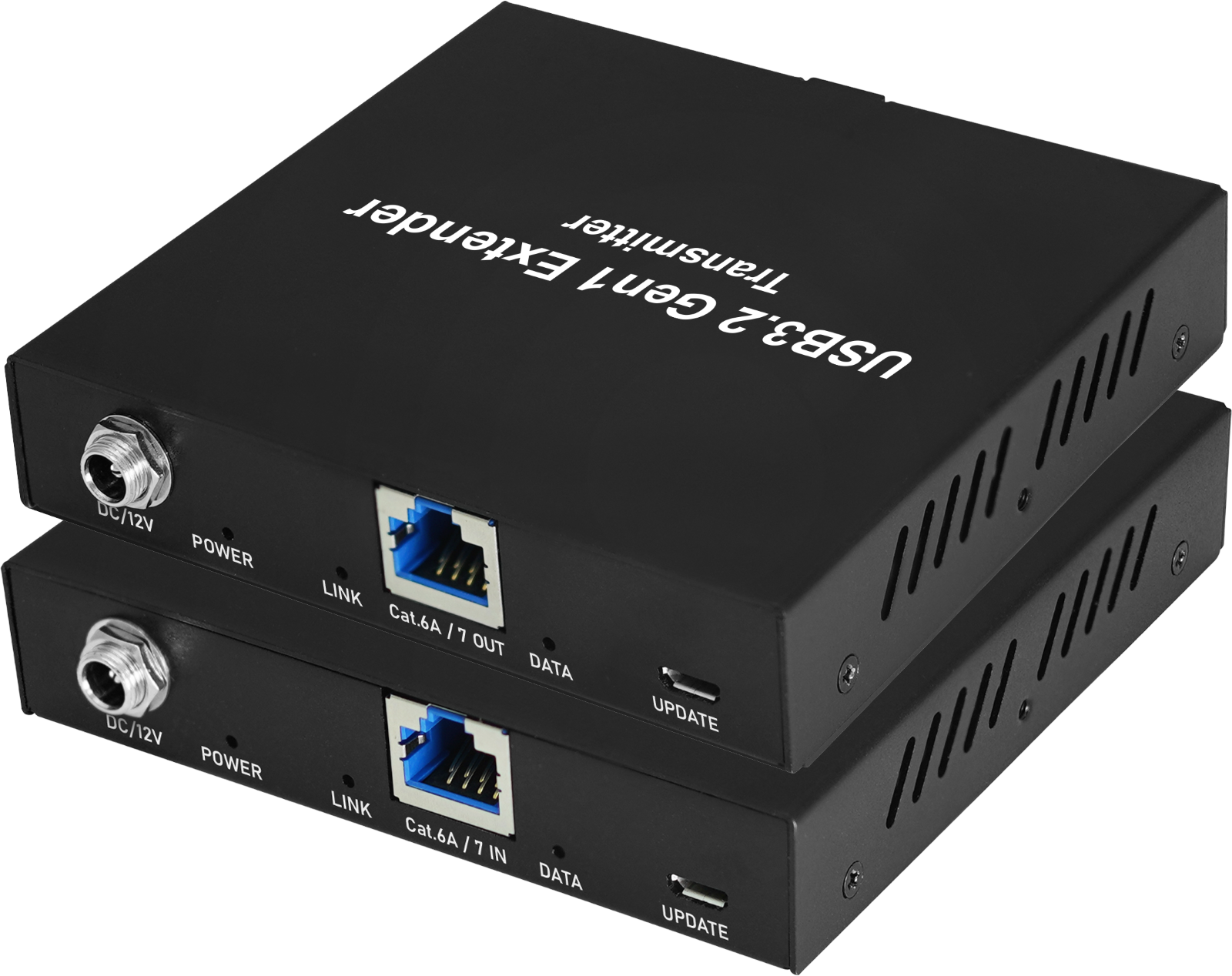

UE4PC6A 4 PORT USB 3.2 GEN1 CAT6A EXTENDER

Krysma USB 3.2 Gen 1 Industrial 4-Port CAT6A Extender Kit 100M

Introducing the latest USB 3.2 Gen 1 Industrial 4-port CAT6A Extender Kit, a cutting-edge solution that supports the USB 3.2 Gen 1 standard at 5Gbps data transfer rate. It’s designed to be fully backward compatible with USB 3.0, USB 2.0, and USB 1.1 specifications.

• Transport USB 3.2 Gen 1 signals up to 100 Meters from Host/Computer
• Supports 4K Cameras, microphones, plus legacy USB 2.0 and 1.0 devices
• 5 Gbps Total Bandwidth for Four Devices
• Send USB 3.2 Gen 1/2.0/1.0 Signals Simultaneously

Extend your USB 3.2 Gen 1 data transmission up to 100 meters using a CAT 6A (or CAT 7) cable. Plus, the receiver (RX) unit comes equipped with a built-in 4-port USB hub, enabling seamless connectivity for multiple USB devices.

Leveraging advanced data transmission technology, this extender ensures reliable performance in various USB device scenarios.

USB Capabilities

• Compatibility: USB 1.X, 2.X, 3.X up to 3.2 Gen1
• Transfer Type: Isochronous, Bulk, Control, Interrupt
• UVC Support: Up to UVC 1.5
• UAC Support: Up to UAC 3.0
• Virtual Graphics: DisplayLink (required USB to HDMI DisplayPort adapter separately)

Application

• Consumer: personal, USB extension, VR.
• Commercial: surveillance, industrial cameras
• Conference and Education: Conference room or classroom.

• Slim profile, easy to install anywhere
• Support USB 3.2 Gen 1 standard, and backward compatible with USB 3.0, USB 2.0, and USB1.1 standard
• Supports up to 5Gbit/s/5Gbps data transfer rate/bandwidth
• Support up to 100m transmission via cat6A/7 F/FTP or U/UFTP cable.
• 100m over Cat6A / 7 F/FTP or U/FTP cable.
  (Note,please do not use UTP, F/UTP or U/UTP cables)
• Pure hardware architecture is compatible with Control/Bulk/Interrupt/Isochronous transmission protocols
• Provide four USB 3.2 & 3.0 device ports on RX, including one 1.5A port for connecting high-power USB devices
• Supports RS232 pass-through for industry camera control
• Plug and play, no driver required, compatible with multiple operating systems
• Support FW update via micro-USB
• TX supports powered by USB host, RX supports powered by local power adapter
• Temperature Range: 0° – 45° C (operating), -20° – 70°C (storage)
• Humidity: max. 90% (operating), max. 95% (storage), non-condensing
• ESD Protection
  • Human-body Model:
    ±8kV (Air-gap discharge)/
    ±4kV (Contact discharge)

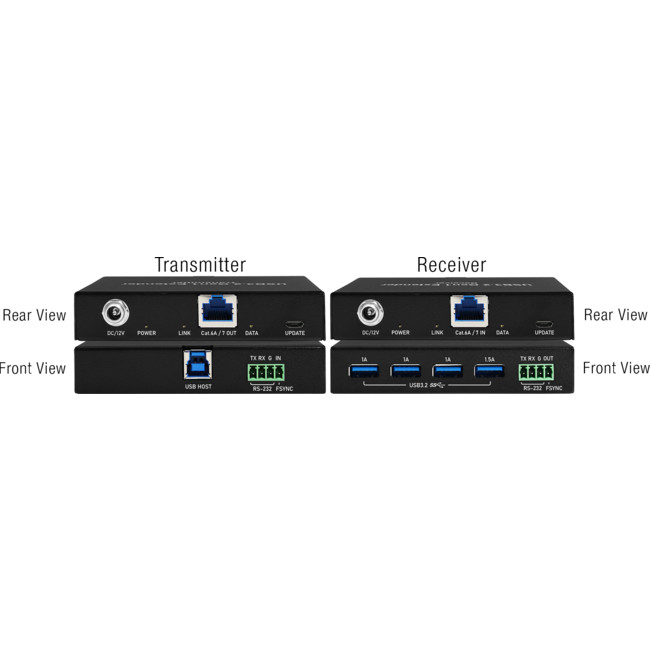

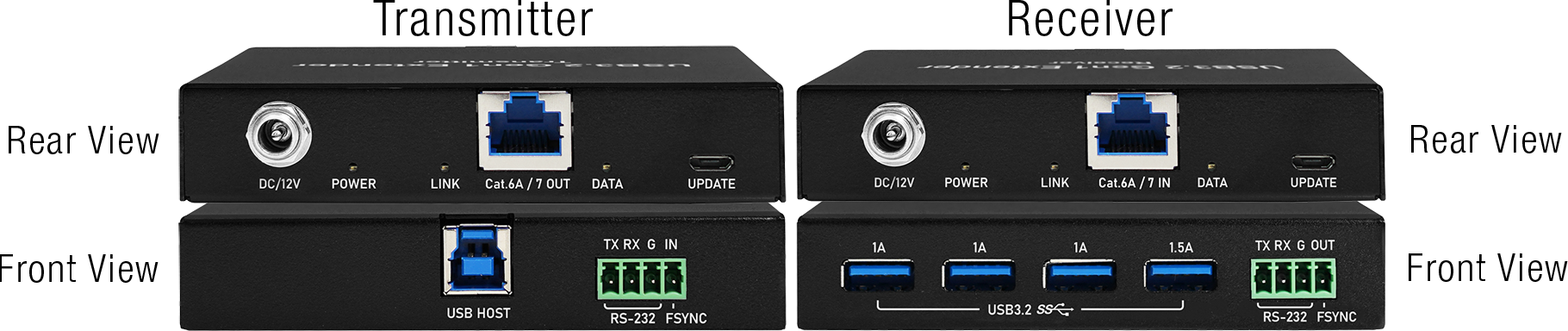

Transmitter

• Ports: RJ45 Female, 1x USB 3.2 Gen 1 Type B Female, DC Power Input, 4-Pin Euroblock RS-232
• Dimensions (WxDxH): 105x100x21mm

Receiver

• Ports: RJ45 Female, 4x USB 3.2 Gen 1 Type A Female, DC Power Input, 4-Pin Euroblock RS-232
• Dimensions (WxDxH): 105x100x21mm

Package Contents

• 1x USB 3.2 Gen 1 Industrial 4-Port CAT6A Extender Kit 100M
• 1x 12V DC 3A Power Adapter
• 1x User Manual
