MX44AVW ADVANCED 4X4 4K VIDEO WALL PROCESSOR

4K HDMI 2.0 QUAD MULTIVIEW

Code: 64537936

EACH
Special Buy-In
TRADE ALERT!
$4499 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

Blustream MX44AVW 4×4 Advanced Video Wall Processor



Audio Breakout Bi Directional ControlMultiview Video Scaling Video Wall WEB GUI

The MX44AVW is an advanced 4K HDMI 2.0 multi-purpose high-speed video processing system. The MX44AVW can be configured for 3 different output modes:

  • 4×4 seamless matrix switcher
  • Advanced video wall solution
  • Quad multi-view presentation system

The MX44AVW supports advanced video wall configurations, allowing individual overlap and rotation of panels; multiview with pre-defined and customisable layouts using PIP, POP, PBP, and up to 4 window layouts.

The MX44AVW features a web browser interface module for control and configuration of the matrix with additional third party control achievable via the front-panel push buttons, IR remote control, RS-232 interface and TCP/IP. The MX44AVW is designed to achieve artistic video wall configurations within retail and showcase style installations.


Features

  • Advanced 4K HDMI 2.0 multi-purpose high-speed video processor supporting matrix, multiview, and video wall function.
  • Advanced video wall configuration allowing individual overlap and rotation of panels.
  • Multiview mode supports PIP, PBP, POP, Dual, Triple and Quad-windows layouts with pre-defined and customisable configurations.
  • Seamless video switching.
  • Supports HDMI 2.0 4K UHD 60Hz 4:4:4 18Gbps specification including HDR.
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K.
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission.
  • HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently.
  • IR routing.
  • Control via front panel, IR, RS-232, TCP/IP and web-GUI.
  • Supplied with Blustream 5V IR receiver and remote control.
  • HDCP2.2 compliant with advanced EDID management

Specifications

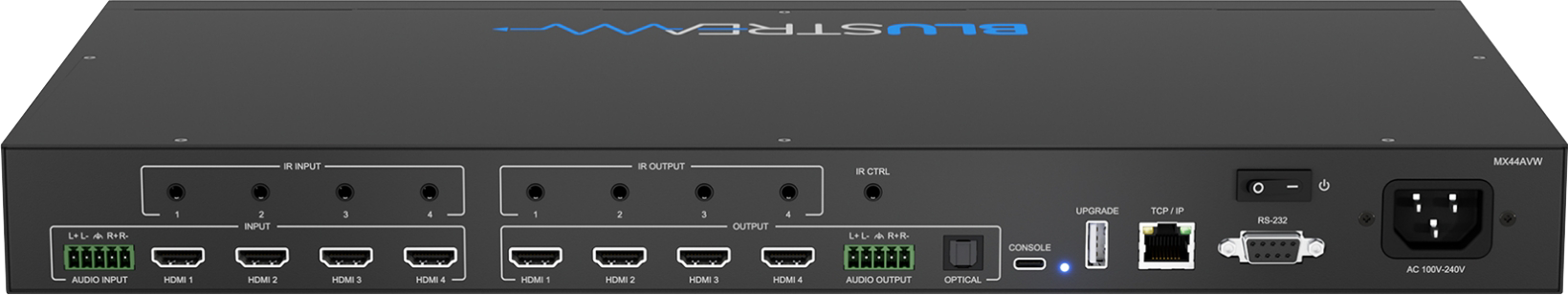

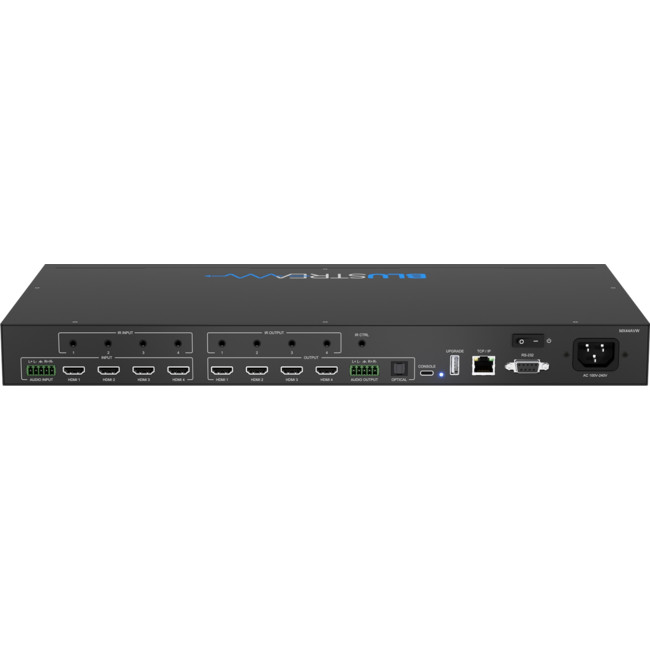

Video Input Connectors 4 × HDMI Type A, 19-pin, female
Video Output Connectors 4 × HDMI Type A, 19-pin
Audio Input Connectors 5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
Audio Output Connectors 1 × Optical (S/PDIF), 5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
Control ports 1 × DB-9, female
Console control ports 1 × USB Type C, female
TCP/IP Control 1 × RJ45, female
IR Input ports 5 × 3.5mm stereo jack
IR Output ports 4 × 3.5mm mono jack
Firmware Upgrade 1 × USB Type A female
Rack-Mountable 1U rack height, rack ears included
Casing Dimensions (W×D×H) 440mm × 240mm × 44mm
Dimensions Including Connections (W×D×H) 440mm × 245mm × 44mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature −20°C to 60°C (−4°F to 140°F)
Power Supply Internal 100-240V AC
Box Contents
  • 1 × MX44AVW
  • 1 × Remote control
  • 1 × IR Control Cable – 3.5mm-3.5mm Cable
  • 1 × 19″ Rack Mounting kit
  • 4 × Mounting feet
  • 1 × Quick Reference Card
  • 1 × IEC Power Cable
