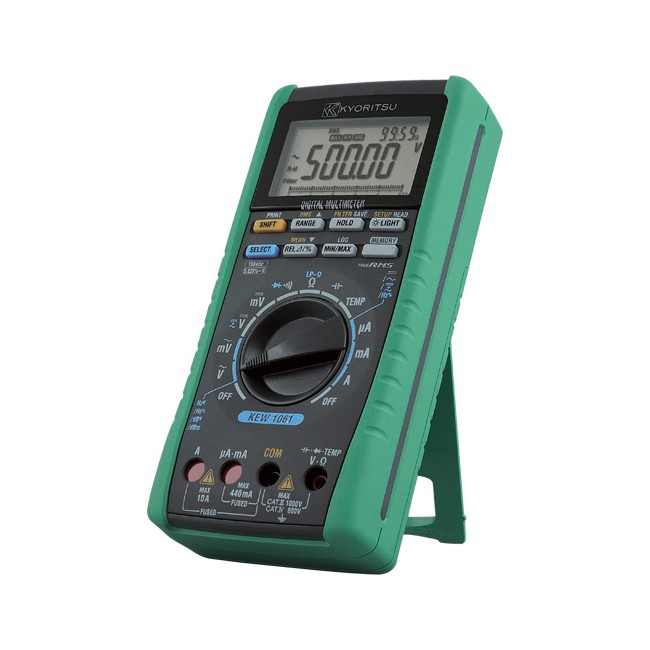

1061KY HIGH PERFORMANCE DUAL DISPLAY

MULTIMETER CAT4 RATED KYORITSU

Code: 44488290

EACH
Special
Buy-In
$1199 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

KYORITSU HIGH PERFORMANCE DIGITAL MULTIMETERS

KEW1061 - PROFESSIONAL MODEL

Kyoritsu Digital Multimeters Brochure (PDFPDF filefile)

Kyoritsu 2010 Multimeter Product Selection Guide (442kb PDFPDF filefile)

High Accuracy, High Performance and Reliable Measurements

  • 0.02% basic DC accuracy
  • Large display with 50,000 counts
  • Dual display for double indication for AC and DC, V and Hz, etc.
  • True-RMS Measurements AC and AC DC
  • Wide AC Frequency bandwidth from 10Hz to 100kHz *
  • True-RMS or MEAN value detection mode can be selected *
  • Fast Peak Hold response time of 250µs
  • Low-pass filter for motor drive measurements *
  • Low Power Ω for resistance measurements on sensible electronic circuits by a low and safe test current *
  • User calibration function

* Only for KEW 1062

Safety design for industrial use

  • Complies with IEC 61010-1 CAT.III 1000V, CAT.IV 600V
  • Terminal shutter to prevent incorrect test leads' insertion in current terminals
  • Very wide operating temperature range from -20 to 55ºC

Reliable support for data management

  • Large data internal memory
    • KEW 1062: 10,000 data (logging), 100 data (manual)
    • KEW 1061: 1,000 data (logging), 100 data (manual)
  • Download data and Live Monitoring on a PC via the USB interface (Option for USB Communication set)

GENERAL SPECIFICATIONS:

  • Measurement function: DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-Ω
  • LowPower-Ω: Measures resistance under lowmeasurement current. (KEW1062 only)
  • Effective value (root mean square value) detection (RMS) and mean value detection (MEAN) can be switched duringAC voltage or AC current measurement (KEW1062 only).
  • Other functions : Data Hold (D・H), Auto Hold(A・H), Peak Hold* (P・H), Range Hold (R・H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight.
  • Display :
    • 5-digit (LCD): 7-segment
    • Main-display: 50000 counts
    • Sub-display: 50000 counts
    • Bar graph indicator: 51-segment
    • Polarity Indicator: "−" Appearsautomatically when the polarity is negative
  • Measurement cycle: 6 times per second
    • Exceptions:
      • Frequency measurement: one time per second
      • Resistance measurement : four times per second
      • Capacitor measurement (50mF): max. 0.03 time per second)
      • Bar graph display 15 times per second
  • Operating temperature and humidity ranges: −20 to 55℃, 80%RH or less (no condensation), 70%RH or less at 40 to 55℃.
  • Storage temperature and humidity ranges: −40to 70℃, 70%RH or less (no condensation)
  • Temperature coefficient: (Accuracy at 23±5℃×0.05)/℃ or less (Temperature ranges: −20 to 18℃ and 28 to 55℃)
  • Power supply: AA-size (R6) 1.5V batteries: 4
  • Battery life: Approx. 120 hours (Operating hours ofalkaline batteries when in DC voltage-mode.)
  • Note: The battery life varies depending on the operating conditions.
  • Withstand voltage: 6.88kVrms AC for five seconds (across input terminals and casing)
  • Dimensions: Approx. 192(L)×90(W)×49(D)mm
  • Weight: Approx. 560g (including batteries)
  • Applicable standards: IEC 61010-1 CAT.Ⅳ 600V,CAT.Ⅲ 1000V Pollution degree 2, IEC 61010-031 IEC 61326-1 (EMC)
  • Accessories included: Batteries: 4, Test leads: 1set (7220), Fuse (included): 440mA/1000V (8926), 10A/1000V (8927), Instruction manual, Calibration Certificate

SPECIFICATIONS:

Alternate Products

True 1
8241KY DATA COMMUNICATION ADAPTOR AND SOFTWARE - USB - KYORITSU 44488300
USB Communication set. USB adaptor USB cable DMM Software Applicable models Kyoritsu models: 1052, 1061/1062
P.O.A.
Special
Buy-In
View Product Increase value Decrease value
True 1
7220KY 1080MM REPLACEMENT TEST LEADS FOR KYORITSU 46010104
High performance test leads from the world class manufacturer, Kyoritsu. Length: 1080mm Applicable Kyoritsu models: 1051, 1052, 1061, 1062
$49.50
Call for Availability!
Increase value Decrease value
True 1
7234KY 1080MM REPLACEMENT TEST LEADS WITH CLIPS FOR KYORITSU 46010106
High performance test leads from the world class manufacturer, Kyoritsu. Length: 1080mm With clips Applicable Kyoritsu models: 1051, 1052, 1061, 1062
$89.00
Special
Buy-In
View Product Increase value Decrease value
True 1
8405KY CERAMIC SURFACE TEMP. PROBE 500¦C TEMPERATURE TEST 46010112
High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1400mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 500 C, Surface type
$695.00
Special
Buy-In
View Product Increase value Decrease value
True 1
8406KY SURFACE TEMPERATURE PROBE 500¦C TEMPERATURE TEST 46010114
High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1380mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 500 C, Surface type
$549.00
Special
Buy-In
View Product Increase value Decrease value
True 1
8407KY LIQUID / SEMI SOLID TEST PROBE 700¦C TEMPERATURE 46010116
High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1540mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 700 C, Liquid, Semi-solid
$495.00
Special
Buy-In
View Product Increase value Decrease value
True 1
8408KY AIR / GAS TEMPERATURE PROBE 700¦C TEST METER 46010118
High performance temperature probe from the world class manufacturer, Kyoritsu. Length: 1540mm Connection: 4mm Banana Plug Applicable Kyoritsu models: 1051, 1052, 1061, 1062 Max. 600 C, Air, Gas
$495.00
Special
Buy-In
View Product Increase value Decrease value
We’re here to help... Our friendly staff are here with technical advice to help you find the right solution for your needs.
The Radio Parts team of industry experts have extensive knowledge in everything electronic.
Call (03) 9321 8300 Contact Us About Us

Be the first to hear about it!

KEW 1061 KEW 1062
Detection mode RMS MEAN/RMS (switch)
DC V 50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V
(Input impedance: Approx. 100MO [50/500/2400mV], 10MO [5/50/500/1000V])

(Basic accuracy)
AC V
[RMS]		 50.000/500.00mV/5.0000/50.000/500.00/1000.0V
(Input impedance: 11MO<50pF [50/500mV/5V], 10MO<50pF [50/500/1000V])
t (Basic accuracy) t (Basic accuracy)
AC V
[MEAN] *		 -- 50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V
(Input impedance:
11MO<50pF [50/500mV/5V],
10MO<50pF [50/500/1000V])

asic accuracy)
DCV ACV 5.0000/50.000/500.00/1000.0V
(Input impedance: 11MO<50pF [5V], 10MO<50pF [50/500/1000V])
(Basic accuracy) t (Basic accuracy)
DC A 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A

(Basic accuracy)
AC A
[RMS]		 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
(Basic accuracy) gt
)
AC A
[MEAN] *		 -- 500.00/5000.0µA/50.000/500.00mA/ 5.0000/10.000A

(Basic accuracy)
DCA ACA 500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
t (Basic accuracy) (Basic accuracy)
O 500.00O/5.0000/50.000/500.00kO/5.0000/50.000MO
(Basic accuracy) t (Basic accuracy)
LowPower-O * -- 5.000/50.00/500.0kO/5.000MO

Basic accuracy)
Continuity buzzer 500.0O (The buzzer turns on for resistances lower than 100±50O)
Diode test 2.4000V ±2dgt
Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)
Capacitance 5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF

sic accuracy)
Frequency 2.000~9.999/9.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz

(Basic accuracy)
DUTY 10~90%
Temperature -200~1372 C ±1.5 C
-328~2501.6 F ±2.0 F
(with the use of K-type Temperature probe)
Measurement
functions		 DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitor, Duty cycle ratio, Decibel (dBV, dBm), ContinuityCheck, Diode Test, LowPower-O *
Other functions Data Hold (D/H), Auto Hold (A/H), Peak Hold * (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save toMemory, LCD backlight
Withstand voltage 6,880V/5 sec.
Application
standards		 IEC 61010-1 CAT.IV 600V, CAT.III1000V Pollution degree 2,
IEC 61010-031, IEC 61326-1 (EMC)
Power source R6 (1.5V)x4 (Auto power off: approx. 20 minutes)
