{tab Introduction}
The Edgeless Series of In-Wall & In-Ceiling Speakers is one of Earthquake Sound's most valued speaker lines. Designed with aesthetics (WAF-wife approval factor) and sound quality in mind, these speakers seamlessly blend into their surrounding as they provide a lifetime of durability and high-end performance.
The goal here is to seamlessly blend into any interior decorand to reproduce the sound of a concert hall or the sound of a movie sound track in any room with the EDGELESS speakers.
The EDGELESS speakers deliver deep, natural bass from the design of their advanced cone and surround. Superb sonic accuracy is guaranteed by the utilization of stiff kevlar in the woofer and silk in the tweeters. Additionally,you can customize the sound of the speakers with /- 3dB adjustment switches that optimize the sound to the acoustics of the room and end user?s own personal preference.
{tab Features}
- Frameless design for reduced visibility/seamless blend
- Low mass stiff kevlar cone bodies for a very smooth,accurate and detailed sound reproduction
- 1" (25mm) silk dome NEO swiveling tweeters
- ±3dB bass and treble controls

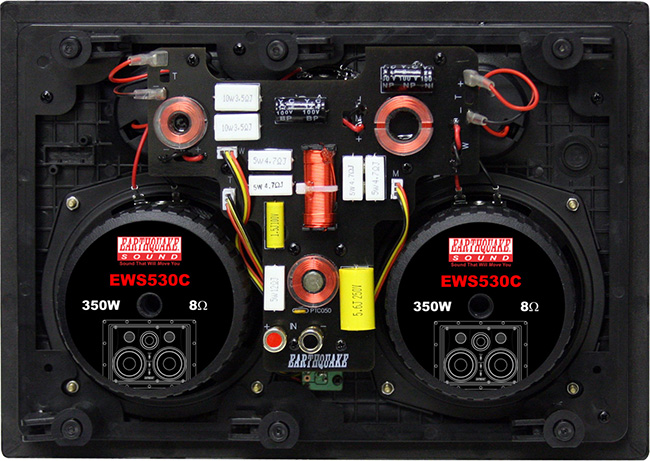

- 12 dB/Octave filter network crossover with polyswitch protection
- Gold plated, spring loaded terminals
- Easy to use Turn ‘N’ Lock installation mechanism
- Magnetically attached and paintable grilles
{tab Specifications}
- Frequency Response: 40Hz ~ 20kHz
- Sensitivity: 87dB
- Nominal Impedance: 8Ω
- Power Handling: 350 Watts
- Three-way system using:
- Two 1" silk dome compression tweeter
- One 3" Mid range
- Two 5.25" Woofers
- Dimensions:
- Height : 248mm
- Width: 349mm
- Cut out hole: 326mm x 224mm
- Mounting depth: 85mm
{tab Downloads}
{tab About Earthquake Sound}
In 1984, Joseph J. Sahyoun, a music freak and Aerospace Engineer unhappy with the existing loud speaker technology and performance, decided to put his advanced knowledge in aerospace technology to use. He pushed his technological boundaries to the limit to create the kind of subwoofer he could live with.
Earthquake's innovative audio technologies connect millions of people around the world with the sound solutions they need. EQ Sound designs, manufactures, and markets high performance audio systems for use in home and audio-video systems, and after-market and OEM automotive systems.
