Name: IPA1PC238 IP CEILING SPEAKER - POE POWERED 8W AMPLIFIER AND INTERNAL DATA STORAGE
Brand: TOA
SKU: 39775785
Price: 1299 AUD
Availability: InStock

8W AMPLIFIER AND INTERNAL DATA STORAGE

Code: 39775785

EACH

Special
Buy-In

TRADE ALERT!

$1299 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.

Click here if you agree to these terms and to show the Add To Cart button.

View Product

Freight Estimator Enter 4 digit postcode

{tab Overview}

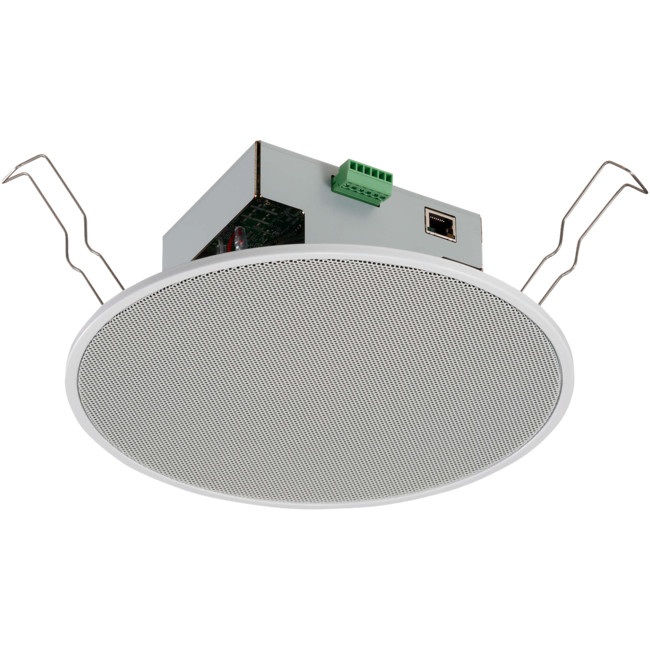

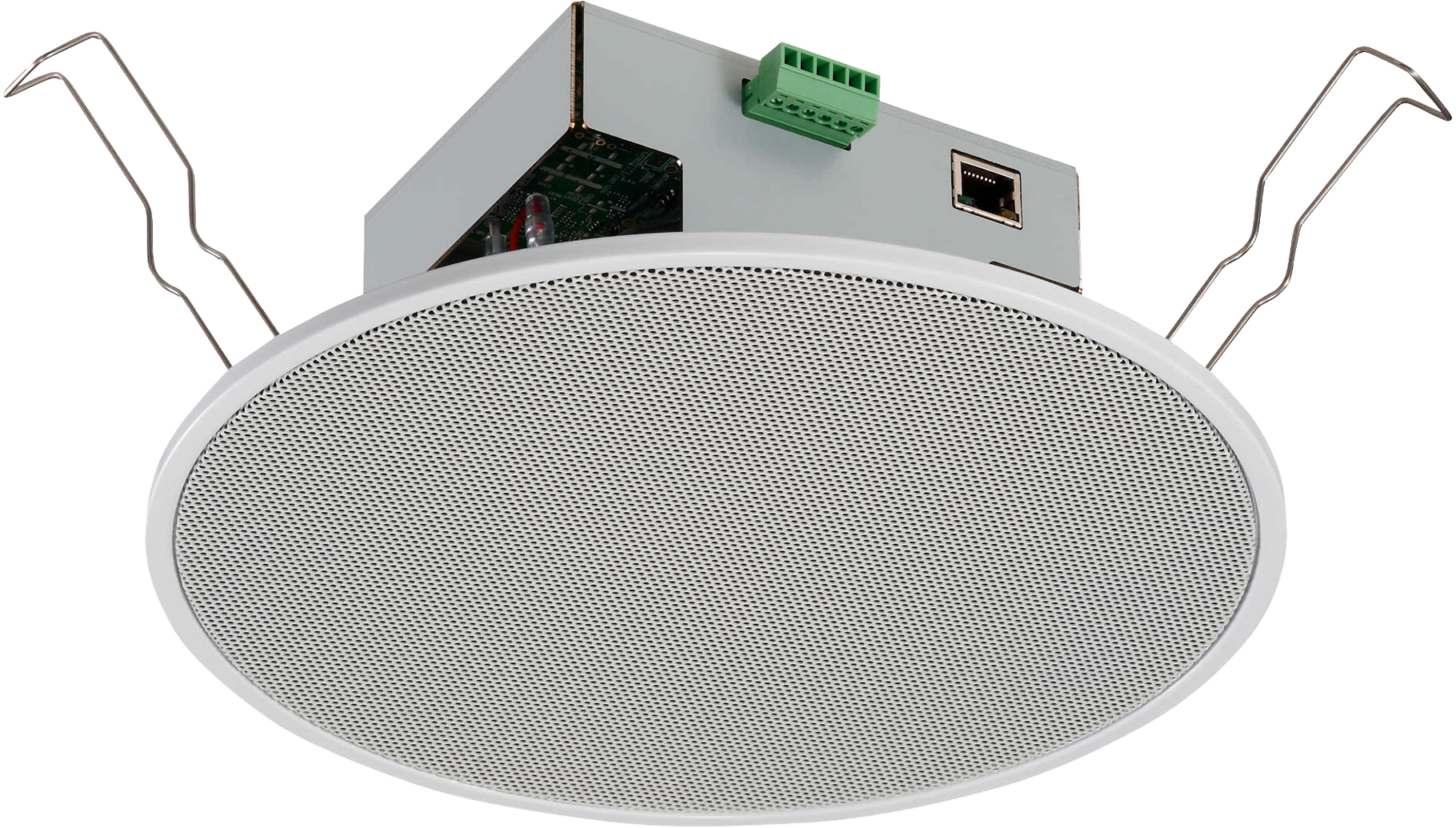

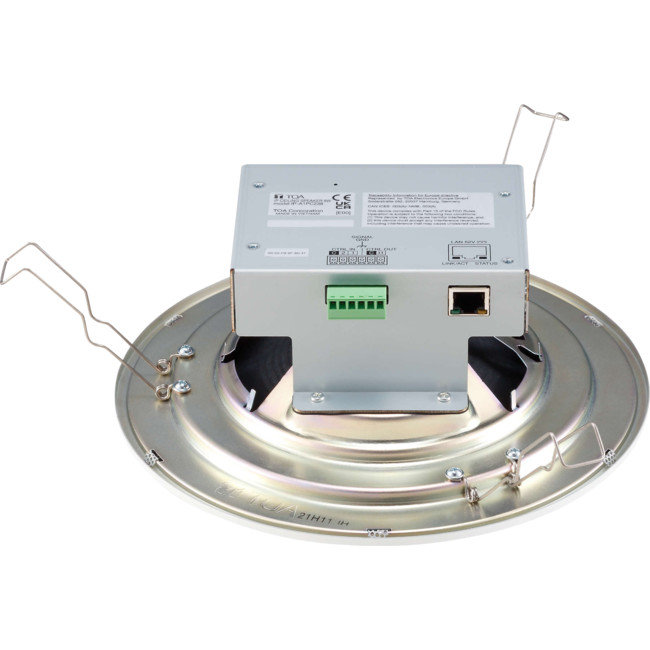

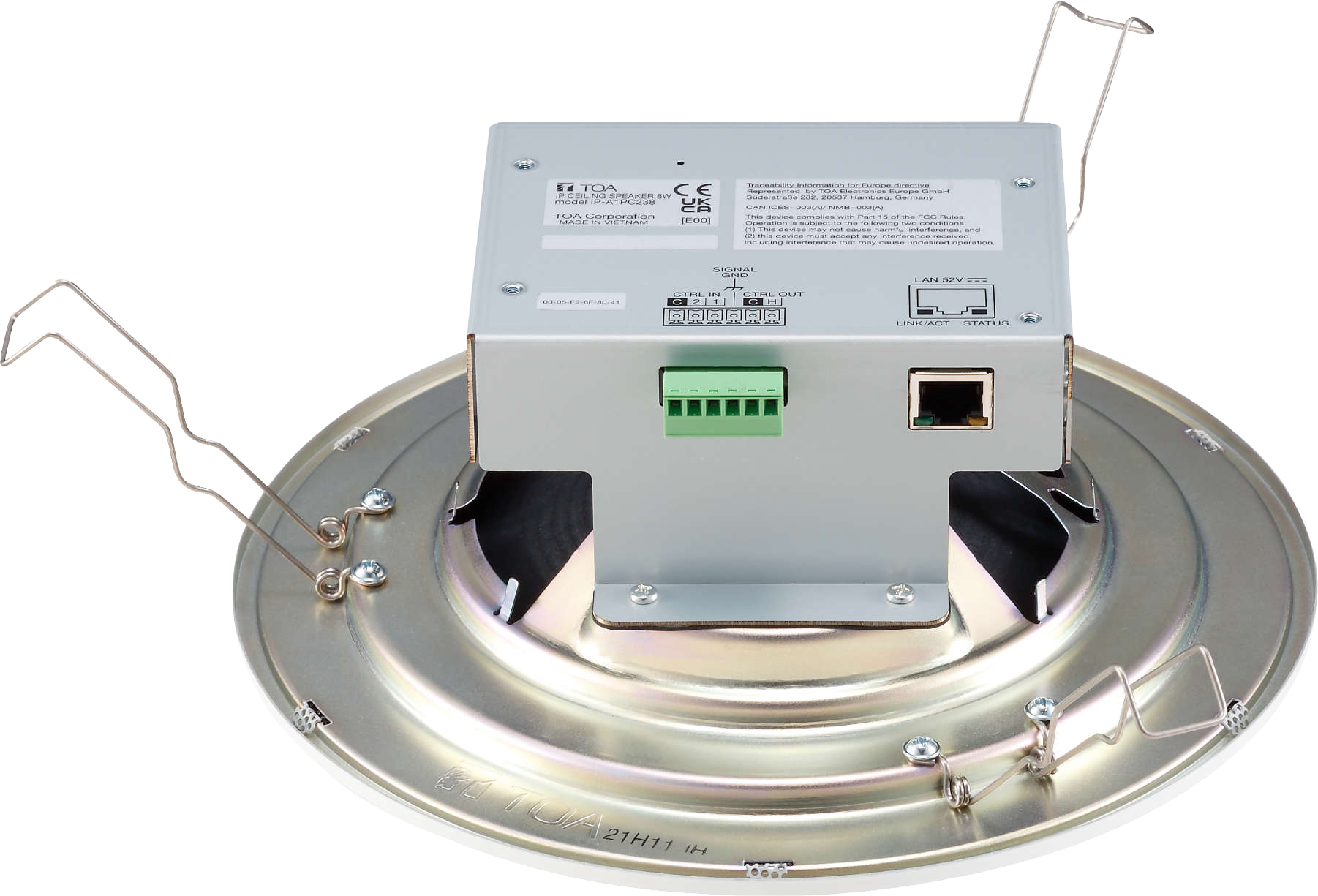

TOA IP-A1PC238 IP Ceiling Speaker

Discreet Design for Indoor IP Solutions
Based on open standards, the IP-A1PC238 IP Ceiling Speaker plug right into standard IP networks and can be easily integrated into your video management system (VMS) or SIP-based communication system. A single standard network cable provides both power and connectivity with your network. The IP-A1PC238 IP Ceiling Speaker comes with a built-in 8W power amplifier and spring clamps for easy and quick installation. Its light weight and universal applicable diameter enable a variety of indoor applications.

Easy to customize over API (Application Programming Interface): Adapt the individual volume to the environmental noise level and optimize it to time of day, distance, and degree of emergency.

Flexible Group Paging: The IP-A1PC238 IP Ceiling Speaker can be addressed via multicast enabling audio paging into groups of IP devices simultaneously.

Application Examples:
Audio calls and paging into indoor areas like offices, conference areas, doctor's offices, educational facilities, hotels or malls.

Features

Receive SIP audio, ONVIF* audio and multicast audio (up to 20 addresses)
Local broadcast using internal audio files
16cm (6″) cone-type speaker for in-ceiling installations
8W built-in amplifier
2 control inputs and 1 control output
API (HTTP commands)
Audio file storage (20 files, total 80 MB, WAV/MP3)
Different playback programs (repeat, duration, weekly timer)
PoE-powered

*ONVIF is a registered trademark of ONVIF Inc.

Ideal For:

Video Management Systems
SIP Systems
Conference Rooms
Educational Facilities
Hospitals / Health Care
Hotels
Office Buildings
Access control points
Malls
Shopping centers
Supermarkets

{tab Specifications}

Specifications

IP-A1PC238
Power / Current Consumption	12.95W (rated output)
Frequency response	60 Hz - 20 kHz
Rated output	8W
Sensitivity (1W, 1m)	94dB
Max. SPL (1m)	103dB
Speaker Component	16cm cone-type
Network I/F	1 × 100BASE-TX (RJ-45)
Network Protocol	TCP/IP, UDP, HTTP, RTP, RTSP, RTCP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)
Control Input	2 × no-voltage make contact (terminal block)
Control Output	1 × open collector (terminal block)
Operating temperature	0°C to +50°C
Power Source	PoE
Finish	Frame: Steel plate, traffic white paint (RAL 9016 or equivalent) Grill: Steel net, traffic white paint (RAL 9016 or equivalent)
Dimensions	230mm × 89 mm (Ø × D)
Weight	0.88kg
Accessories (included)	Pattern paper × 1 Removable terminal plug (6 pins, preinstalled on the unit) × 1

{/tabs}
