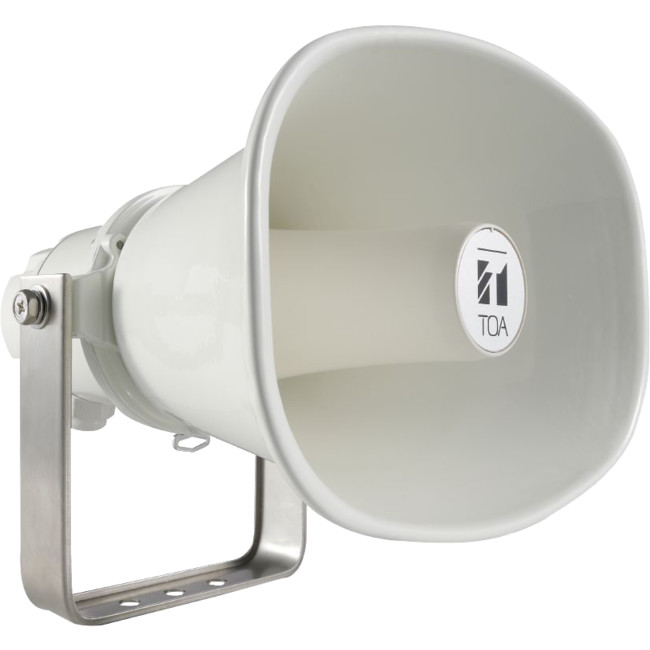

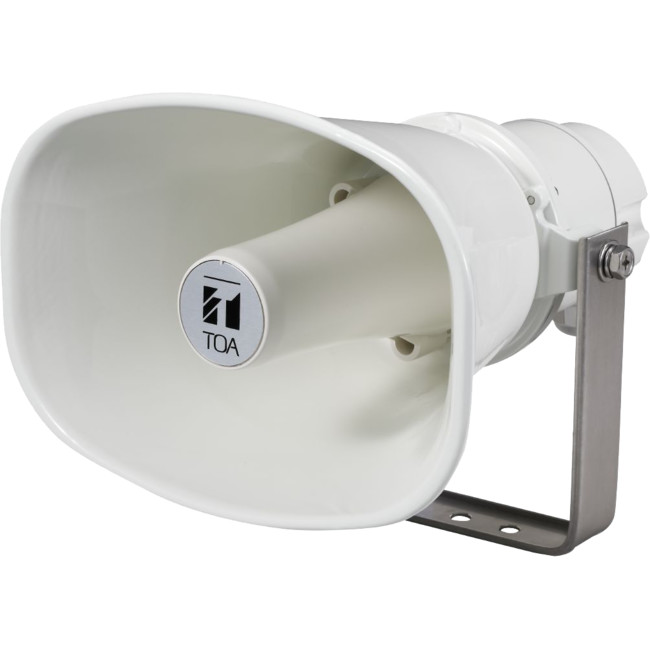

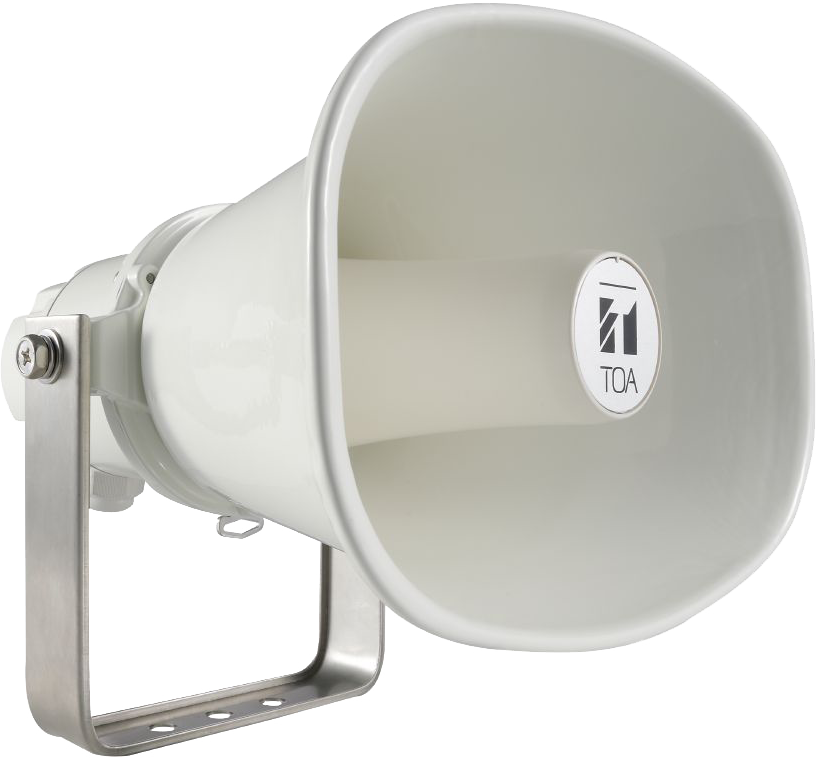

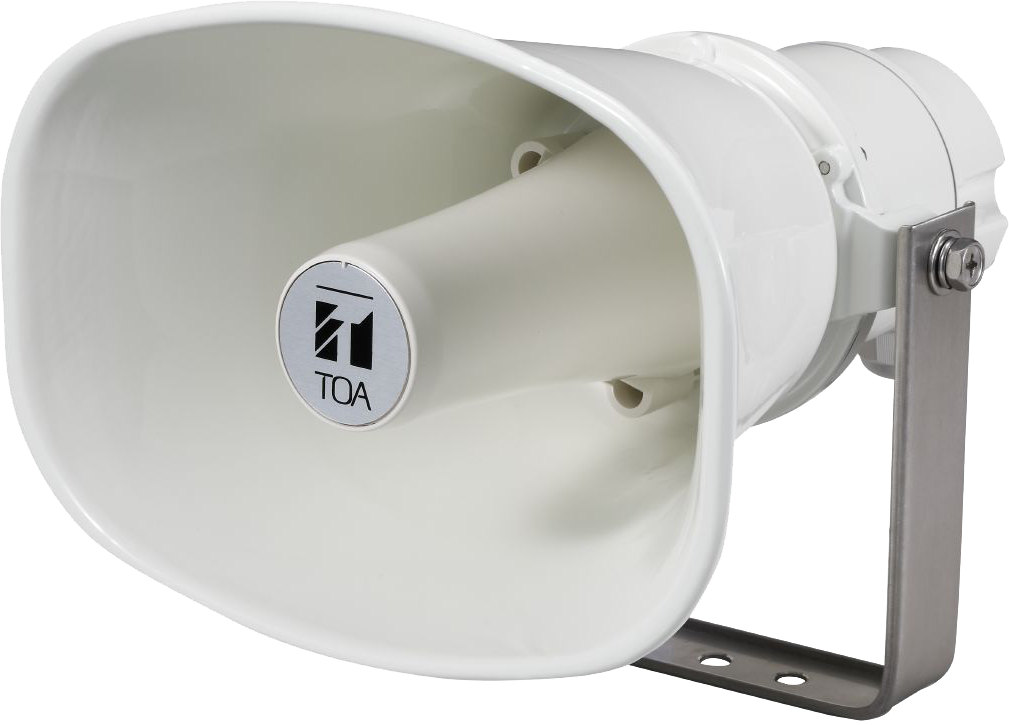

TOA IP-A1SC15 15W IP HORN SPEAKER WITH SIP
The IP-A1SC15 is an IP paging horn speaker to deliver clear announcements via network with 124dB output capabilitypowered by PoE+ power source.
Its rugged enclosure is IP66 rated for outdoor environment.
The IP-A1SC15 supports common network protocols for easy integrations with Video Management Systems and other SIP-compatible VoIP systems and devices.
Group paging function is available with 10 Multicast ports for zone paging requirements.
Internal sound source file storage allows storing pre-recorded messages of tones which can be played back by 2control inputs or Remote API (HTTP)..
Add a strong voice to your Video Management System (VMS) or SIP-based Communication System
Based on open standards, the IP horn speaker IP-A1SC15 plugs right into standard IP networks and can be easily integrated with your VMS or SIP-based system.
The IP horn speaker broadcasts crystal clear pre-recordedvoice messages or live speech announcements, manually or automatically triggered by VoIP (Voice over IP) / SIP phone systems, IP camera systems, image sensing or motion detection video systems.
Maximum sound pressure level of 124 dB: The connection ofthe IP horn speaker with PoE+ enables the integrated 15W amplifier to broadcast excellent sound quality at a very high sound pressure level over long distances.
Robust weather resistant housing:
The IP-A1SC15 combines the TOA proven robust constructionwith the latest IP technology.
The IP horn speaker is ready to broadcast even at extremetemperatures between -30 °C and + 55 °C and has an IP66 (Dust/Water) protected housing.
Simple to install wherever you need a strong voice: A single standard network cable provides both power and connectivity with your network.
Easy to customize over API (Application Programming Interface):
Adapt the individual volume to the environmental noise level and optimize it to time of day, distance, and degree of emergency.
Key Features
- Maximum sound pressure level is 124dB at 15 W powered with PoE+
- Operating temperature is -30 °C to +55 °C
- IP66 All weather durability, water and dust protection
- Up to 20 sound sources can be stored on integrated audio source
- Individual volume level adjustment to each audio source to ensure uniform and harmonized output
- 15W PoE+ powered horn speaker (or 8W PoE powered)
- 112dB SPL @ 1W/1m and 124dB SPL @ 15W/1m
- Supports SIP, Multicast, VMS broadcast and remote API
- Up to 20 on board messages
- 2 control inputs, one control output
- Aluminium horn flare
- Stainless Steel brackets and fittings
Application examples for this product:
- Video Management Systems
- SIP Systems
- Construction sites
- Parking garages
- Perimeter Protection
- Shopping centers
- Malls
- Access control points
- Stadiums
- Sport facilities
- Security service
- Factories
Specifications
| IP-A1SC15 |
| Frequency response | 280 Hz - 12.5 kHz |
| Sensitivity (1 W, 1 m) | 112 dB (500 Hz to 2.5 kHz, peak level) |
| Maximum sound pressure level (1 m) (value) | 124 dB |
| Network | Network I/F: 100BASE-TX, MDI/MDI-X, RJ-45 |
| Network protocol | TCP/IP, UDP, HTTP, RTP, ARP, ICMP, RTSP, SIP (RFC3261) |
| Indicator | LAN LINK/ACT (green), STATUS (orange) |
| Power source | PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3) |
| Rated output | 15 W (at PoE+ powered), 8 W (at PoE powered) |
| Power consumption | 22 W (at PoE+ powered, rated output) 13 W (at PoE powered, rated output) 5 W (IEC62368-1) |
| Control input | 2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (3 pins) |
| Control output | 1 channel, open collector output, withstand voltage: 30 V DC, control current: 10 mA or less, removable terminal block (3 pins) |
| Operating humidity | 90% RH or less (no condensation) |
| Operating temperature | -30°C to +55°C |
| Finish | Aluminium, ABS resin, Polycarbonate, Stainless steel, paint, off-white (RAL 9010 or equivalent)
|
| Dimensions | 222 x 211 x 276 mm (W x H x D) |
| Weight | 1.4 kg |
| Accessory (included) | Rear Cover...1x, Removable Terminal Plug (3 pins)...2x |
