PSS83T-MK2-BLK BLACK 8" 2 WAY SURFACE MOUNT SPEAKER

SELECTABLE 70V/100V/8 OHM

Code: 39775588

EACH
Special Buy-In
$990 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

Sonance Pro Product Overview

Sonance Professional Series includes a range of 70V, 100V, 8 Ohm selectable In-Ceiling, Pendant and Surface Mount Speakers that delivers unparalleled fidelity, extremely low distortion, wide dispersion, and exceptional reliability. The range also shares consistent voicing, ensuring seamless sonic integration when used together throughout the dynamic spaces of a commercial project.

Sonance Professional Series has been engineered with a level of attention to detail beyond what is typical of most traditional commercial audio brands of the industry. With flexible form factors to support in-ceiling, surface mounted, or suspended pendant style applications, Sonance Professional Series speakers and subwoofers are intentionally designed to blend into any environment, contributing to an overall elevated experience for guests, business owners, and employees in any commercial environment.

Each product in the series includes a full-fidelity Sonance Laminated Core Transformer for uncompromised 70V/100V performance, heavy duty voice coils for reliability at high SPL, high excursion woofer for extended bass extension, and chambered 1" pivoting tweeter for precise high-end detail and exceptional off-axis performance.

Features

  • 70V/100V/8 ohm selectable
  • Full fidelity Sonance Laminated Core Transformer with adjustable tap settings
  • Flexible form factors: in-ceiling, surface mount, pendant
  • Consistent voicing across form factors
  • Chambered 1" tweeter for precise high-end detail and exceptional off-axis performance
  • 4”, 6”, 8” models
  • Sleek, minimalistic enclosure design
  • UL 1480, EN54-24, and UL 2043 certified (in-ceiling models)
  • UL 1480 and UL 2239 certified (pendant models)
  • UL 1480 certified, IPX4, Mil Spec 810, and UV IEC 529 (surface mount models)
  • GLL codes available and loaded into EASE Address database for acoustic system mapping and modeling

PS-S83T-MK2-Black Professional Series

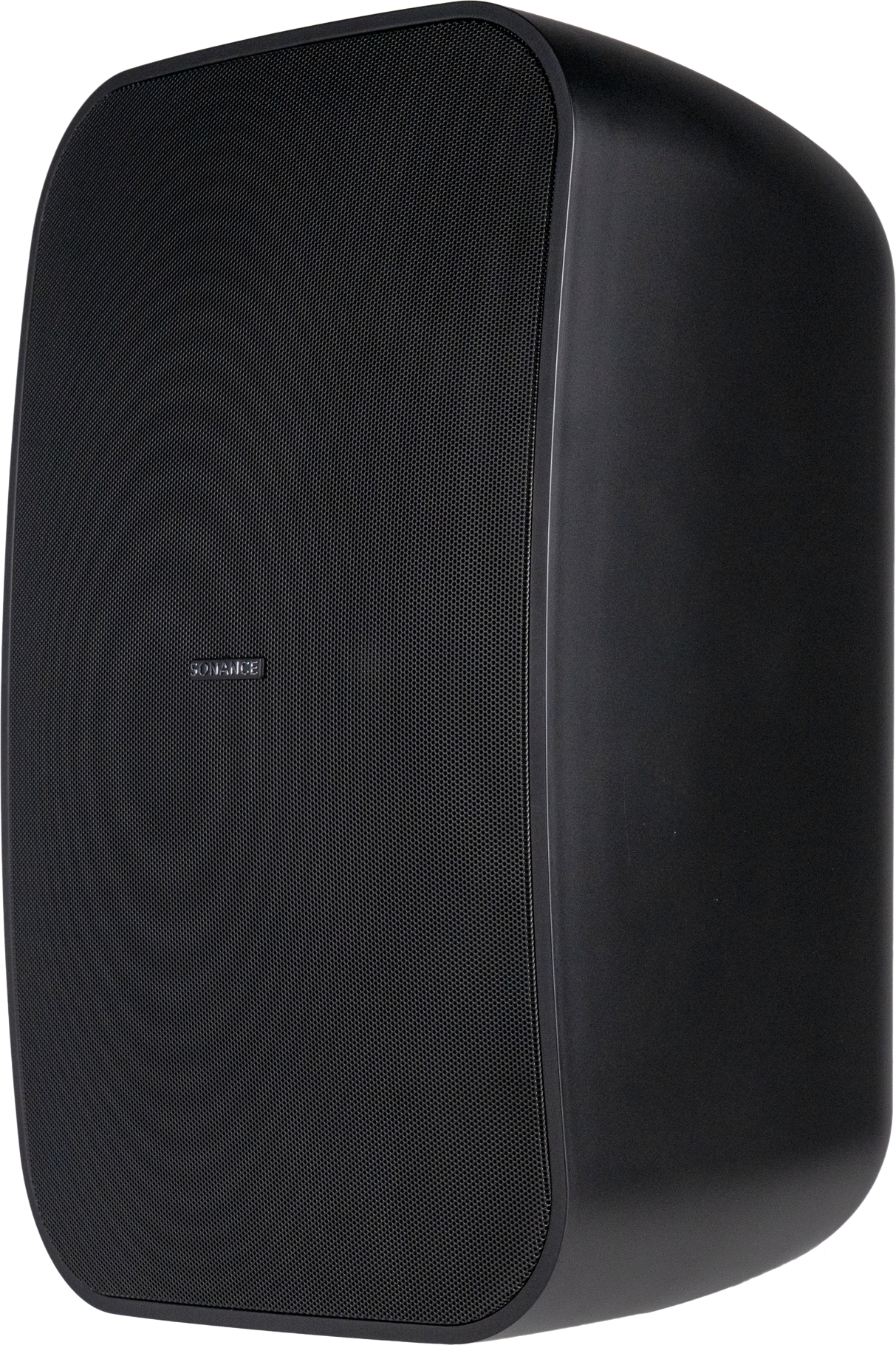

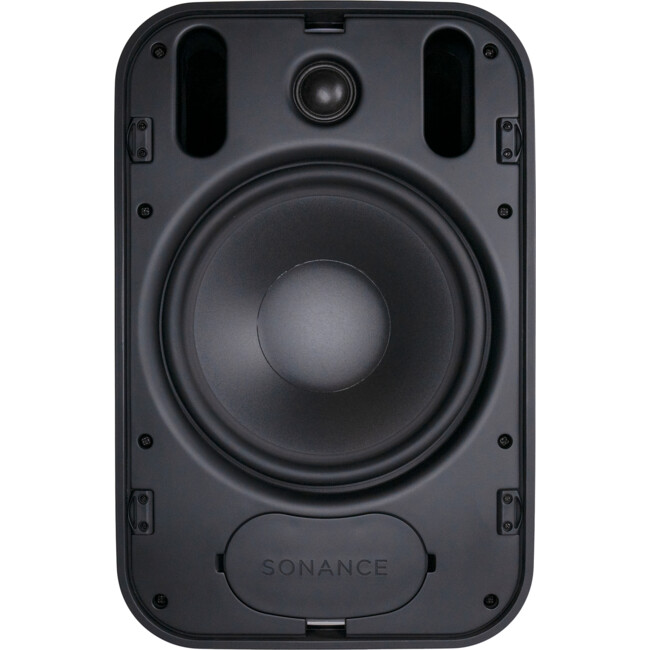

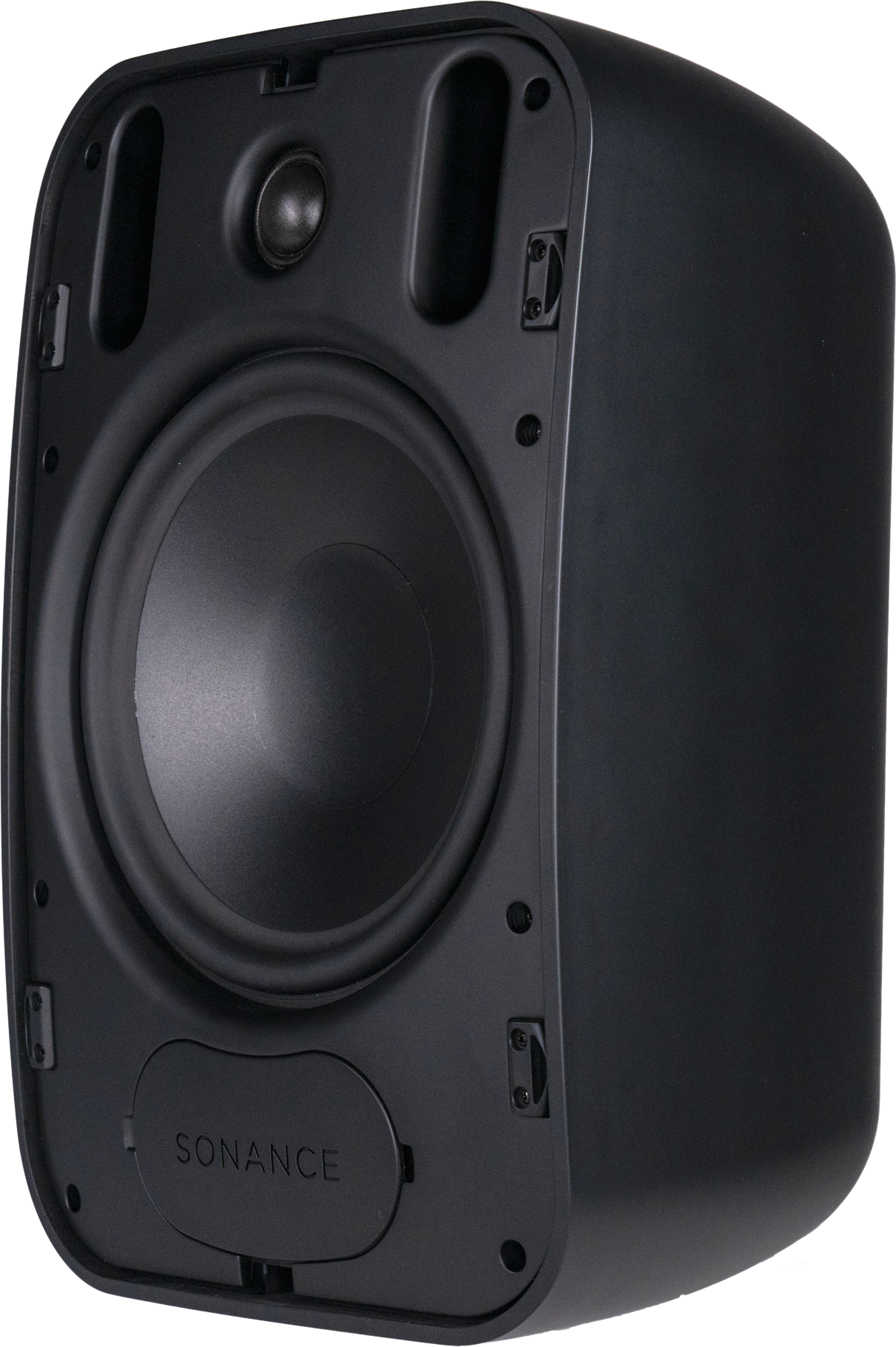

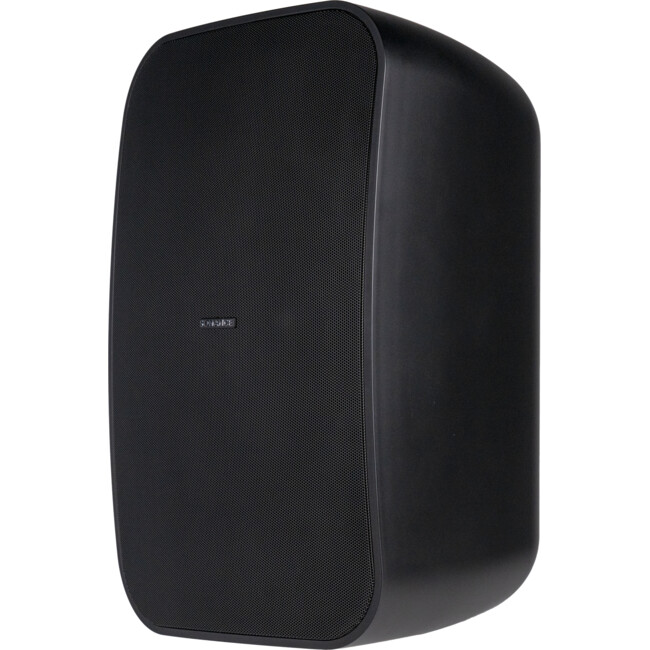

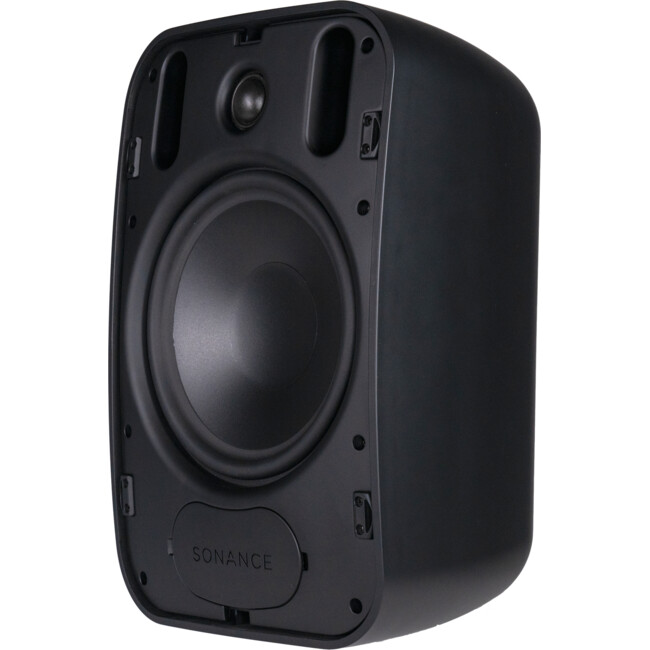

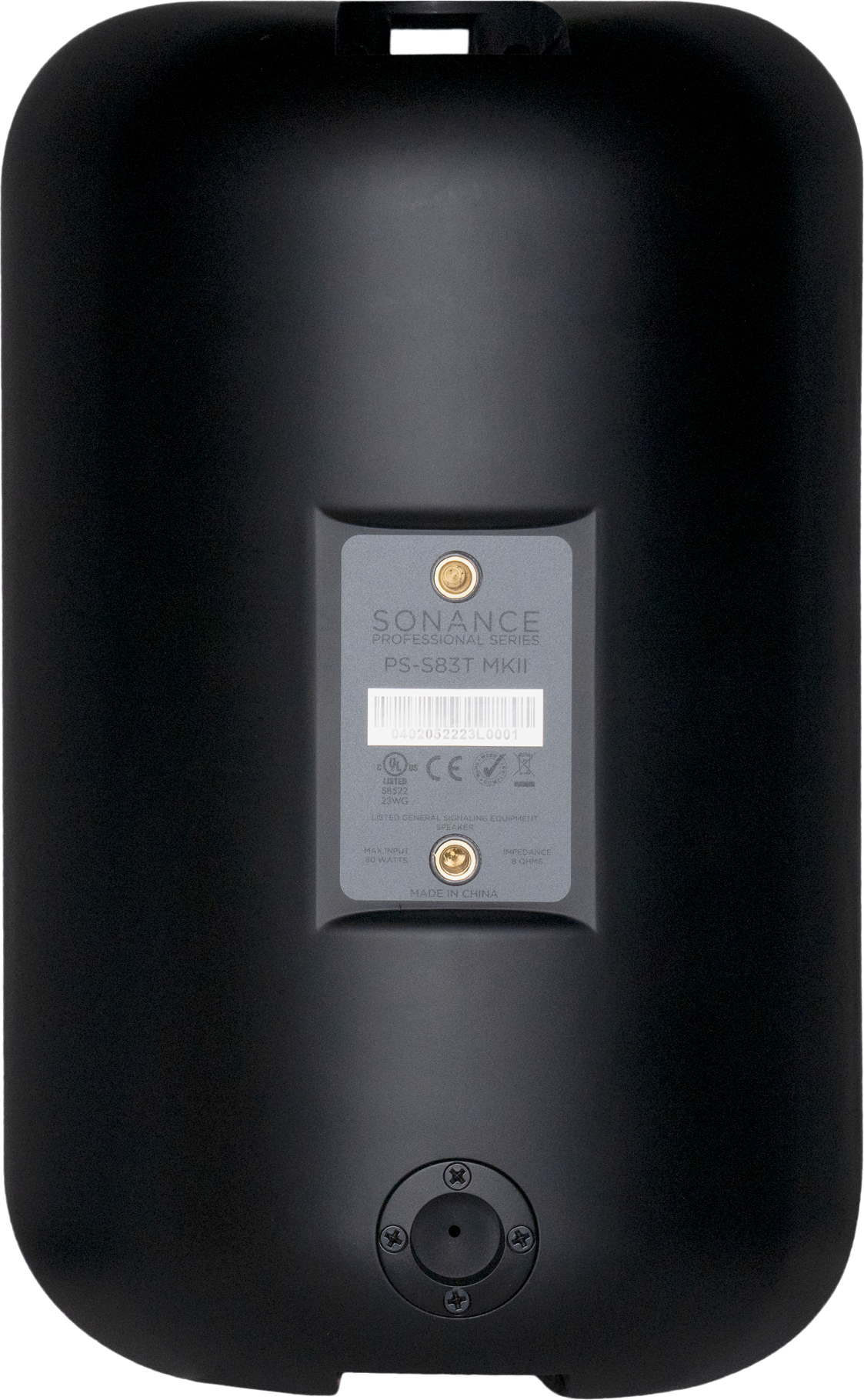

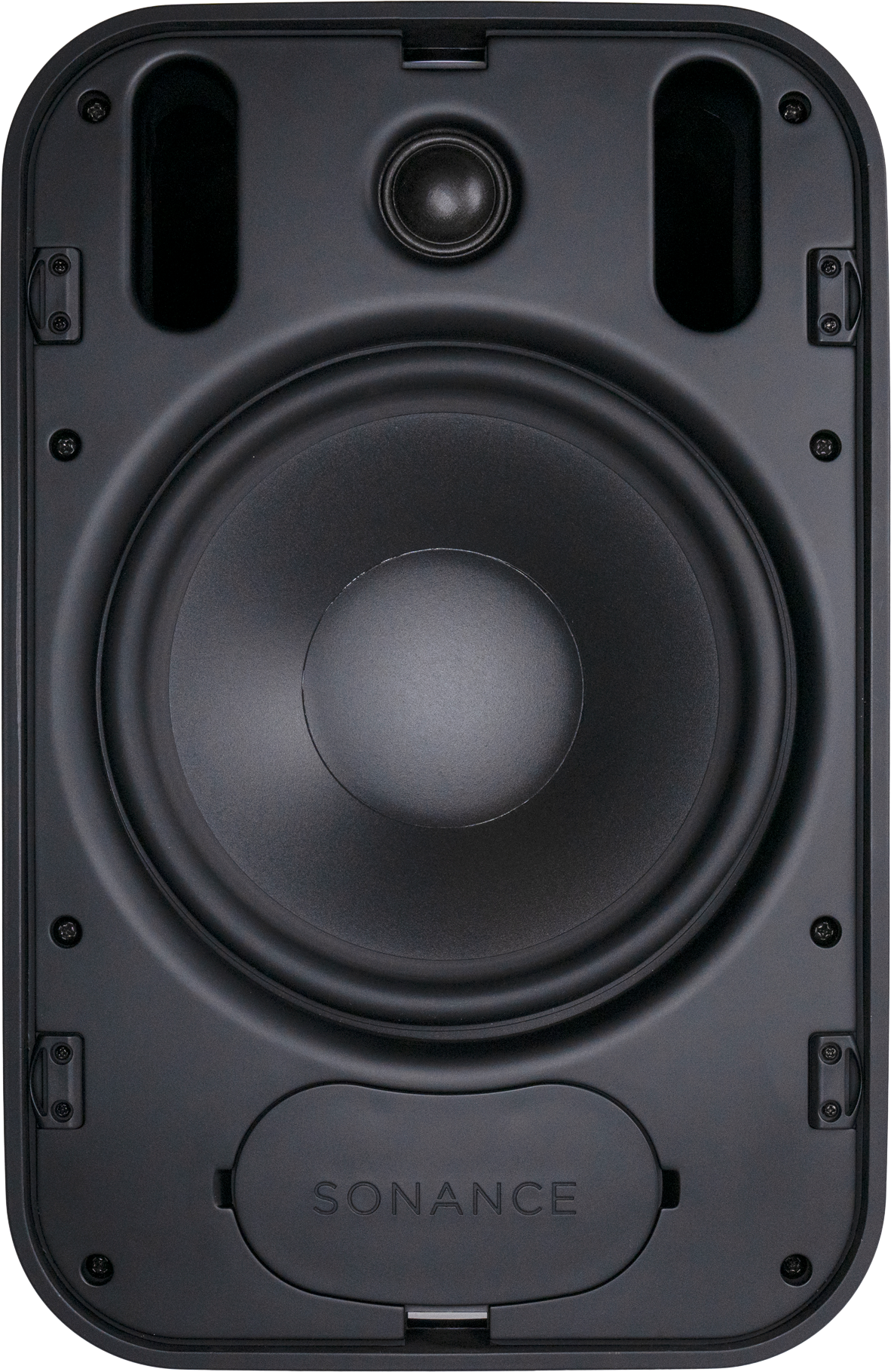

The Sonance PS-S83T MKII two-way surface-mount loudspeaker features a high-excursion 8" woofer, and 1" tweeter for clean, accurate sound. The weatherized IP45-rated enclosure includes Sonance’s Fast-Mount® bracket and front cable connection to speed up the installation process and provide a minimalistic appearance. UL1480 and UL2239 certifications ensure durability and safety.

Key Features

  • Class-leading sensitivity & sonic performance
  • Exceptional off-axis response
  • Heavy-duty voice coil for longevity and reliability
  • Ultra-low saturation transformer for uncompromised performance on 70V/100V lines
  • Consistent voicing across product range
  • Clean and minimalistic design
  • Available in black or white (paintable)
  • FastMount® bracket system for easy installation

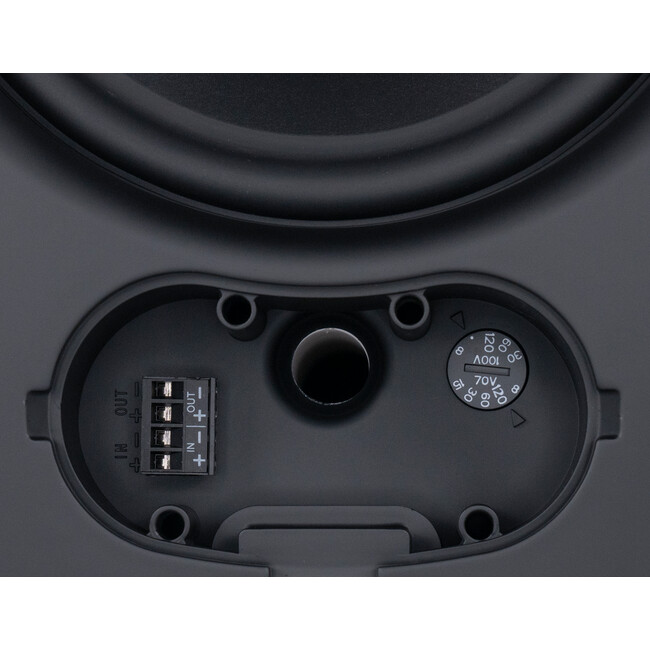

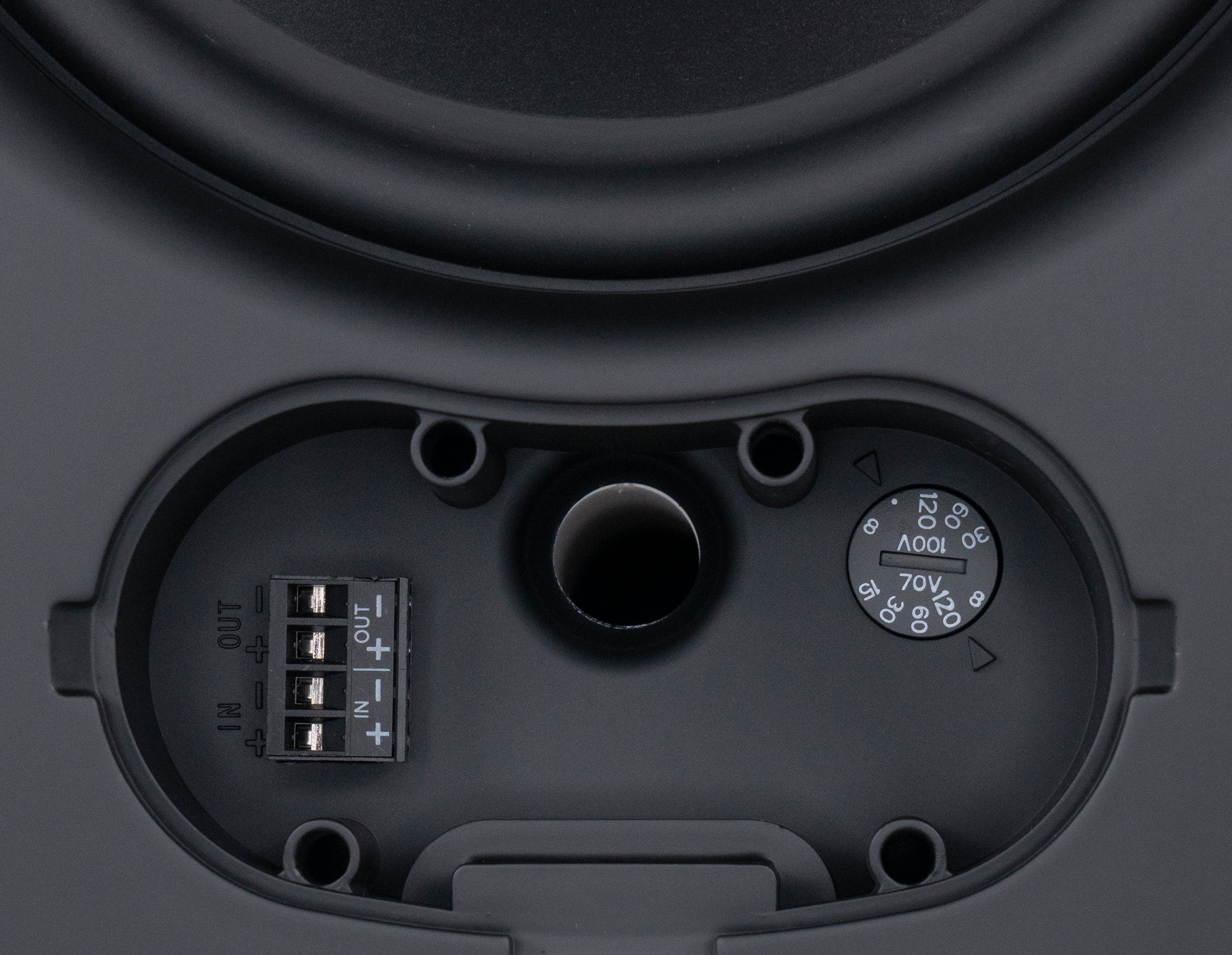

  • Front-located cable connector and tap selector
  • Connector and tap selector cover

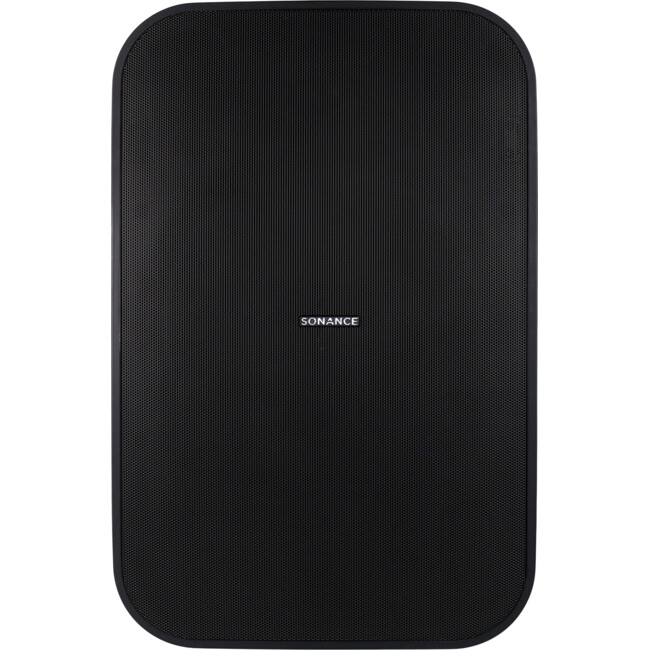

  • Corrosion-resistant powder coated aluminum grille

Specifications

  • SKU / Colour
40201 (Black), 40202 (White)
  • HF Driver
1" (25mm) Cloth Dome, Pivoting, Ferrofluid cooled
  • LF Driver
8" (203mm) Polypropylene Cone, Butyl Rubber Surround
  • Frequency Response ( /- 10db)
41Hz - 25kHz
  • Frequency Response ( /- 3db)
55Hz - 20kHz
  • Power Handling (RMS)
160W program, 80W pink noise
  • Sensitivity
91dB (2.83V/1m)
  • Rated Maximum SPL
110dB @ 1 meter (3.3 feet), 116dB peak
  • Nominal Impedance (Ohms)
8 ohms
  • Transformer Taps
70 V / 100 V: 60W, 30W and 15W 70 V: 7.5W
  • Dimensions (Diameter x D)
9.01" x 14.02" x 8.58" (228.85mm x 356.11mm x 217.93mm)
  • Nominal Coverage Angle


  • Maximum SPL (Peak)
116dB peak

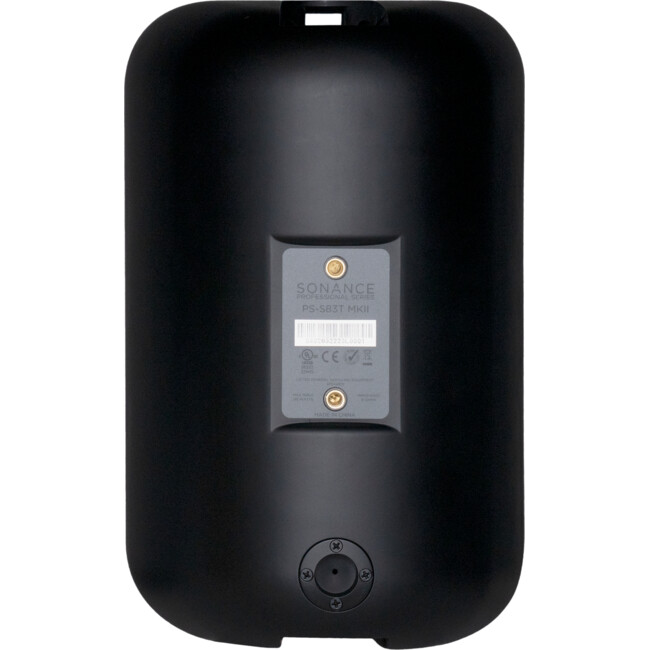

  • Mounting Bracket
U-Bracket with Sonance FastMount
  • Grille
Powder Coated Aluminum Friction Fit
  • Input Connector
Front-mounted four pin, Euroblock with loop output connections
  • Certifications
UL 1480;UL 2239;NFPA 70;Mil Spec 810;IEC 529
  • Environmental
Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529
