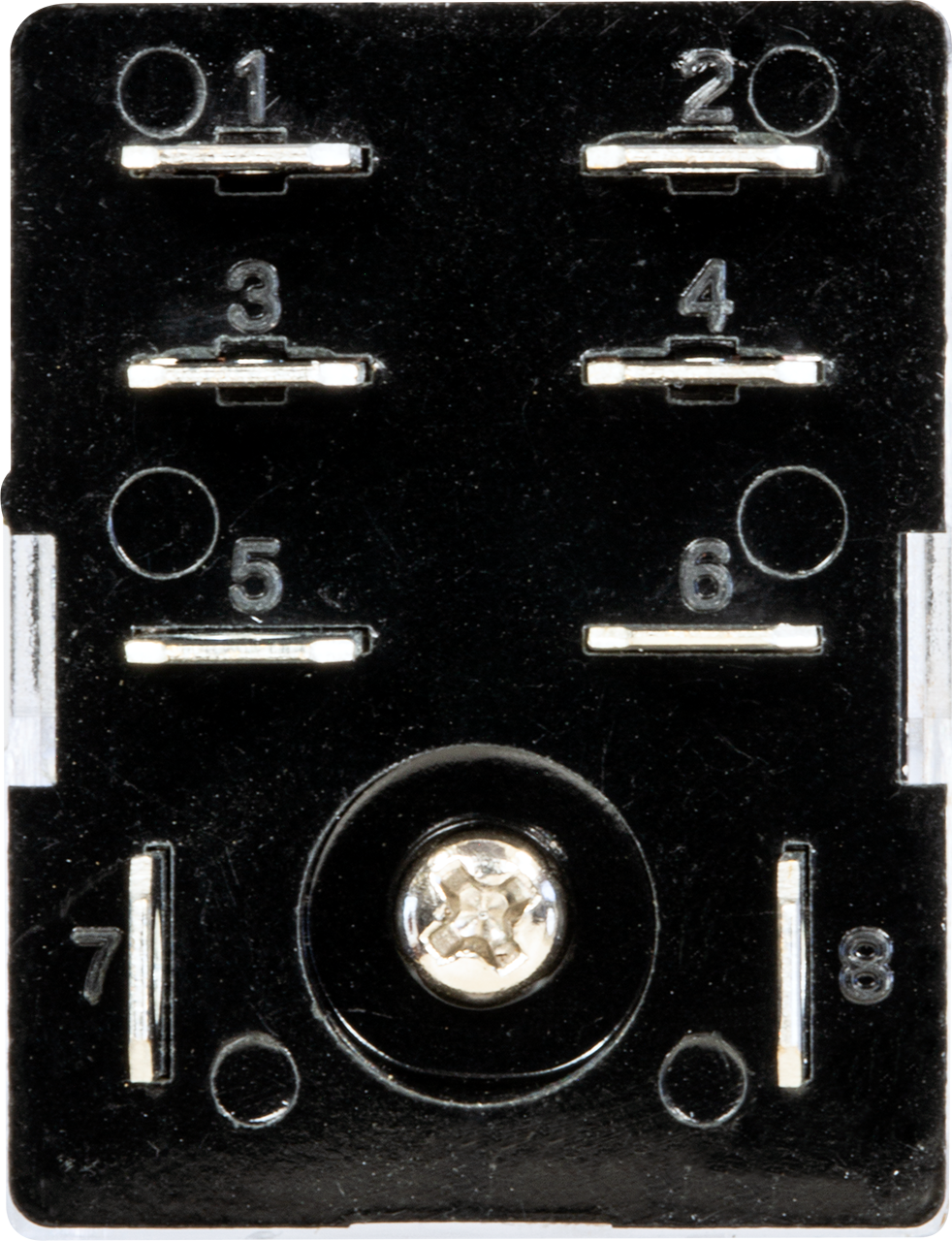

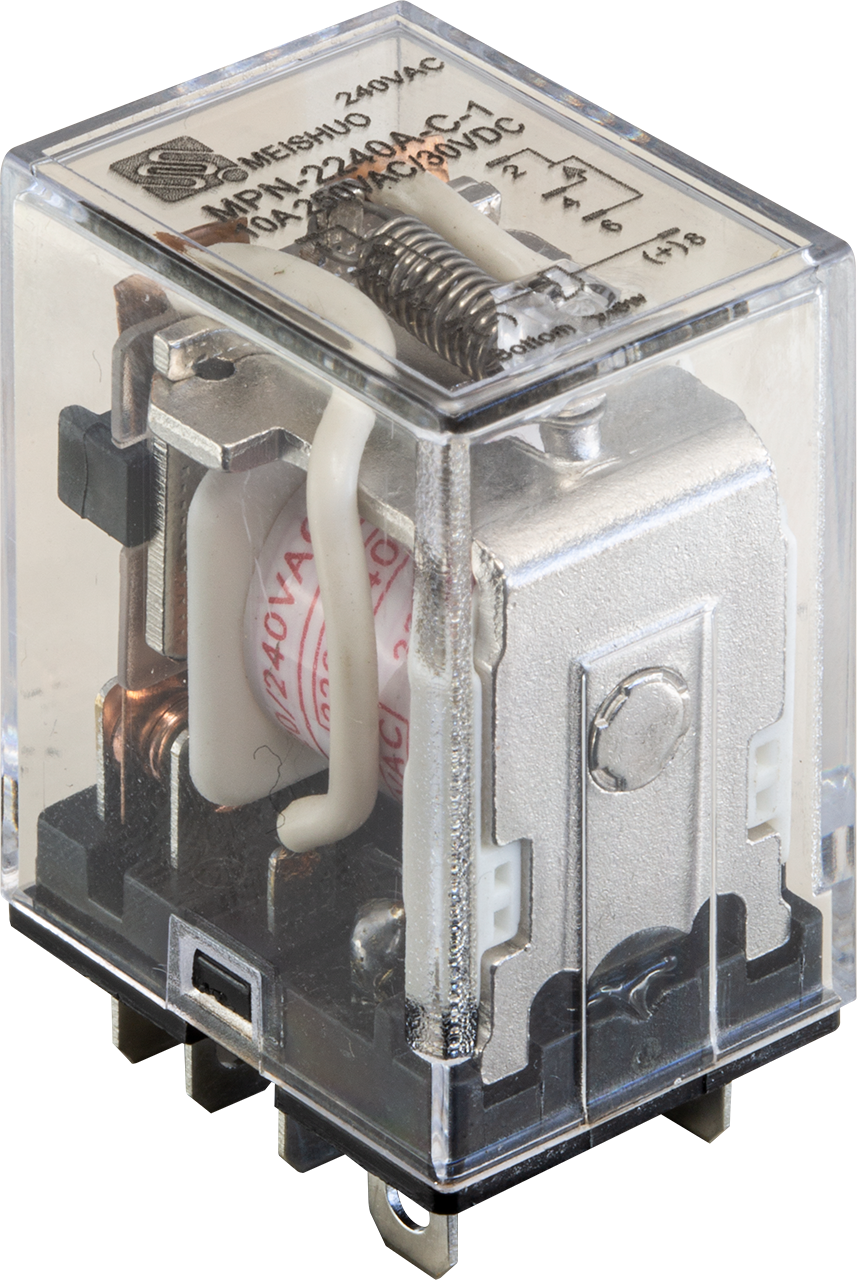

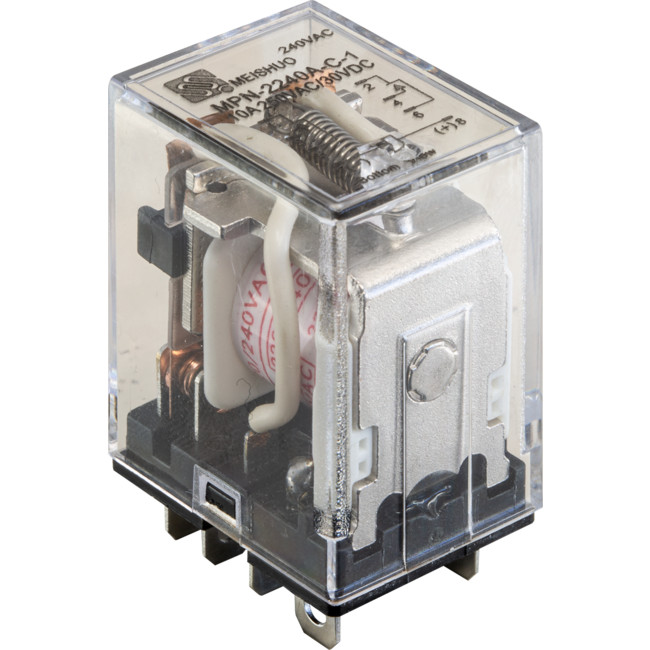

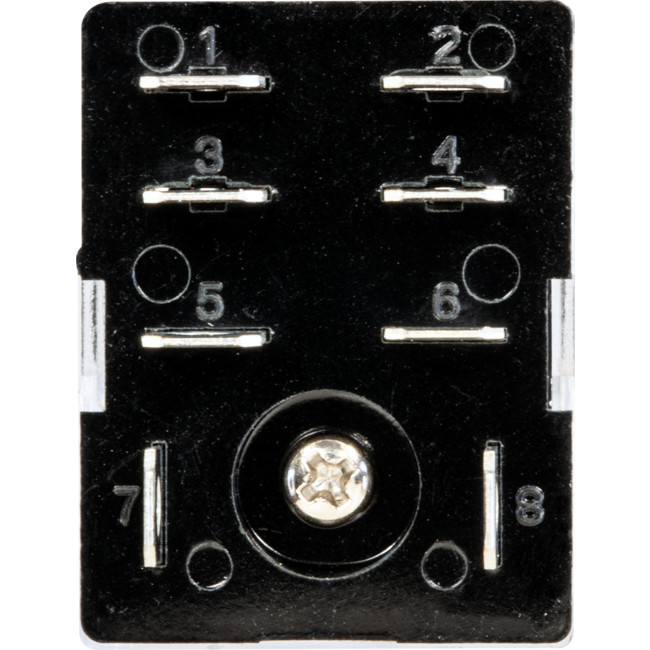

RET208A 240V AC 10A DOUBLE POLE RELAY

10A 250V AC / 30V DC

Code: 37051080

0.0350 kg
EACH
49 IN
STOCK
$8.25 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

240V AC DOUBLE POLE 10A RELAY

Application : Vending Machine, Cooking Appliances, OfficeMachine, Domestic Appliances, Control Equipment, etc.

FEATURES:

  • 1 Pole to 4 Poles versions are available with switching current at 15 Amps (1 Pole) and 10 Amps (2-4 Poles).
  • Solder Lug Terminal and Flanged Case are designed for direct panel mounting use.
  • Low coil power consumption with high response time.
  • High reliability and long life with better vibration and shock resistance.
  • 1/3 Horse power on RET 2 Poles series are certifiedby UL.
  • Touch Button and LED version are available for customer’s selection

SPECIFICATIONS:

  • 10A 250V AC / 30V DC
  • Contact Resistance.............100 mΩ Max.@1A,6VDC
  • Operate Time.......................25 mSec. Max.
  • Release Time......................25 mSec. Max.
  • Dielectric Strength :
    • Between Coil & Contact......1,500VAC at 50/60Hz for one minute.
    • Between Contacts...............1,000VAC at 50/60 Hz for one minute.
  • Surge Strength....................3,000V (between Coil & Contact 1.2x50μSec.)
  • Insulation Resistance..........100 MegaΩ Min. at 500VDC.
  • Max. On/Off Switching :
    • Electrical..............................6 Cycles per Minute.
    • Mechanical..........................300 Cycles per Minute.
  • Temperature Range.............-25 - 55°C
  • Humidity Range...................45 - 85% RH.
  • Coil Temperature Rise.........60°C Max.
  • Vibration:
    • Endurance...........................10 to 55 Hz dual amplitude width 1.5mm.
    • Error Operation....................10 to 55 Hz dual amplitude width 1.5mm.
  • Shock:
    • Endurance .........................1,000 m/S2.
    • Error Operation....................100 m/S2.
  • Life Expectancy :
    • Mechanical .........................100,000,000 Operations at No Load condition.
    • Electrical ............................1,000,000 Operations at Rated RET Resistive Load.
  • Weight:
    • 1-2P :About 35 g.
    • 3P :About 53.2g.
    • 4P :About 66.5g.
  • Safety Standard & Its File Number
    • C-UL (1-pole & 2-pole)........E141060
