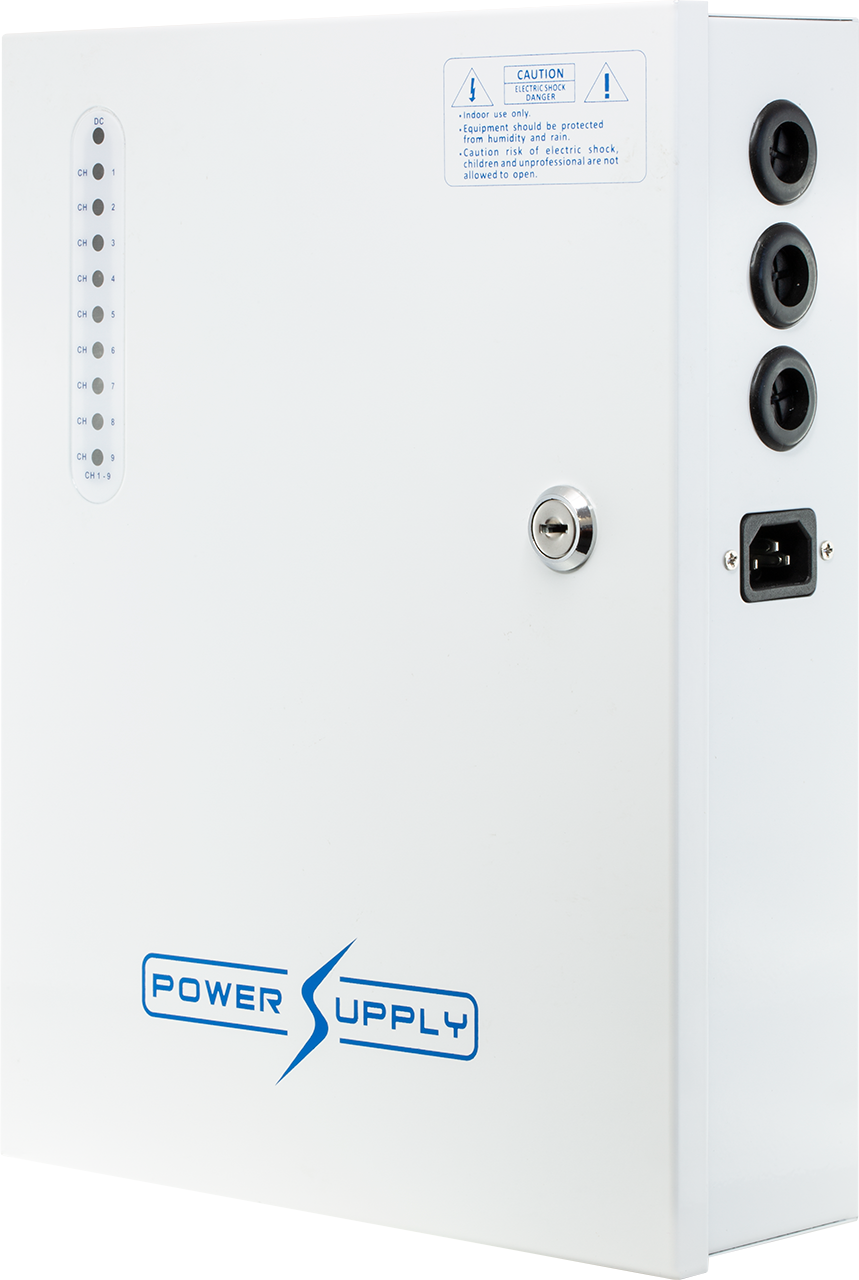

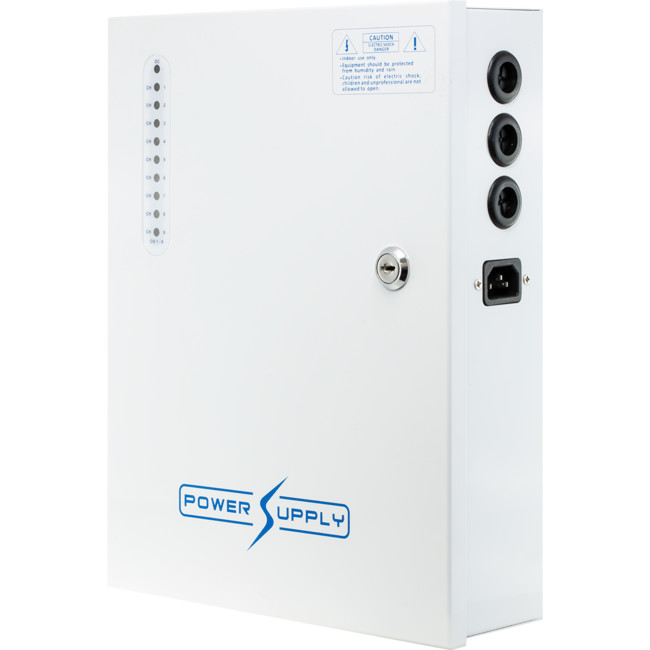

PWU0912W10 9 WAY 13.8VDC 10A POWER SUPPLY

WITH UPS PFC SURGE PROTECTION

Code: 33775006

2.85 kg
9328202031808
EACH
5
29 IN
STOCK
$139 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

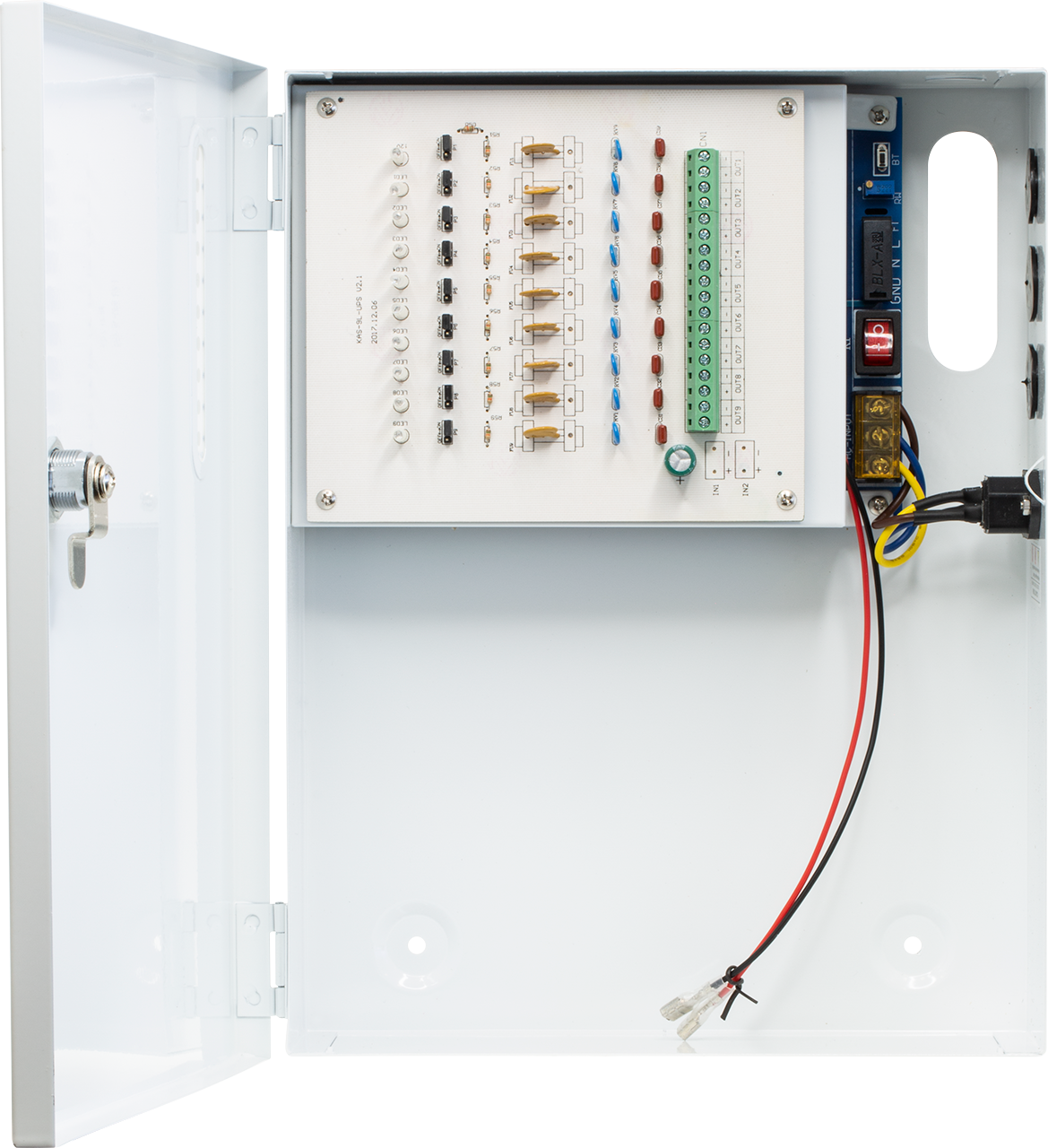

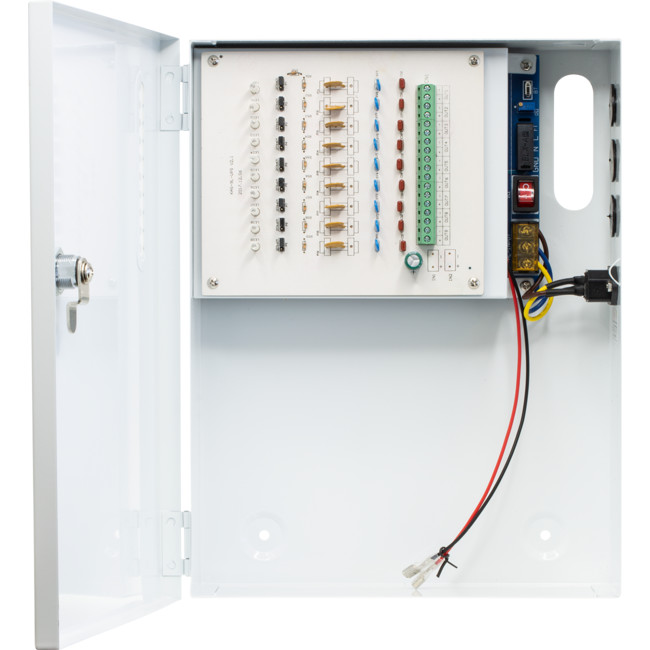

The Doss range power supply boxes also knows as a power distribution boxes offer a great power solution for CCTV system as well as other system powered by DC 12V. It enablessurveillance system installers to easily manage the power tomultiple CCTV cameras at a central point and allows your camera installation to be neater. The DOSS power supply boxes are very simple to install, simply screw each cameras power cable in to the power supply terminal in the power supply box.

This model also comes with UPS function which can work together with the 12V 7A battery (Sold separately) to back up the power for the systemwhen the power is cut off.

This product doesn't come with a K9 IEC lead.
K9-2MT (27752115) is availabe for sale.

Features

  • Full AC input range: 100~240V.
  • Withstand 300VAC surge input for 5 seconds.
  • Protection: short circuit / overload / over voltage / over temperature.
  • Forced air cooling by built in DC fan when the currentexceeds 12A.
  • Built-in cooling fan controlled by thermal-switch.
  • Withstand 5G vibration test.
  • Multiple DC outputs, and each channel has over current(PTC/Tube fuse) and surge protection.

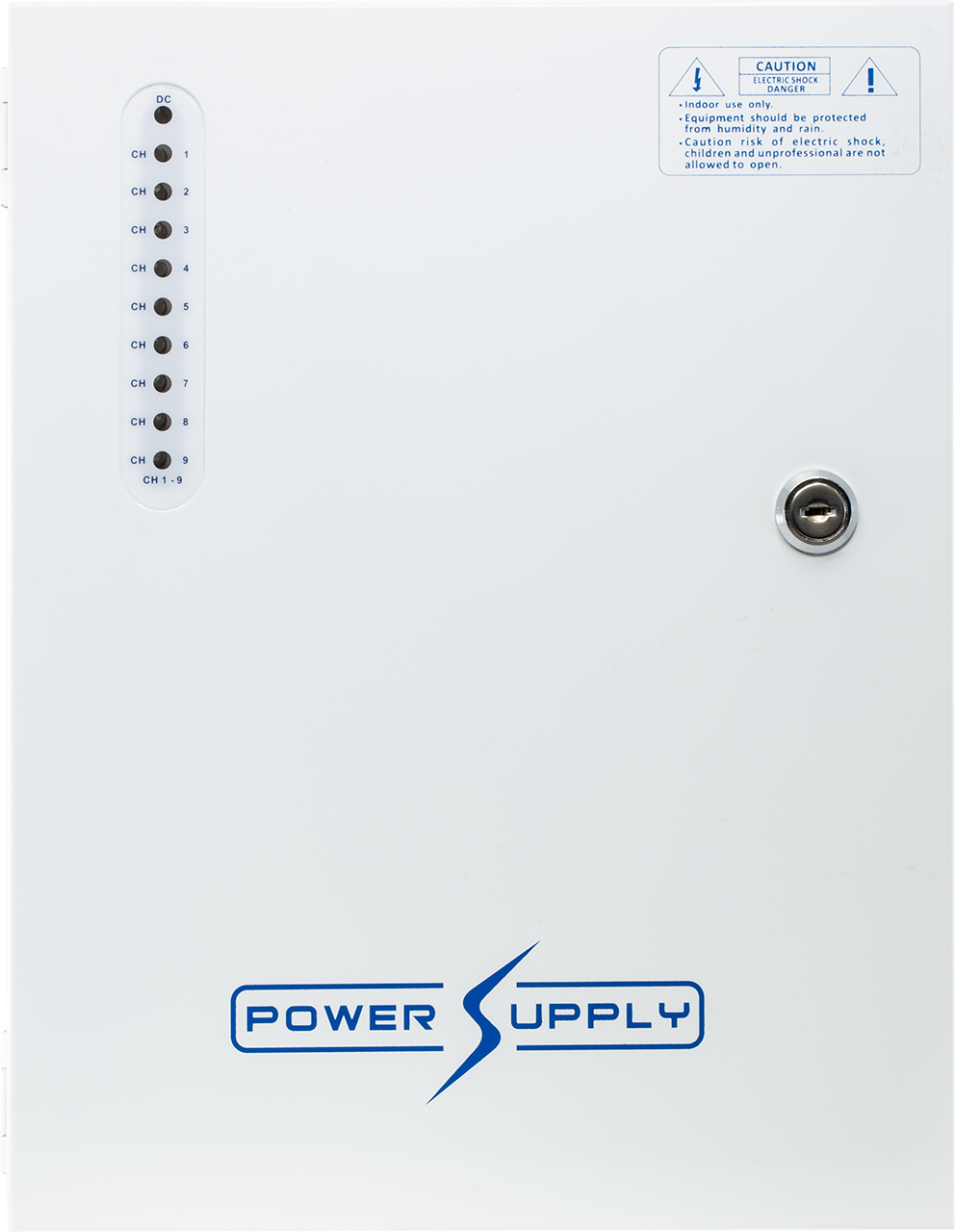

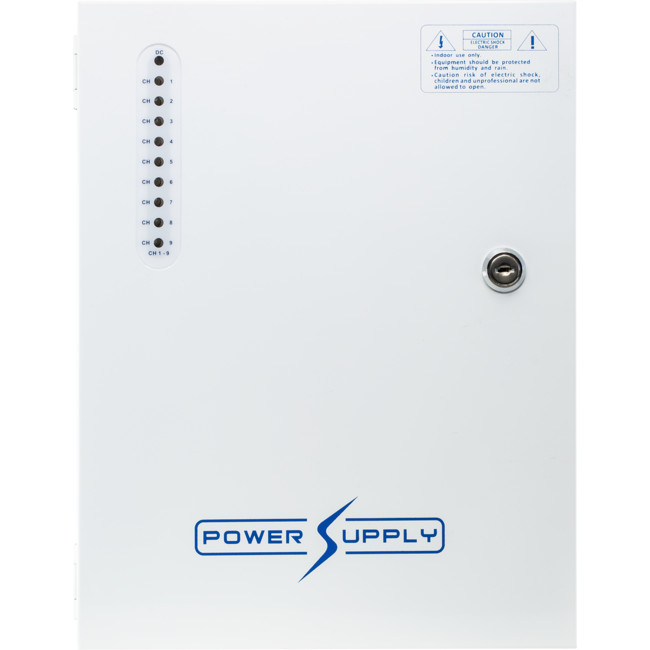

  • LED indicators show working condition of each channel and indicator for total output power on.
  • 100% full burn-in test: full load burn-in test at low voltage AC110V, no-load burn-in test at high
  • voltage AC240V and repeated switch of AC power at highvoltage AC240V.
  • High opera??ng temperature is up to 70°C.
  • Operating altitude is up to 5000 meters (note 8).
  • High efficiency, long service life, high reliability.

Specifications

Output

DC Voltage

13.8V

Current

10A

Power

138W

Ripple and Noise

≤200mVp-p

Voltage ADJ. Range

13.8V±10%

Voltage Accuracy

±10%

Set-up Time

1500ms, 50ms/230VAC 1500ms, 50ms/115VAC(at full load)

Hold up Time

15ms/230VAC 12ms/115VAC(at full load)

Input

Voltage Range

100V~240VAC

Frequency Range

47~63Hz

Efficiency (Type)

80%~95%

Protection

Over Load

105%~150% (rated load)

Over Voltage

115%~150% (rated output voltage)

Shorted Circuit

Fuse Tube

Environment

Operating Temp. & Hum.

-10°C~45°C; 20%~90%RH (non-condensing)

Storage Temp. & Hum.

-25°C~ 70°C20%~95%

Others

Dimension (L*W*H)

324.5*251.5*80.5mm

Packing

370*250*85mm

Cooling method

Free Air Convection

Net weight

2420 g

Doss Wall Mounting Box Power supply range

Model Ways Output Voltage Output Amp. With UPS
33774960 PW0412B05
4
12V DC
5A
No
33774965 PW0812B10
8
12V DC
10A
No
33774990 PW1612B16
16
12V DC
16A
No
33775000 PWU0412W05
4
12V DC
5A
Yes
33775006 PWU0912W10
8
12V DC
10A
Yes
33775015 PWU1612W16
16
12V DC
16A
Yes
