  • A4 ALPHA 4 OUTLET POWER FILTER THOR

A4 ALPHA 4 OUTLET POWER FILTER

THOR

Code: 33540820

0.6270 kg
728238621841
EACH
10 IN
STOCK
TRADE ALERT!
$99 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

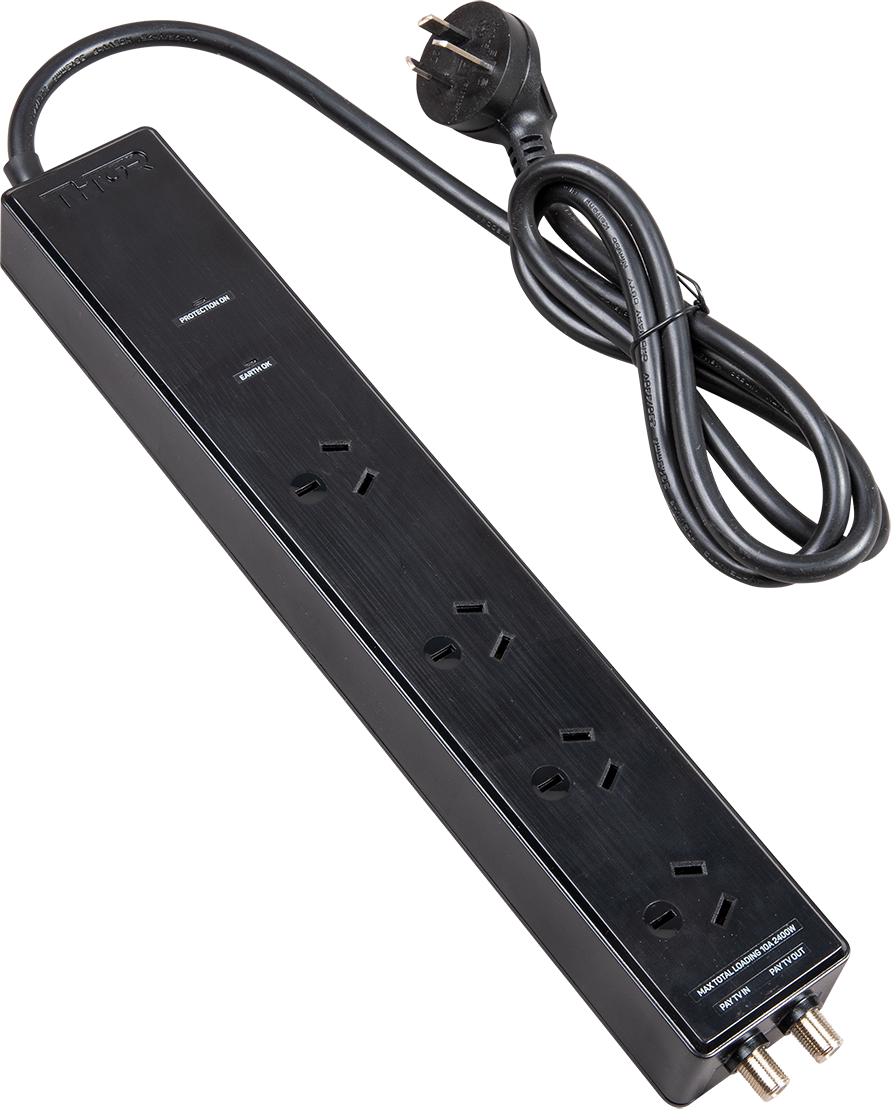

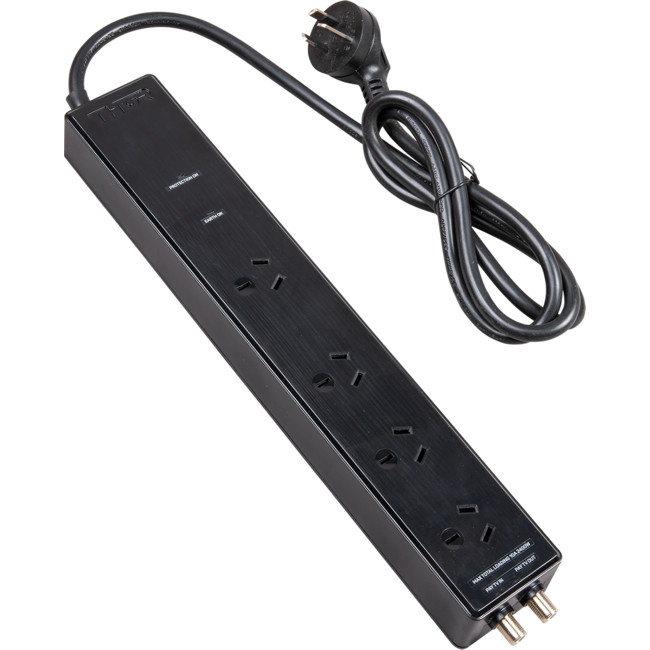

Thor A4 – 4 Way Surge Protector with Good Filtration

POWER PROTECTION AND FILTRATION

ALPHA 4 is the affordable way to have power protection for your most valuable electrical equipment.

The new slimline design now means you can have surge protection and filtration anywhere.

ALPHA 4 is the latest addition to the Thor Technologies product range and includes a newly developed Correction Power Filter (CPF) technology.

The CPF has been exclusively designed for the Alpha series.

The CPF is aimed at ensuring the power factor is at its maximum efficiency.

This benefit means dirty power is not robbing your audio visual, Hi-Fi and computer equipment of its performance.

The effects of unwanted dirty power or interference is reduced or eliminated.

Key Features

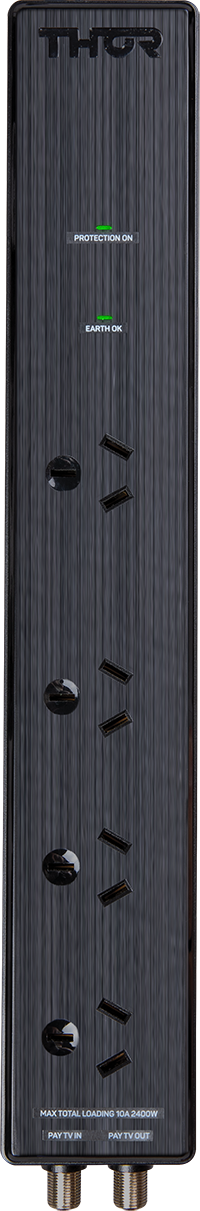

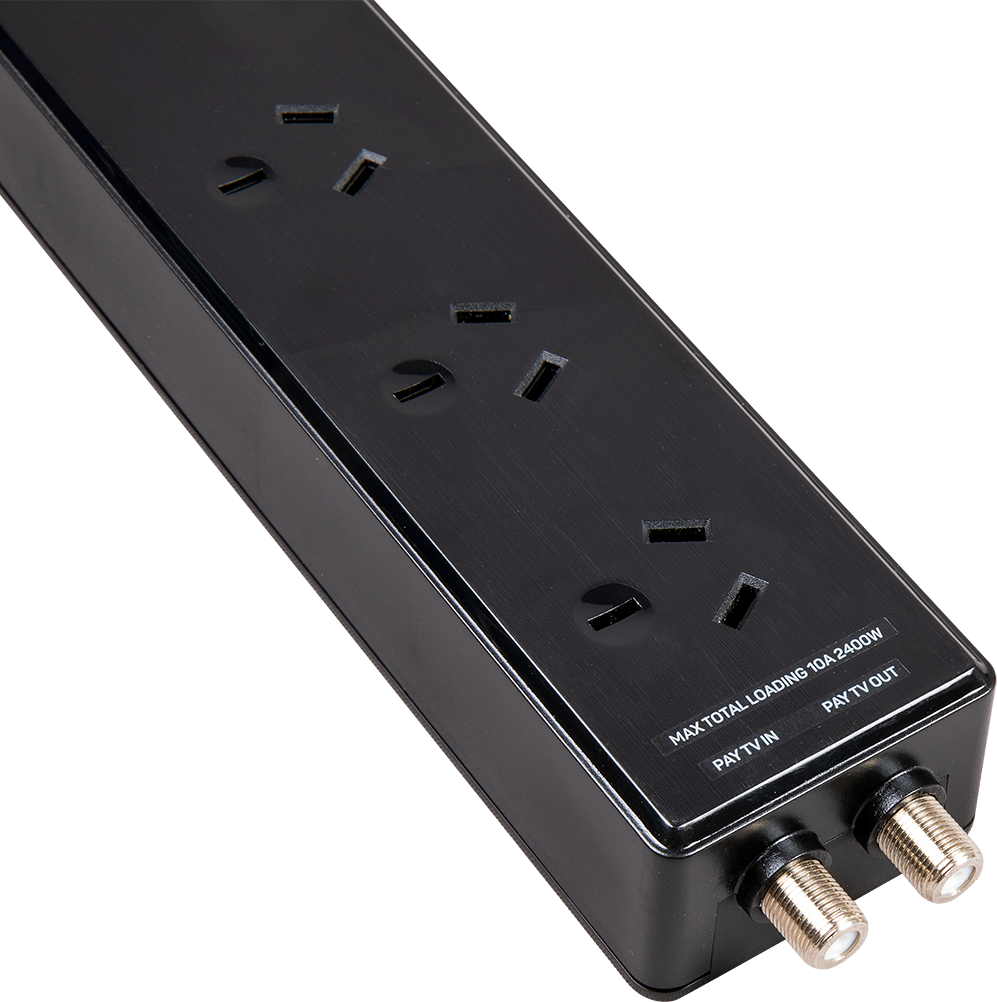

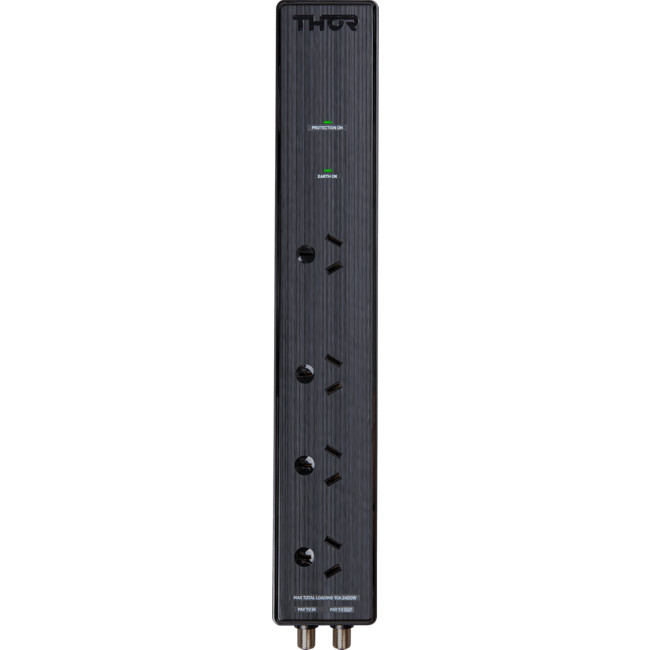

  • 4 protected Australian plug outlets
  • Extra wide plug for large plug pack
  • 3 year 100K connected equipment warranty
  • Power protection 2115 Joules
  • Unique slimline brushed finish black flame retardant housing
  • Aerial protection

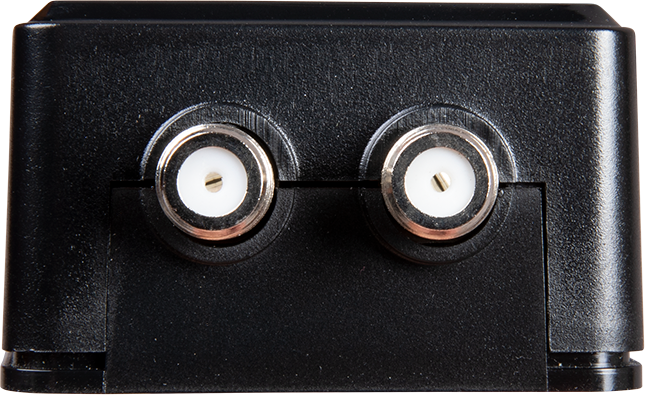

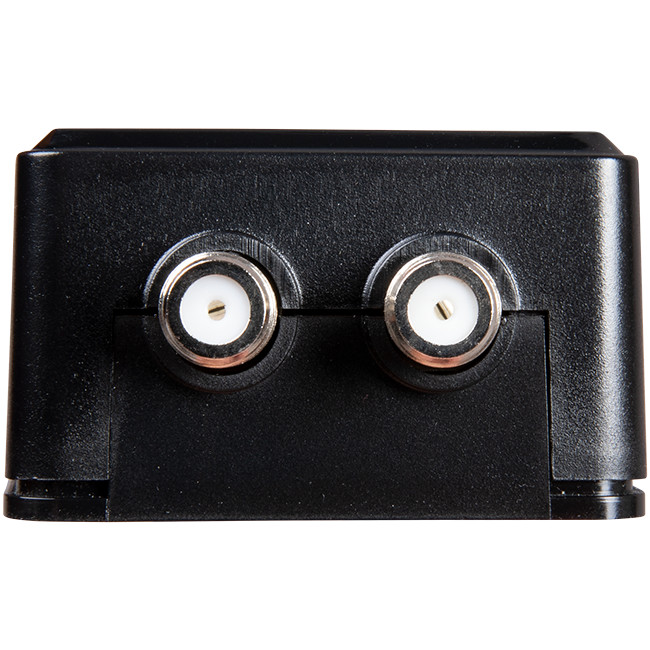

    • F Type connection: 1 In/1 Out

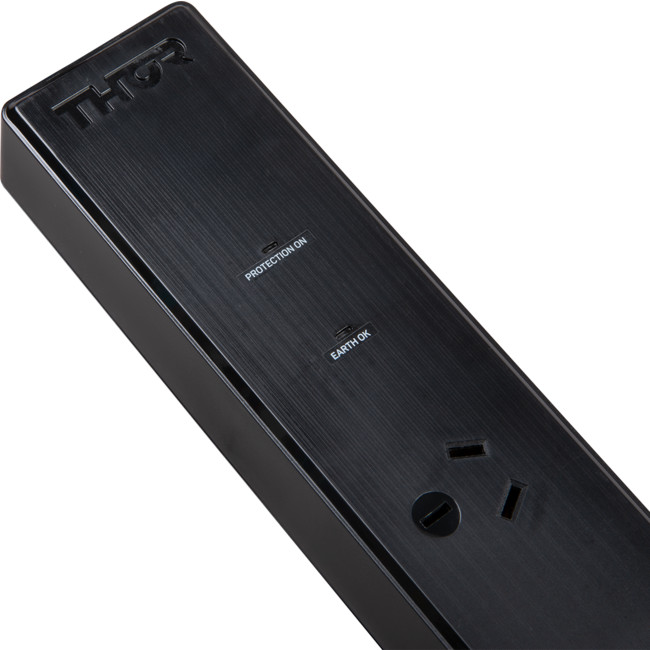

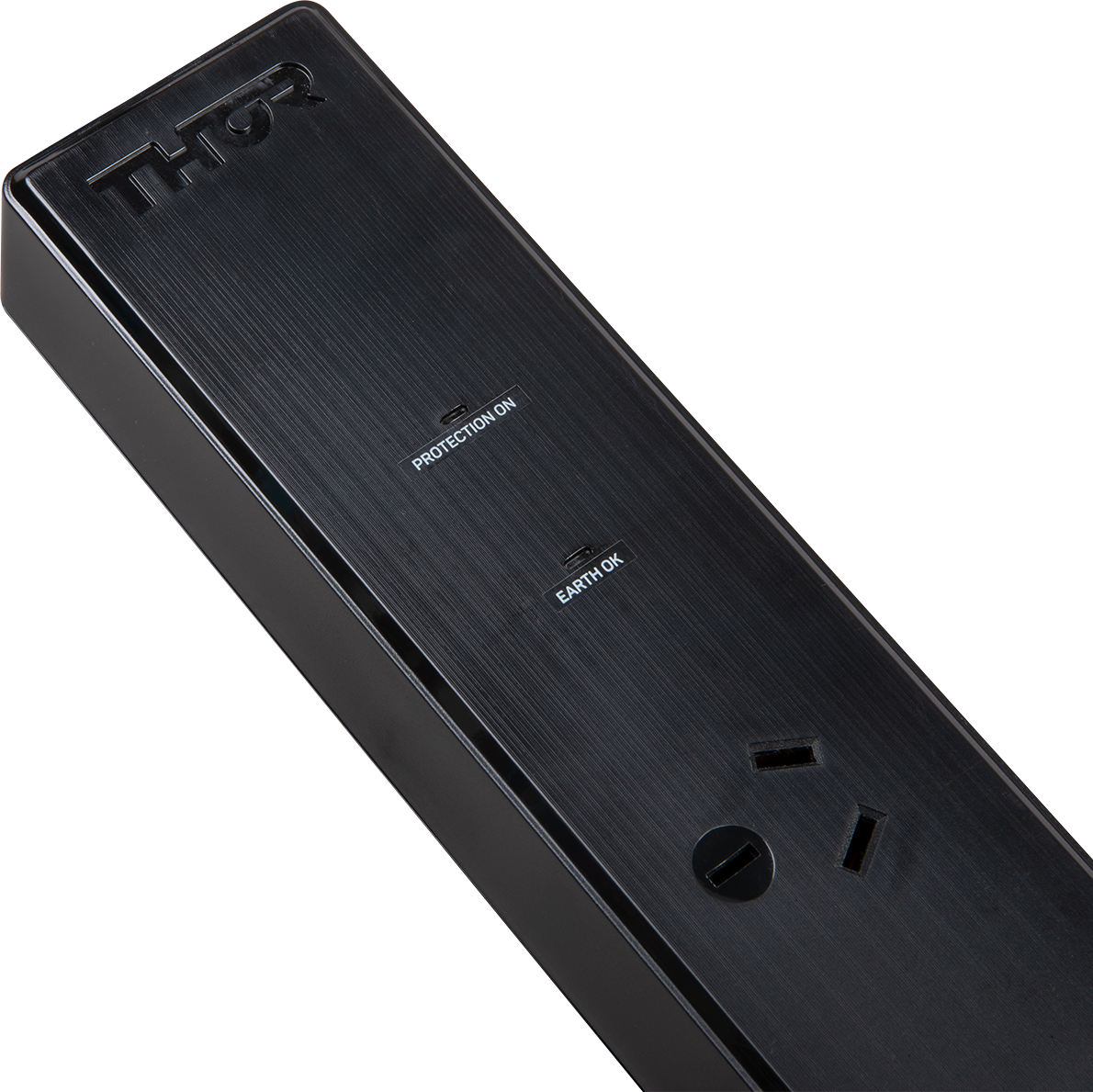

  • Earth detection LED
  • Power LED
  • Flame proof MOVs
  • Resettable safety 10 amp circuit breaker
  • F Type adaptors
    • 1 x F-Type male to Co-Ax (PAL) male
    • 1 x F-Type male to Co-Ax (PAL) female

Protects

  • OLED/LCD TV
  • HIFI AND HOME THEATRE
  • ACTIVE/PASSIVE SPEAKERS
  • COMPUTERS



TECHNICAL SMARTS

  • Model
A4
  • Product Dimensions
325mm(L) x 32mm(H) x 55mm(W)
  • Supply voltage
240/VAC 50/Hz
  • Maximum current rating
10amps/2400 W (VA)Clamping/Let Through Voltage 510VAC
  • Reaction time
less than 1 nanosecond
  • Maximum energy dissipation
2115 Joules (equivalent to 705 Joules using UL1449 standard)
  • Protection modes
(all 4 outlets protects on all 3 conductors): Active/ Neutral, Active/Earth, Neutral/Earth
  • EMI/RFI noise reduction
filter type
  • Total number of protected AC outlets
4

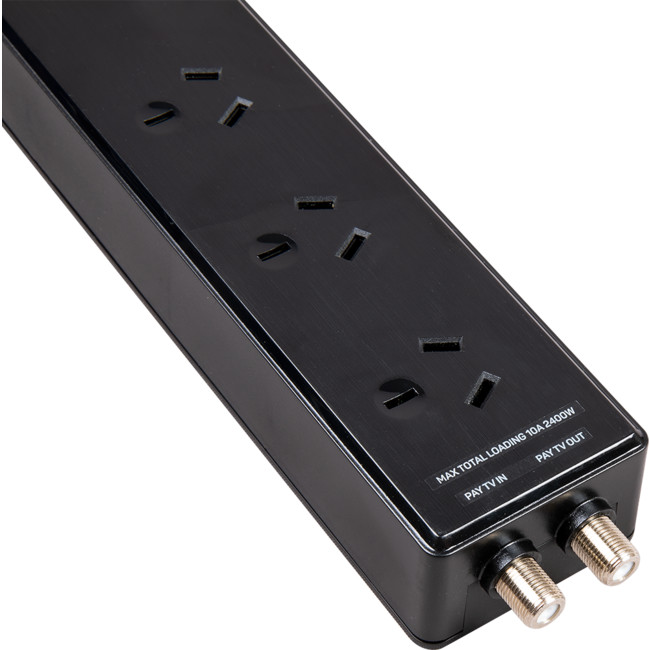

  • Pay TV ‘F’ type connection
1 in and 1 out
  • Earth potential rise protection

  • Earth leakage range
less than 1 milli amp
  • Operating conditions
Indoor/AC mains
  • Operating temperatures
-10C/ 60C
  • Cable length
1.2m



WHAT'S DIFFERENT ABOUT THOR - CHIPS

  • Cleaner Power
THOR filters more unwanted noise from power lines for best possible picture and sound as well as fastest streaming and other signal processing
  • Higher surge protection
THOR has the highest joule ratings in their classes as well as a bulletproof design for handing power spikes of any size or duration
  • Instant protection
Unlike designs which allow excessive power to reach plugged in products for some time THOR designs kick in and protect in less than one millionth of a second
  • Peace of mind
All THOR products are backed by a Connected Equipment Warranty which will pay for the cost of surge damaged product repairs or replacement in the unlikely event of failure
  • Safer
All THOR products use fire resistant technologies as well as overload failsafe circuits to ensure they protect lives just as much as products
