  • A1D ALPHA SINGLE OUTLET DOWNWARD FACING - THOR

A1D ALPHA SINGLE OUTLET DOWNWARD

FACING - THOR

Code: 33540815

EACH
20 IN
STOCK
$39.95 inc GST
Increase value Decrease value
Qty Each
Enter 4 digit postcode

A1D Single Outlet All Purpose downward facing Surge Protector

POWER PROTECTION AND FILTRATION

ALPHA 1 is the affordable way to have power protection for your valuable electrical equipment.

The new slimline design now means you can have surge protection and filtration anywhere.

ALPHA 1 is the latest addition to the Thor Technologies product range and includes newly developed Correction Power Filter (CPF) technology.

The CPF has been exclusively designed for the Alpha series.

The CPF is aimed at ensuring the power factor is at its maximum efficiency.

This benefit means dirty power is not robbing your audio visual, Hi-Fi and computer equipment of its performance.

The effects of unwanted dirty power or interference is reduced or eliminated.

Key Features

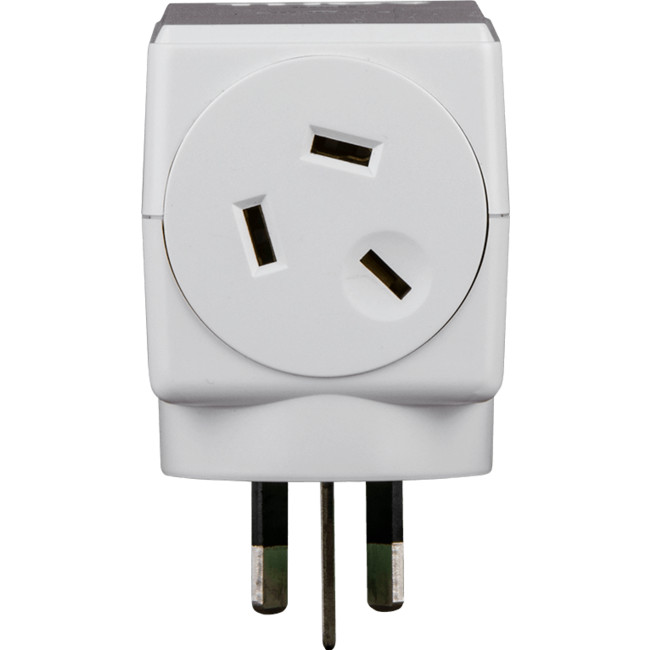

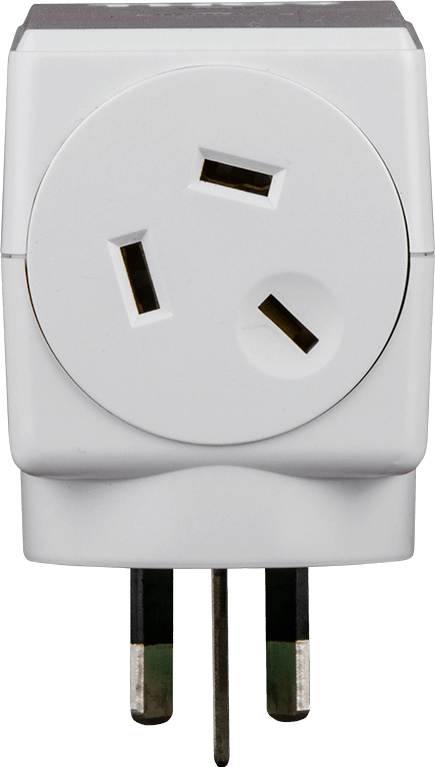

  • Single protected downward facing Australian plug outlet
  • Flame retardent housing
  • Alarm buzzer detects if surge circuit is damaged
  • Power protection 2115 Joules
  • Noise filtration- High
  • 1 nanosecond reaction time
  • 3 year 100K connected equipment warranty
  • Unique slimline design
  • Earth detection LED
  • Power LED
  • Flame proof MOVs
  • 6 year replacement warranty

Protects

  • FRIDGE/FREEZER
  • DISHWASHER
  • WASHING MACHINE
  • APPLIANCES



TECHNICAL SMARTS

  • Model
A1D
  • Product Dimensions
105mm(H) x 43mm(W) x 41mm(D)
  • Supply voltage
240/VAC 50/Hz
  • Maximum current rating
10amps/2400 W (VA)Clamping/Let Through Voltage 510VAC
  • Reaction time
less than 1 nanosecond
  • Maximum energy dissipation
2115 Joules (equivalent to 705 Joules using UL1449 standard)
  • Protection modes
(one outlet protects on all 3 conductors): Active/ Neutral, Active/Earth, Neutral/Earth
  • EMI/RFI noise reduction
filter type
  • Total number of protected AC outlets
1
  • Earth potential rise protection

  • Earth leakage range
less than 1 milli amp
  • Operating conditions
Indoor/AC mains
  • Operating temperatures
-10C/ 60C
  • Cable length
N/A



WHAT'S DIFFERENT ABOUT THOR - CHIPS

  • Cleaner Power
THOR filters more unwanted noise from power lines for best possible picture and sound as well as fastest streaming and other signal processing
  • Higher surge protection
THOR has the highest joule ratings in their classes as well as a bulletproof design for handing power spikes of any size or duration
  • Instant protection
Unlike designs which allow excessive power to reach plugged in products for some time THOR designs kick in and protect in less than one millionth of a second
  • Peace of mind
All THOR products are backed by a Connected Equipment Warranty which will pay for the cost of surge damaged product repairs or replacement in the unlikely event of failure
  • Safer
All THOR products use fire resistant technologies as well as overload failsafe circuits to ensure they protect lives just as much as products
