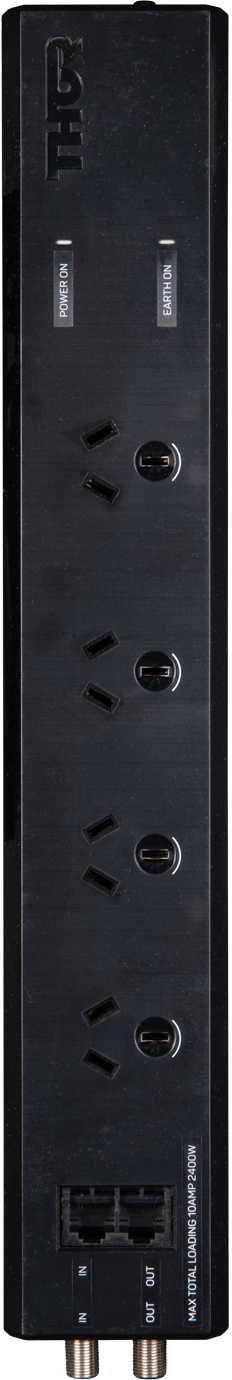

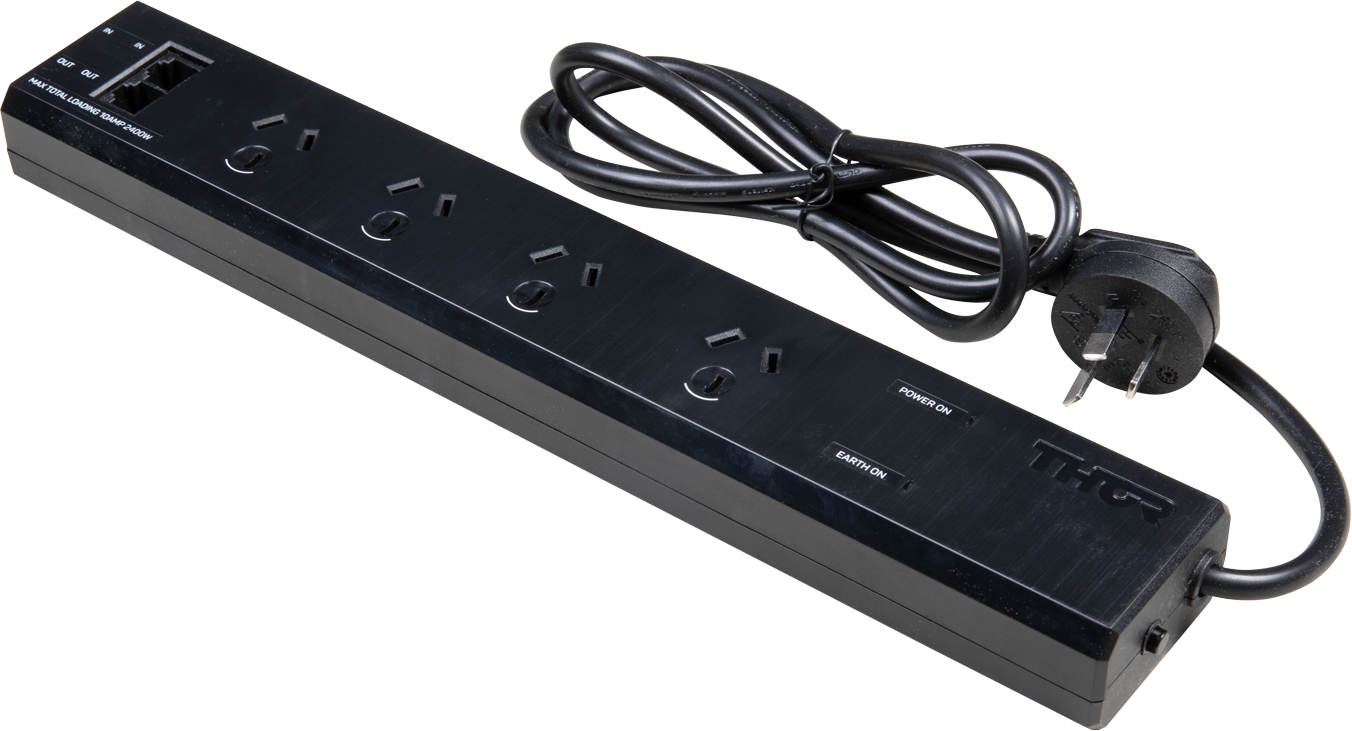

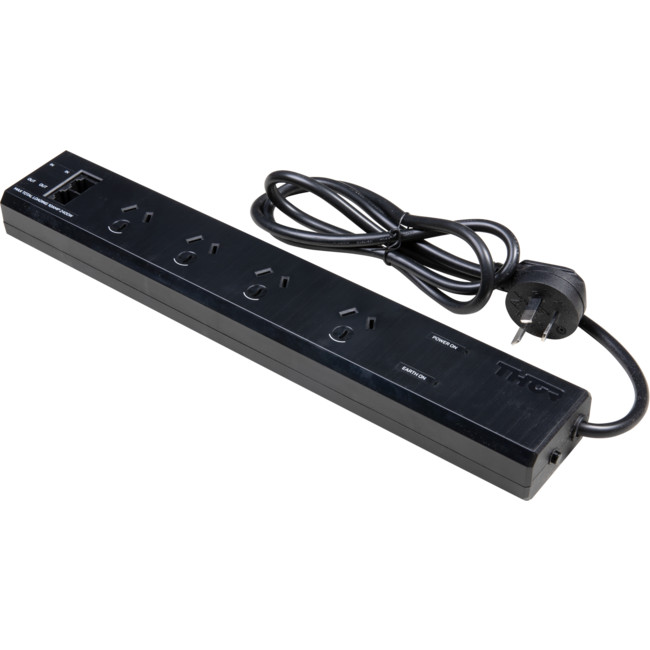

E145A 4 WAY FILTERED POWER BOARD

SMART TECHNOLOGY POWER PROTECTION

Code: 33540722

EACH
Low Stock
$149 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

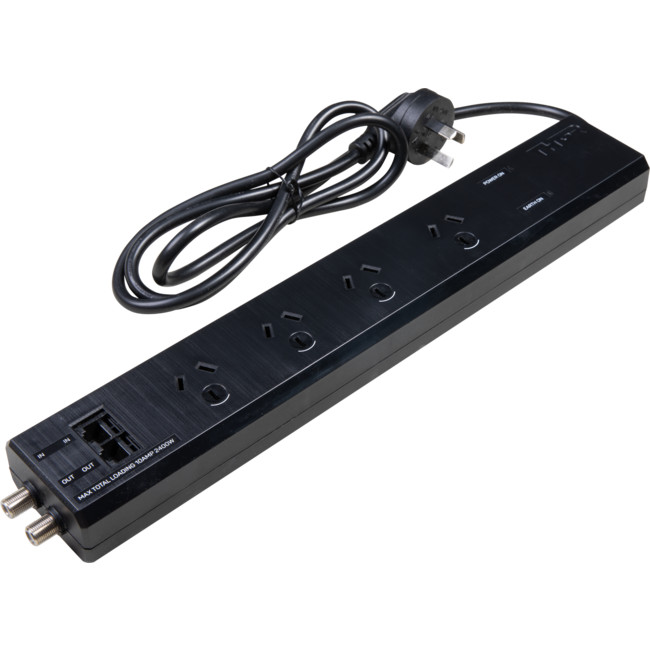

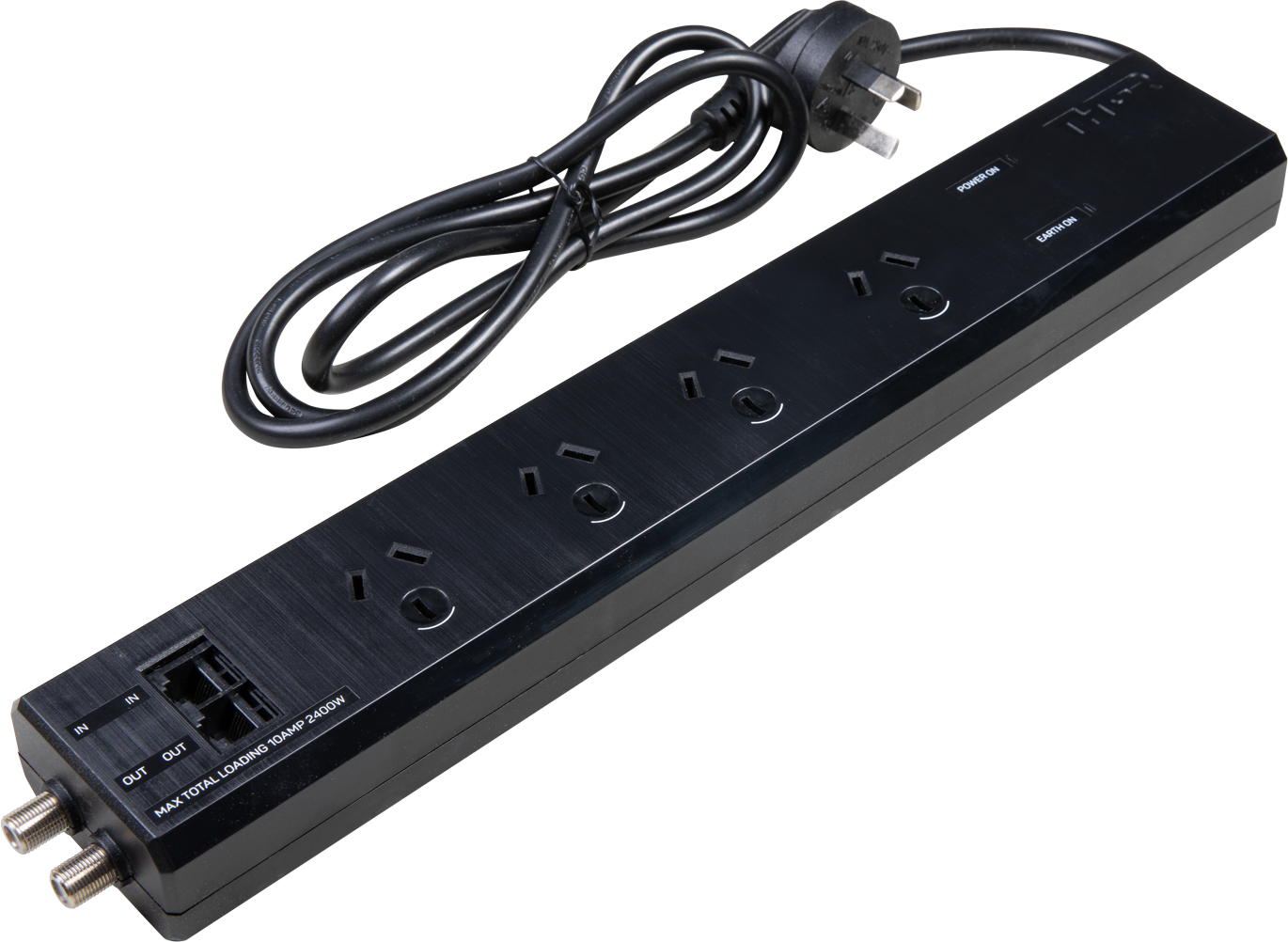

Thor E1/45A – 4 Way Filtered Board with Better Filtration

Smart technology power protection and filtration

JOULE BANK SAVING TECHNOLOGYJOULE BANK SAVING TECHNOLOGY SMART BUZZERSMART BUZZER

10% MORE FILTRATION10% MORE FILTRATION FIREPROOF MOVFIREPROOF MOV WARRRANTYWARRRANTY



4 PROTECTED OUTLETS4 PROTECTED OUTLETS ANTENNA PROTECTIONANTENNA PROTECTION DATA/VOICE PROTECTIONDATA/VOICE PROTECTION LARGE PLUG ADAPTORLARGE PLUG ADAPTOR

1.2 m CABLE LENGTH1.2 m CABLE LENGTH FIRE RETARDENTFIRE RETARDENT 1 NANO SECOND REACTION TIME1 NANO SECOND REACTION TIME 6 YEAR REPLACEMENT WARRANTY6 YEAR REPLACEMENT WARRANTY



CLEVER PROTECTION FOR SMART TECHNOLOGY

SmartProtect 4 does more than protect your valuable electronic equipment. The space saving design now means you can have surge protection and filtration anywhere.

The Thor SmartBrain not only protects from surges, it also filters and cleans electrical frequency noise to give you unbeatable sound and video quality. Enjoy a truer AV experience with better picture quality and purer sound.



PROTECTS

  • OLED/LCD TV
  • HIFI AND HOME THEATRE
  • ACTIVE/PASSIVE SPEAKERS
  • INTERNET
  • COMPUTERS (LAPTOPS/TABLETS)
  • PRINTERS AND SCANNERS
  • SECURITY SYSTEMS
  • ANY DEVICE CONNECTED TO POWER

Technical Smarts

  • Product Dimensions: 360mm (L) x 35mm (H) x 60mm (W)
  • Supply voltage 230-240/V AC 50/Hz
  • Maximum current rating 10amps/2400W(VA)
  • Reaction time less than 1 nanosecond
  • Clamping/Let Through Voltage 510VAC
  • Maximum energy dissipation 2115 Joules (equivalent to 705 Joules using UL1449 standard)
  • Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
  • EMI/RFI noise reduction filter type

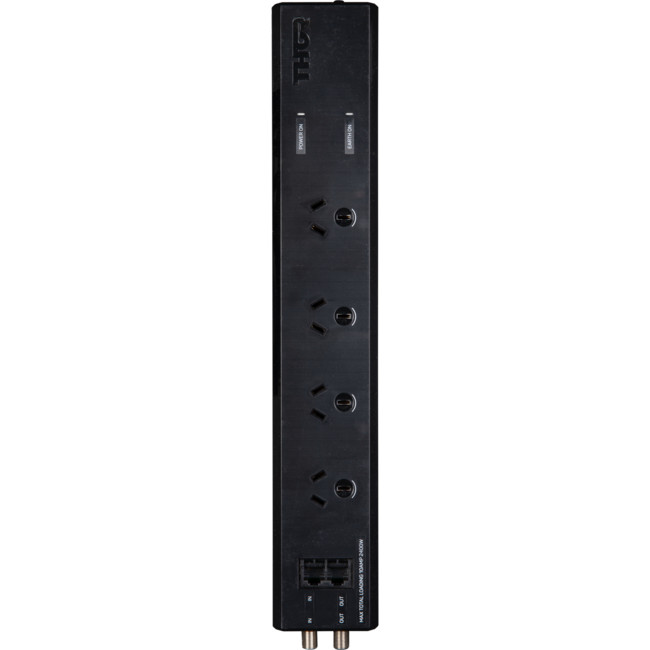

  • Total number of protected AC outlets: 4

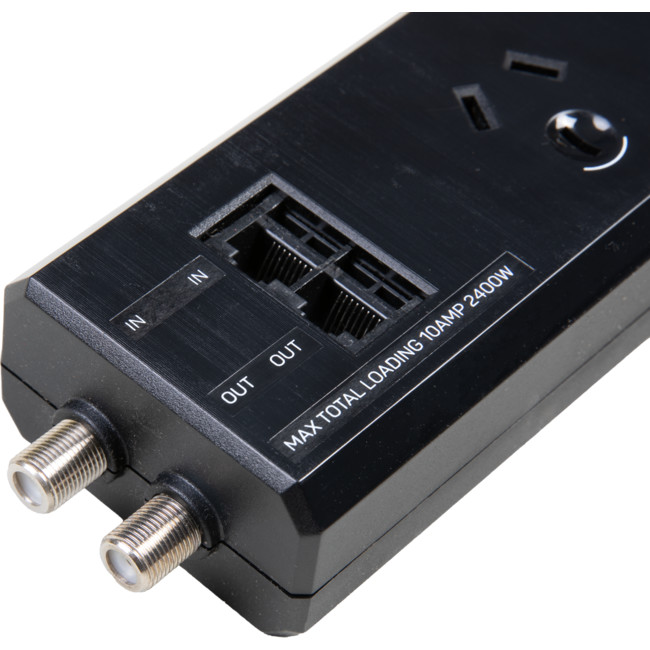

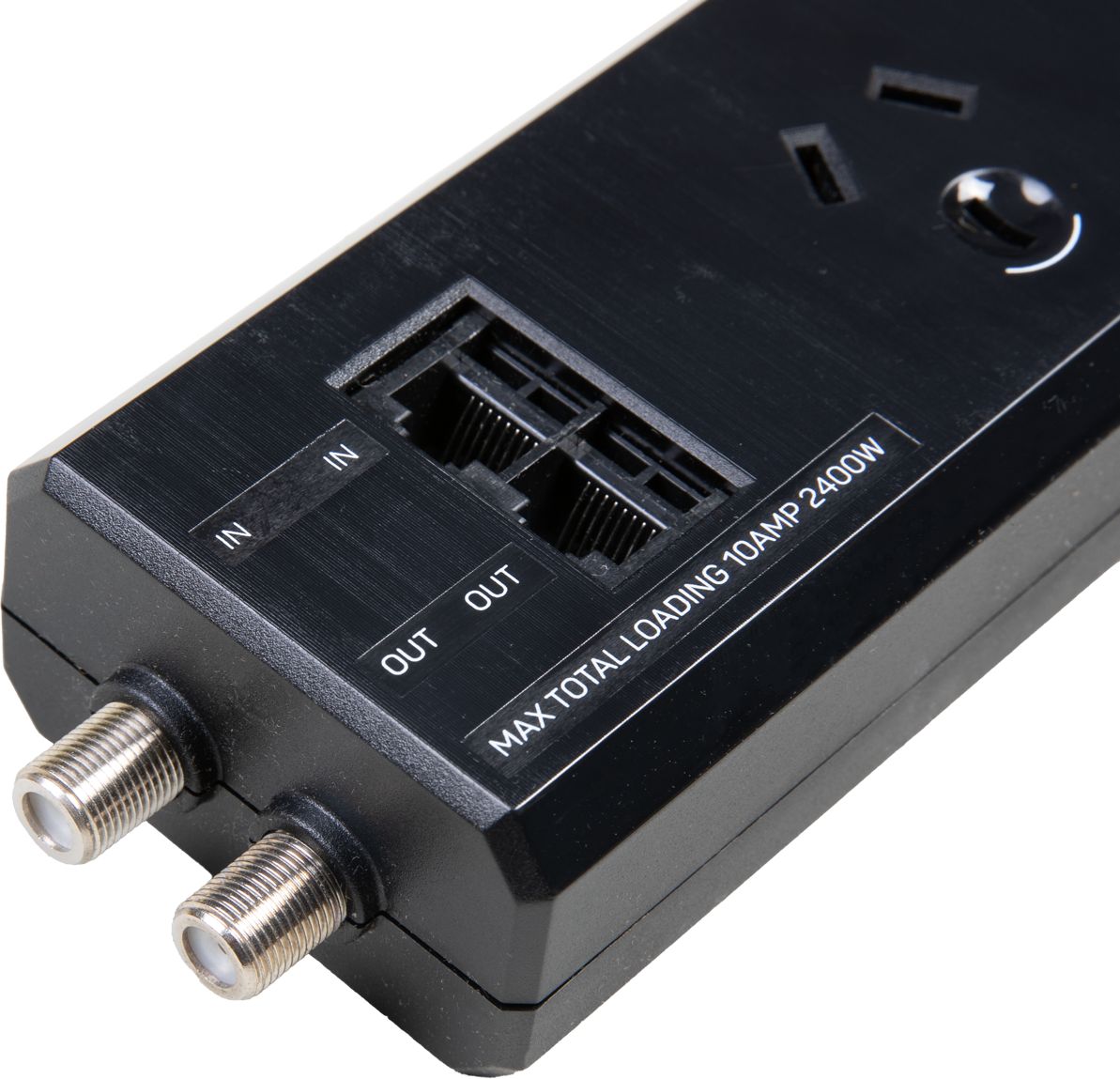

  • Antenna ‘F’ type connection: 1 in and 1 out
  • RJ 45 data protection: 1 in and 1 out
  • Earth potential rise protection
  • Earth leakage range less than 1 milli amp
  • Operating conditions: Indoor/AC mains
  • Operating temperatures: -10C/ 60C
  • Cable length: 1.2m
  • Model No: E1/45A

Inside the brain

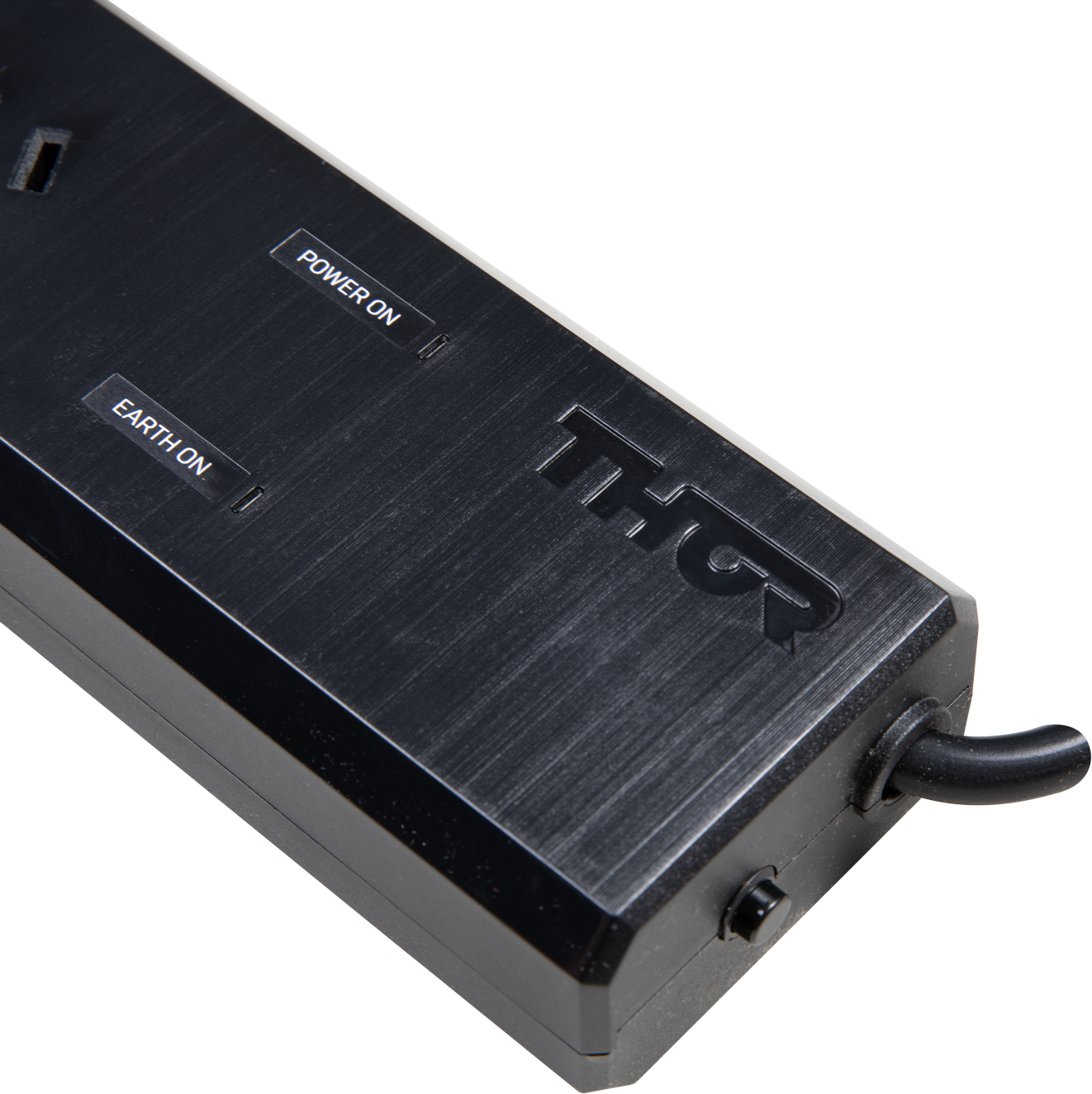

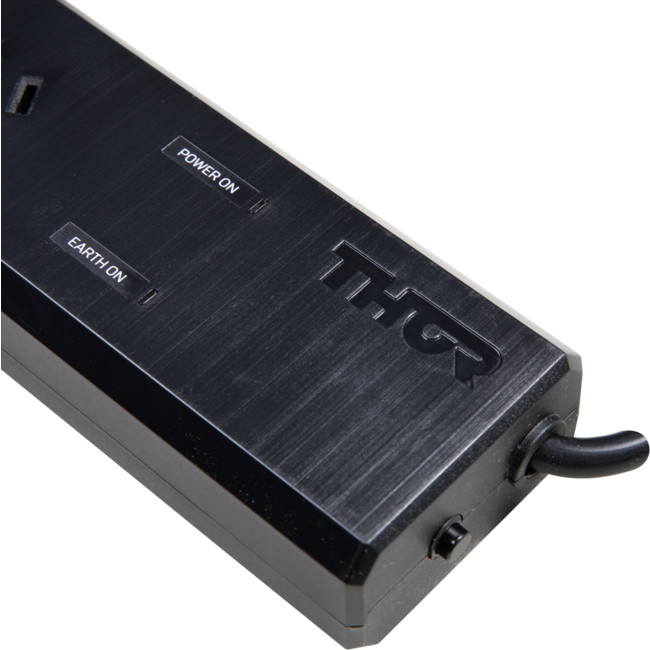

  • All serious power protection diverts excess energy to earth first. If there is good earth connection then the protector will last longer. E1/45S has an earth detection LED for this reason. SmartBrain entry level filter is a passive technology. Managing to cover a more comprehensive range of shielding to like competitors by “cleaning” a wider range of unwanted frequency noise. The filter works both ways. Stopping noise from robbing equipment performance as well as connected devices’ noise contaminating power.
