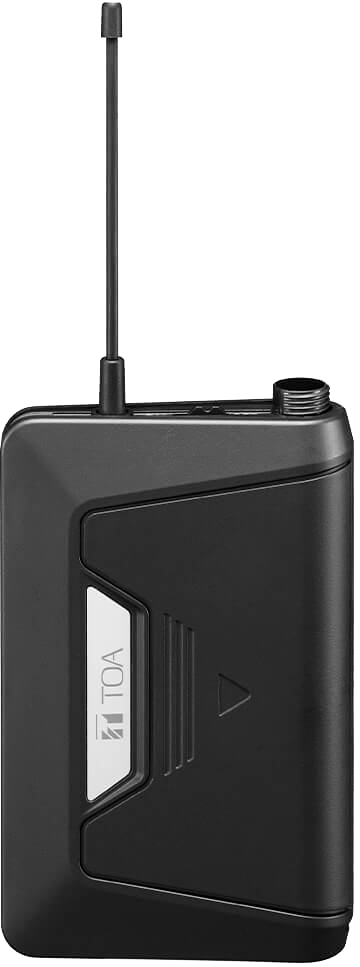

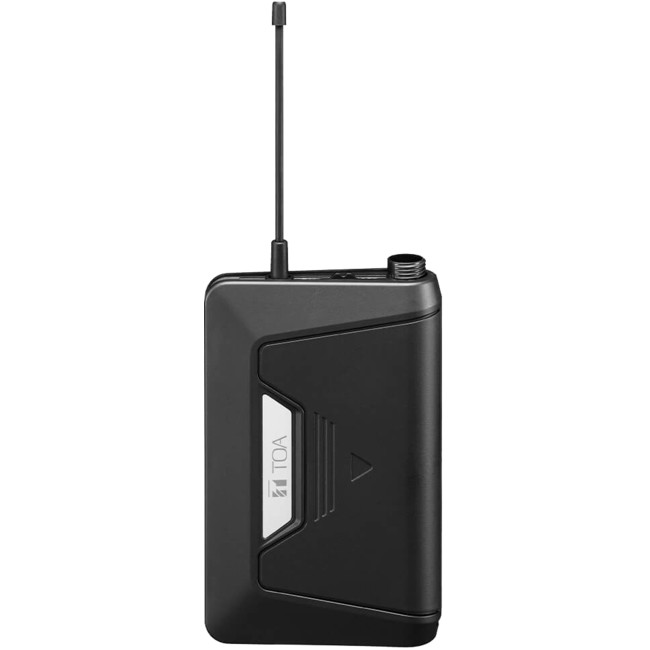

WMD5300 TOA DIGITAL WIRELESS BELT PACK

TOA – WMD5300 – Beltpack Transmitter –Digital – No Mic. 160 Frequencies – 606-636 MHz

The WM-D5300 Digital wireless transmitter has been manufactured for use with a UHF system.

It is for use in speech reinforcement applications.

This wireless transmitter employs a digital transmission system that is effectively immune to interference.

Further, not only does TOA’s unique information concealment technology (Encryption Setting function) ensure high confidentiality and security against eavesdropping, buttheir code setting and transmission output selection functions ensure that this transmitter is also compatible with a wide range of operating conditions, such as use of the same transmission channel between adjacent areas.

Key Features

• Ultra slim and lightweight body

• Selectable microphone sensitivity

• Selectable transmission output (1 mW/10 mW)

• 3-step battery life indicator

• 1 AA battery provides up to 8 hours of continuous use

• Dedicated rechargeable (NiH2 = nickel-hydrogen) battery or an AA alkaline battery can be used

Note: The Toa WMD5300 Beltpack requires either a YMS5300 or YMS5310 electret condenser lapel microphone

Specifications

• Frequency Range: C4/C7 ver.: 794 – 832 MHz, G1 ver.: 606 – 636 MHz
• Modulation type: FSK
• Channel Selectable: 160 channels (The number of channels may differ from country to country.)
• RF Carrier Power: Less than 50 mW
• Maximum Input Level: -18 dB (*1) (Sensitivity: L)/-28 dB (*1) (Sensitivity: H)
• Audio Frequency Response: 100 Hz – 12 kHz
• Antenna: Lamda/4 whip antenna
• ID Selectable: 10 patterns
• Battery: WB-2000 rechargeable battery (option) or AA Alkaline dry cell battery
• Battery Life: Approx. 8 hours
• Operating Temperature: -10 °C to 50 °C (14 ?Fto 122 ?F) (except battery)
• Operating Humidity: 30 % to 85 %RH (no condensation)
• Finish: ABS resin, black, paint
