WMD5200 TOA DIGITAL HANDHELD WIRELESS

CONDENSOR MICROPHONE- 160CH

Code: 28733022

0.3750 kg
EACH
Low Stock
TRADE ALERT!
$919.01 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

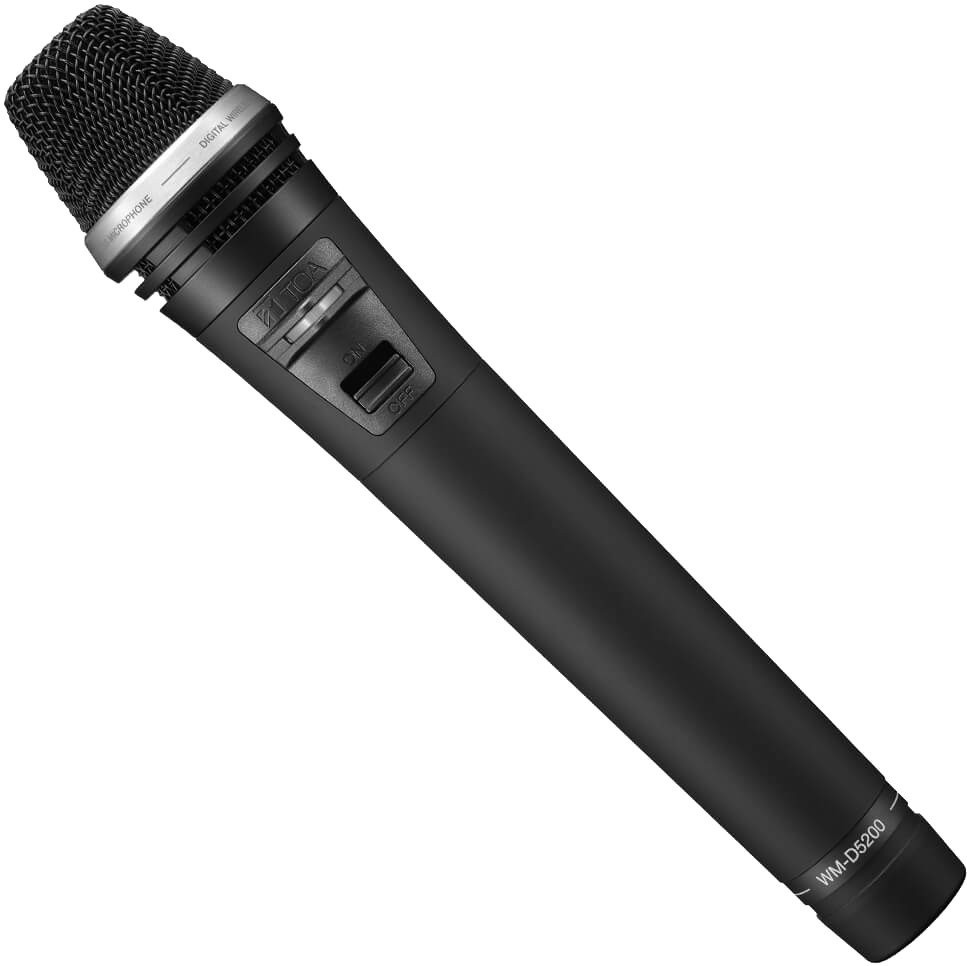

TOA WM-D5200 Hand held microphone

TOA WMD5200 Digital wireless handheld condensor microphone, 160 Selectable Channels (606-636MHz)

The TOA WMD5200 Digital wireless microphone employs an electret condenser microphone capsule and is suitable for any applications.

This wireless microphone employs a digital transmission system that is effectively immune to interference.

Further, not only does TOA’s unique information concealment technology (Encryption Setting function) ensure high confidentiality and security against eavesdropping, buttheir code setting and transmission output selection functions ensure that this microphone is also compatible with a wide range of operating conditions, such as use of the same transmission channel between adjacent areas

  • Lightweight body
  • Selectable microphone sensitivity
  • Selectable transmission output (1 mW/10 mW)
  • 3-step battery life indicator
  • Built-in antenna
  • 1 AA battery provides up to 8 hours of continuous use
  • Dedicated rechargeable (NiH2 = nickel-hydrogen) battery or an AA alkaline battery can be used



Specifications

Microphone Element Electret condenser unit: Unidirectional
Modulation type FSK
Frequency Range -C4/-C7 ver.: 794 – 832 MHz, -G1 ver.: 606 – 636 MHz, -H1 ver.: 576 – 606 MHz
Channel Selectable 160 channels (The number of channels may differ from country to country.)
RF Carrier Power Less than 50 mW
Maximum Input Level 132 dB SPL (Sensitivity: L)/122 dB SPL (Sensitivity: H)
Audio Frequency Response 100 Hz – 12 kHz
Antenna Built-in type
Dynamic Range Typ. 90 dB (when used with WT-D5800)
ID Selectable 10 patterns
Battery WB-2000(*1) rechargeable battery (option) or AA Alkaline dry cell battery
Battery Life Approx. 8 hours
Operating Temperature -10 °C to 50 °C (14 ?F to 122 ?F) (exceptbattery)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Body: ABS resin, black, coating
Head: Steel, black, paint
Dimensions Φ47 × 239.5 mm (Φ1.85 × 9.43 in)
Weight 220 g (0.49 lb) (with battery)
Accessory Storage case ?1, Screw driver (for setting) ?1, Microphone holder ?1
Option Battery charger: BC-2000(*1)
Ni-MH battery: WB-2000-2 (*1)(containing 2 pieces)”
