DOR190A CHROME SURFACE MOUNT LATCH

POWER TO OPEN

Code: 21810110

0.3870 kg
8425793028833
EACH
6 IN
STOCK
$110 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

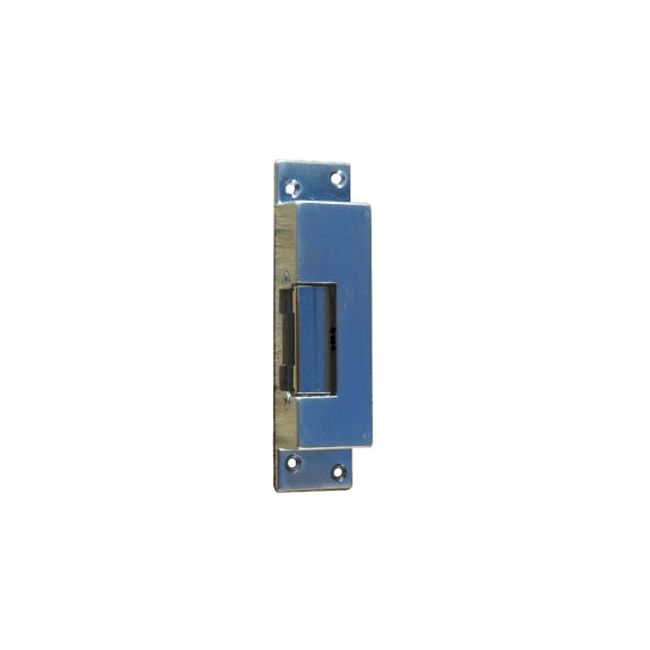

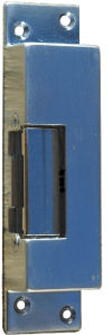

CHROME SURFACE MOUNT ELECTRIC DOOR STRIKE / LATCH

Optional surface mount electric door latch

Function: On activation of the strike release the door (power to open) The strike will unlock when power is applied and will remain unlocked until the power is removed.

  • CE Approved
  • C-Tick Certified
  • TVU Approved
  • 5 Year Warranty

FEATURES:

  • Surface mount type, face mount for easy installation
  • Ideal for Gates and Doors where rim locks are used
  • Low current 33Ω COIL as standard, 12v DC, 350mA
  • Ideal for, Access Control and Intercoms applications
  • Strong durable construction, Satin Chrome
  • Quality product built to ISO9227 standards
  • ECONOMICALY priced
  • 5 Year Manufacturers Warranty

SPECIFICATIONS:

  • Type: Surface face mount design
  • Operational voltage: 12v DC, or 12-16v AC
  • Current draw: 360mA
  • Coil type: 30Ω coil
  • Operation features: Standard momentary operation
  • Colour: Satin Chrome Plated
  • Dimensions: H 146mm x W 36mm x D 25mm
  • Warranty: 5 Years Manufactures Warranty



Data Sheet





ACCESS CONTROL TO VIDEO DOOR PHONE CONNECTION DIAGRAM Follow this diagram to connect an access control system to the DOSS Video Doorphones (DHF72PC).Click for a larger version or download PDF filePDF file.
