Name: ES224G 24 PORT GIGA EASY MANAGED SWITCH OMADA SDN CLOUD MANAGEMENT
Brand: TP-LINK
SKU: 09052418
Price: 139 AUD
Availability: InStock

OMADA SDN CLOUD MANAGEMENT

Code: 09052418

3.12 kg

1210002600705

EACH

Low Stock

$139 inc GST

Increase value Decrease value

Qty	Each (inc GST)	Each

Request Price Match

Freight Estimator Enter 4 digit postcode

{tab Overview}

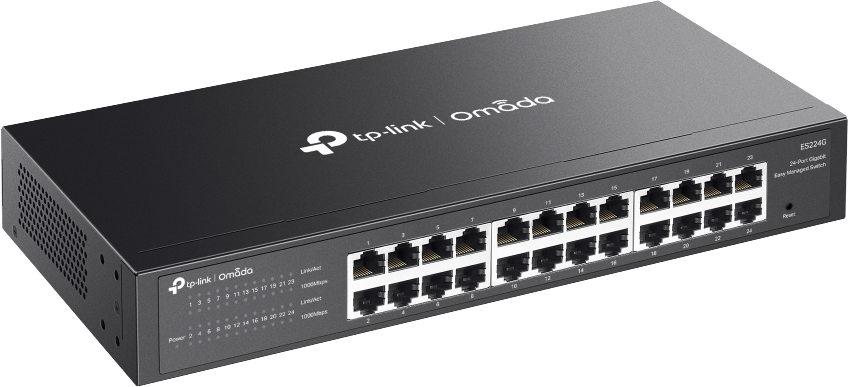

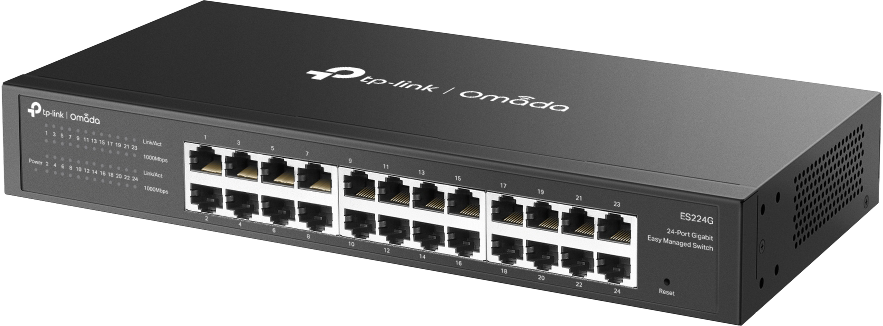

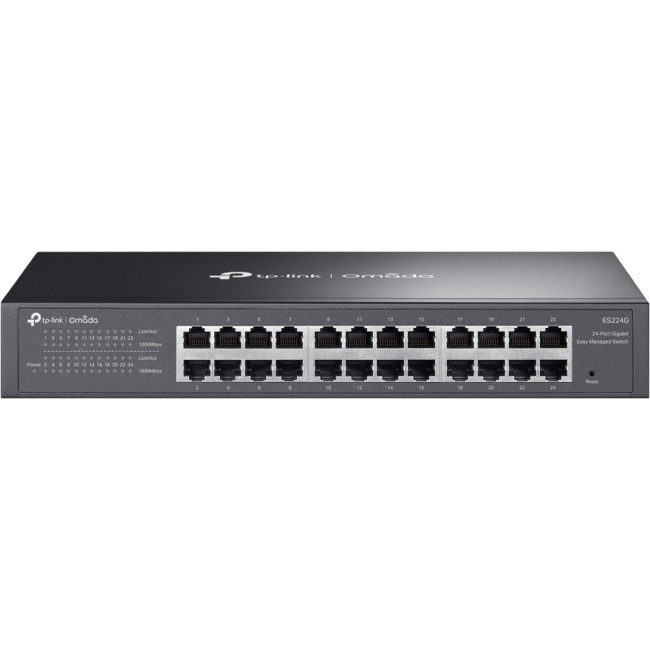

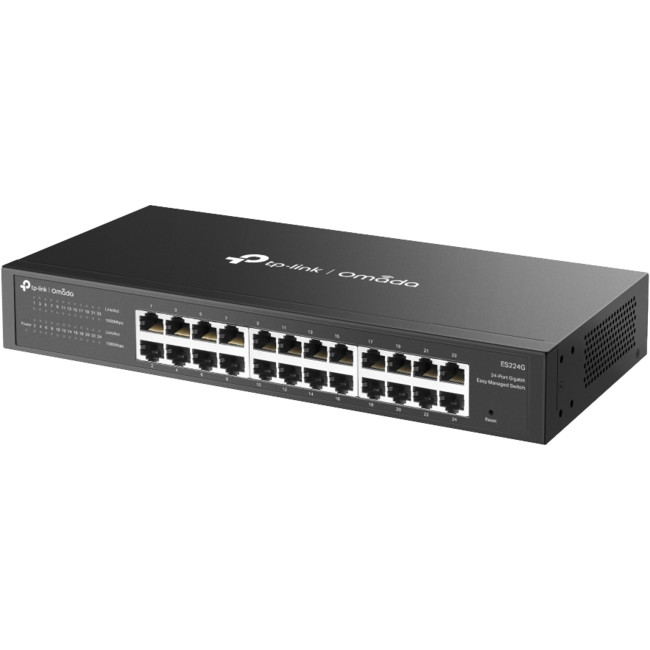

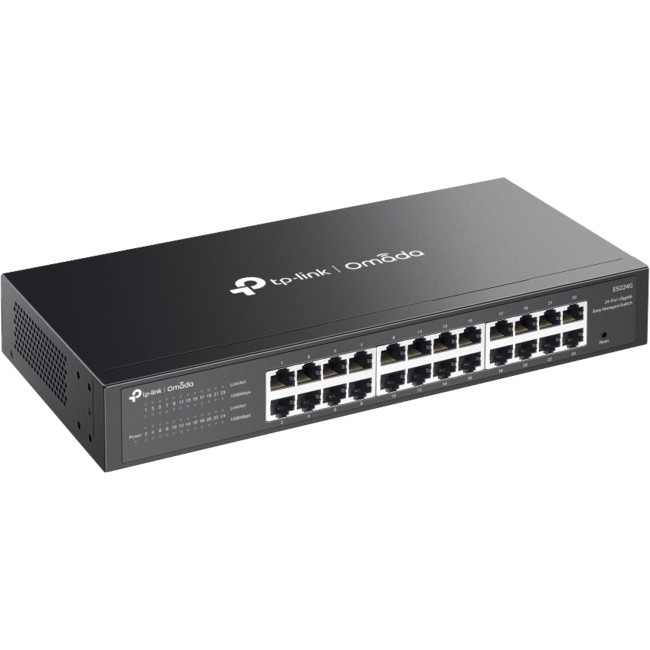

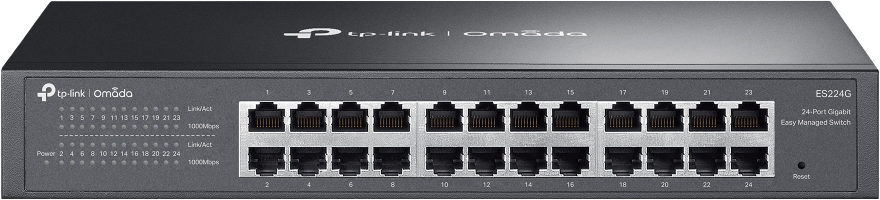

ES224G TP-LINK Omada 24-Port Gigabit Easy Managed Switch

24 × 10/100/1000Mbps RJ45 ports.
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features.
Centralised Cloud Management via the web or the Omada app*¹.
VLAN, Port Isolation, Cable Test*², QoS*² for reliable surveillance networking.
Automatic Loop Prevention and IGMP Snooping.
Fanless design for silent operation.
Durable metal casing and desktop/rack mounting design.

1: These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.

2: Cable Test and Port Qos are supported under Standalone Mode.

{tab Specifications}

Specifications

HARDWARE FEATURES	Interface	24 × 10/100/1000 Mbps RJ45 Ports Auto-Negotiation/Auto MDI/MDIX
	Fan Quantity	Fanless
	Installation	Desktop Rack Mountable
	Physical Security Lock
	Surge Protection	±6kV
PERFORMANCE	Switching Capacity	48 Gbps
	Packet Forwarding Rate	35.7 Mpps
	MAC Address Table	8K
	Packet Buffer Memory	4 MB
	Jumbo Frame	15 KB
SOFTWARE FEATURES	Quality of Service	Port-based/802.1p/DSCP QoS 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rating Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control
	L2 Features	Static Link Aggregation Loop Prevention / Loopback Detection Flow Control 802.3x Flow Control Mirroring Port Mirroring One-to-One Many-to-One Ingress/Egress/Both Port Statistics Port Mirror Status Traffic Statistics 802.1ab LLDP
	L2 Multicast	IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave
	VLAN	MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID
	Transmission Method	Store-And-Forward
MANAGEMENT FEATURES	Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
	Centralised Management	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller
	Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
	Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller.
	Management Features	Web-based GUI DHCP Client Cable Diagnostics Automatic Device Discovery¹ Batch Configuration¹ Batch Firmware Upgrading¹ Unified Configuration¹
ENVIRONMENT	Operating Temperature	−5°C~50°C (23°F~122°F)
	Storage Temperature	−40°C~70°C (−40°F~158°F)
	Operating Humidity	10%~90% non-condensing
	Storage Humidity	5%~90% non-condensing
GENERAL	Certification	FCC, CE, RoHS
	Power Supply	100-240V, 50~60Hz
	Dimensions (W×D×H)	294mm × 140mm × 44mm (11.6″ × 5.5″ × 1.7″)
	Package Contents	ES224G Power Cord Rubber Feet Mounting Brackets Screws Installation Guide

2: Cable Test and Port Qos are supported under Standalone Mode.
