Features

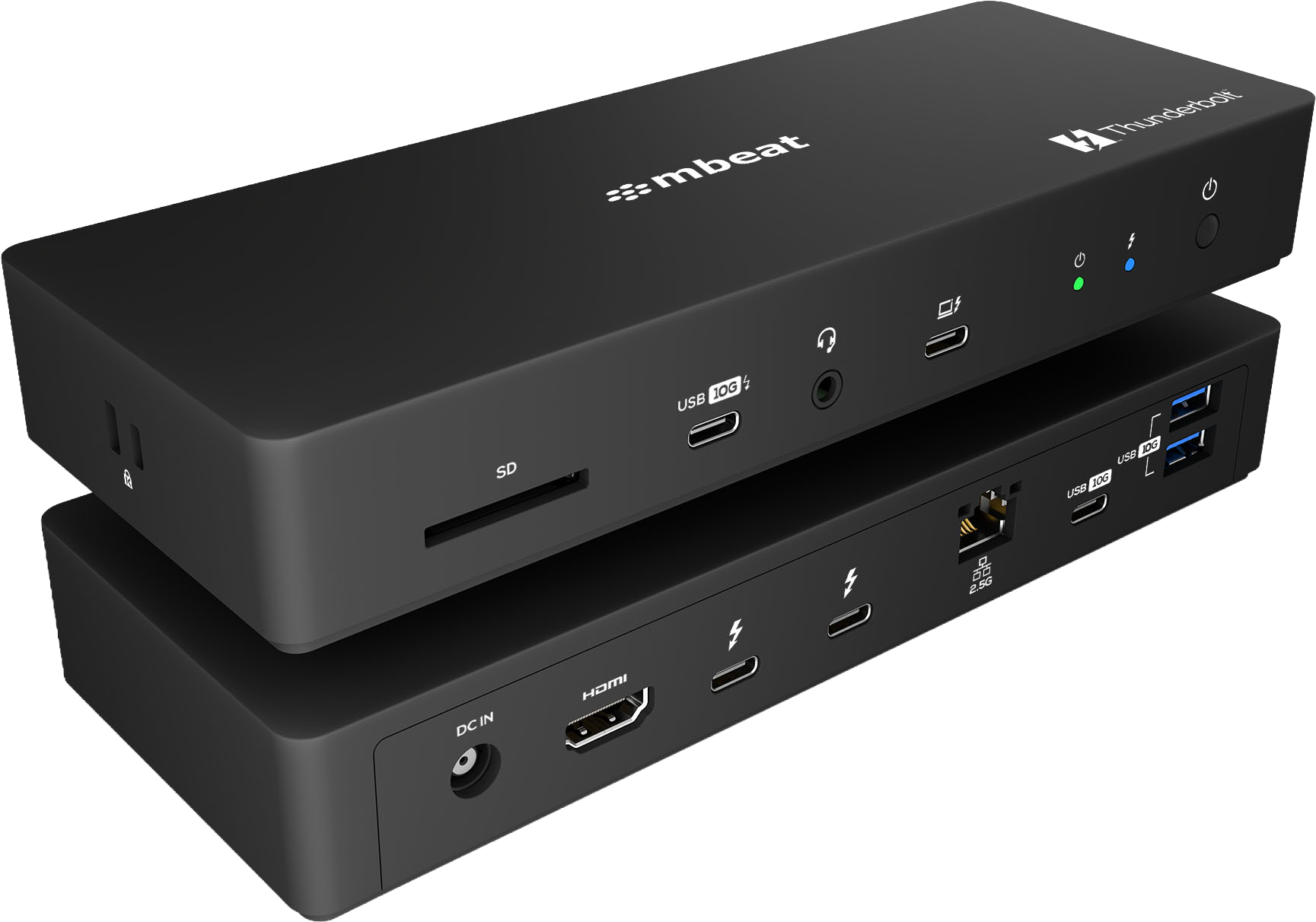

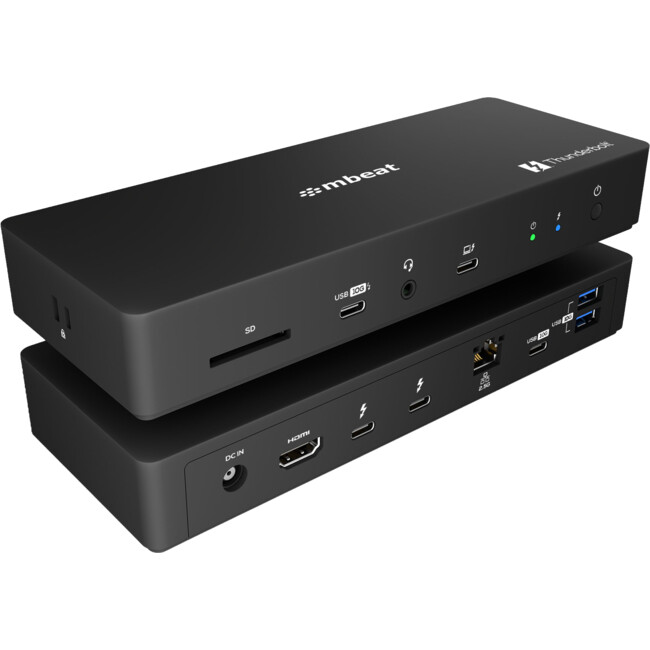

The mbeat TB48 is a Thunderbolt™ 4 docking station designed for professional workstations and high-performance desktop setups. With 40Gbps connectivity, support for a single 8K display or dual 4K displays, up to 96W laptop charging, 2.5GbE networking, and 12 ports, it brings display, data, network, charging, and peripheral connections together through a single cable.

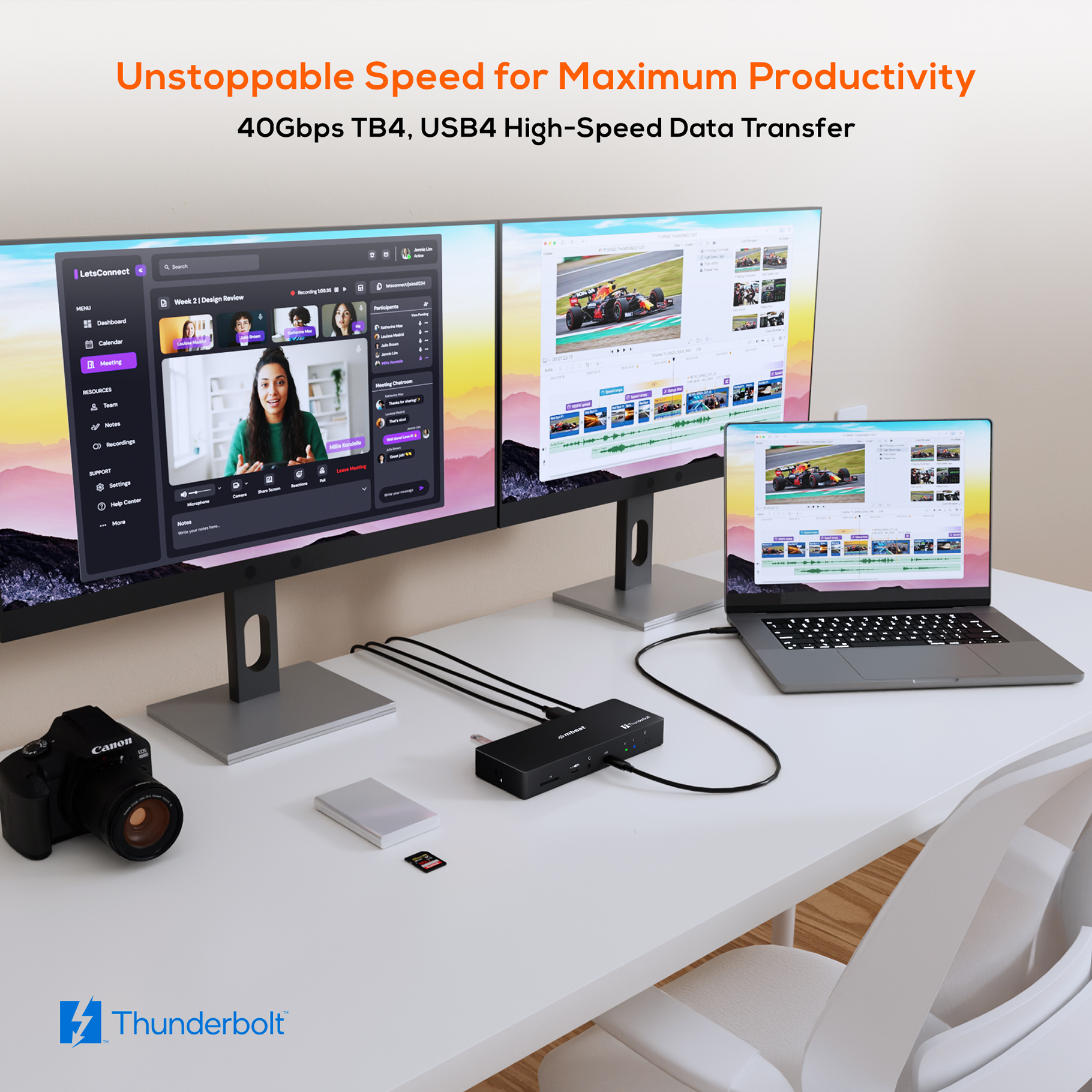

40Gbps Thunderbolt™ 4 Performance
Thunderbolt™ 4 delivers up to 40Gbps bandwidth for high-speed storage, displays, and connected peripherals. Transfer large files, connect high-performance devices, and run multiple accessories through one dock.

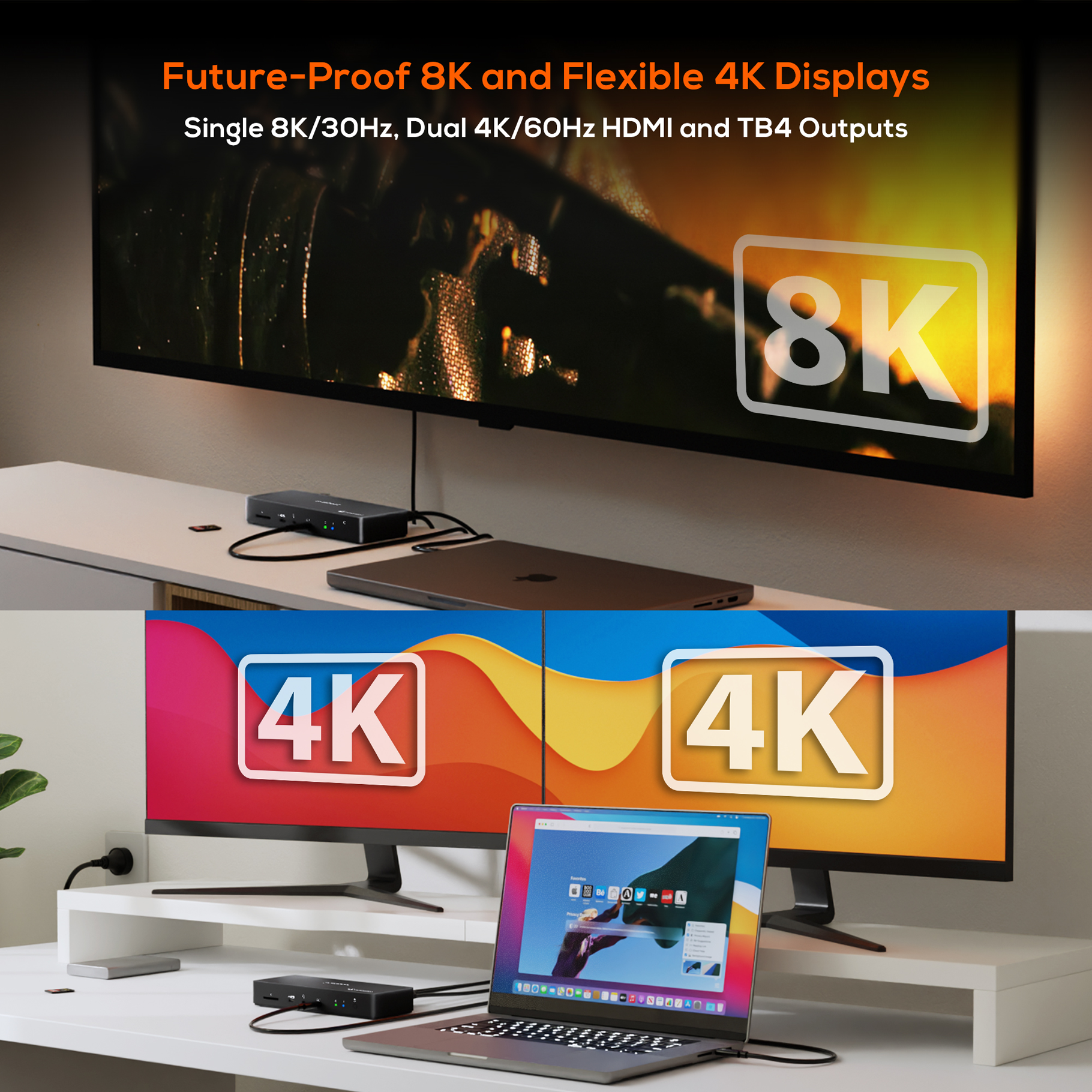

8K and Dual 4K Display Support
Connect a single display up to 8K@30Hz via HDMI 2.1, or create a dual 4K@60Hz workspace. Display output is available through HDMI and the two downstream Thunderbolt™ 4 ports for flexible monitor configurations.

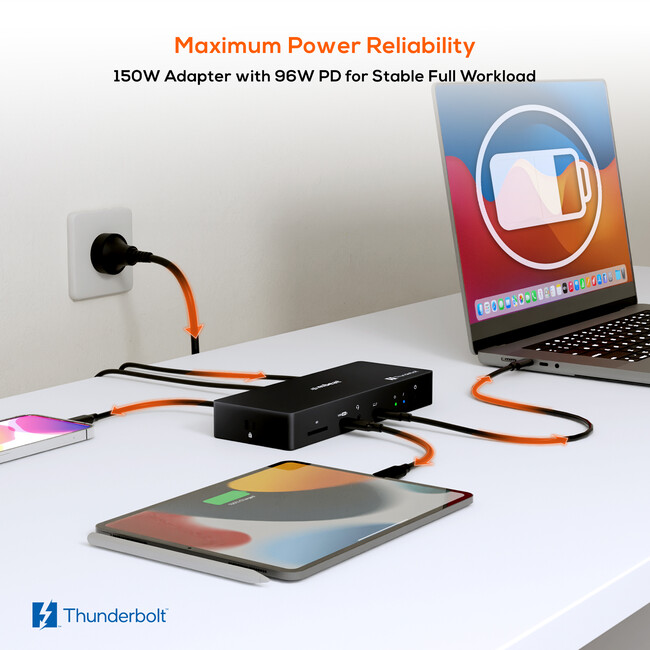

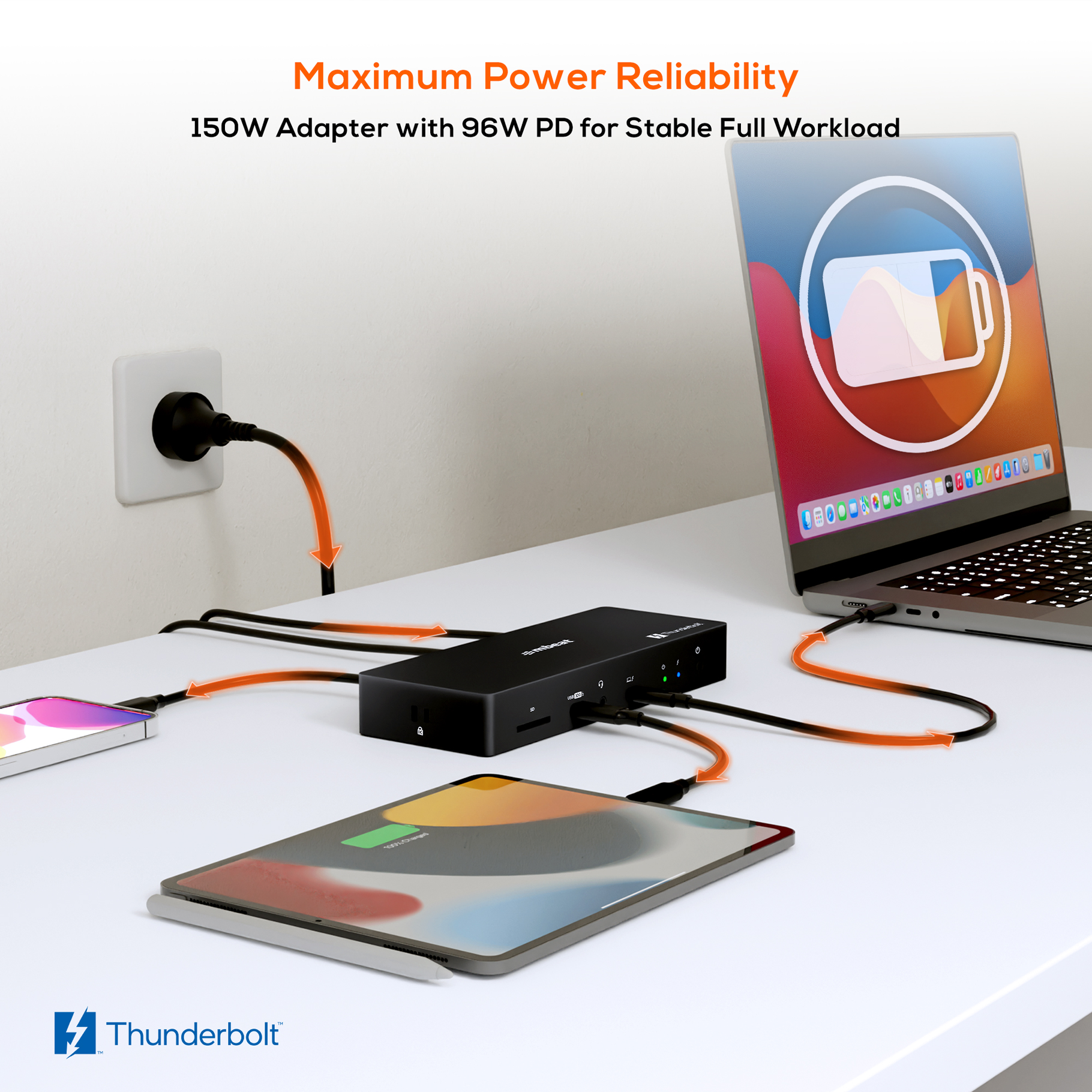

96W Laptop Charging
The included 150W power adapter supplies the dock and delivers up to 96W Power Delivery to a compatible laptop, providing reliable charging while multiple devices are connected.

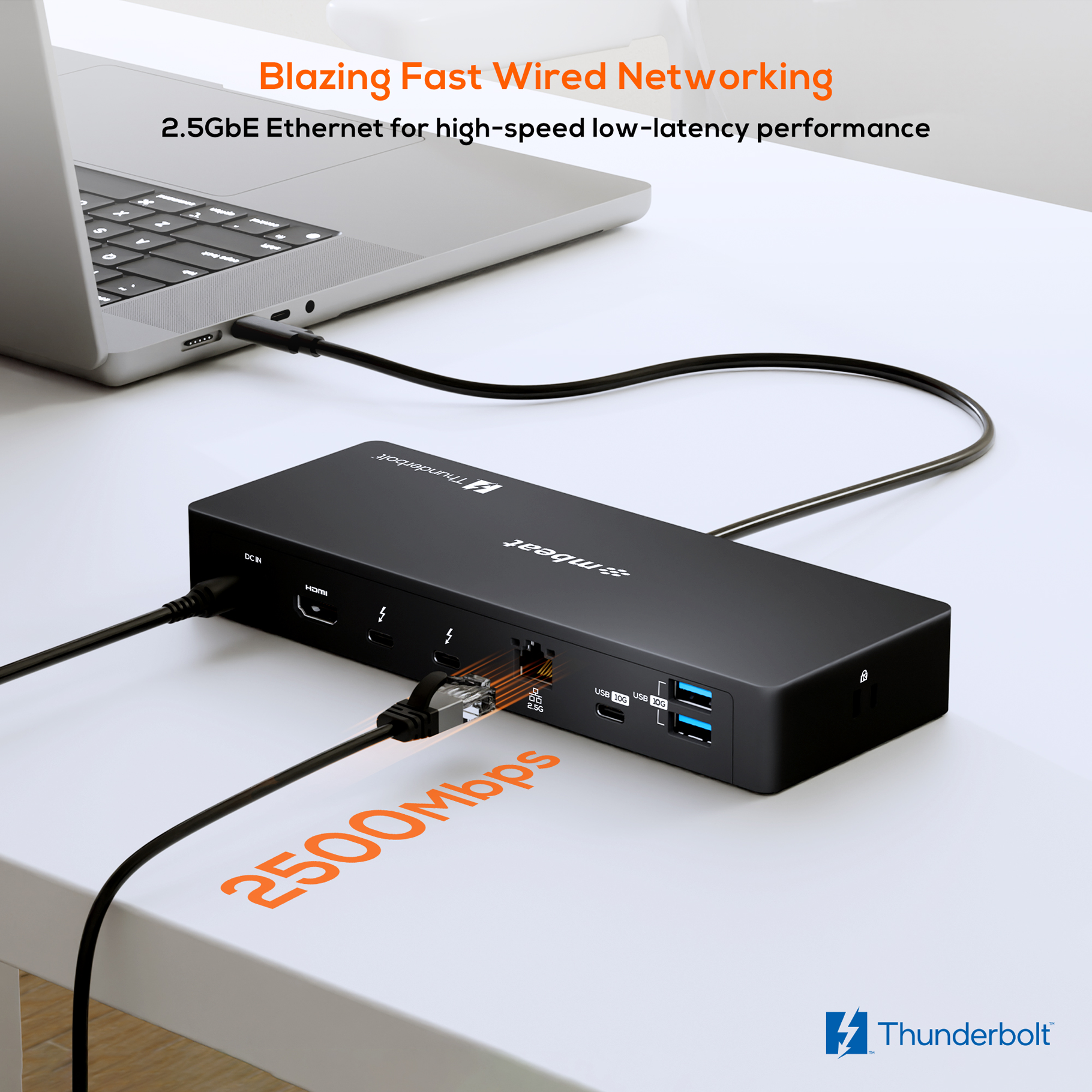

2.5 Gigabit Ethernet
The integrated 2.5GbE port provides faster wired networking than standard Gigabit Ethernet, suitable for large file transfers, high-speed local networks, video conferencing, and other bandwidth-intensive applications.
12 Ports for a Complete Workstation
Connect displays, storage, peripherals, memory cards, audio, and networking through a single dock. The TB48 includes Thunderbolt™ 4, USB-C and USB-A 10Gbps connectivity, HDMI 2.1, SD 4.0, 2.5GbE, and audio connections.
Broad Device Compatibility
Compatible with Thunderbolt™ 4, Thunderbolt™ 3, USB4, and supported USB-C computers with DisplayPort Alt Mode. Works with compatible Windows and macOS systems without additional driver installation.
Specifications

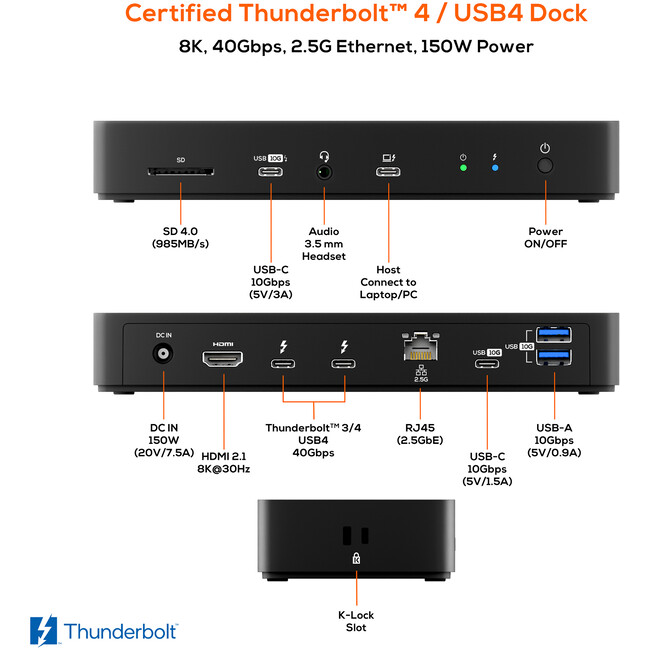

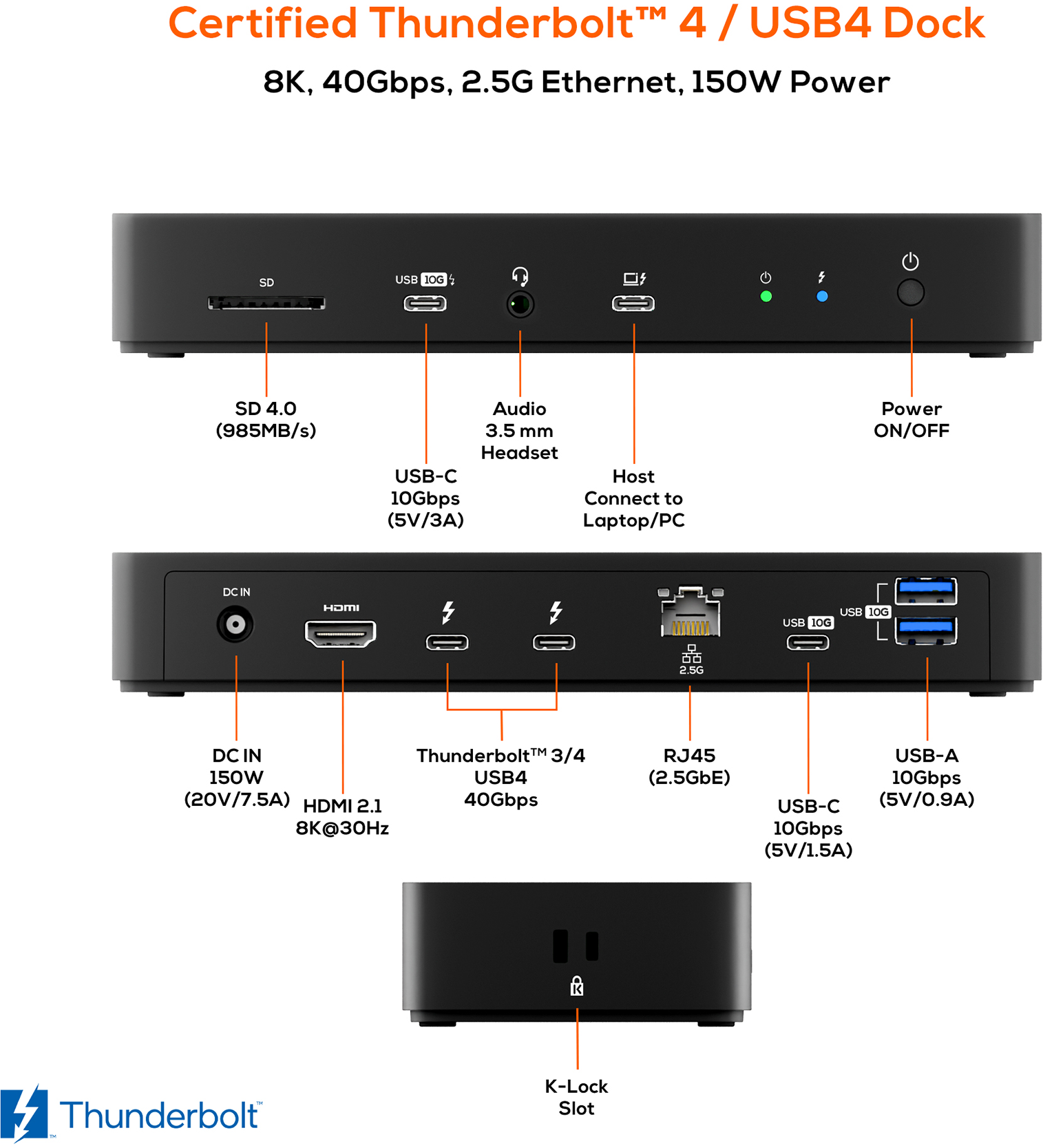

Interface
• Upstream: 1 × Thunderbolt™ 4 / USB-C port (Front, supports up to 96W PD, 40Gbps)
• Downstream:
- 2 × Thunderbolt™ 4 / USB4 ports (Rear, data or video output)
- 2 × USB-A 10Gbps (Rear, 5V/0.9A)
- 1 × USB-C 10Gbps (Rear, 5V/1.5A)
- 1 × USB-C 10Gbps (Front, 5V/3A)
• Video Output:
- 1 × HDMI 2.1
- 2 × Thunderbolt™ 4
• Maximum Resolution: 1 × 8K@30Hz or 2 × 4K@60Hz
• Ethernet: 1 × RJ45 (Rear, 10/100/1000/2500Mbps)
• Card Reader: 1 × SD 4.0 (Front, up to 985MB/s)
• Audio: Hi-Res 3.5mm Headset Jack (Front, 24-bit / 96Hz)
• Security: K-Lock Slot for physical anti-theft security
• LED Indicators:
- Power LED: Green (power on)
- Thunderbolt™ 4 LED: Blue (active Thunderbolt™ connection)
• Power Type:
- DC Power Input: 150W (20V/7.5A)
- 150W DC Power Adapter Included
- PD Charging Output: USB-C PD 3.0 up to 96W (5V / 9V / 15V / 20V@4.8A) to host device
Supported Operating System
• Windows® 10+
• macOS Big Sur 11.2 or later
Compatibility and Requirements
• Dual Extended Display Compatibility Alert for Apple MacBook: Dual display support depends on the MacBook’s processor, not the dock. MacBook Pro models with M1 Pro, M1 Max, M2 Pro, M2 Max, M3 Pro, or M3 Max chips support dual extended displays natively, whereas MacBook Air or MacBook Pro models with M1, M2, or M3 (Base) chips support only a single extended external display.
• Windows laptops with Thunderbolt™ 4 or USB4 generally support dual extended displays.
Product and Packaging:

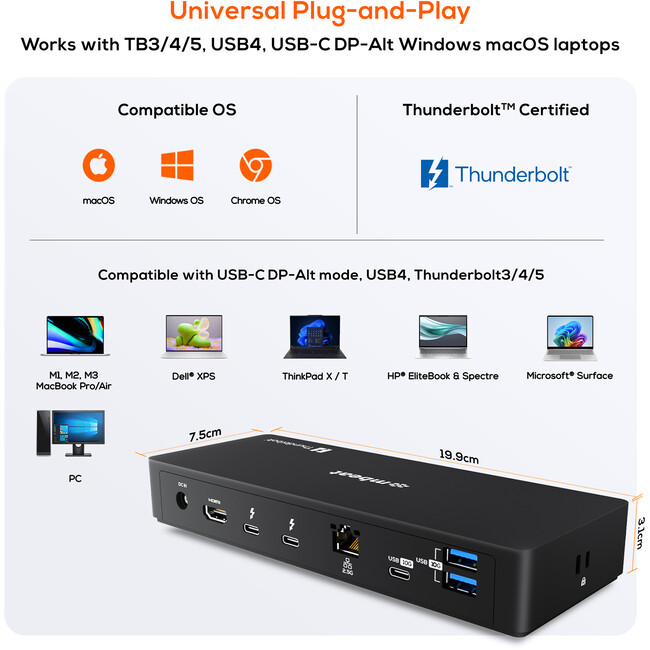

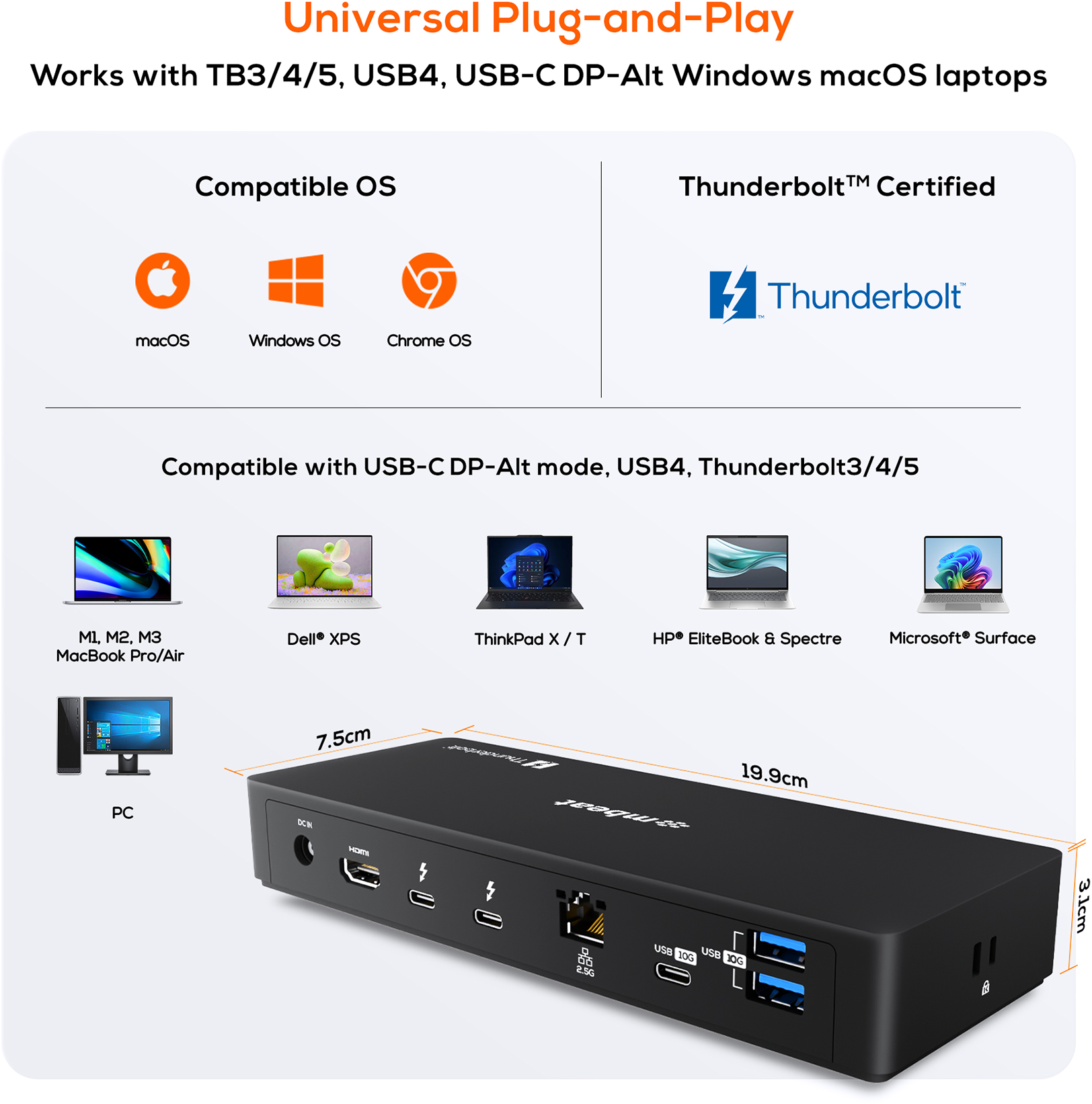

• Product Dimensions: 19.9cm × 7.5cm × 3.1cm
• Product Weight: 0.26kg
• Cable Length: 100cm (USB-C / Thunderbolt™ data cable)
• Package Dimensions: 29.5cm × 14.5cm × 9cm
• Package Weight: 1.11kg
• Package Contents: Thunderbolt™ 4 Docking Station, 150W DC Power Adapter (Included), USB-C / Thunderbolt™ Cable (100cm), Instruction Manual, Product Registration Card
