CS1782A 2 PORT USB/ DVI KVM SWITCH

7.1 AUDIO/ 3D ENABLED

Code: 09005281

EACH
Special Buy-In
$385 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product

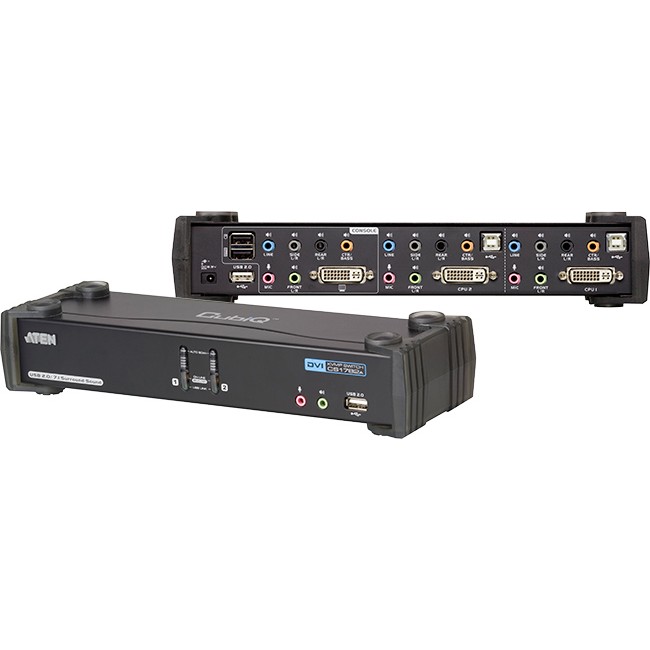

The CS1782A USB DVI Dual Link KVMP? Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

  • 2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio
  • One USB console controls two computersand two additional USB devices
  • 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
  • Full bass response for high quality 7.1 channel surround sound systems
  • Computer selection via font panel pushbuttons, hotkeys, and mouse NEW!
  • Multiplatform support ? Windows, Linux, Mac, and Sun*
  • Independent switching of KVM, USB, andAudio focus
  • DVI digital and analog monitor support? fully compliant with the DVI specifications
  • Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
  • nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
  • HDCP compatible
  • Support widescreen resolutions
  • Video DynaSync? ? Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection ? if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
  • Console mouse port emulation/bypass feature that supports most mouse drivers and multifunctionmice
  • Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping ? supports English, Japanese, and French keyboards
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable

    * PC keyboard combinations emulate Mac/Sun keyboards
    Mac/Sun keyboard work only with their own
Computer Connections 2
Port Selection Front Panel Pushbuttons, Hotkeys, Mouse
Connectors Console Ports Keyboard 1 x USB Type A Female (Black; rear panel)
Video 1 x DVI-I Female (White)
Mouse 1 x USB Type A Female (Black; rear panel)
Audio Line Out 2 x Mini Stereo Jack Female (Green;
1 x front panel, 1 x rear panel)
Line In 1 x Mini Stereo Jack
Female (Blue)
Side Speaker
Out		 1 x Mini Stereo Jack
Female (Gray)
Rear Speaker
Out		 1 x Mini Stereo Jack
Female (Black)
Center/
Subwoofer		 1 x Mini Stereo Jack
Female (Orange)
Microphone 2 x Mini Stereo Jack Female (Pink; 1 x front
panel, 1 x rear panel)
KVM
Ports		 Keyboard /Mouse 2 x USB Type B
Female (White)
Video 2 x DVI-I Female
(White)
Audio Line Out 2 x Mini Stereo Jack
Female (Green)
Line In 2 x Mini Stereo Jack
Female (Blue)
Side
Speaker Out		 2 x Mini Stereo Jack
Female (Gray)
Rear Speaker
Out		 2 x Mini Stereo Jack
Female (Black)
Center/
Subwoofer		 2 x Mini Stereo Jack
Female (Orange)
Microphone 2 x Mini Stereo Jack
Female (Pink)
Power 1 x DC Jack
USB 2.0 Hub 2 x USB Type A Female (White;
1 x front panel, 1 x rear panel)
Switches Power Selected 2 x Pushbutton
LEDs On Line / Selected 2 (Orange)
USB Link 2 (Green)
Emulation Keyboard /Mouse USB
Video DVI Dual Link: 2560x1600
DVI Single Link: 1920 x 1200
Scan Interval 1?99 secs. (5 secs. default)
Power Consumption DC 5.3V, 9 W
Environment Operating Temp. 0 -50°C
Storage Temp. -20-60°C
Humidity 0?80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.90 kg
Dimensions
( L x W x H )		 27.00 x 8.70 x 5.50 cm

* The specification and pictures are subjectto change without notice.

* All trademarks and logos are the properties of their respective holders.
