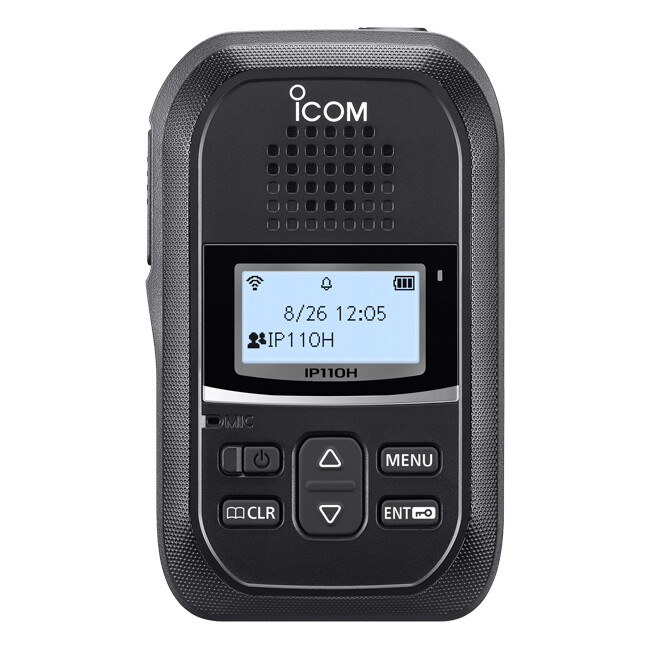

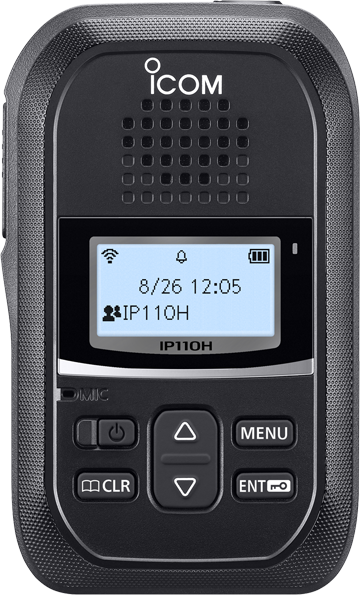

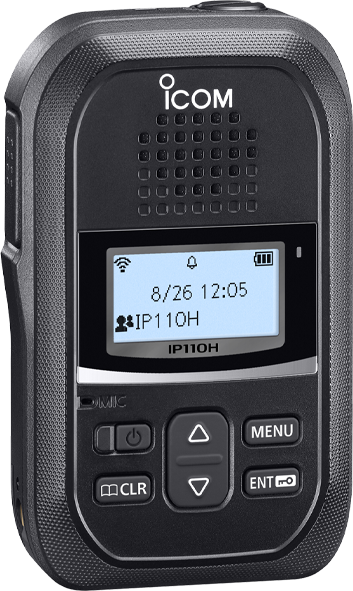

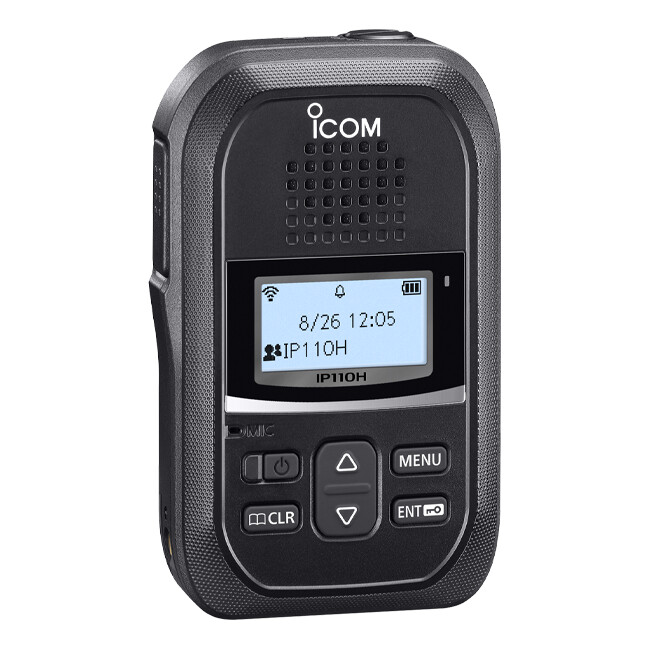

IP110H FULL DUPLEX HANHELD WLAN TRANSCEIVER

Code: 08605450

EACH
Special Buy-In
$595 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

Scalable System Using Wireless LAN Network

Deploying wireless access points over an IP network, the WLAN radio system can expand the communication range.

License-Free Communication

The WLAN radio uses common wireless LAN network frequencies, which do not need communication fees for running the system.

Communication with Dispersed Sites

When connected over the Internet VPN, an WLAN radios can communicate between dispersed sites.

Simultaneous TalkListen Function

The WLAN radio provides full duplex communication like a telephone conversation and one-to-many communication.
TalkListen works with or without external headset.

Specifications

IP110H
Wireless Standards

IEEE802.11 a/b/g/n/ac

Frequency Range *1 2.4 2.4835 GHz, 5.15 5.35, 5.47 5.85 GHz
Security WEP (64/128-bit), WPA2-Enterprise, WPA-Enterprise, WPA-PSK, WPA2-PSK
AF Output Power 1000 mW typ. (Internal SP) / 300 mW typ. (External SP)
Operating Temperature

10 C to 60 C, 14 F to 140 F

Charging Temperature 0 C to 60 C, 32 F to 140 F
Dimensions 57 96.9 25.1 mm, 2.2 3.8 1.0 in (W H D; Projections are not included)
Weight (approximate) 146 g, 5.2 oz
Operating Time More than 20 hours (TX 1 : RX 1 : Stand-by 8 duty ratio)
Charging Time 4 hours (With BC-257 and BC-228)
Supplied Accessories OPC-2480 USB charger cable, MBB-1 belt clip

*1 Authorized frequency range and channels may differ depending on the country.

Applicable U.S. Military Specifications

Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard
MIL-810 G
Method Procedure
Low Pressure

500.5

I, II

High Temperature

501.5

I, II

Low Temperature

502.5

I, II

Temperature Shock

503.5

I-C

Solar Radiation

505.5

I

Rain Blowing/Drip

506.5

I, III

Humidity

507.5

II

Salt Fog

509.5

Dust Blowing

510.5

I

Immersion

512.5

I

Vibration

514.6

I

Shock

516.6

I, IV

Also meets equivalent MIL-STD-810 -C, -D, -E and -F.

Ingress Protection Standard
Dust & Water

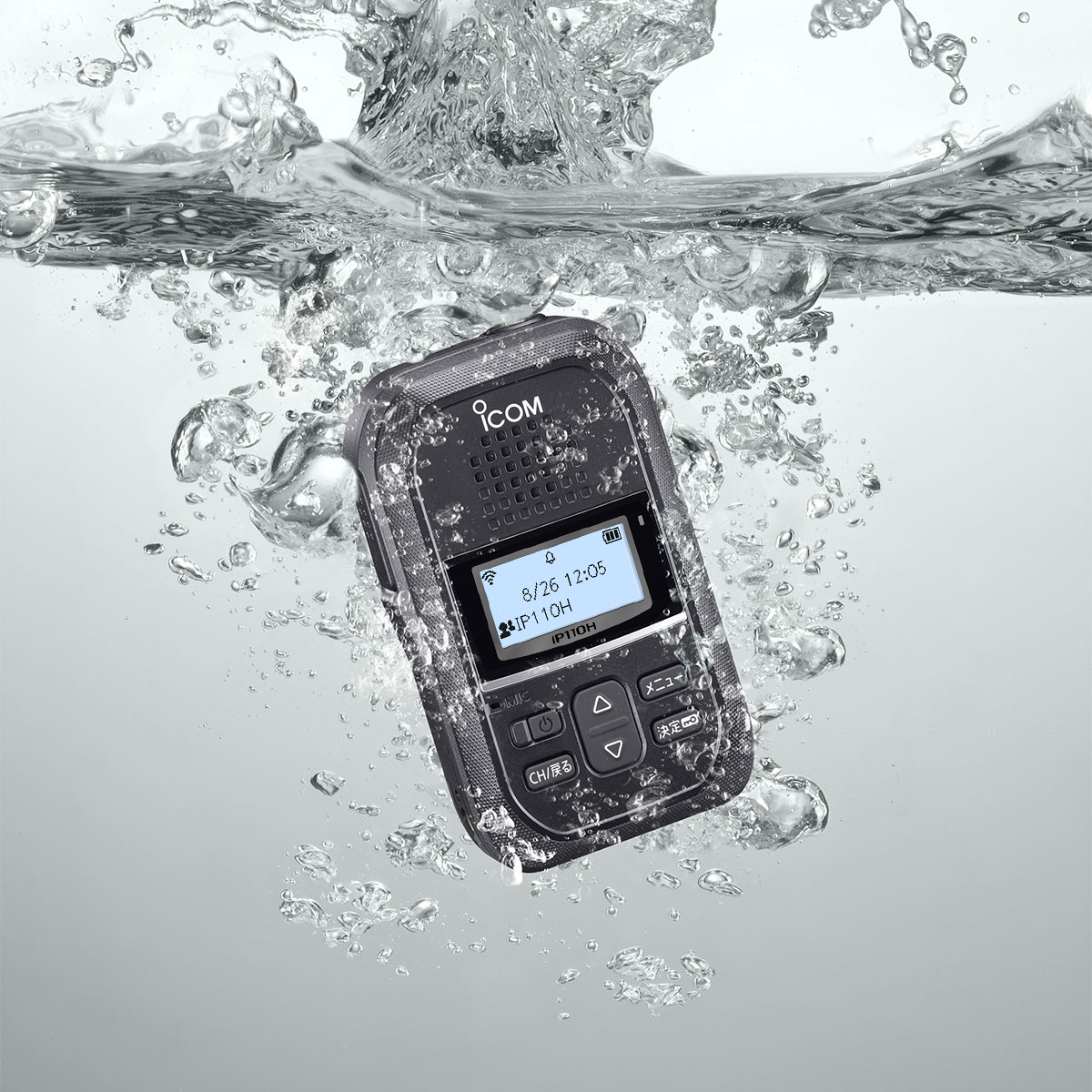

IP67 (Dust-tight and Immersion)
IP54 (Dust and Water resistant)


IP100FS

System requirements

Operating System Windows 11, Windows 10 (32-bit/64-bit),
Windows 8.1 (32-bit/64-bit) (Except for Windows RT)
CPU Intel Core 2 Duo Processor E6600/ 2.4 GHz or faster
System Memory 2 GB or more
Hard Disk Space 1 GB of disk space (for saving log files)
Display Resolution Full HD (1920 1080 pixel) recommended / XGA (1024 768 pixel) at least
LAN 100BASE-TX or faster Ethernet interface
USB USB1.1 / 2.0
Other Speaker, microphone or headset
