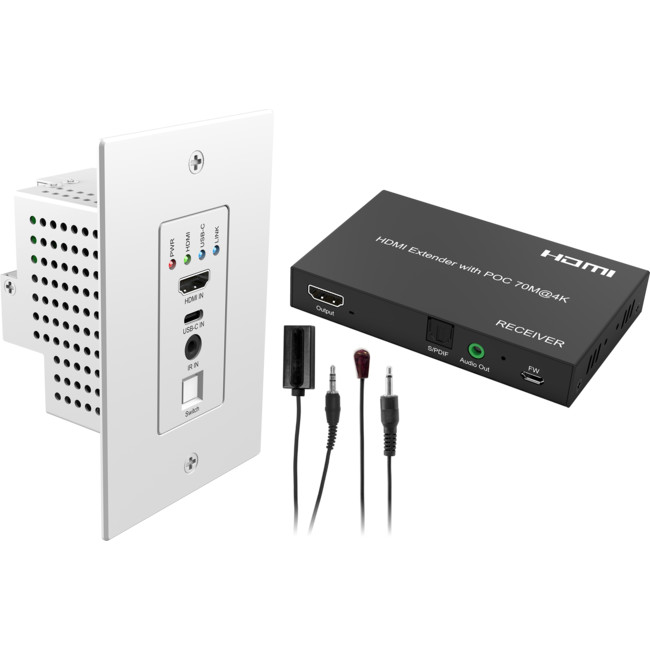

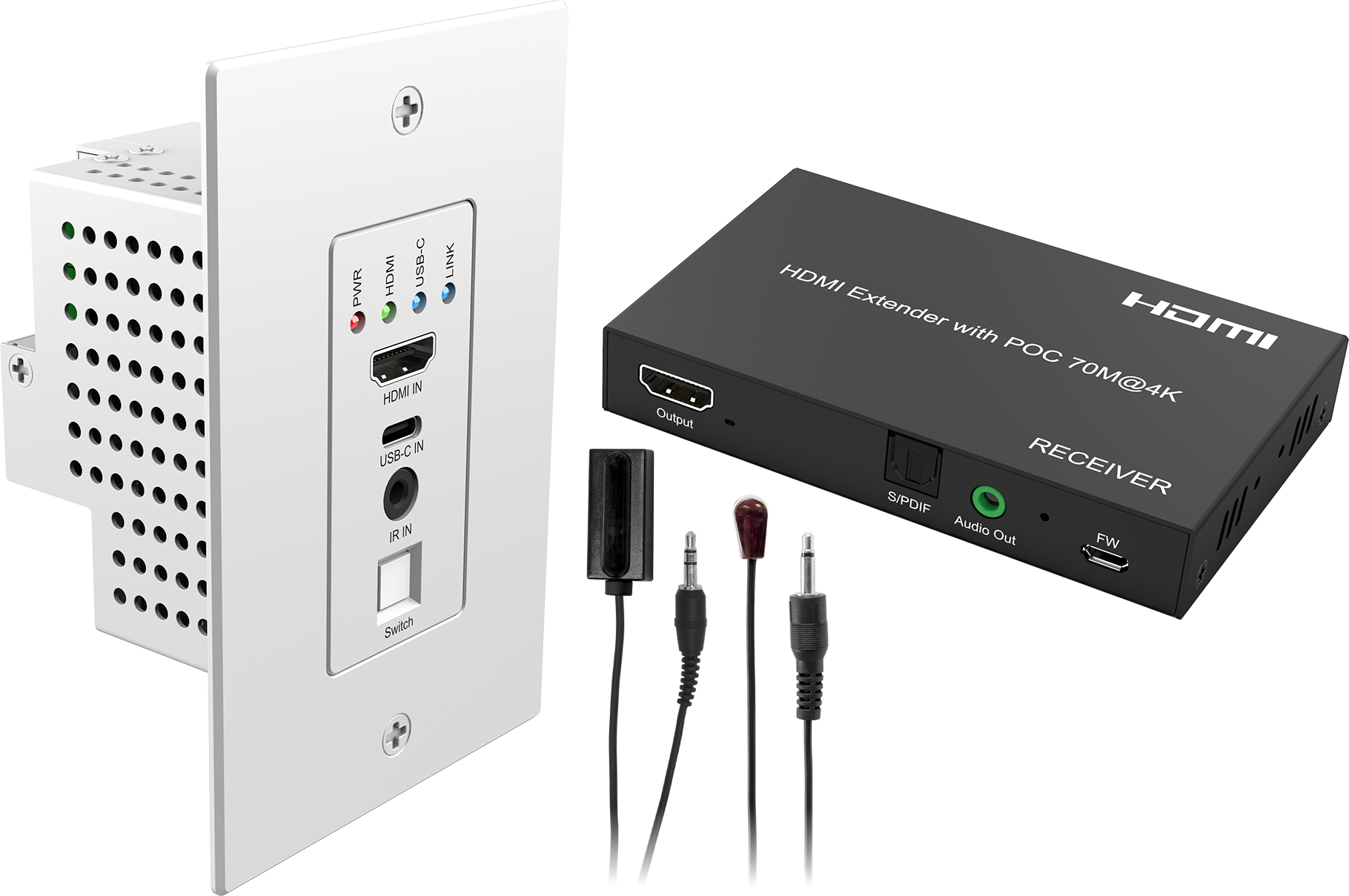

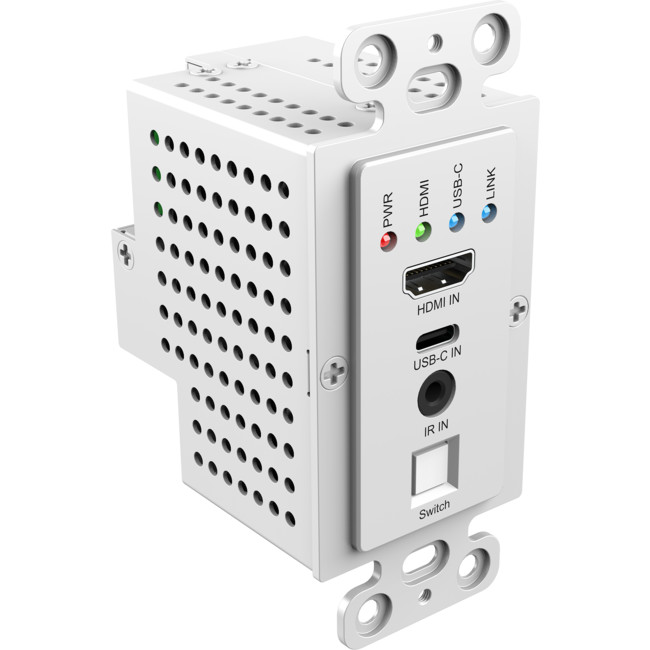

HDMI2.0 and USB Type-C 4K 60Hz up to 70M wall plate extender with IR, RS232, POC, S/PDIF, Audio extraction, PD 65W charging.
Note: The USB Type-C only does the video transfer and PD charging, no data transfer.
Requires IEEE-568B cable termination standards and solid core cable. Use Solid/FTP CAT5/6 cables if you are running a cable 15 metres or more.
Operating Temperature Range
-5 to 40°C( 23 to 104°F)
Operating Humidity Range
5 to 90%RH (No Condensation)

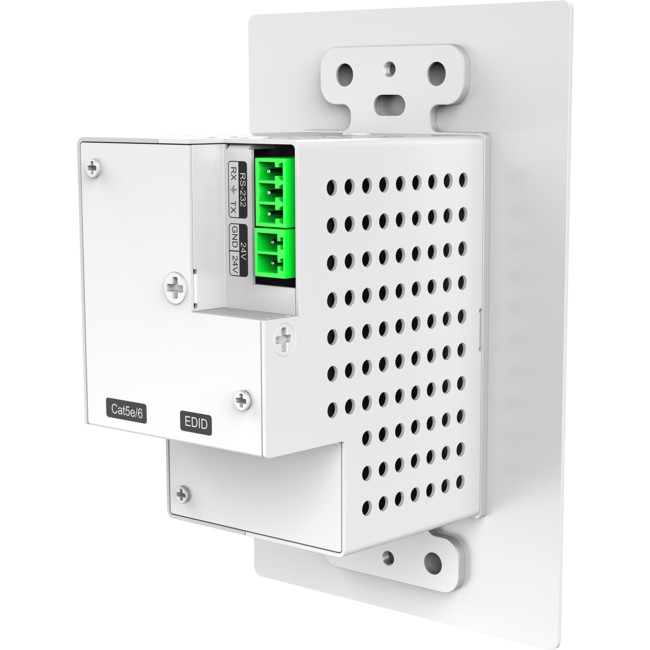

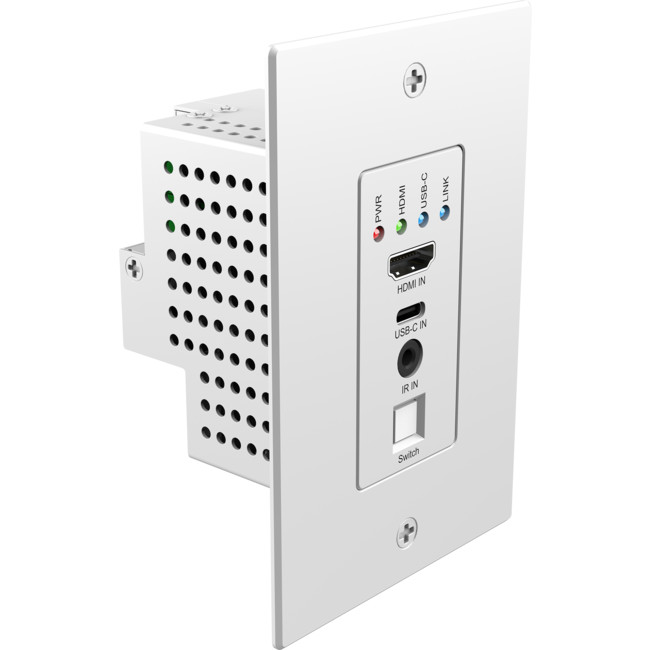

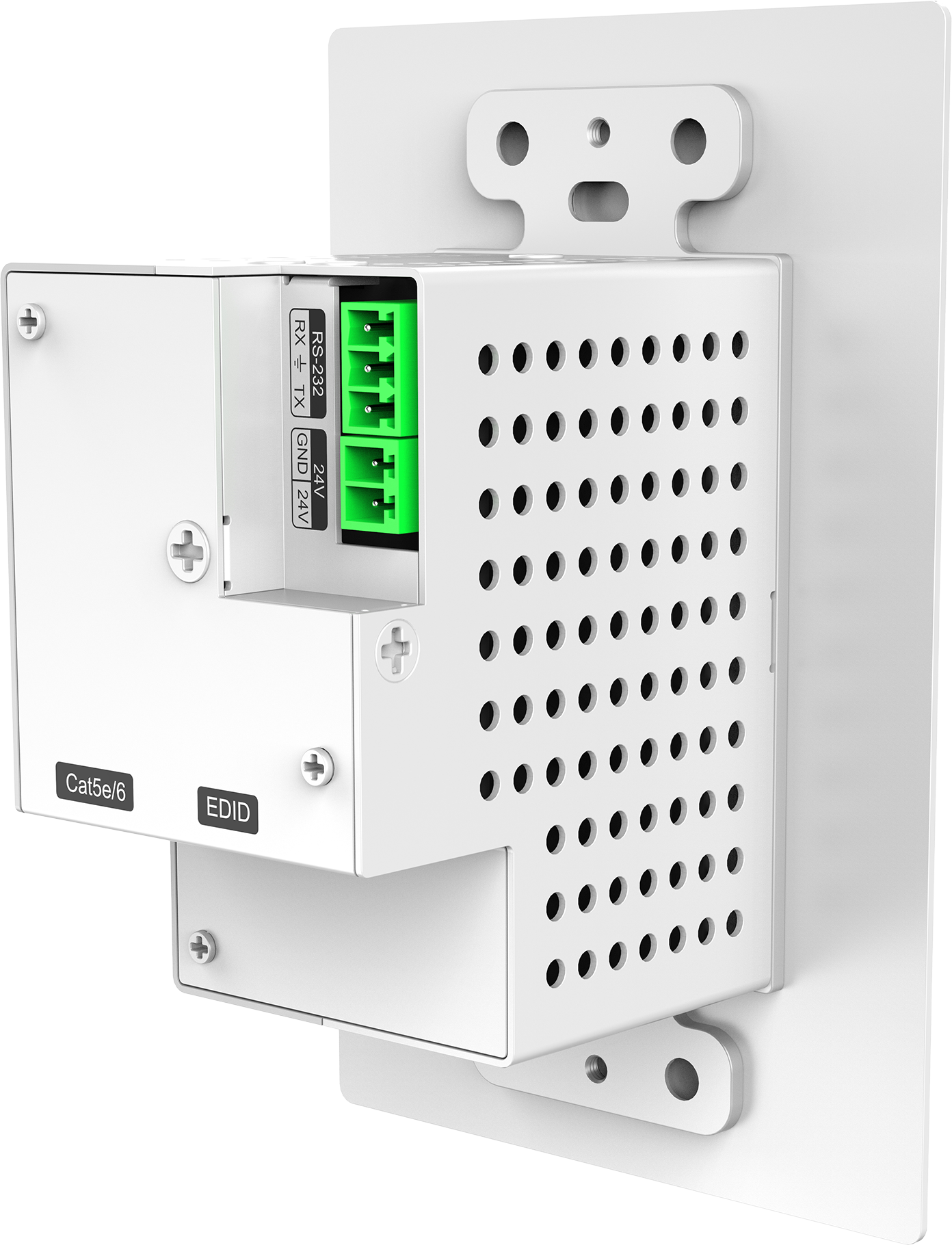

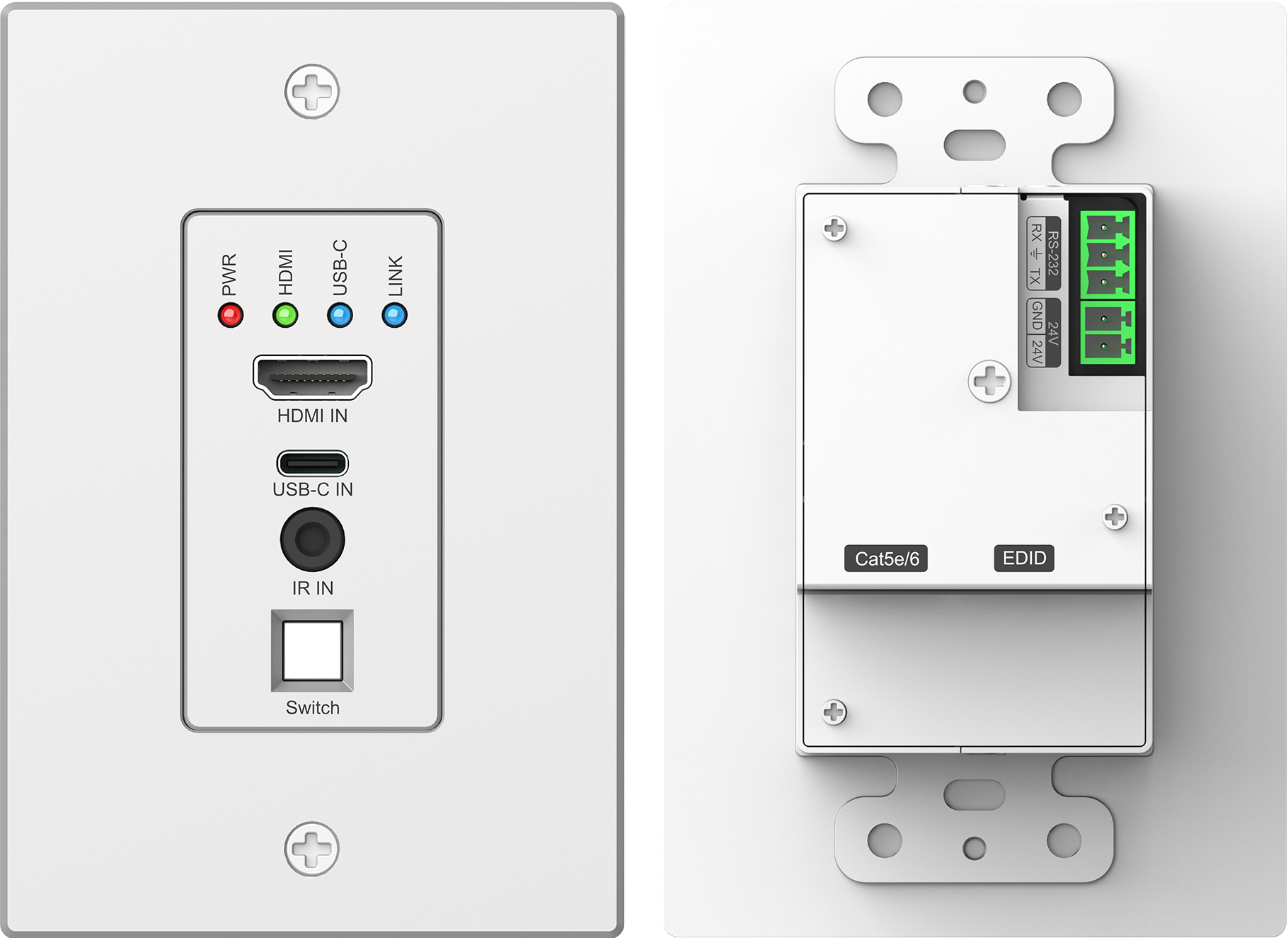

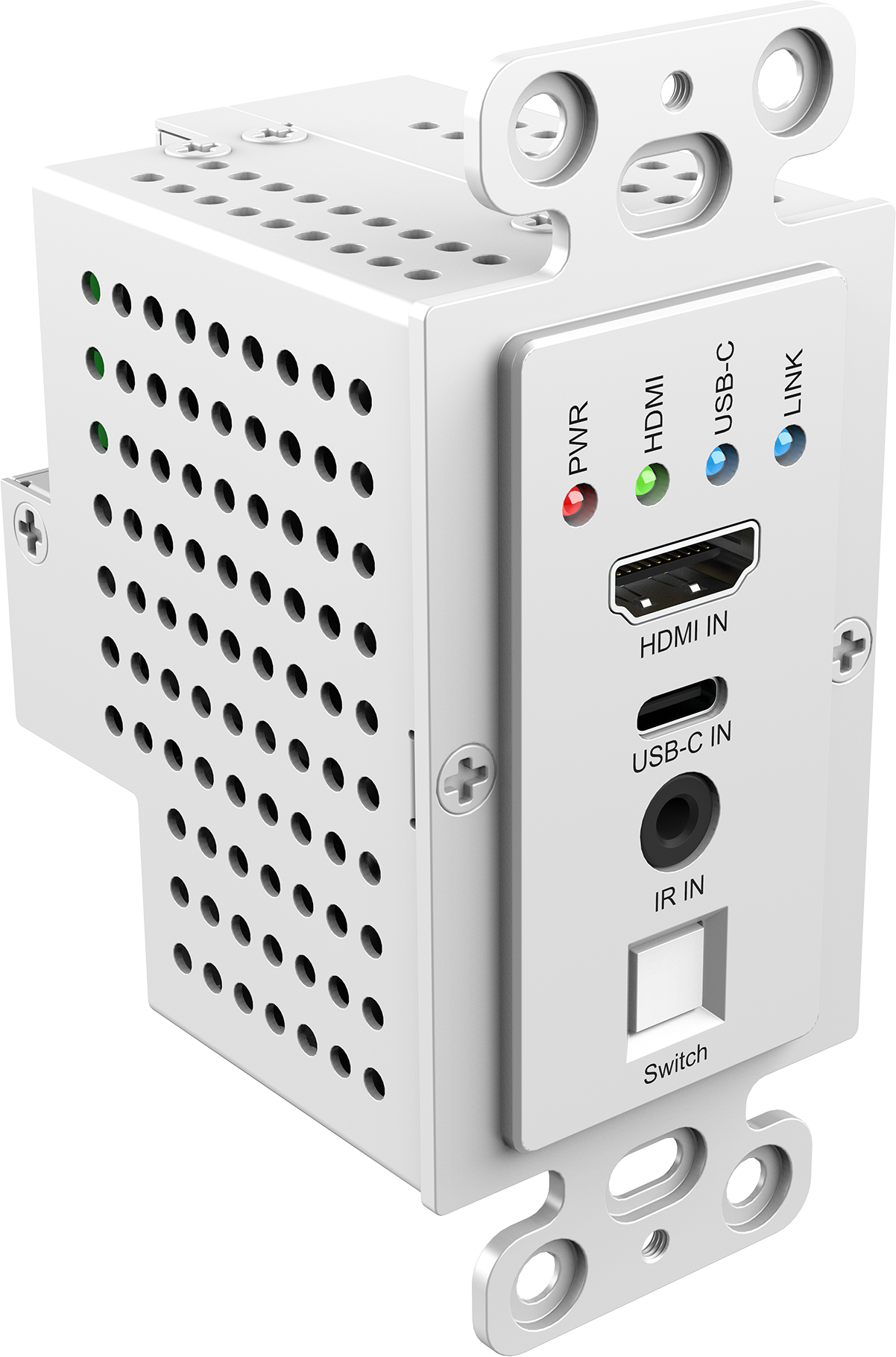

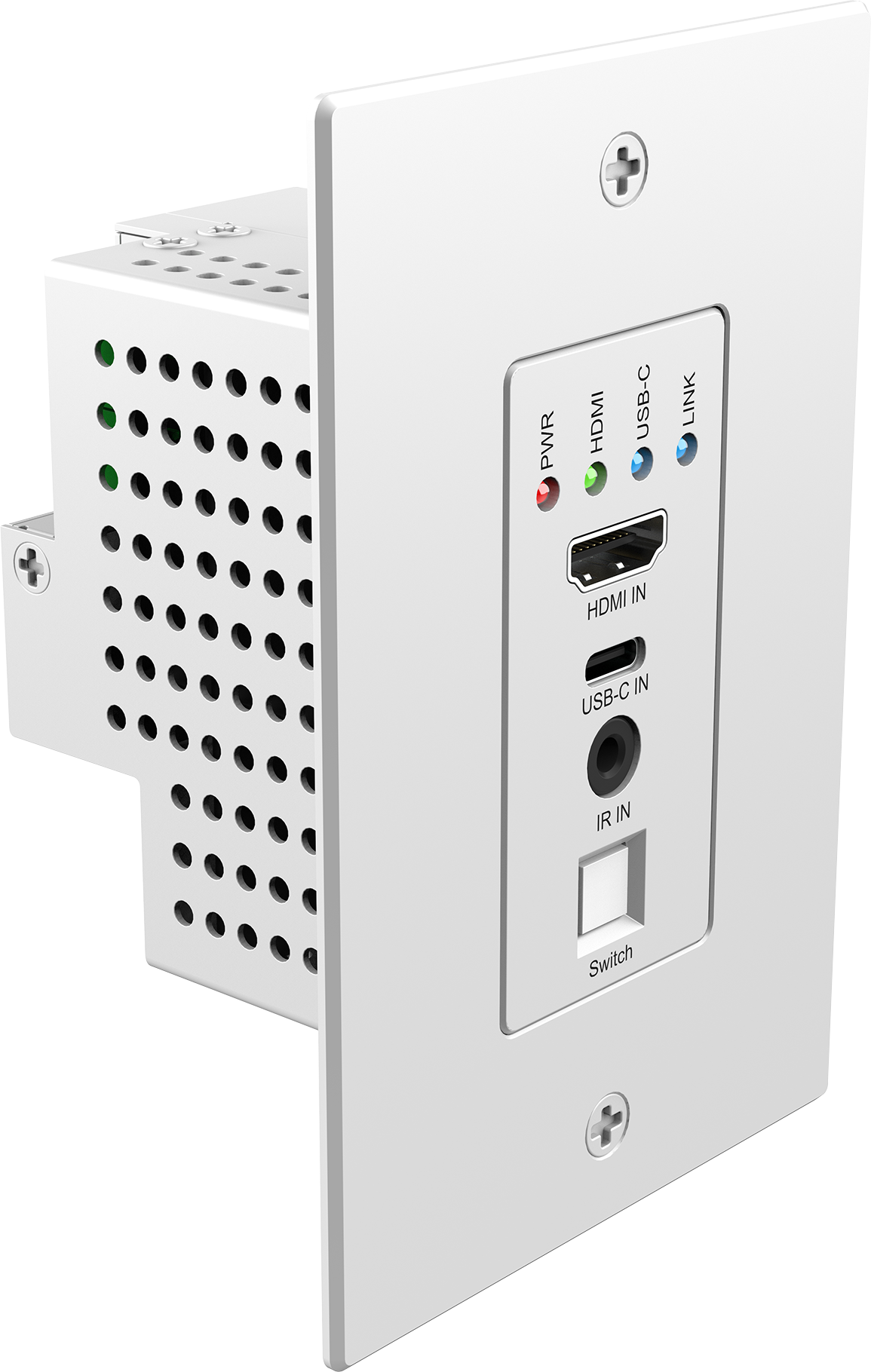

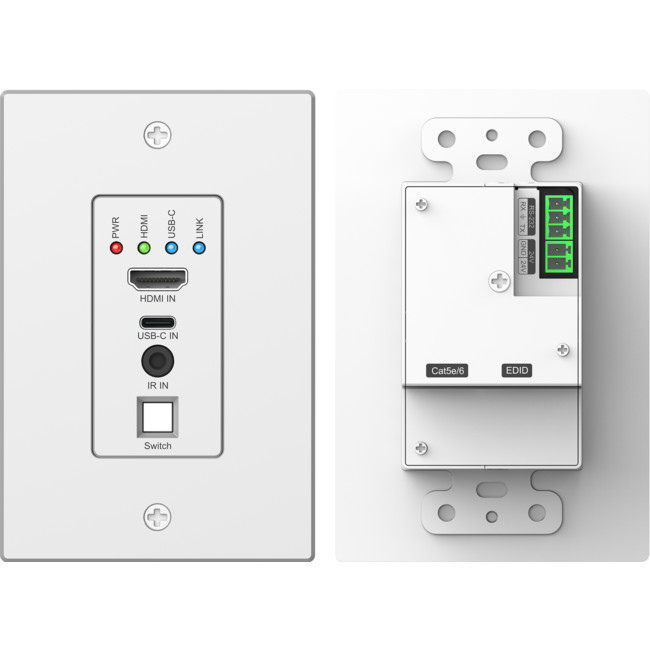

Connectors on Transmitter
HDMI Input x 1, USB-C Input x 1 Power DC24V Phoenix terminal x 1, RS232 Phoenix terminal x 1 IR Receptacle x 1(for IR RX )

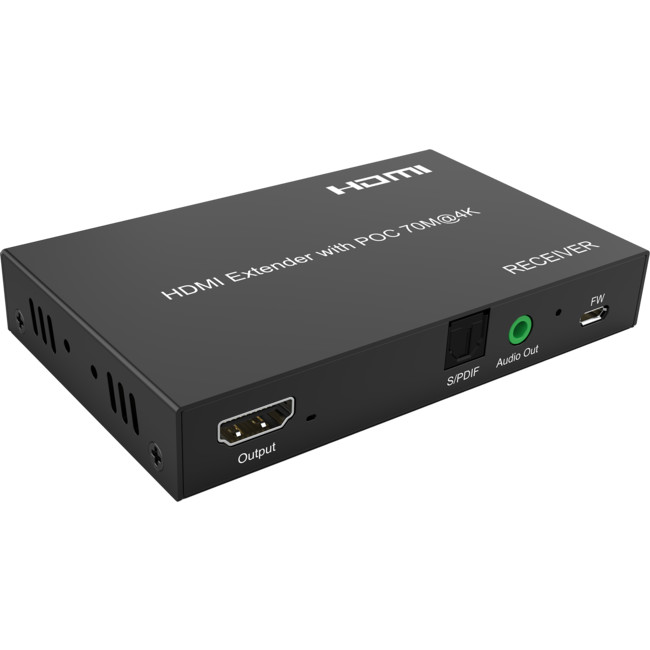

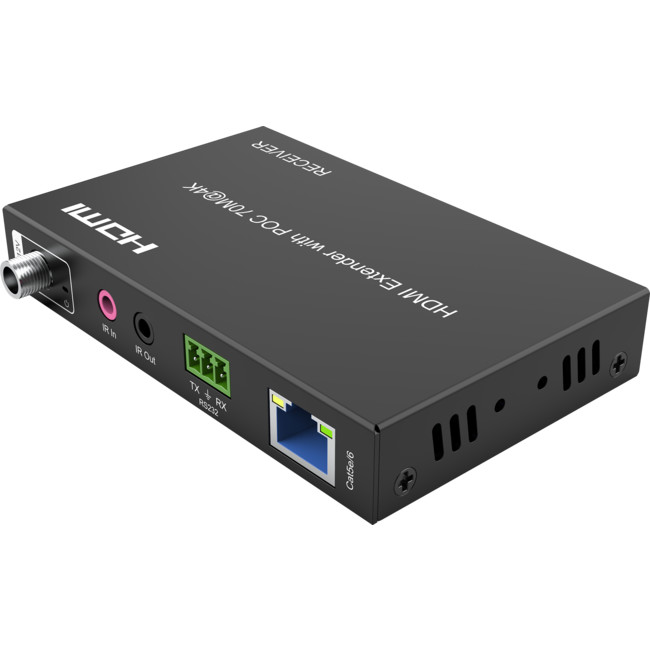

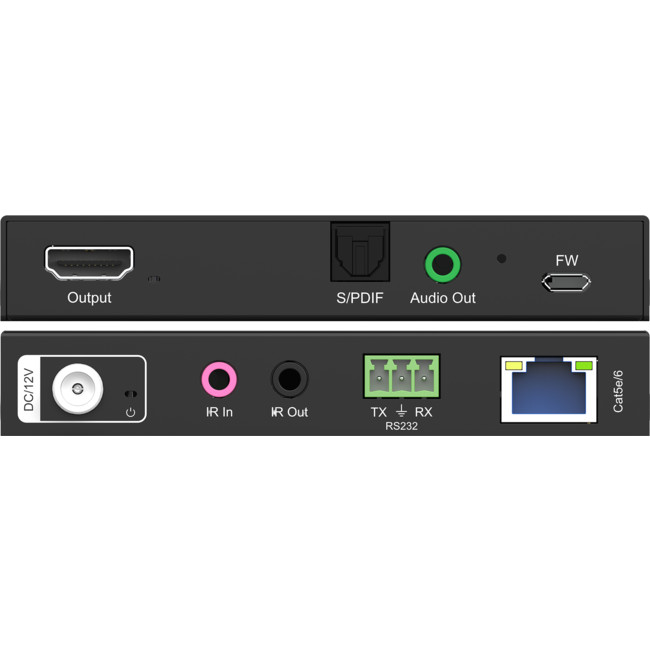

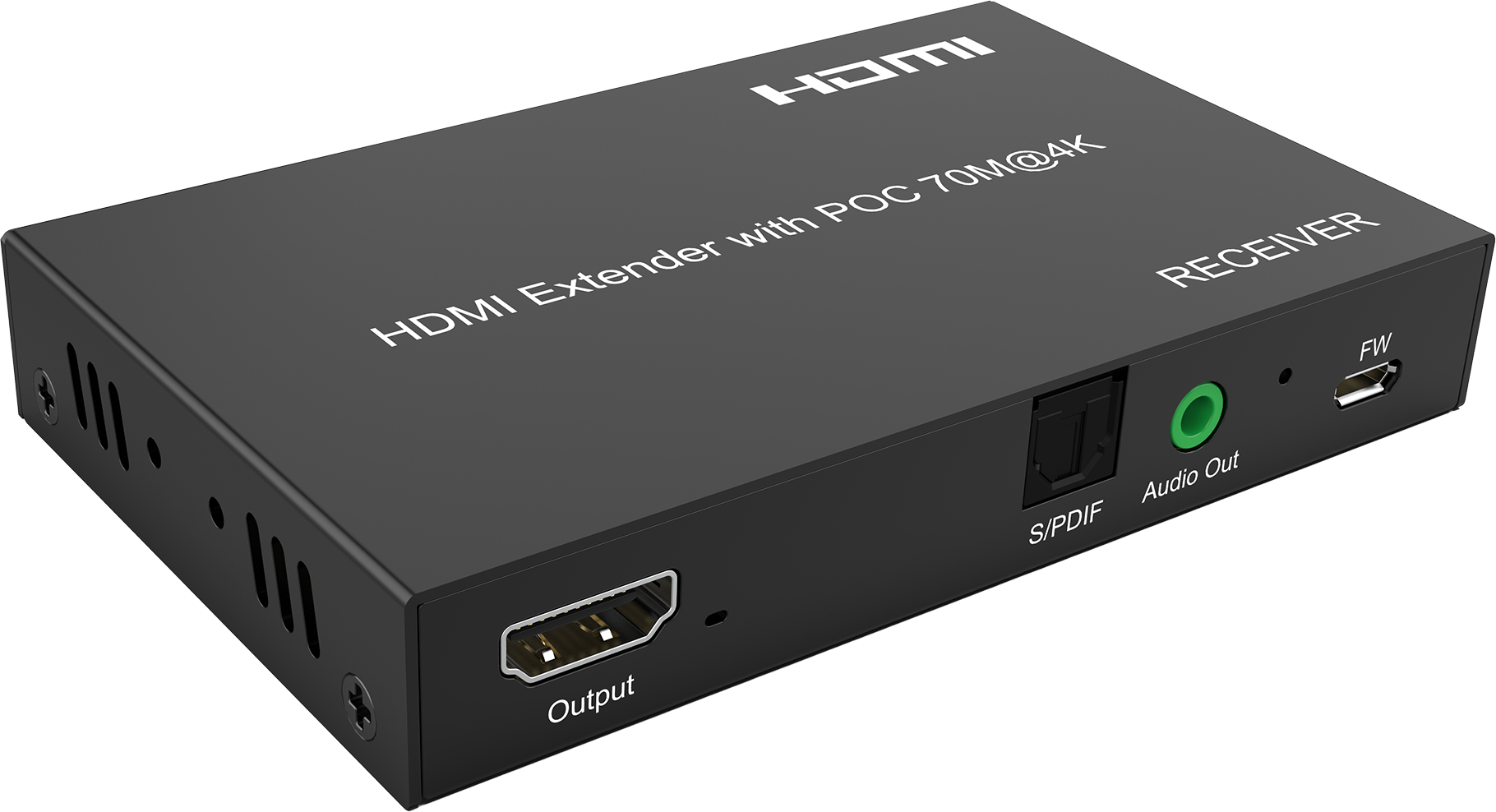

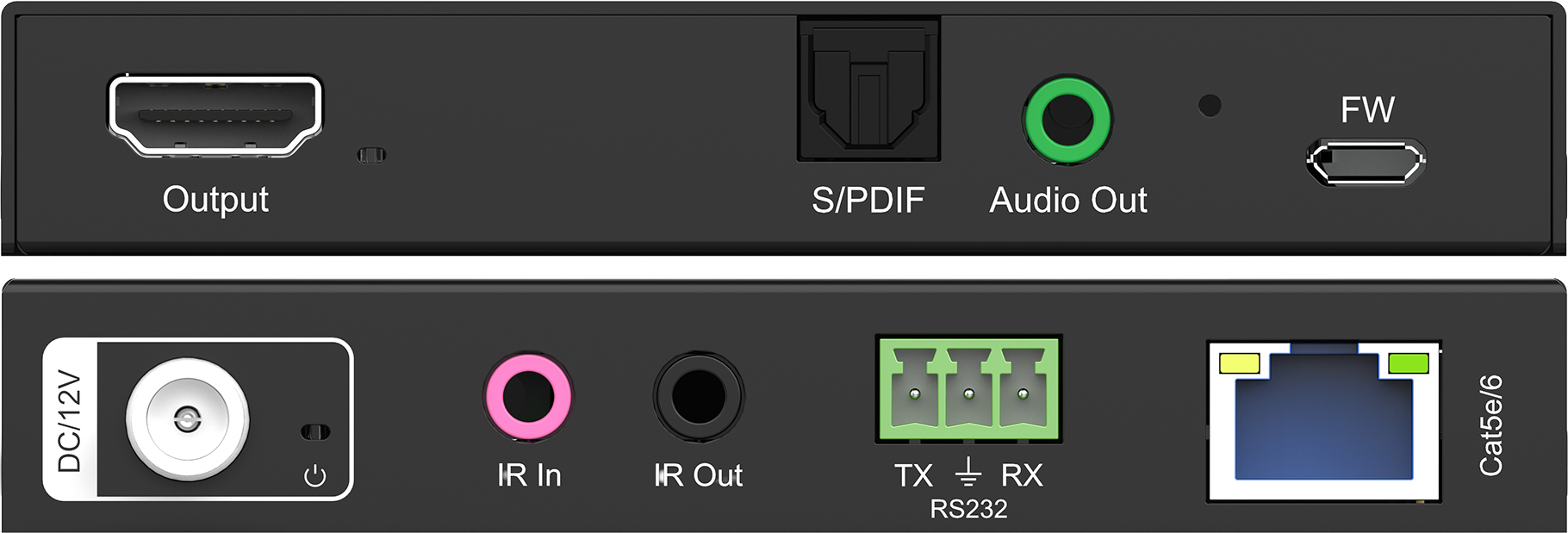

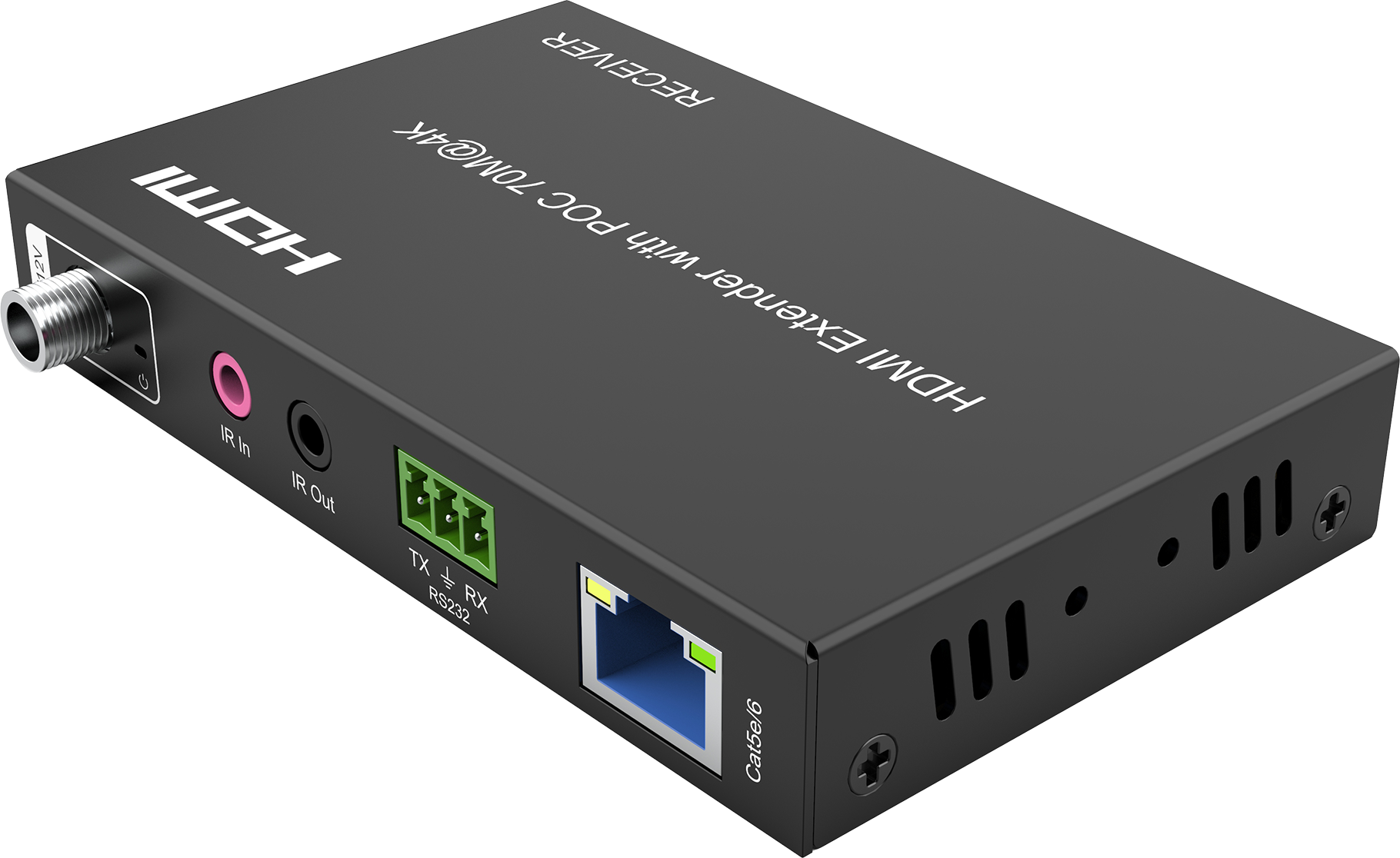

Connectors on Receiver
HDMI Output x 1, RS232 Phoenix terminal x 1, S/PDIF x 1, PCM2.0 x 1, IR Receptacle x 1(for IR TX), FW x 1, Power DC12V x 1
Resolution outputs
4k@60hzYUV4:4:4/ 4k@30HZ/1080p/1080i/720p/576p/576i/480p/480i
Audio format supported
DTS-HD Master Audio, Dolby True HD, LPCM7.1, PCM etc.
Output Video Signal
HDMI

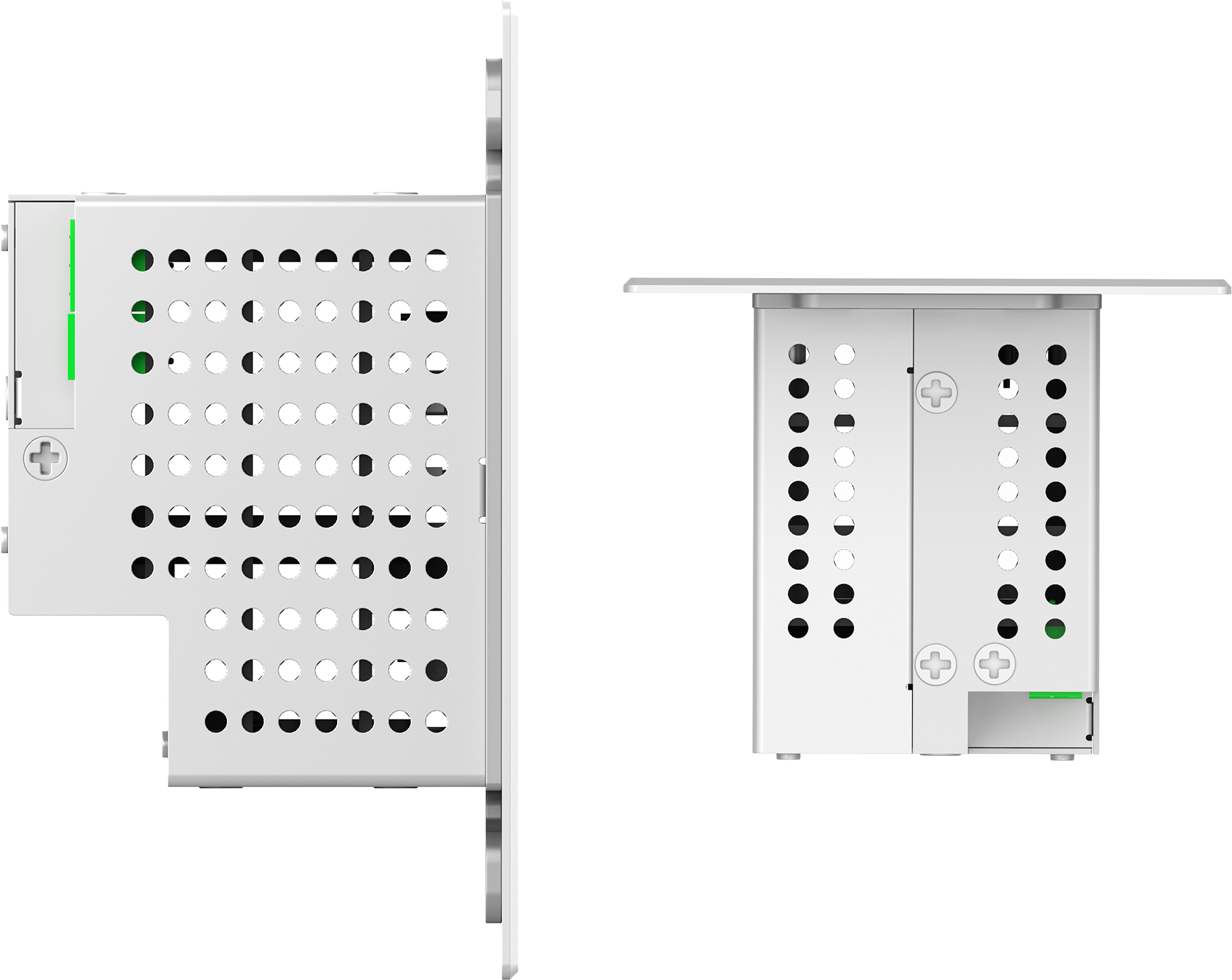

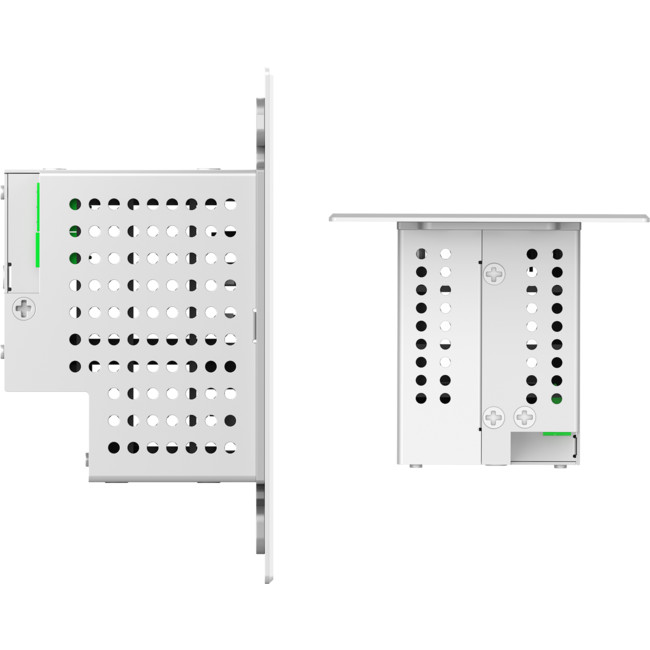

Dimension (L×W×H)
TX: L106mm×W46mm × H60mm; RX: L110mm × W68mm × H13mm
Power supply
DC 24V/5A Power supply
Power consumption
100W(MAX)
Transmission Distance
up to 70m under 4K@60Hz YUV4:4:4, 70m under 1080P@60Hz
Net Weight
TX:130 g; RX:190g
