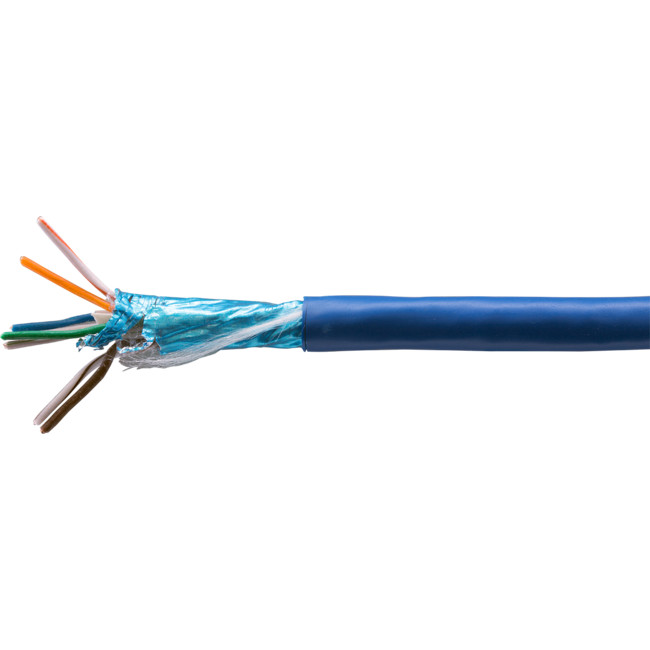

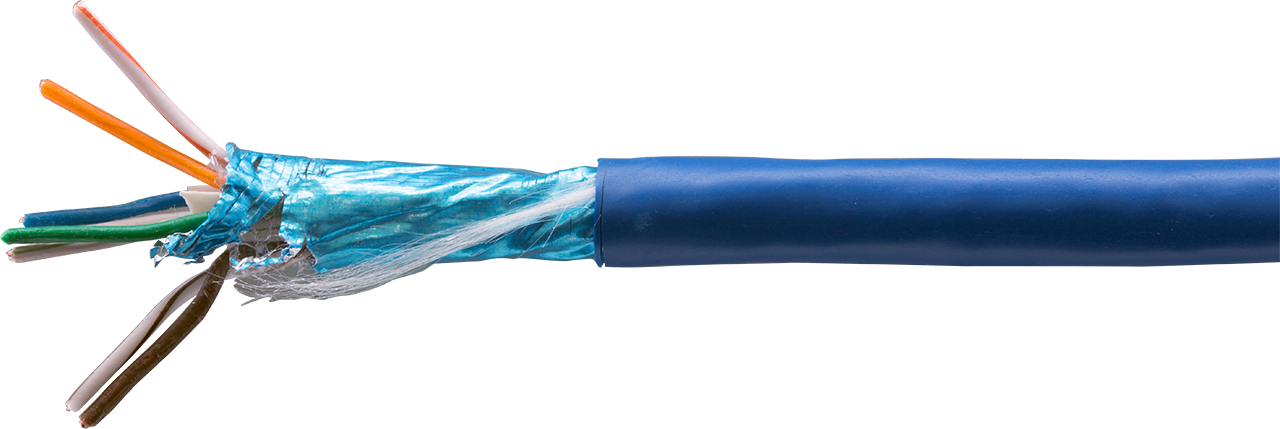

FTPC6ABL-1M F/UTP CAT6A SOLID BLUE CABLE1M

-PER METRE FOIL SHIELDED CABLE

Code: 05062910

0.0680 kg
9328202021212
MT
305
ETA
2024-02-29
TRADE ALERT!
$2.45 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

This item is sold per "METRE"

If you order 5, you will get five metres.

Need a longer length?

This cable is also available as a 305 m roll.

Features

  • Designed to support high speed data network applicationssuch as 10-Gigabit Ethernet (10GBASE-T)
  • 4 Pairs and a drain wire
  • Minimise alien crosstalk
  • Excellent signal isolation and EMI protection

Specifications

Conductor Material Bare Copper
Size 23AWG
1/0.56/0.58±0.015mm
Insulation Material HD-PE
Thickness MIN at any point: 0.24/ 0.28mm
MAX AVG: 0.26/0.3mm
Diameter 1.08±0.01mm; 1.15±0.01mm
Colour Code Blue/ White-Blue
Orange/White-Green
Green/ White-Green
Brown/ White-Brown
Elongation MIN 300%
Tensile strength MIN 1.682 Kg/mm2
Stranding Myar 0.025x23mm
Al Foil 0.065x23mm
Drain Wire 1/0.40±0.02mm
Cross Slot 5.0x0.7mm
Jacket Material CMR PVR
Thickness MIN at any point: 0.53mm
MAX AVG: 0.57mm
Diameter 7.4±0.2mm
