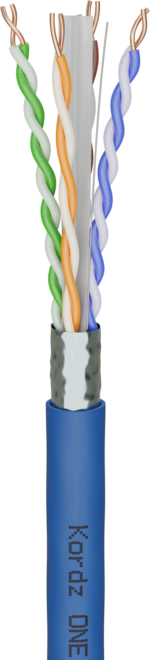

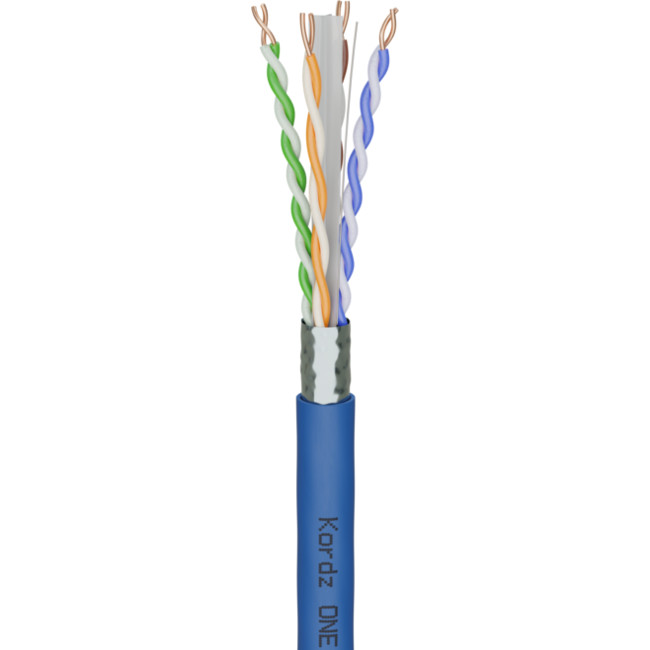

K13602-305M-BL ONE - BLUE CAT6A F/UTP BULK NETWORK CABLE

LSZH - PVC FREE - 305M SP00L

Code: 05063430

EACH
Call for Availability!
$699 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Kordz K13602-Blue 305M spool - ONE Series CAT6A F/UTP Network Cable

Kordz ONE Series CAT 6A F/UTP premium cable is engineered to exceed 4K video installation bandwidth requirements and minimise alien crosstalk or electromagnetic interference in complex systems. The Rapid-EZ reel is metre marked and flows from the supplied professional pull box without twisting or curling, minimising snags for optimal installation uptime. ONE series CAT 6A F/UTP cable is tested and approved to exceed 550Mhz, ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards.

  • Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBaseT, PoE, PoE & PoE
  • F/UTP Ethernet CAT6a
  • Four Twisted Pairs 23 AWG Solid Copper Conductors
  • Separator Reduces Crosstalk Between Pairs
  • Mylar laminated aluminium tape shielding with a 26AWG drain wire
  • Suitable for IDC Terminations
  • Metre Marked
  • 6 colours available: Black, Blue, Green, Purple, White & Yellow
  • Exceeds ANSI/TIA-568.2-D and ISO/IEC 61156-5 standards
  • Available in LSZH fire rated version
  • CPR Declared Performance: ONE-CAT6A: Dca-s1, d2, a1 (EN 50575:2014 A1:2016)

Technical Info

Construction

Conductor:Solid OFC annealed bare copper wire 0.561 0/-0.015mm [23AWG]
Insulation:Orange & Brown Pairs– Polyethylene (PE), 1.12 /-0.05 mmBlue & Green Pairs– Foam PE, 0.97 /-0.05 mm
Twisting:4 twisted pairs, 2 cores to each pair
Twisted Pair Colour Code: 1 – white-blue/blue, 2 – white-orange/orange, 3 – white-green/green, 4 – white-brown/brown
Cable Lay-Up:4 pairs with different pitches, non-metallic cross separator (spine)
Shielding:Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield
Outer Diameter:7.4 /-0.3 mm

Mechanical

Bend Radius:without load ≥ 29.6mm /1.16”, with load ≥ 59.2mm /2.33”
Temperature Range:During Operation:-20°C to 60 CDuring Installation:0°C to 50 C

Electrical

DC Resistance:≤ 9.38Ω / 100m at 20 C
Resistance Unbalance:≤ 2% at 20 C
Insulation Resistance (500V):≥ 5000MΩ / km at 20 C
Mutual Capacitance:≤ 5.1 nf / 100m at 1khz
Capacitance Unbalance (pair to ground):≤ 160 pf / 100m at 1khz
Nominal Velocity of Propagation:nom. 67% c
Test Voltage:1kV DC / 1 min

Materials/Marking & Fire Ratings

LSZH
Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100372289CRT-001c) LSZH CAT6A F/UTP 23AWG. IEC 60332-3-25

FRPVC
Kordz ONE Solid OFC UHD/4K Video Network Cable. ETL VERIFIED TIA-568-C.2 (100709714CRT-002c) CM CAT6A F/UTP 23AWG. UL 444 CM

Black:RAL9011
Blue:
RAL 5015
Green:RAL 6018
Purple:RAL 4005
White:RAL 9003
Yellow:RAL 1018

Packaging

Roll Size:305m – metre marked

Supplied on a standardised wooden reel. This reel will need to be used with a standard a frame spool dispenser or similar.
