QUANTUMSDR-1M PREMIUM SILVER PLATED CABLE-1M

VIDEO OR COAXIAL DIGITAL AUDIO

Code: 05033110

0.0350 kg
MT
500 IN
STOCK
DON'T PAY $3
TRADE ALERT!
$2 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

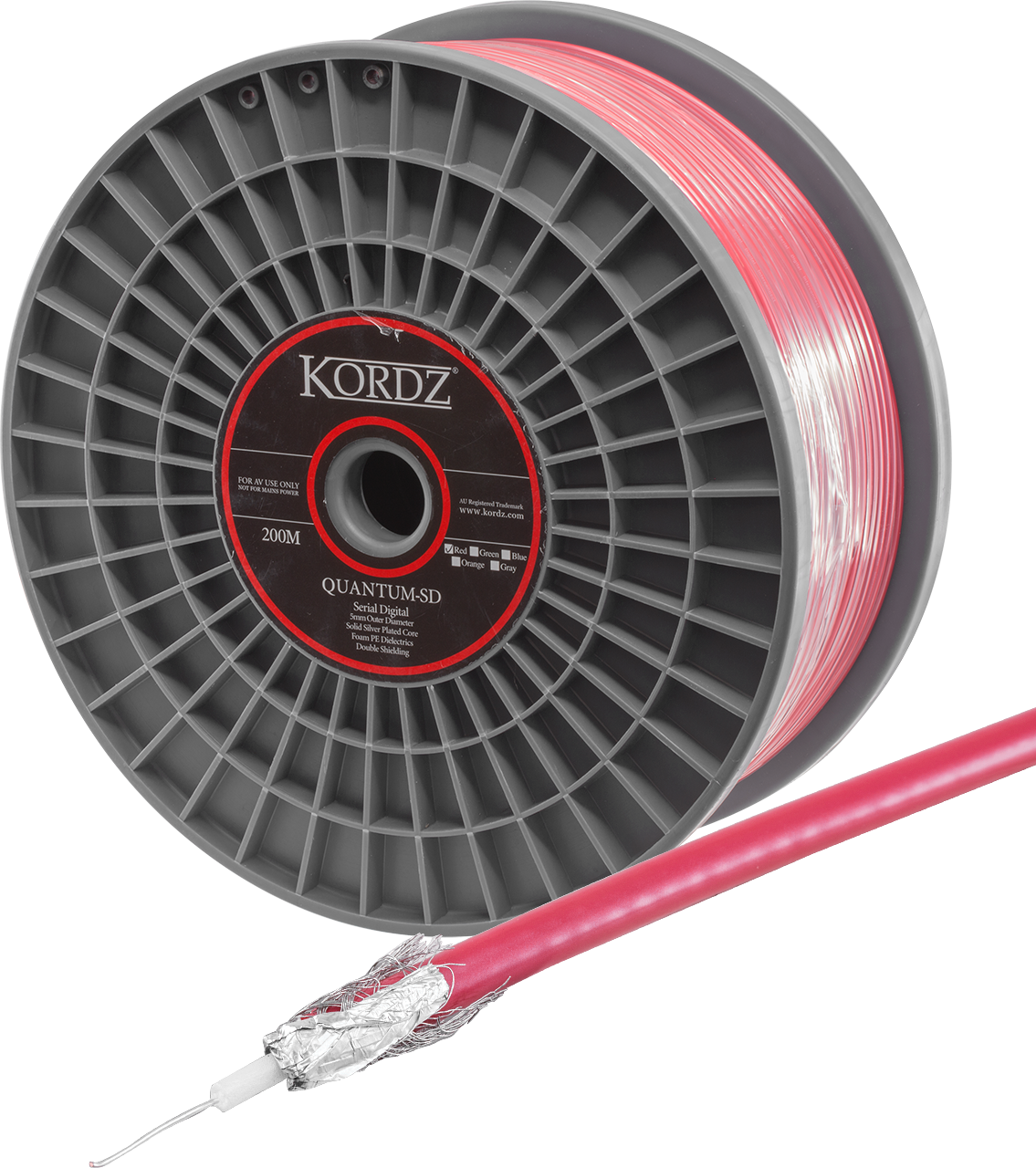

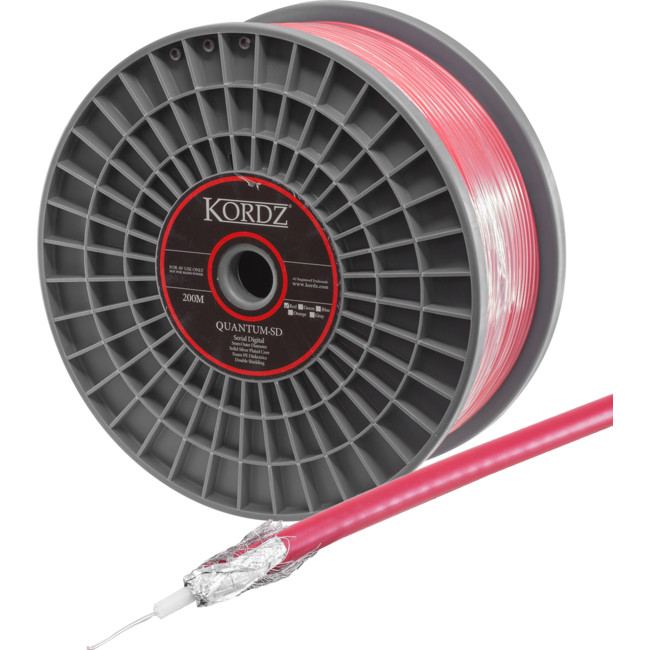

QUANTUM-SD-RED-1 Metre

The QUANTUM-SD ( small diameter )series interconnect is ahighly versatile installation cable, permitting you the convenient choice of the number and combination of cable runs required for any particular installation.

It has been designed as an alternative to the popular QUANTUM-C (3 core component video) and QUANTUM-VI (6 core multi format coax), with the construction being identical to
each leg in these multi-core cables.



FEATURES

  • STUNNING Silver Plated Serial Digital, for high performance video or coaxial digital audio
  • Improves versatility, reduces cost, reduces waste, maximizes performance
  • 24AWG solid OFC core coated with high purity Silver - provides superior transmission with high frequency “Skin Effect”
  • Nitrogen injected PE dielectric and 100% screen doubleshielding for enhanced signal integrity
  • Pearl PVC high tensile outer jacket 5mm O. Provides excellent pull strength and durability without compromising flexibility
  • Suits Amphenol PD2961 solder RCA connector
  • Sold Per Metre



SPECIFICATIONS

Conductors 24AWG 1/0.50mm Solid Silver Plated 99.9998% OFC
Insulation FPE Dielectric - natural colour
Shield 100% double shield by way of;
Mylar coated Al-foil wrap 16x7/0.12mm TC braid
Outer Jacket 5mm Diameter color coded high tensile pearl PVC - RED
Conductor Resistance 0.090 ohms/m @20 C
Capacitance 59.63 pF/m @ 1kHz
Inductance 0.391 uH/m @ 1kHz
Nominal Impedance 75 ohm - for analogue video or coaxial digital audiouse
