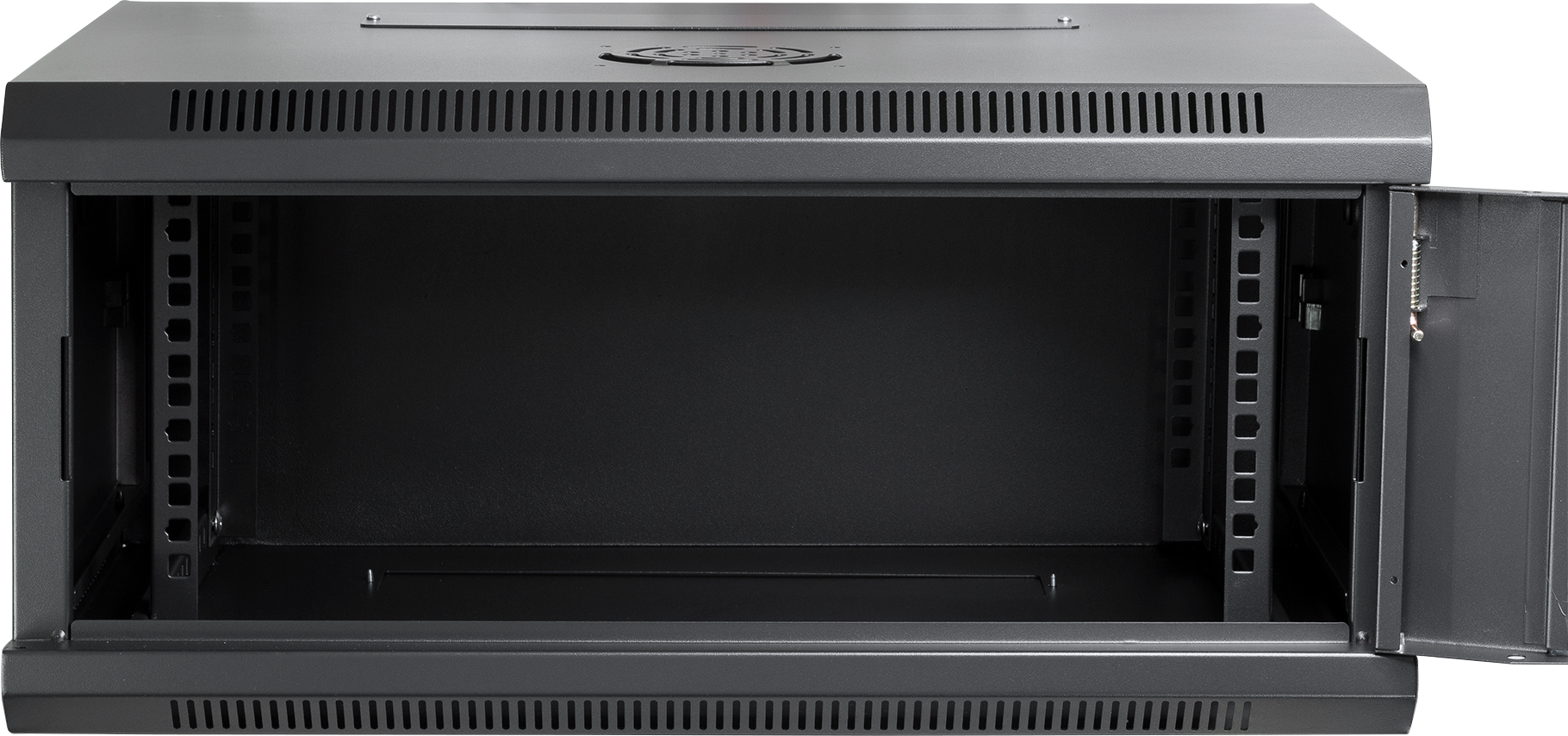

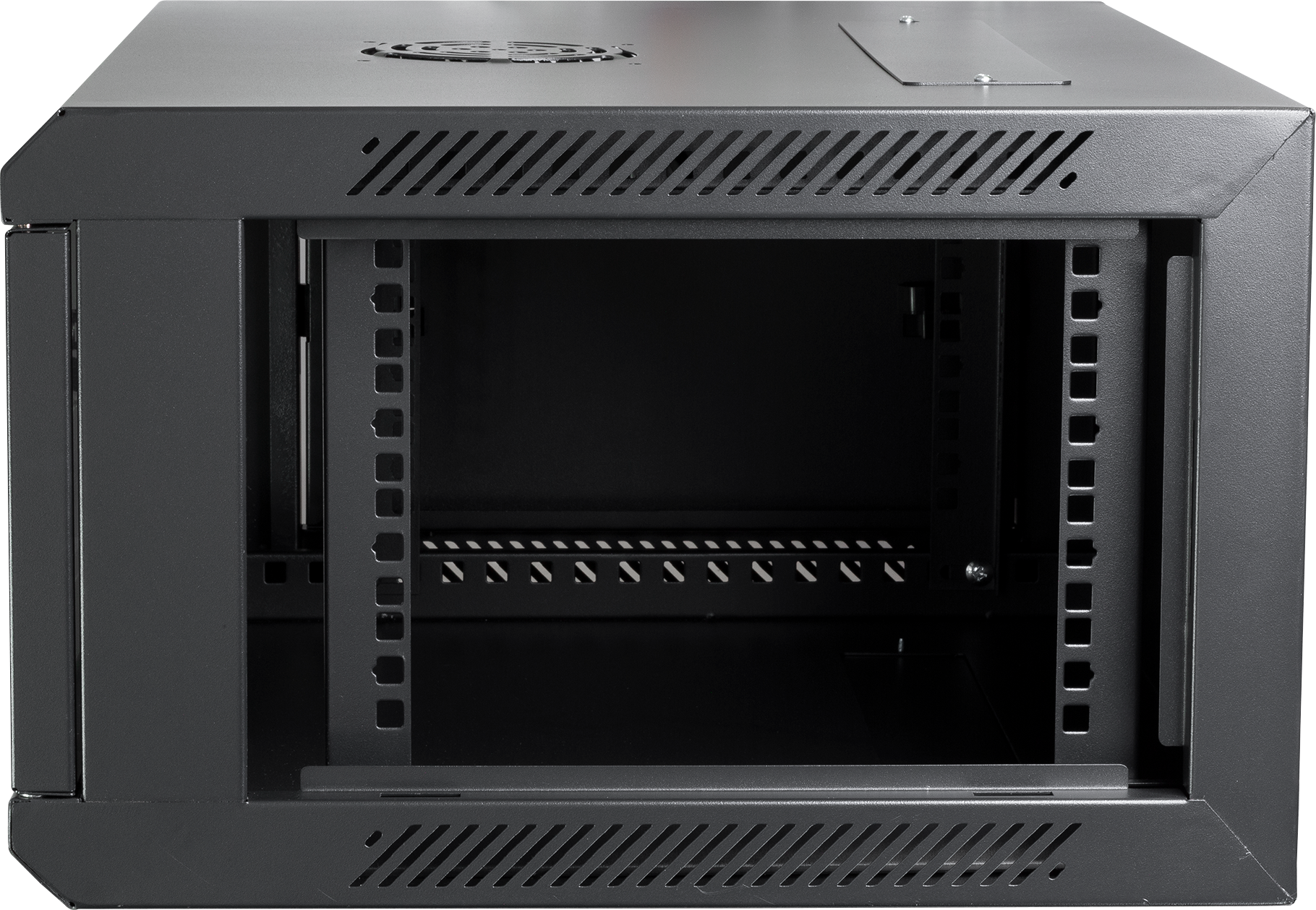

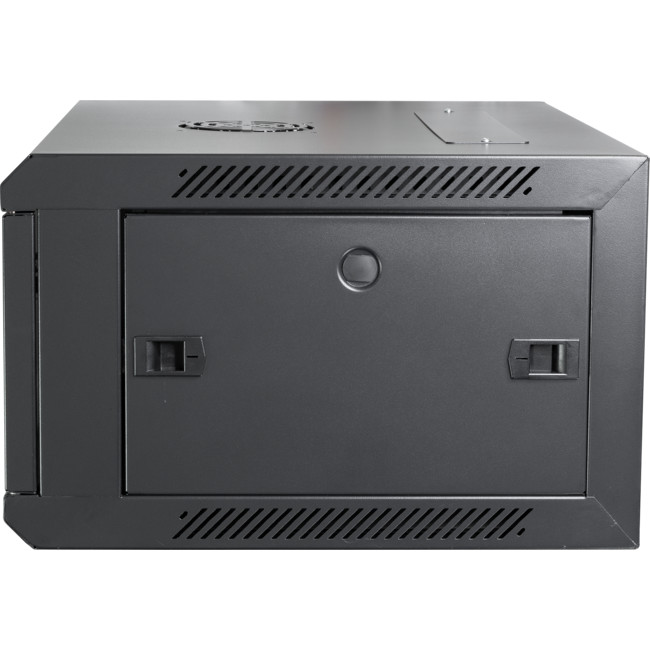

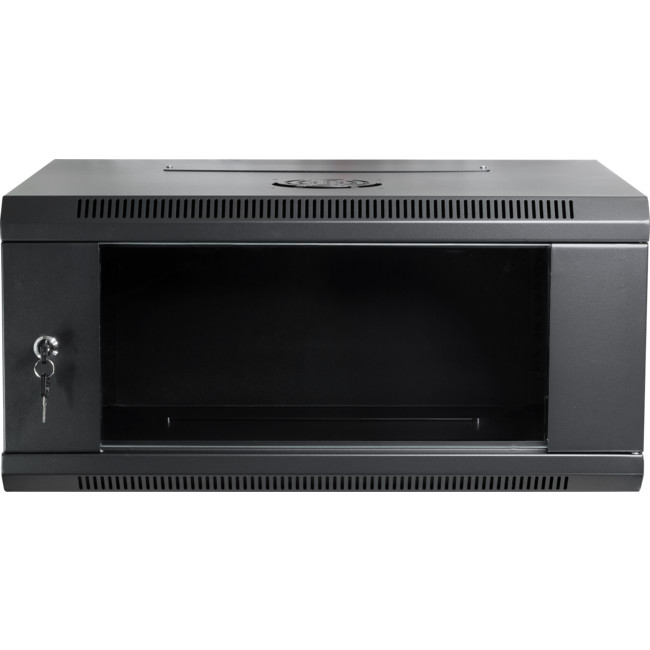

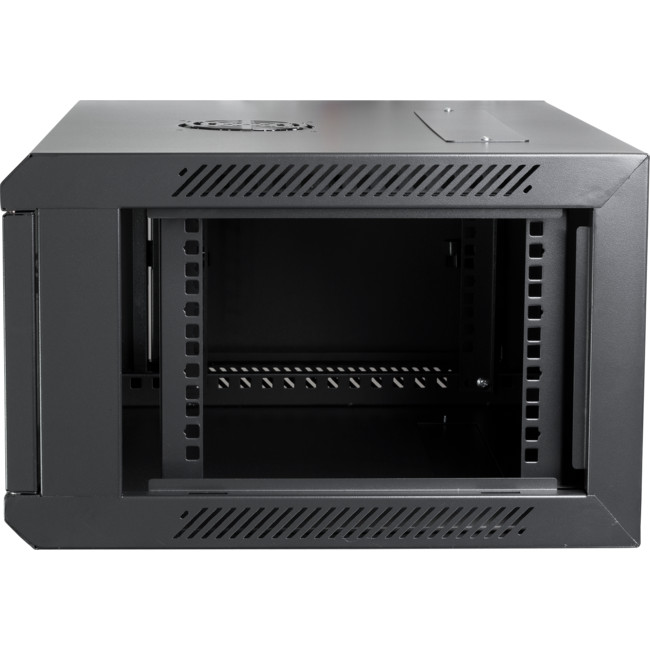

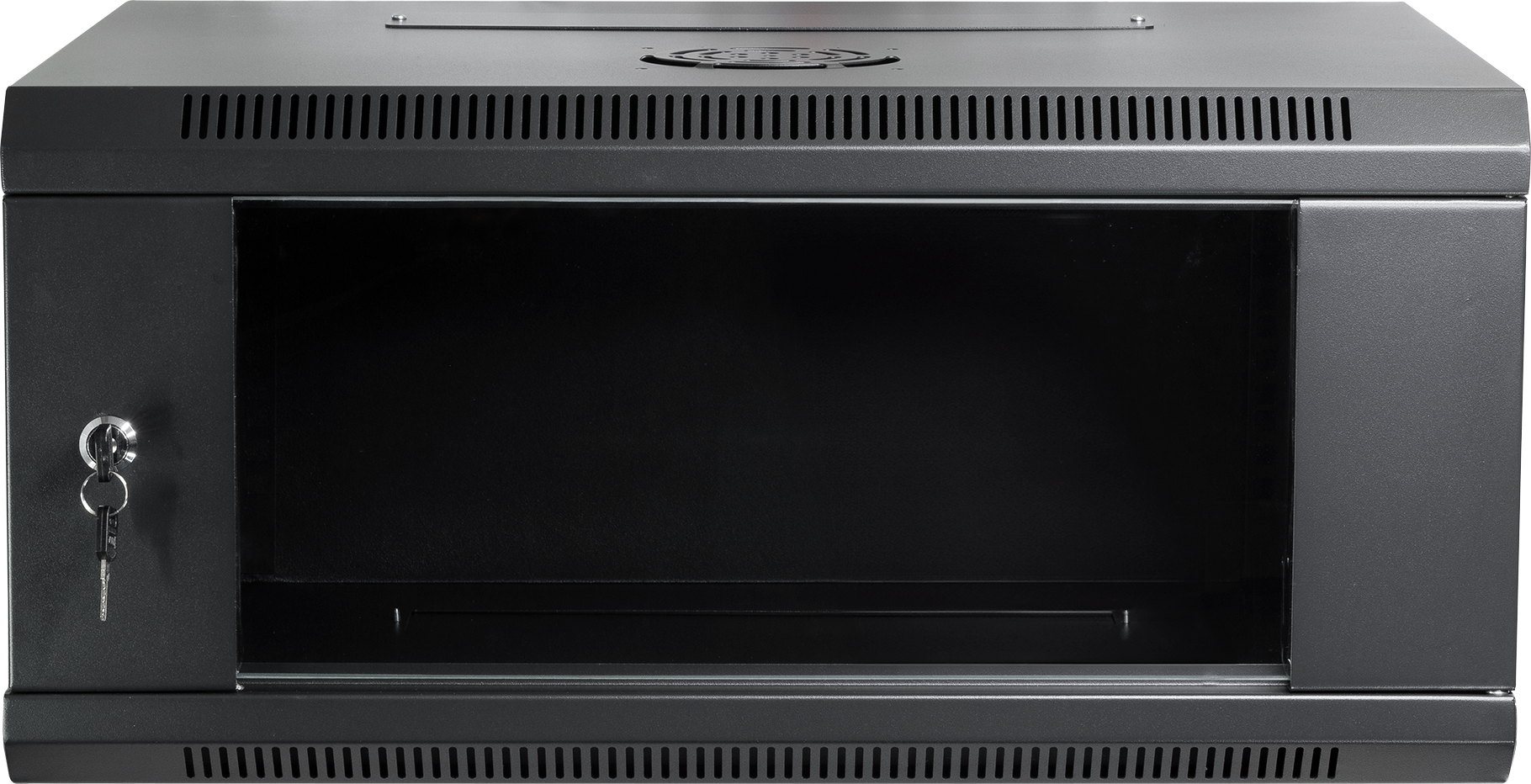

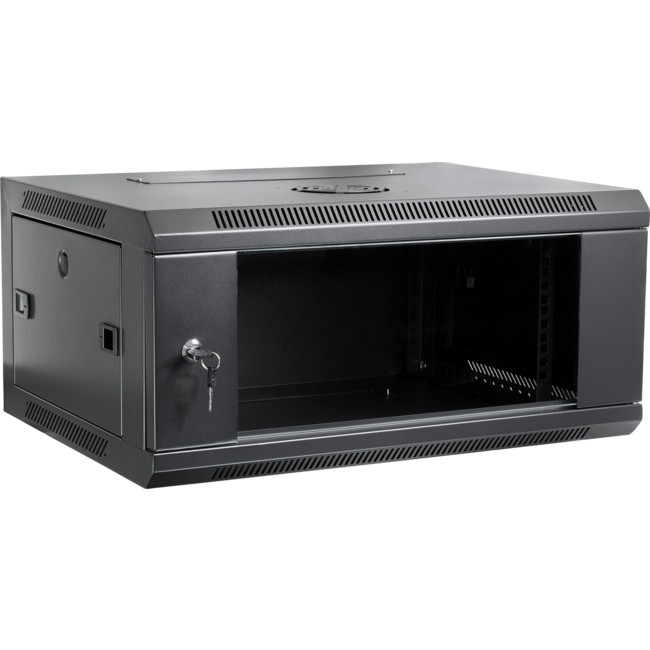

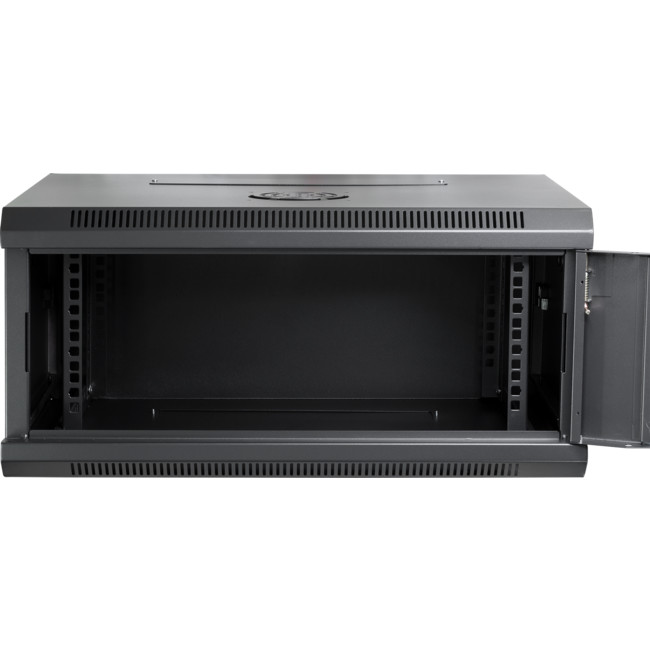

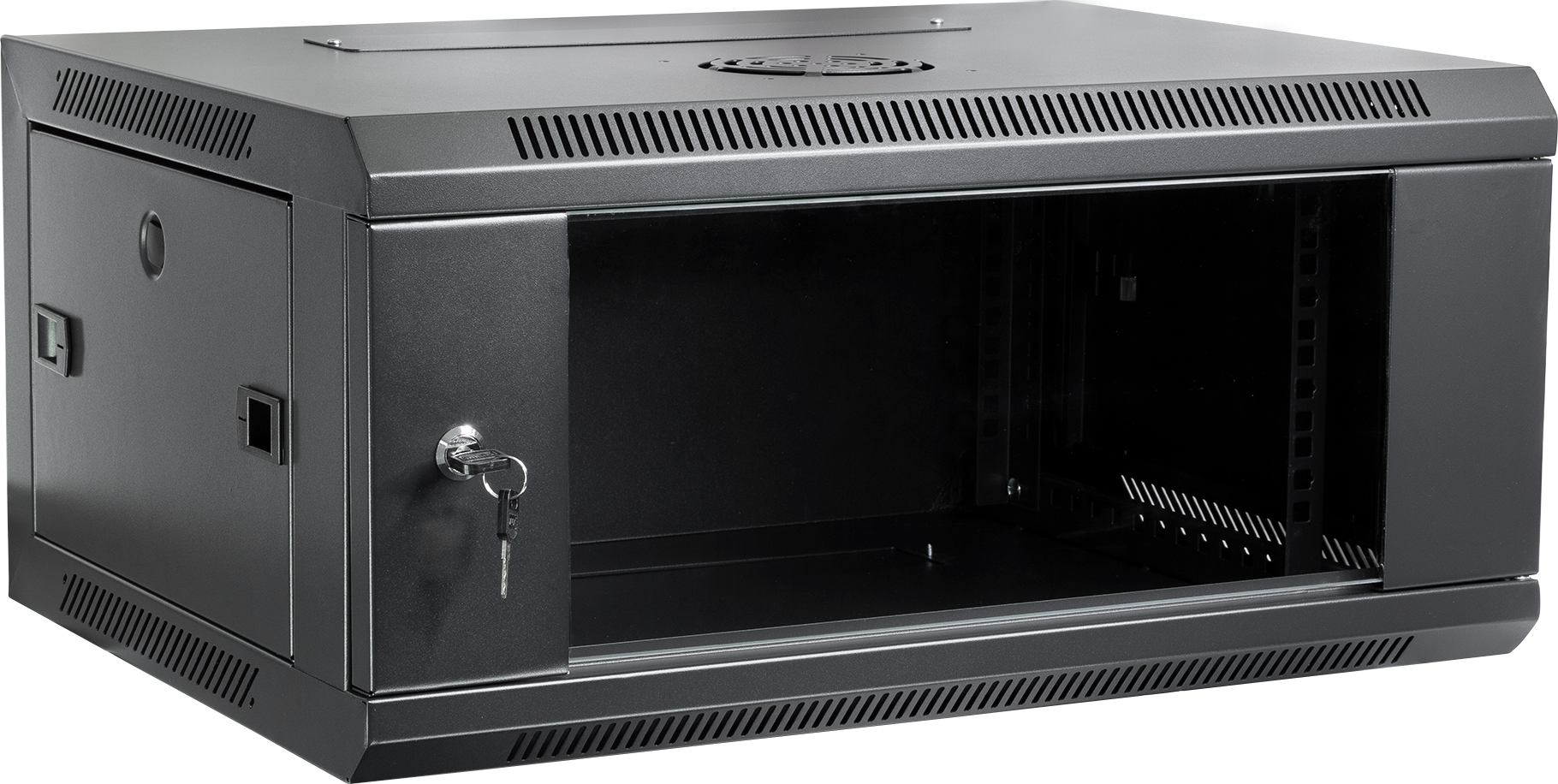

WMC4U 4RU WALL MOUNT CABINET 600X450MM

HEIGHT 280MM FRONT GLASS DOOR

Code: 04855400

13.00 kg
9328202035035
EACH
In Stock
TRADE ALERT!
$159 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

WMC4U 4RU WALL MOUNT CABINET 600mm × 450mm

  • Pre-assembled 4RU wall mount cabinet 280mm height
  • Welded frame and stable structure
  • Standing or wall mounting installation
  • Easy wall mounting bracket installation
  • 19″ EIA-compliant standard rack frame

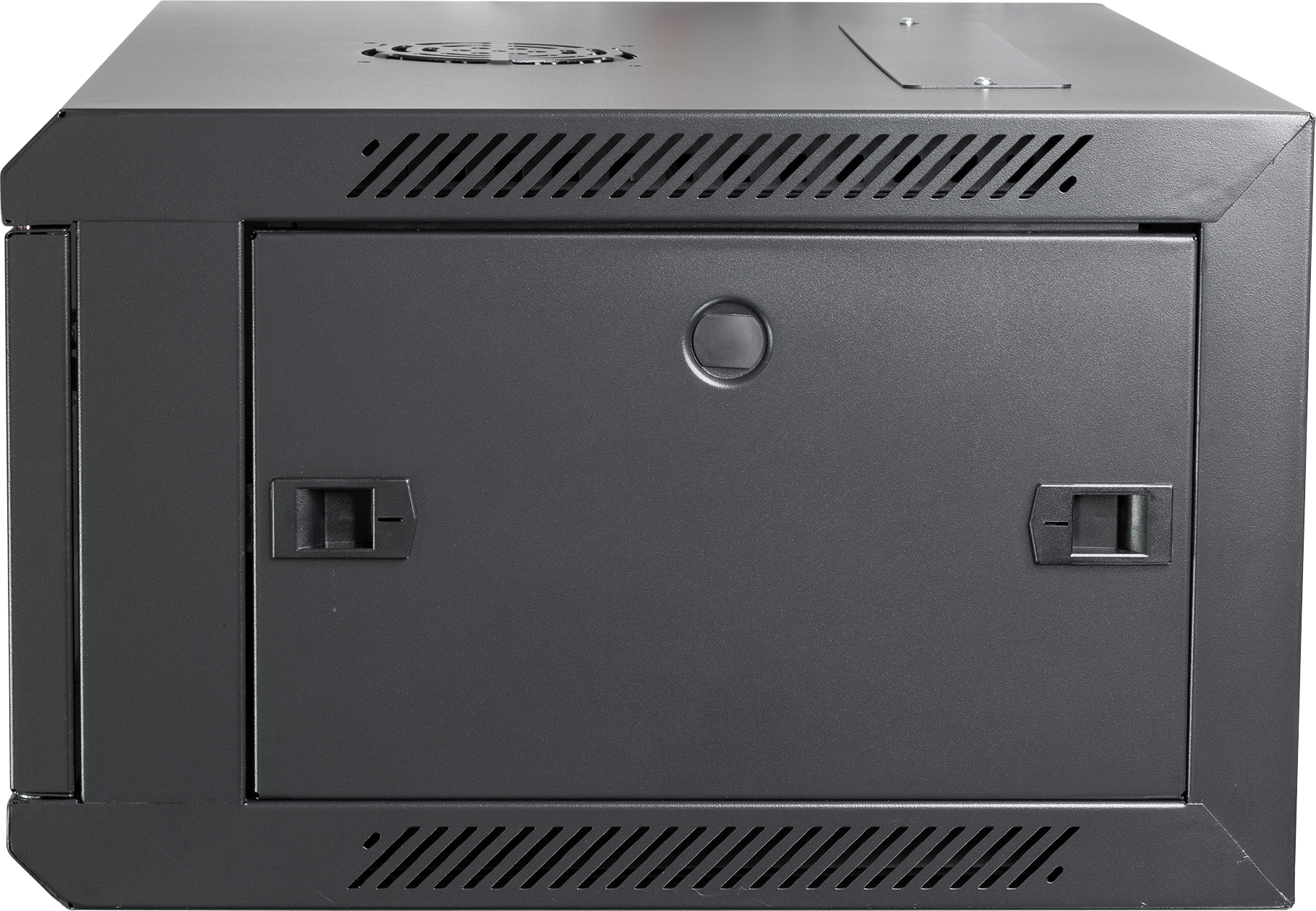

  • Quick removable side panels
  • Top/Bottom cable entry knock-out plates
  • Tempered glass front door with over 180 degrees of turning angle
  • Easy fan installation with the fan cutout on the top cover
  • Removable hinges to change the front door swing direction
  • L-shaped mounting profile, easy to adjust on the mounting rail
  • A wide range of optional accessories allows you to adjust the cabinet to your own needs
  • Supplied with 10 sets of screws & nuts
  • Supplied with 2 door keys

Specifications


Material Quality SPCC cold-rolled steel
Thickness 1.0mm
Width 600mm
Depth 450mm
Height 280mm (4RU)
Rail Width 19″ EIA-compliant
Loading Capacity 60kg
Protection Class IP20
Surface Finishing Degreasing, Pickling, Phosphating, Powder-coated
Fan Size Suits 120mm × 120mm
Tempered Glass Thickness 5.0mm
Compliance ANS/EIA RS-310-D, IEC297-2, DIN41494, Part 1, DIN41491, Part 7, GB/T3047.2-92
