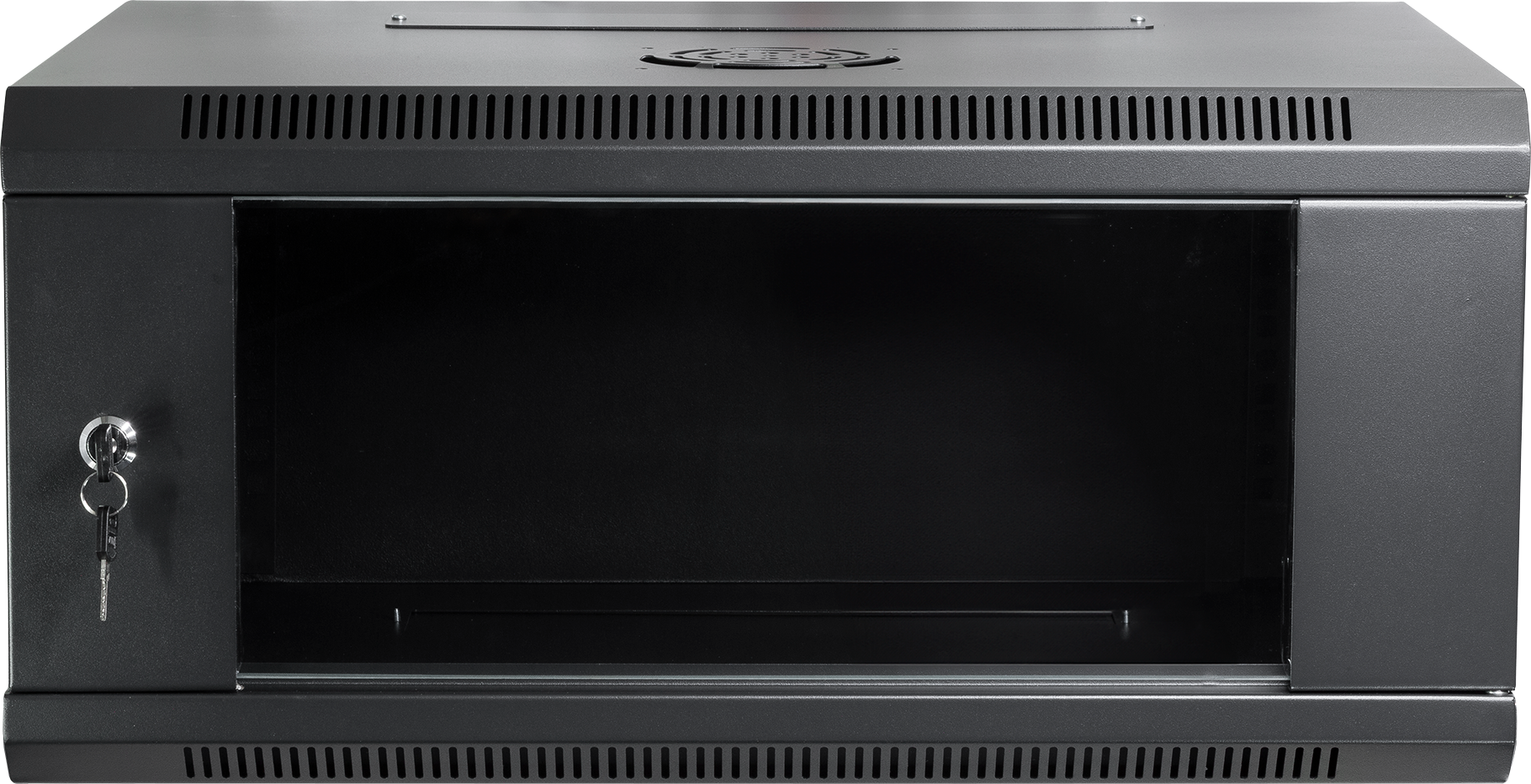

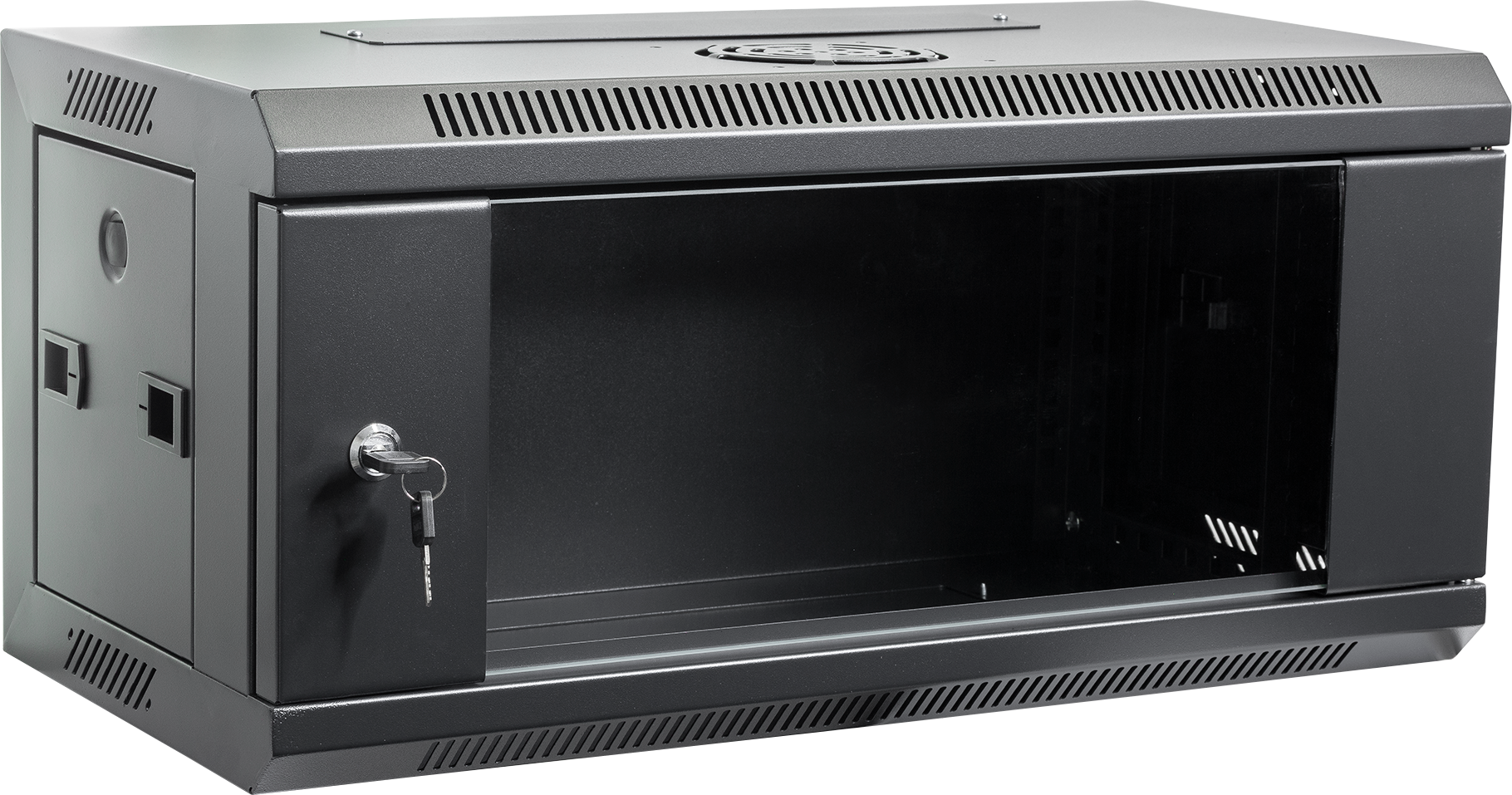

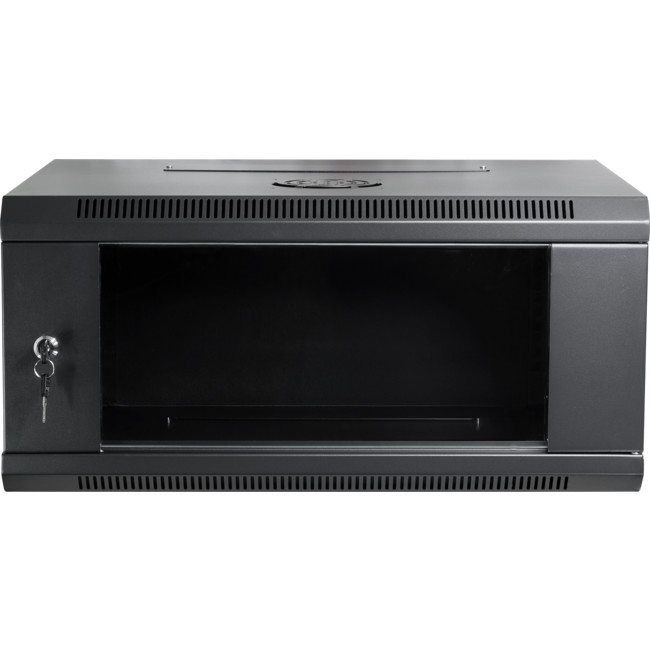

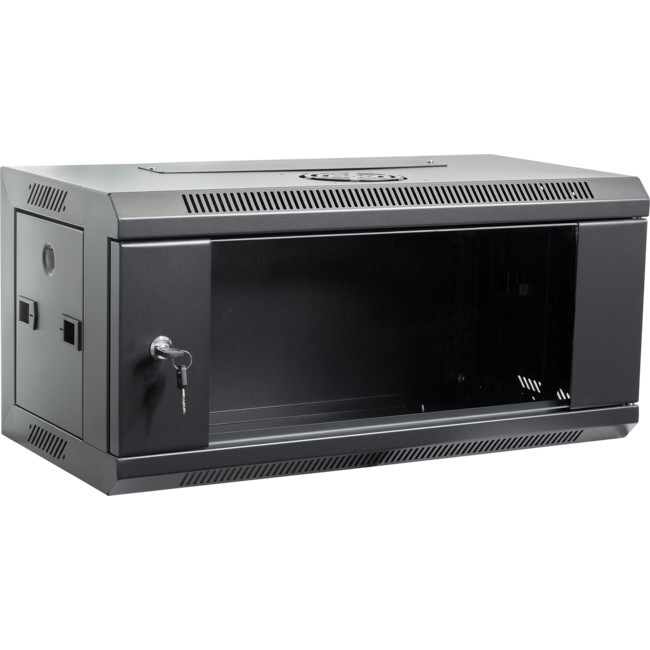

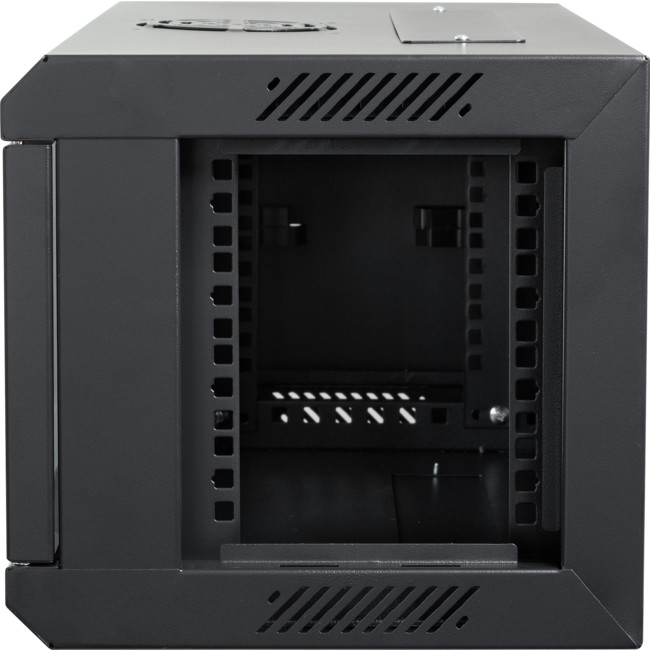

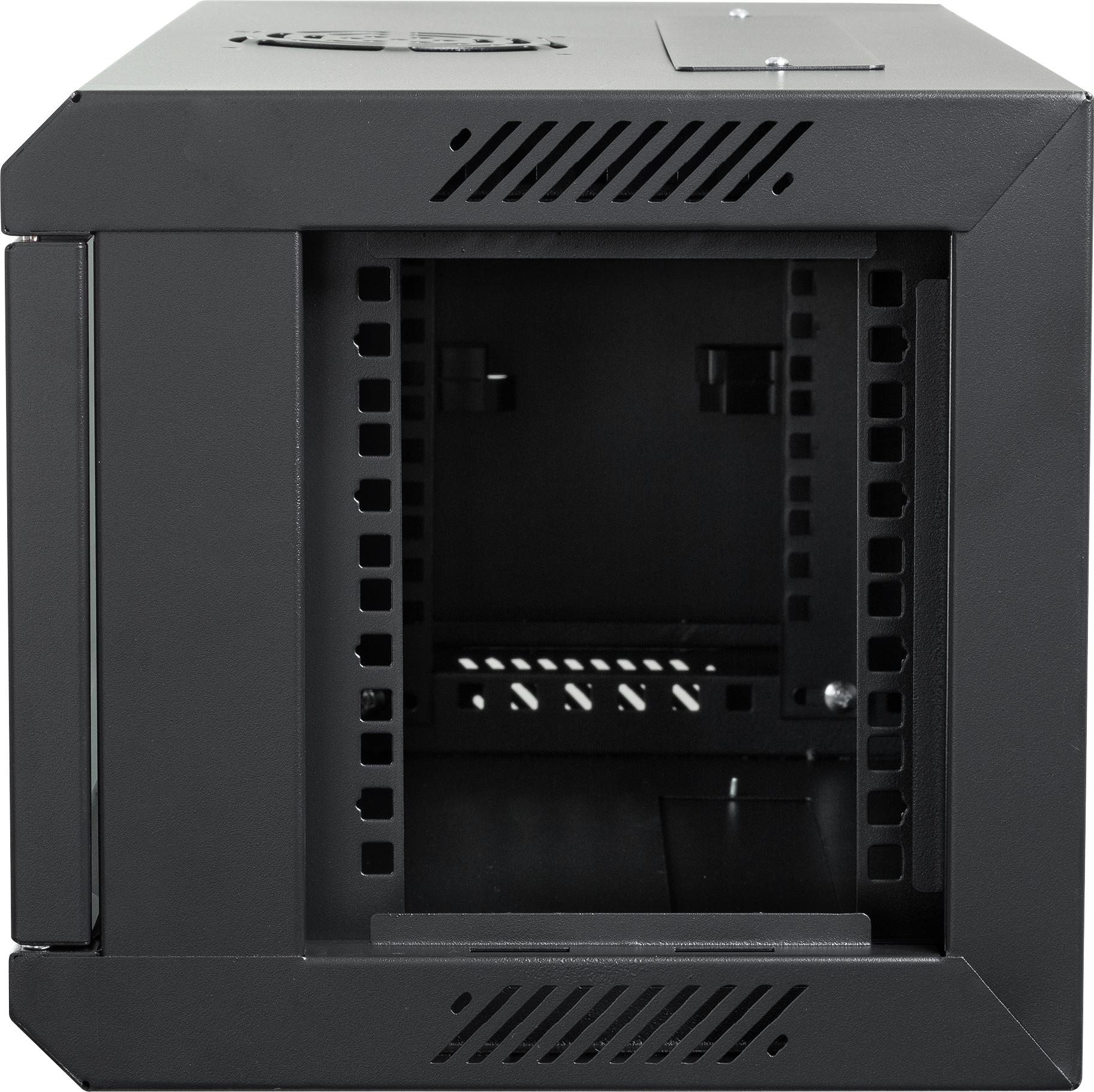

WMC4U30 4RU WALL MOUNT CABINET 600X300MM

HEIGHT 280MM FRONT GLASS DOOR

Code: 04855395

9328202035424
EACH
In Stock
TRADE ALERT!
$119 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features:

  • Pre-assembled 4RU wall mount cabinet 280mm height
  • Welded frame and stable structure
  • Standing or wall mounting installation
  • Easy wall mounting bracket installation
  • 19-inch EIA-compliant standard rack frame

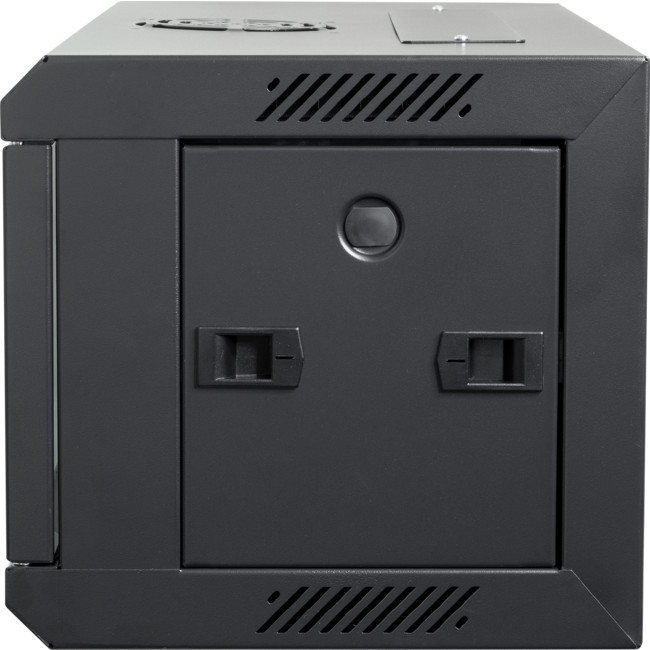

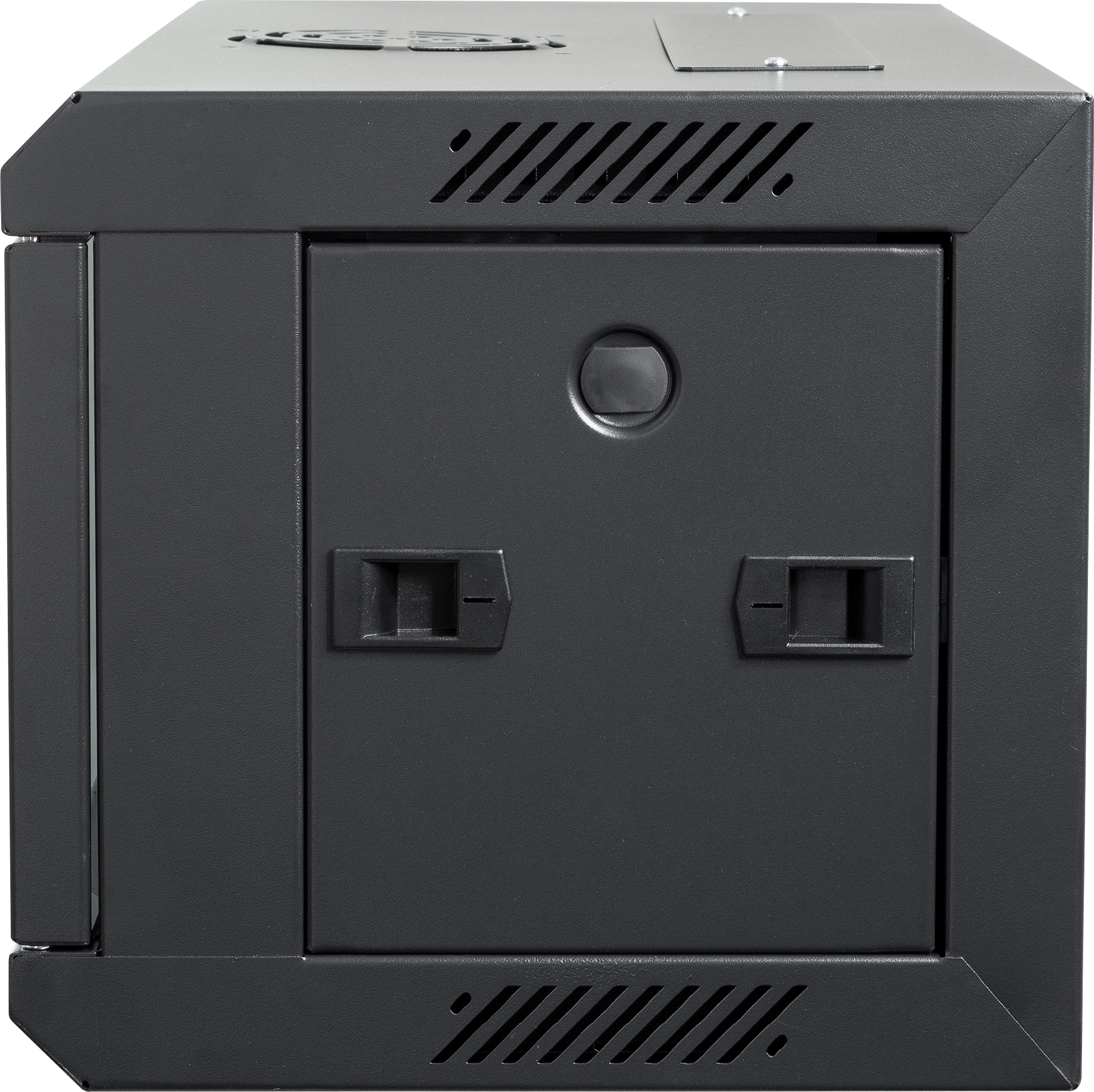

  • Quick removable side panels
  • Top/Bottom cable entry knock-out plates
  • Tempered glass front door with over 180 degrees of turning angle
  • Easy fan installation with the fan cutout on the top cover

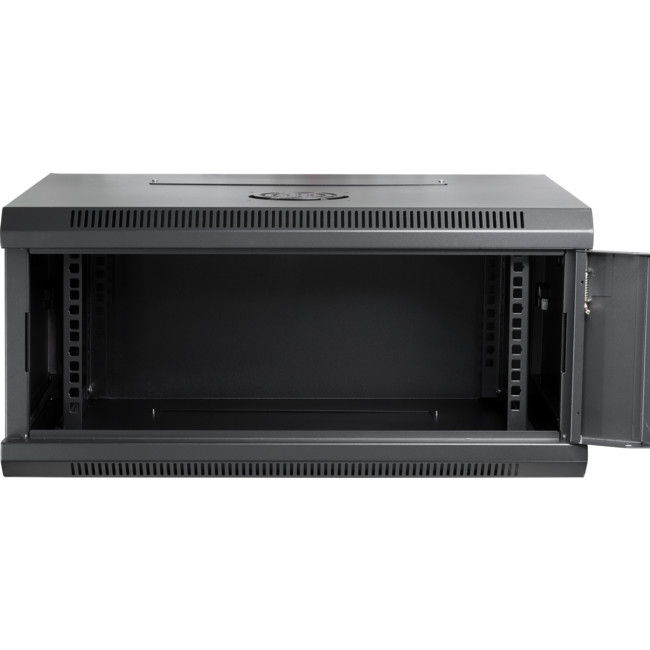

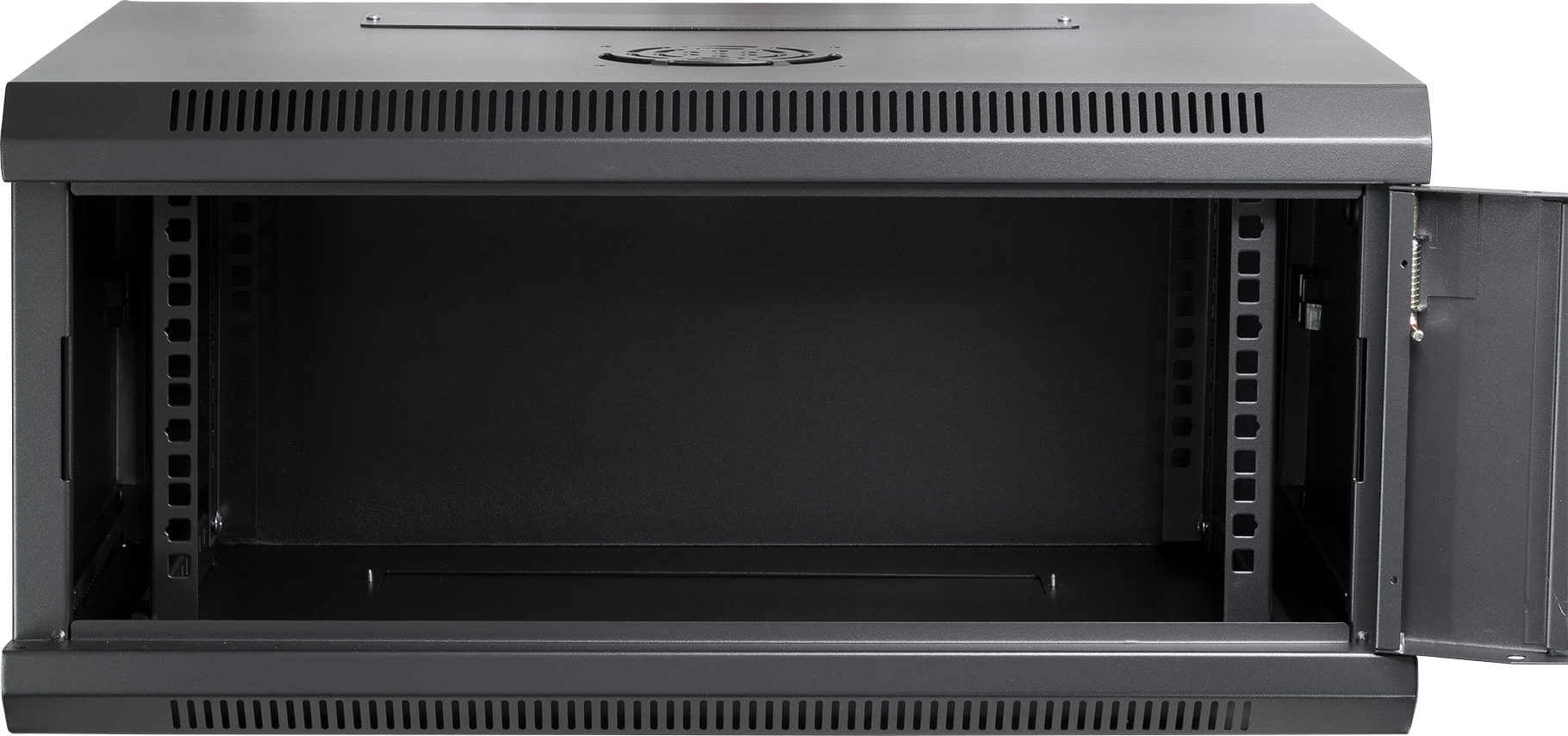

  • Removable hinges to change the front door swing direction
  • L-shaped mounting profile, easy to adjust on the mounting rail
  • A wide range of optional accessories allows you to adjust the cabinet to your own needs
  • Supplied with 10 sets of screws & nuts
  • Supplied with 2 door keys

Specifications

  • Material: Quality SPCC cold-rolled steel
  • Thickness: 1.0mm
  • Width: 600mm
  • Depth: 300mm
  • Height: 280mm (4RU)
  • Rail width: 19inch EIA-compliant
  • Loading capacity: 40 KG
  • Protection class: IP20
  • Surface finishing: Degreasing, Pickling, Phosphating, Powder-coated,
  • Fan size suits: 120*120mm
  • Tempered glass thickness: 5.0mm
  • Compliance: ANS/EIA RS-310-D, IEC297-2, DIN41494, Part 1, DIN41491, Part 7, GB/T3047.2-92
