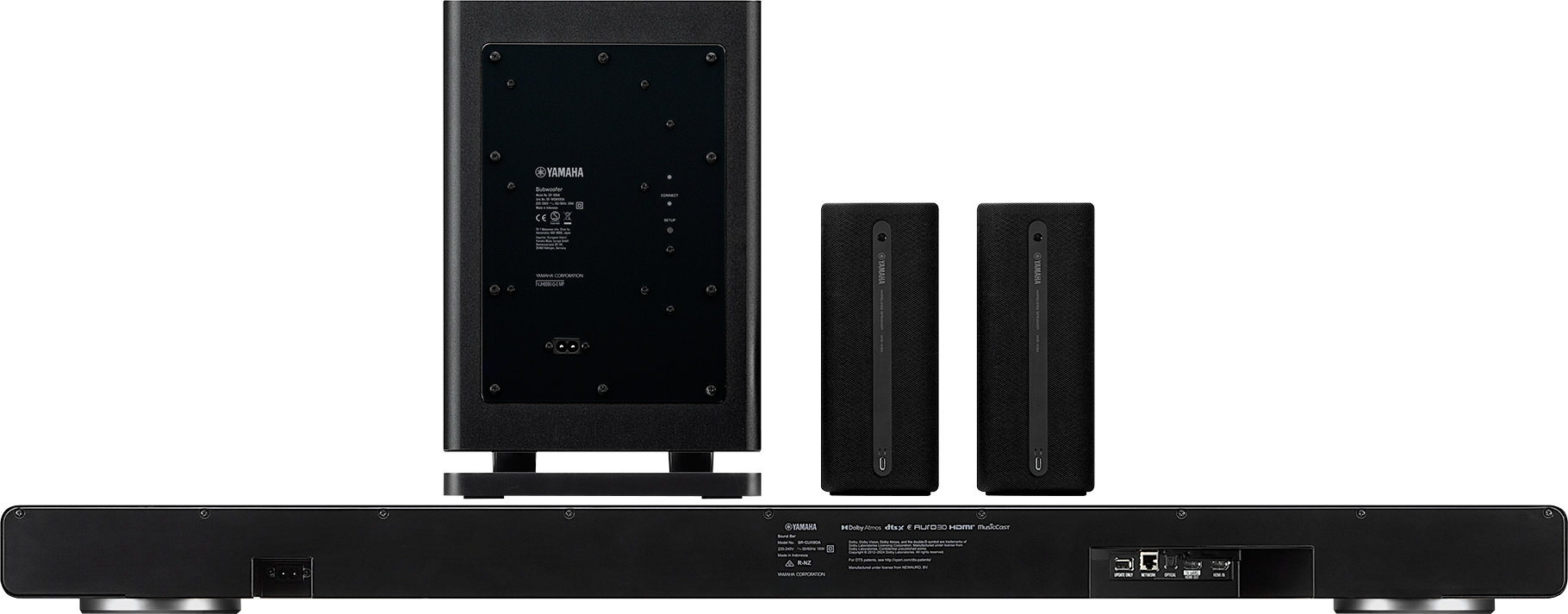

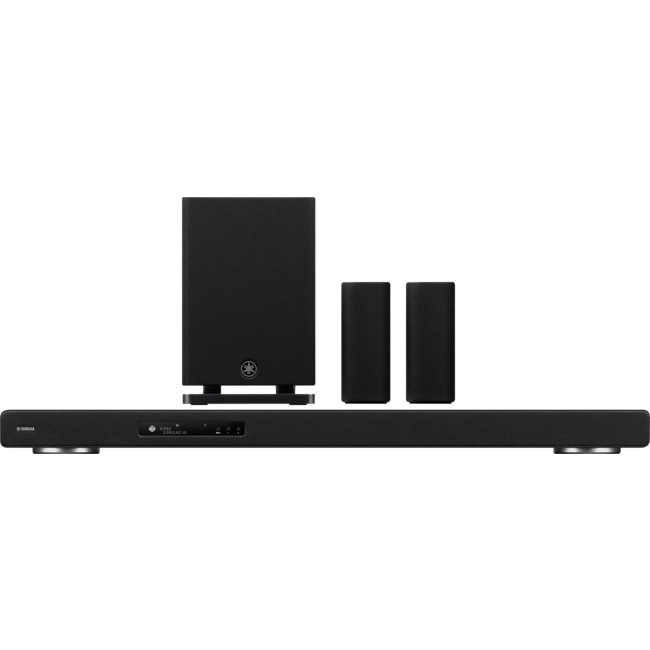

TRUEX90A TRUE ATMOS SOUNDBAR WITH HEIGHT BEAM SPEAKERS

WIRELESS SUBWOOFER & 2 TRUE X REAR SPKS

Code: 01938675

EACH
ETA 2025-08-30
$4499 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
To order, call us on (03) 9321 8300 or visit us in store! Got an account? Log in for more options! View Product
Enter 4 digit postcode
Pre-order the new Yamaha True X 90A system

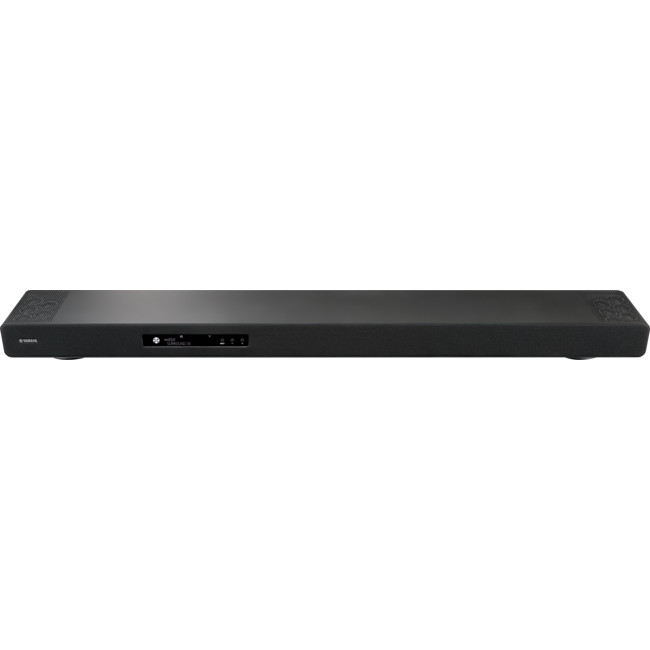

Yamaha TRUX90A Flagship Soundbar

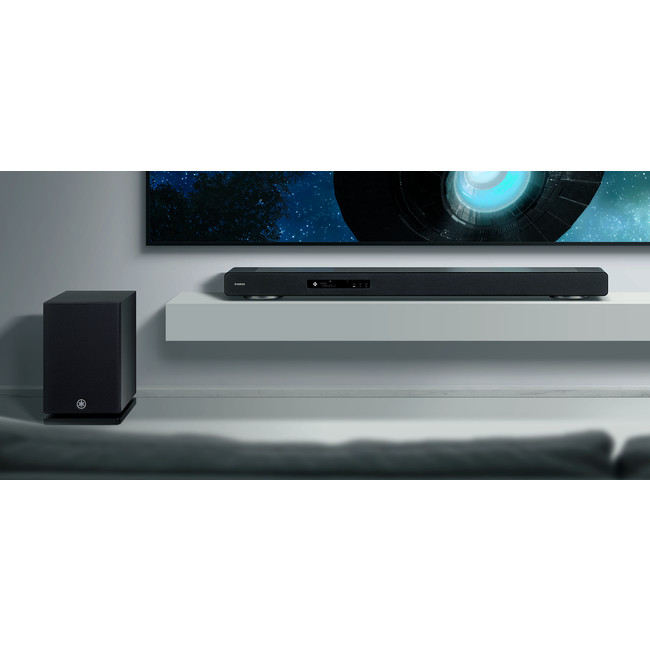

True X Surround 90A from Yamaha, a pioneer in AVR technology. Created with a deep understanding of what makes a true home theater experience, this soundbar features Yamaha’s exclusive YSP beam speaker technology to deliver an unparalleled sense of height – above all else, while truly bringing your movie experience beyond anything before, to an entirely new level of immersive 3D sound

Key Features

  • Height Beam Speaker offers a true Dolby Atmos® experience.
  • Custom eye-shaped oval speakers deliver distortion-free, immersive sound.
  • Pure bass reproduction with a newly developed Symmetrical Flare Port® Subwoofer.
  • Fully wireless rear speakers, TRUE X SPEAKER 3A.
  • SURROUND:AI, inherited from our premium AV receivers.
  • Equipped with Yamaha’s original MusicCast network system.
  • The world's first AURO-3D® compatible soundbar.
  • Compatible with AirPlay 2, Spotify, Deezer, and Amazon Music.



Beam speaker technology, redefind

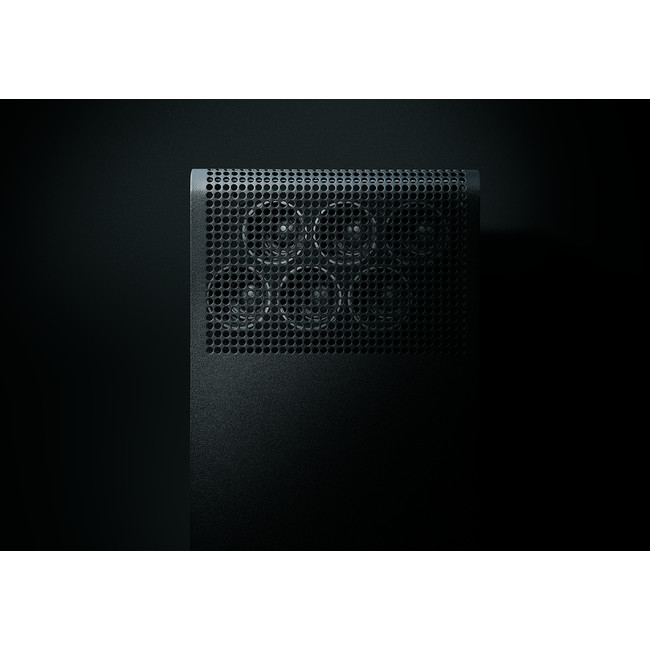

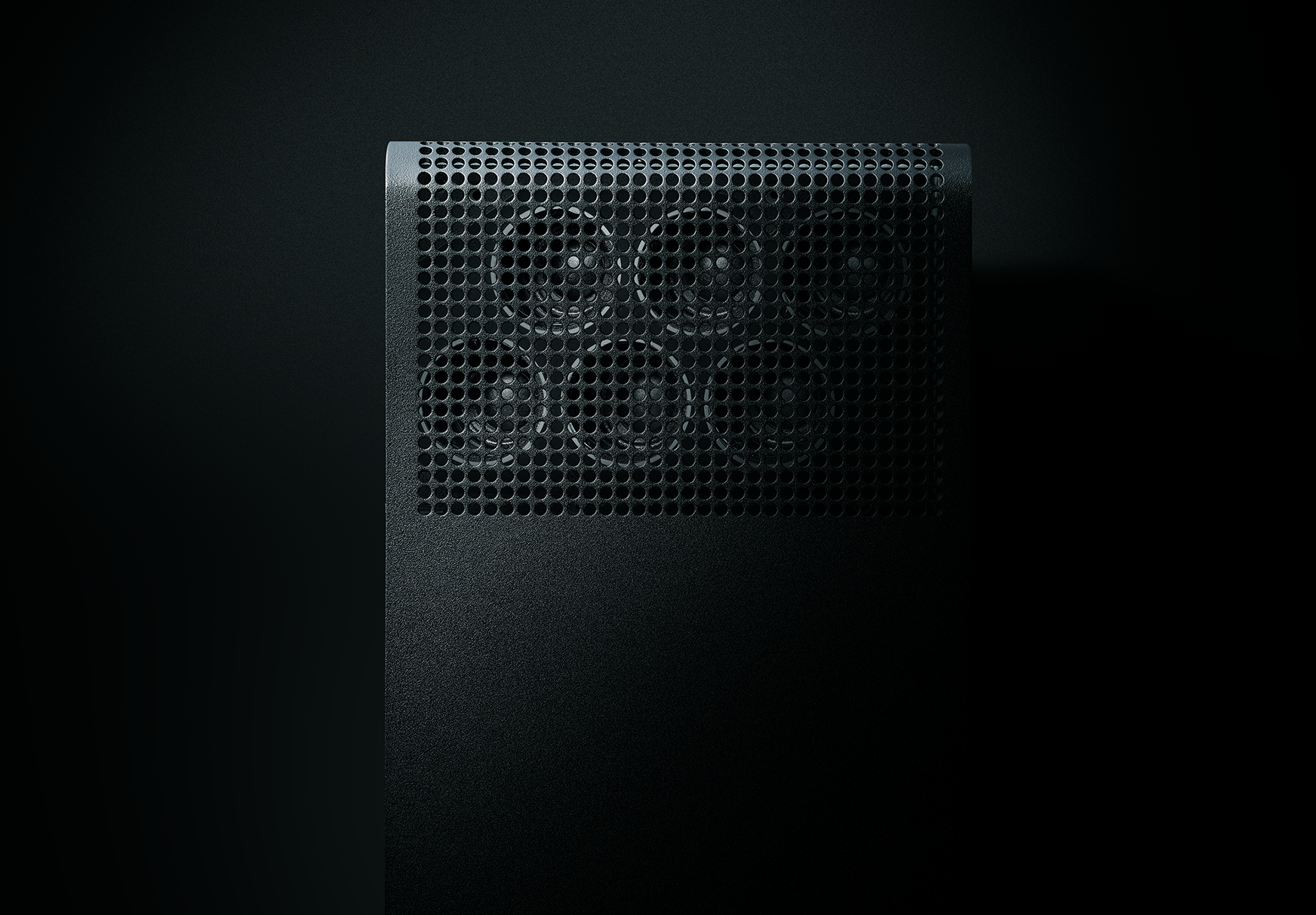

Over twenty years ago, Yamaha re-invented home theater with the YSP-1 soundbar, and have been refining beam technology ever since. In this latest model, Yamaha's original YDA-141 high-performance amplifier with twelve ultra-precise DSP-controlled beam speakers mounted on the top (six on each side) create unique height channels with ceiling reflections. With realistic Dolby Atmos® playback, it delivers an amazing sound field that surpasses conventional soundbars.

The foundation of Yamaha's original Beam Speaker Technology consists of two key elements: a side-by-side array of multiple small-diameter speakers, and the use of advanced digital signal processing to precisely control the timing of the sound emitted from the array. When each of these speakers simultaneously emit the same sound, the multiple sound waves overlap, creating a sound "beam" of strong directional waves. By slightly shifting the timing of the sound from each speaker with the ultra-accurate digital signal processing the directivity of the beams can be precisely controlled and focused to reflect from ceiling surfaces to create a remarkably realistic sonic field where the sound seems to come from above. Moreover, the technology has been by customized exclusively for various three-dimensional sound field formats, such as Dolby Atmos®, DTS:X™, and AURO-3D®, enabling extraordinary real-height reproduction that fully takes advantage of the sonic brilliance of these sound field formats.

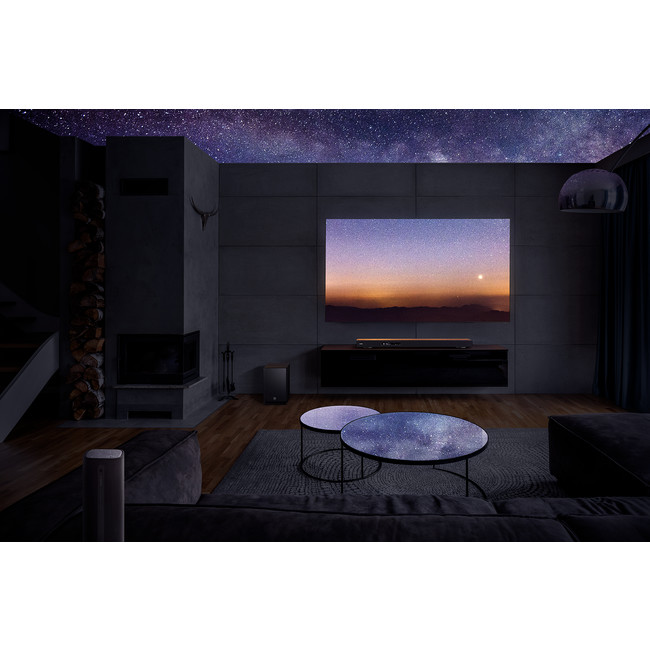

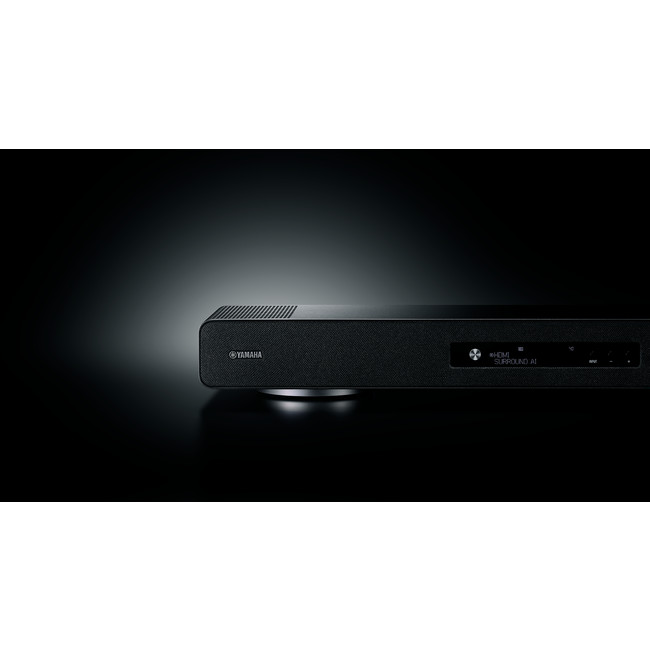

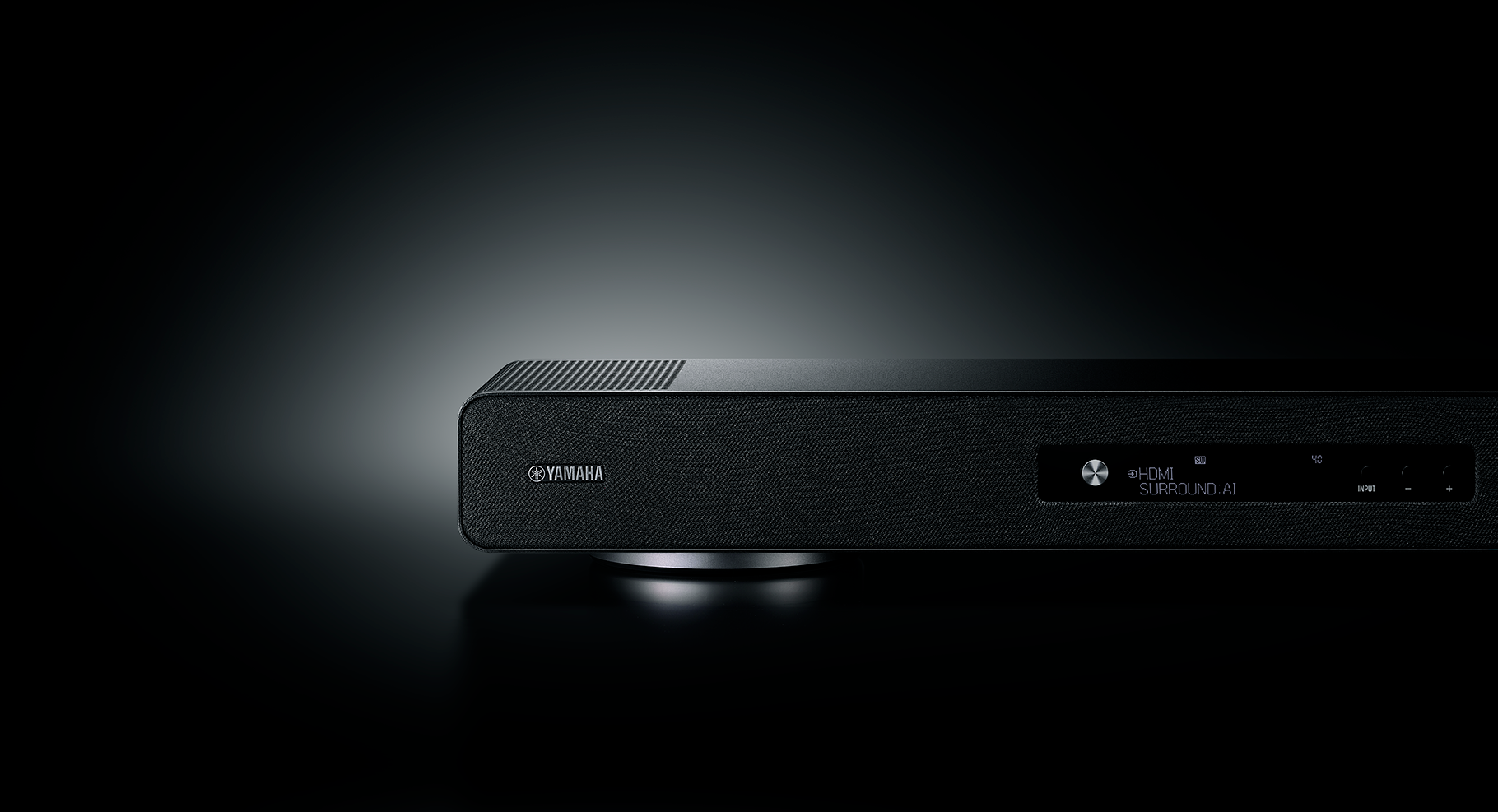

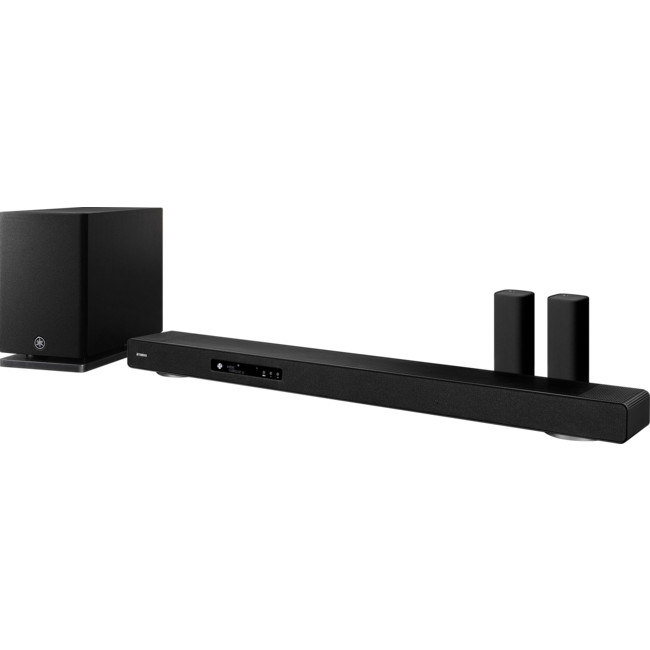

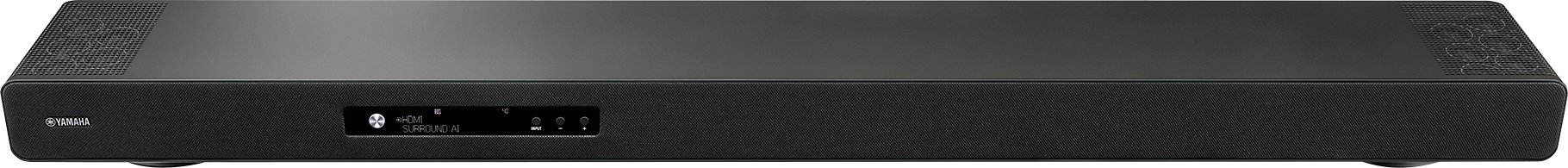

True X Surround 90A is a system that brings new innovations to home cinema. With a slim-bodied soundbar just 71 mm tall, it features multiple, meticulously selected speaker units, encased in a sturdy, highly rigid cabinet supported by large resin legs with a substantial contact area exceptionally solid build quality for an audio device. In addition, combining a subwoofer boasting new Symmetrical Flare Port® technology with two fully wireless rear speakers featuring built-in battery power provides unprecedented flexibility and a profoundly authentic cinematic experience.

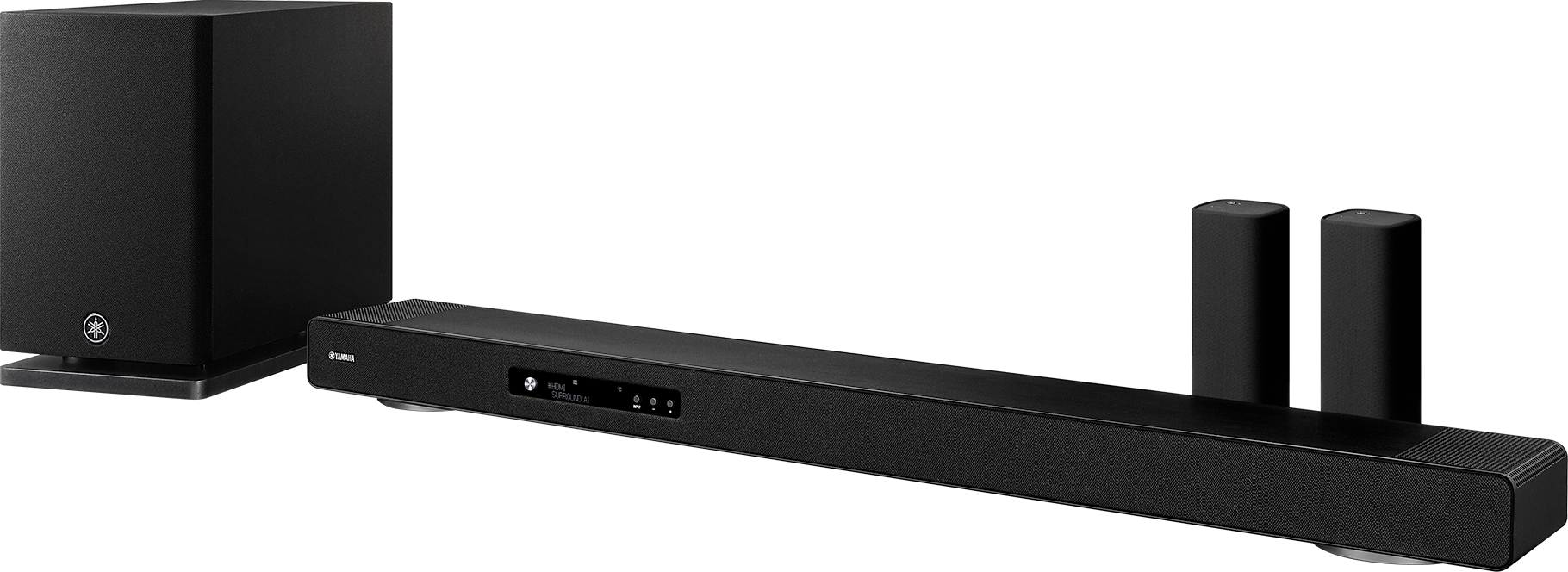

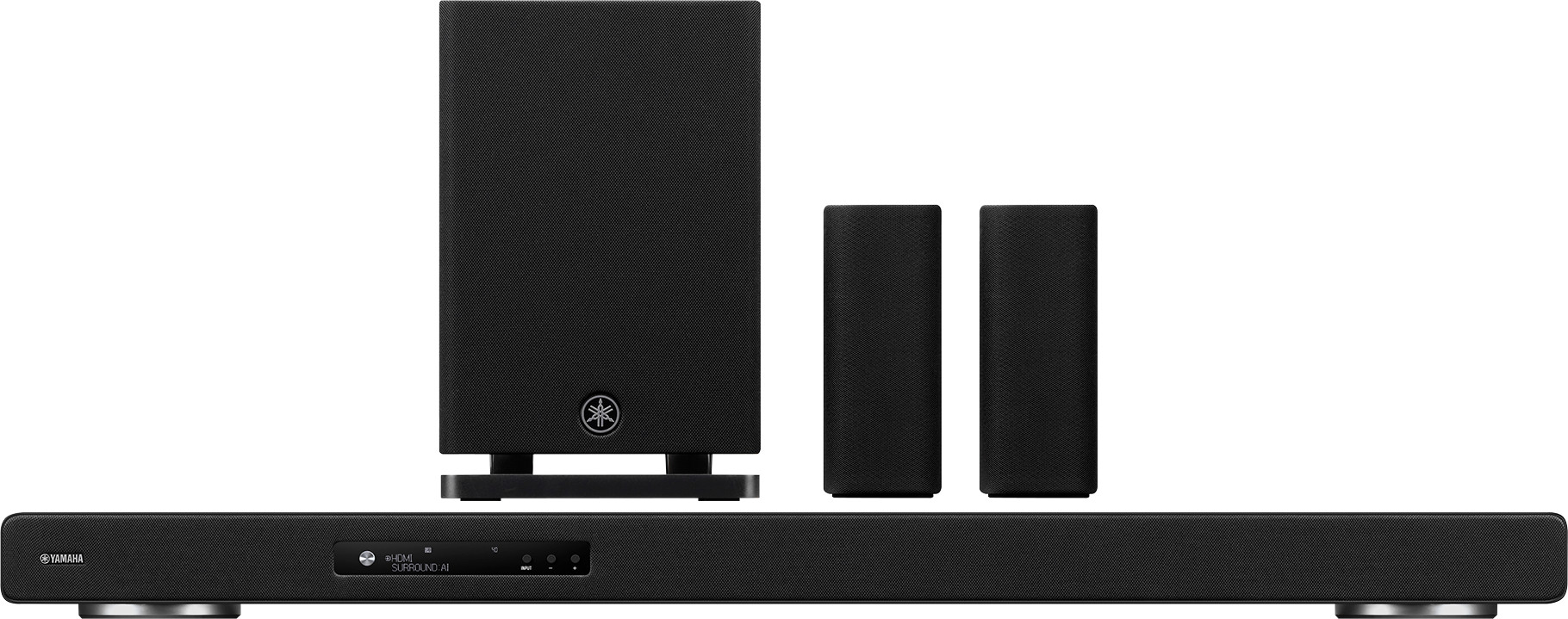

True X Surround 90A

True X Surround

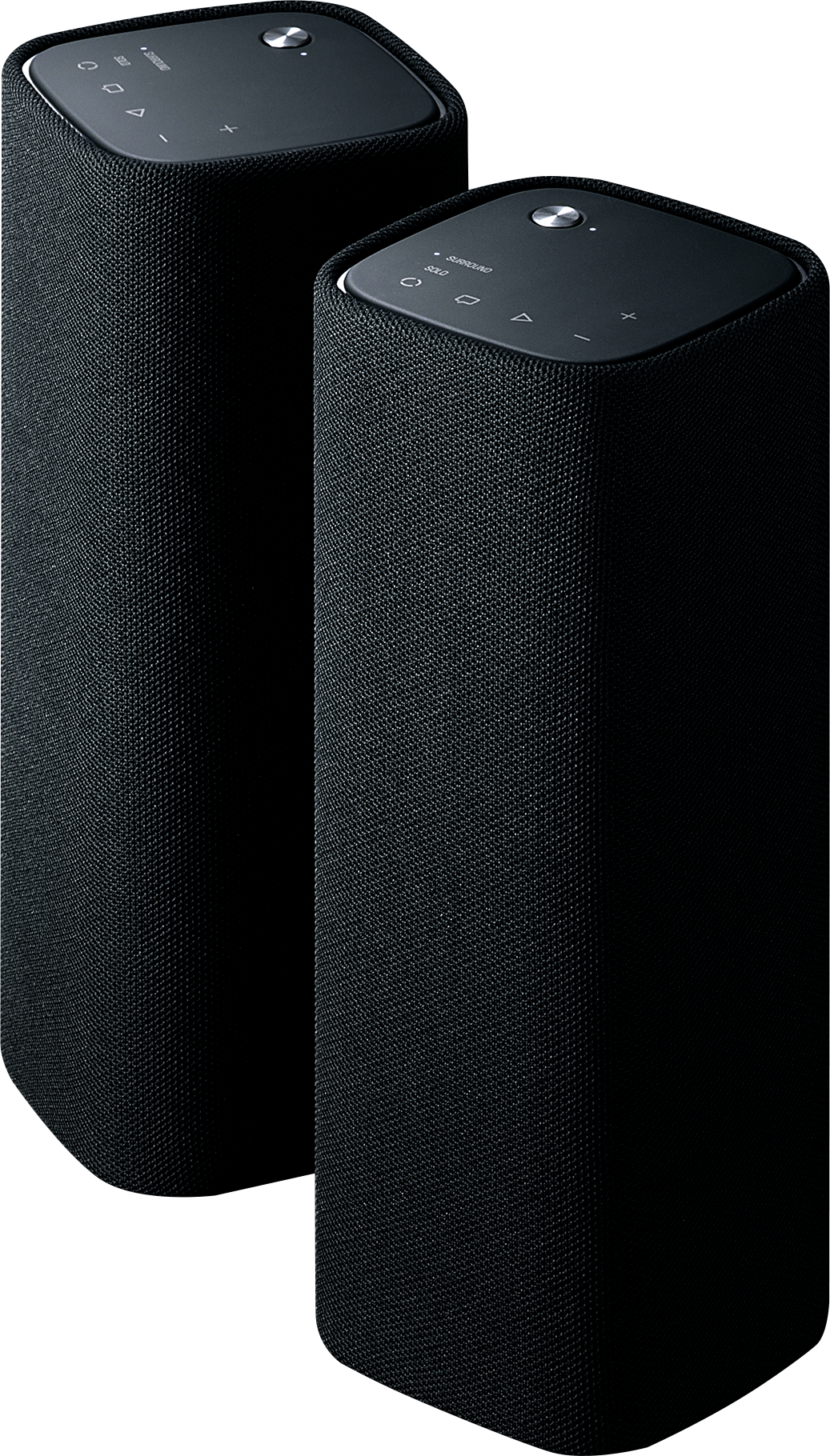

The True X Series brings together the cinematic immersion of Dolby Atmos for your TV with the freedom of portable speakers you can take anywhere. Enabled witha touch of a button, the True X speakers connect with the True X Soundbar to create True X Surround, producing exhilarating realism and clarity for your movies. The True X speakers are surround speakers which can be put anywhere in your room, for flexibility as well as optimum sound. These speakers also double as portable Bluetooth® speakers. Just press the Solo button and you've got music wherever you want it.

Elegantly shaped, Perfectly tuned

The custom eye-shaped oval speakers are key to creating a slim soundbar with distortion-free, immersive surround sound. These speakers deliver rich midrange tones and powerful volume with fewer units, ensuring a clear, natural sound field without acoustic interference. By optimizing the speaker's structure and magnetic circuitry, we overcame challenges like cone strength and high-frequency clarity, resulting in distortion-free, immersive sound. The outcome is a soundbar that offers a sleek design and powerful, balanced sound for an exceptional listening experience.

Custom eye-shaped oval speakers

Premium components,Ultimate performance

SURROUND:AI™ technology employs cutting-edge audio processing performance. Thanks to Qualcomm® QCS407 64-bit SoC (System-on-a chip), also used in our flagship model of the AVENTAGE Series AV receivers, Yamaha's unique surround sound feature automatically generates ideal sound field effect depending on the movie scene. Enjoy your favorite contents with sound as if a team of Yamaha professional sound engineers were fine-tuning audio for each scene.

The term “Soundstage” refers to how sound naturally resonates and reverberates in a particular space, and it varies greatly among homes and movie theaters. Even with the same audio source, the listening experience differs dramatically, making it difficult to recreate the impact of a theater at home. To overcome this, Yamaha pioneered the concept of creating soundstages by reproducing concert hall acoustics in home audio, releasing the world’s first Digital Soundfield Processor, the DSP-1, in 1986. Developed after more than 30 years of DSP research, Surround:AI™ revolutionizes the home theater experience by analyzing and optimizing DSP parameters five times per second. It dynamically scans each scene in real time, identifying key sound elements dialogue, background music, ambient sounds, and effects and instantly fine-tunes the surround sound for breathtaking immersion, seemingly increasing the number of channels.

Surround:AI

Feel the Depth, Hear the power

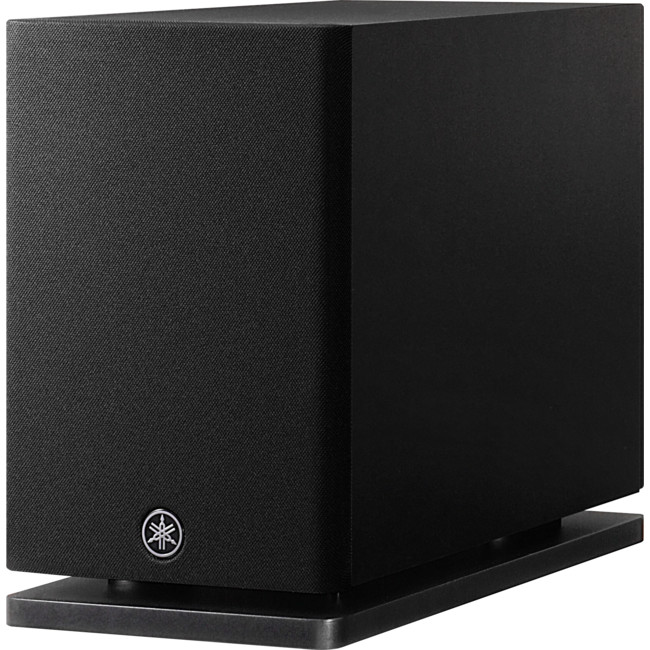

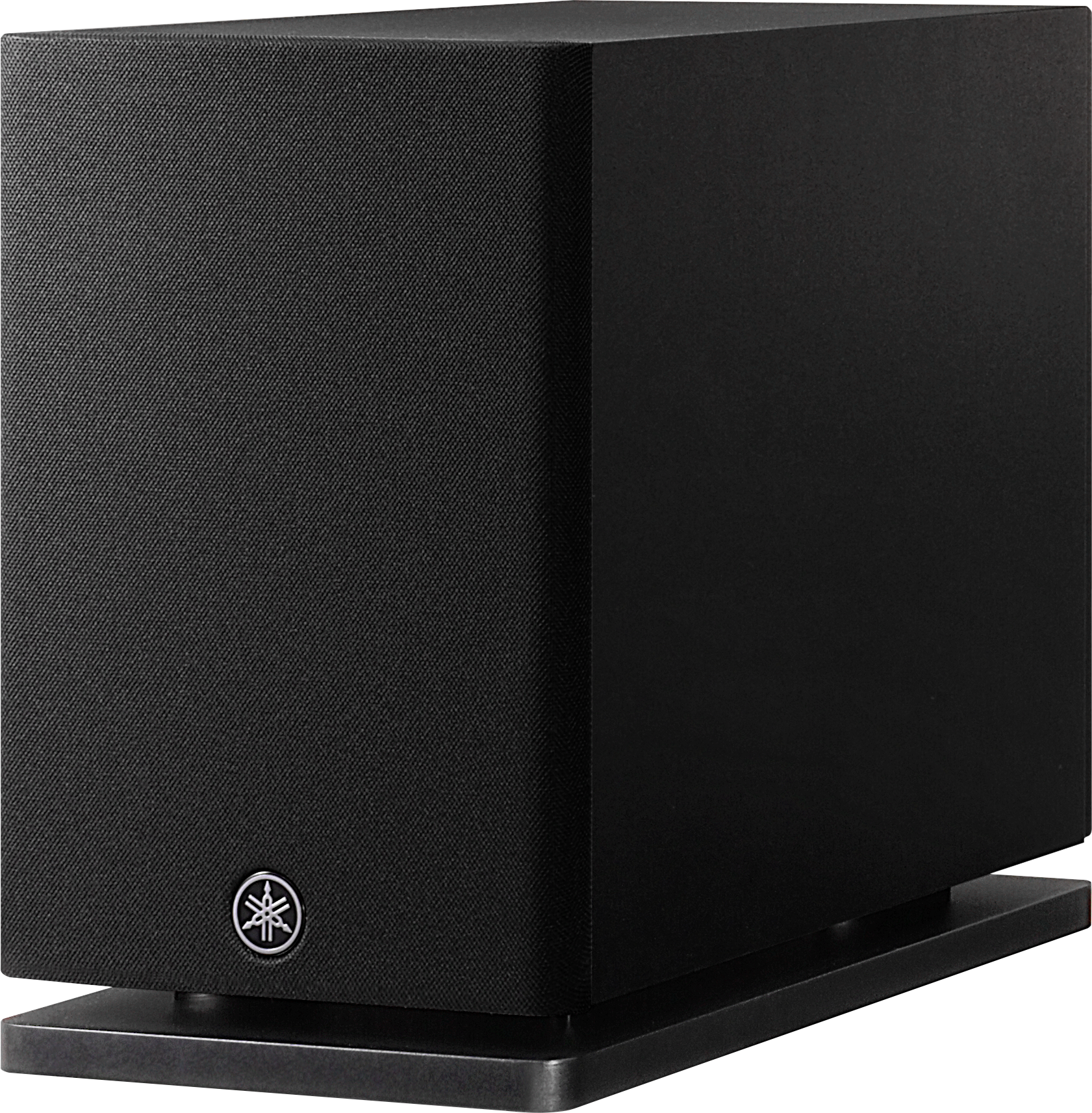

The subwoofer of this system employs Symmetrical Flare Port® technology, newly developed through meticulous Particle Image Velocimetry (PIV) measurements delivering powerful, deeply resonant bass. The symmetrical horizontal/vertical port structure ensures extremely smooth release of the strong air flow generated during bass reproduction. As a result, port noise has been reduced by 20 dB compared to conventional models, enabling pure bass reproduction that is both powerful and deep.

Where True sound comes to Life

With a history spanning over 130 years and being one of the world's largest manufacturers of musical instruments, Yamaha fully understands the very moment of sound creation, and continues to be relied upon by world-famous artists for its audio expertise and live mixing consoles. In addition, we maintain first-class research and development capabilities in all fields related to sound and music, and we have brought our long experience and extensive knowledge to sound creation in the True X Surround 90A.

*Photo shows the Immersive Audio Signal Processing Technology Laboratory.

Yamaha's research development facility



MusicCast network system

Yamaha's UNIQUE NETWORK FUNCTION MusicCast

The TRUE X SURROUND 90A is equipped with Yamaha's original MusicCast network system. Moreover, it is compatible with a variety of streaming services such as Amazon Music HD and Spotify, letting you fully enjoy exceptionally high-quality sound unique to today’s high-resolution and lossless sound sources, with complete fidelity. You can also use it to stream Apple Music with Airplay 2. And the MusicCast system lets you easily listen to music anywhere in your home by linking various MusicCast devices with just one app on your smart device.

AURO-3D

STATE-OF-THE ART AUDIO PROCESSING “AURO-3D®”

True X Surround 90A is not only amazing for movies, but also music and live concert videos. As the world's first AURO-3D® soundbar, it takes full advantage of the height beams and creates a sense of realism as if you were actually experiencing a live performance in a concert hall. In addition, with great effect thanks to AURO-3D® Auro-Matic upmixer function, stereo video content is upmixed into an exceptional three-dimensional sound field.

ADVANCED APP CONTROL

Advanced app control

The height beam angles and volume levels can be easily adjusted using the dedicated MusicCast app, which also provides basic control of the soundbar.

FLEXIBLE MUSIC PLAYBACK

Flexible music playback

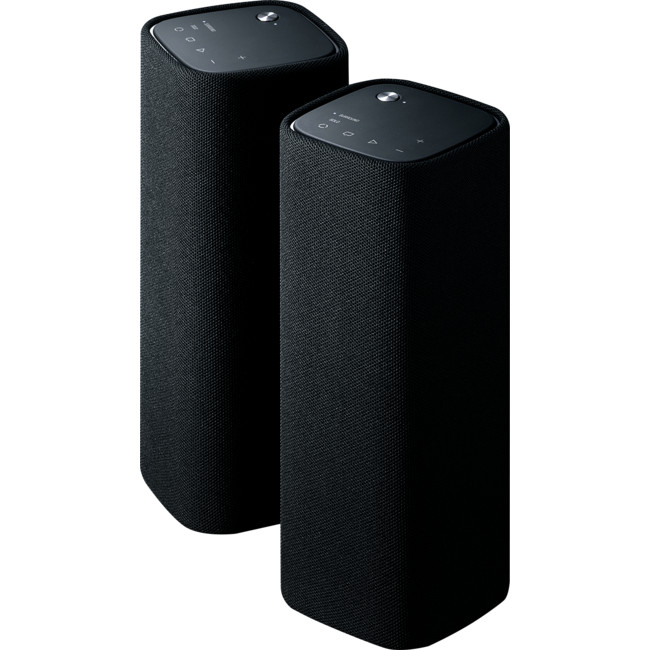

The True X Speaker features built-in battery power, making it perfect for a completely wireless rear speaker, and can double as a Bluetooth® speaker with a simple touch of a button. Take it anywhere you like and enjoy all the music on your smartphone with high sound quality.

WALL HANGING

Wall hanging

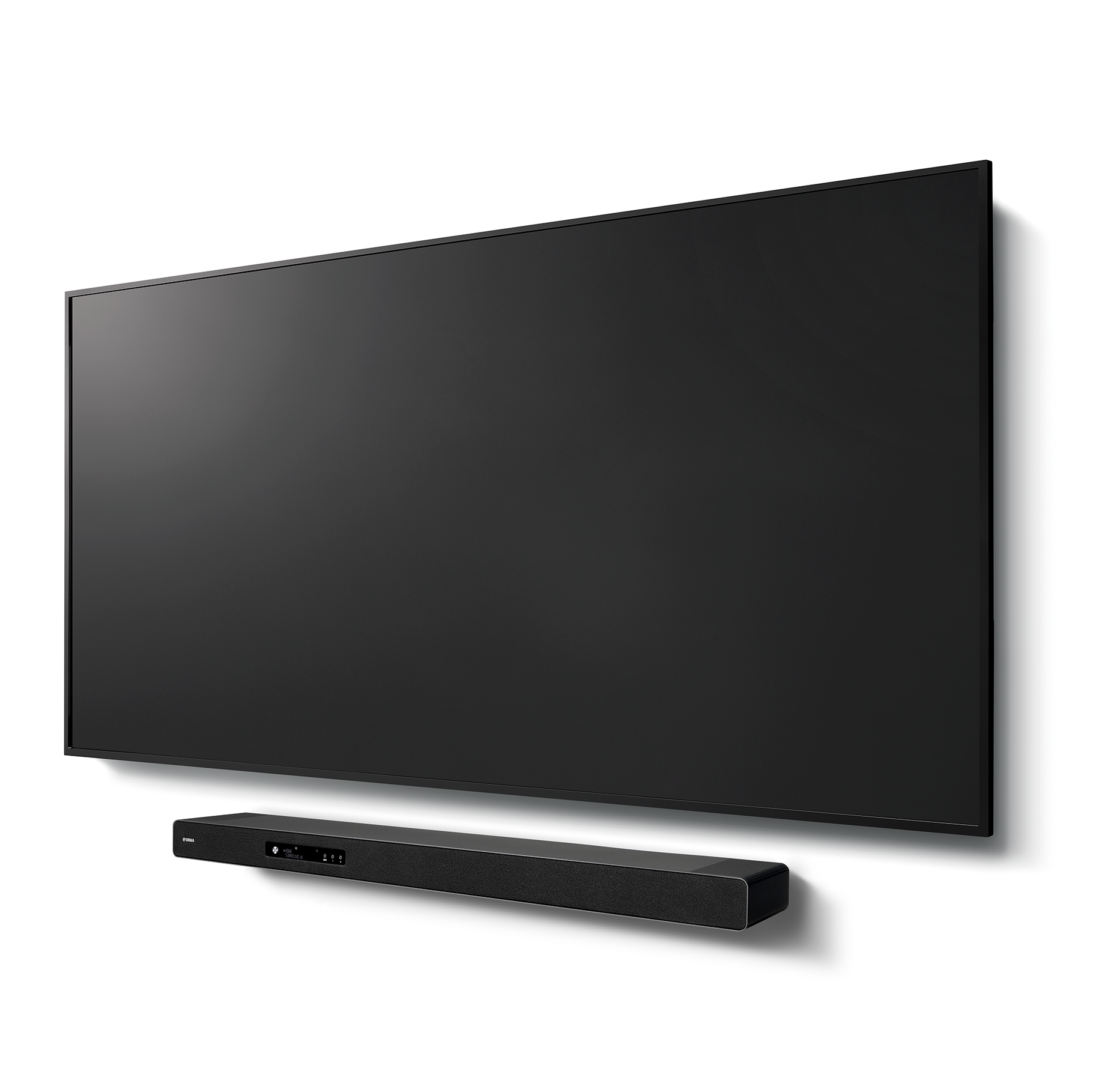

Simply remove the legs from the center unit, and it can be easily wall-mounted using the included metal fittings. Just 76 mm in height and 143 mm in depth, it does not disturb the interior of the room even when hung on the wall.

CLEAR VOICE & BASS EXTENSION

Clear voice and bass extension

The unique and switchable Clear Voice feature makes it easier to hear and understand voices and dialogue. Bass Extension also adds body and depth to the bass while keeping the mids and highs clean, making movies even more immersive.

EASY CONNECTIVITY

Easy connectivity

Compatible with eARC and CEC, the system can be connected to the TV with a single HDMI cable, while power on/off and volume can be controlled with your TV remote.


APP

MusicCast Controller Icon

MusicCast Controller

Control All Your Equipment at Will with Just a Single App

App StoreGoogle Play

Specifications

TRUE X 90A SYSTEM
General Drivers Front L/R: 110 x 53 mm (4-3/8" x 2-1/8") Cone type full range x 2, 25 mm (1") dome type tweeter x 2 Center: 110 x 53 mm (4-3/8" x 2-1/8") Cone type full range x 1, 25 mm (1") dome type tweeter x 2 Height Beam L/R: 28 mm (1-1/8") Cone type x 12 Subwoofer: 17 cm (6-3/4") Cone type Rear Speaker: 58 mm (2-1/4") Full range x 2, Passive Radiator x 2
Dimensions (W x H x D) Center unit: 1180 x 85 x 143 (46-1/2" x 3-3/8" x 5-5/8"), Subwoofer: 241 x 378 x 414 mm (9-1/2" x 14-7/8" x 16-1/4") Rear Speaker: 88 x 220 x 88 (3-1/2" x 8-5/8" x 3-1/2")
Weight Center unit: 11.0 kg (24.3 lbs), Subwoofer: 12.7 kg (28.0 lbs) Rear Speaker: 1.0 kg (2.2 lbs)
Standby Power Consumption 0.5 W (HDMI control off, network standby off), 2.0 W (HDMI control off, network standby on), Subwoofer: 2.0 W

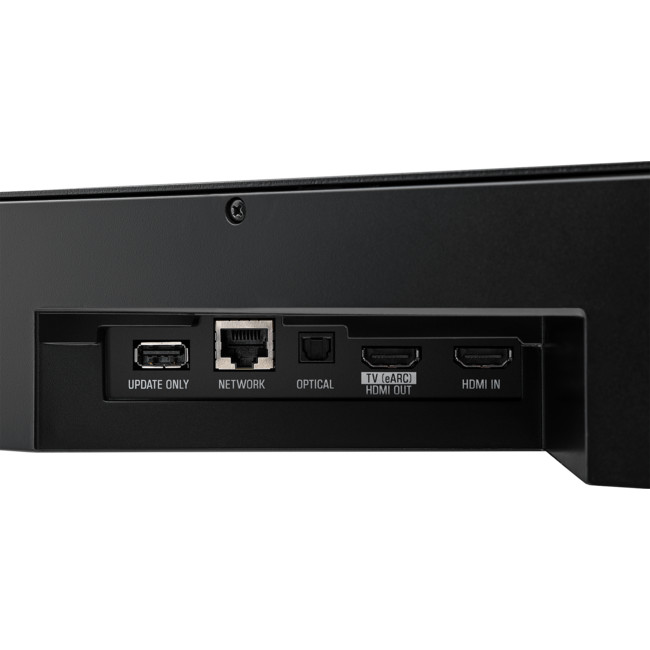

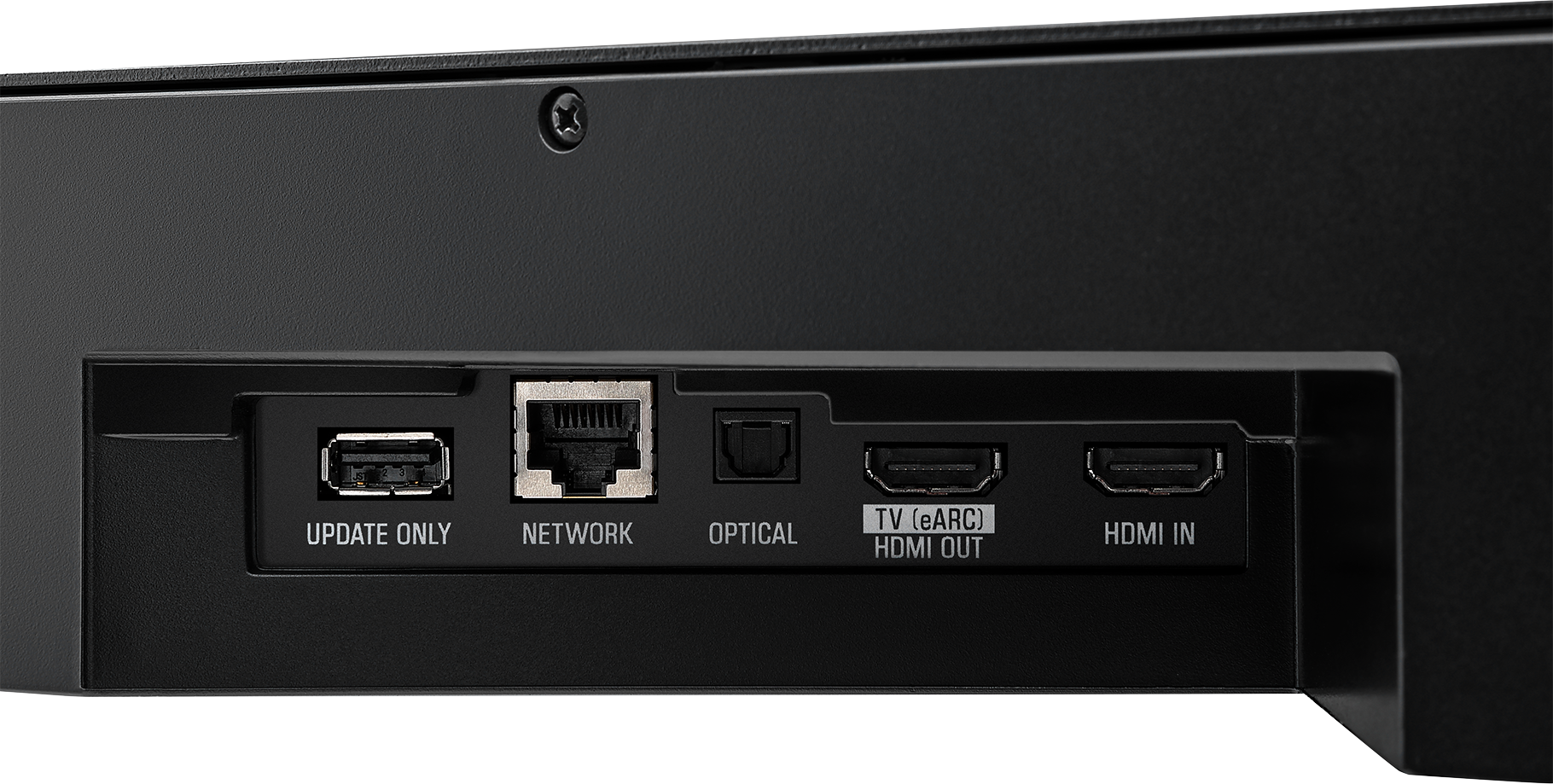

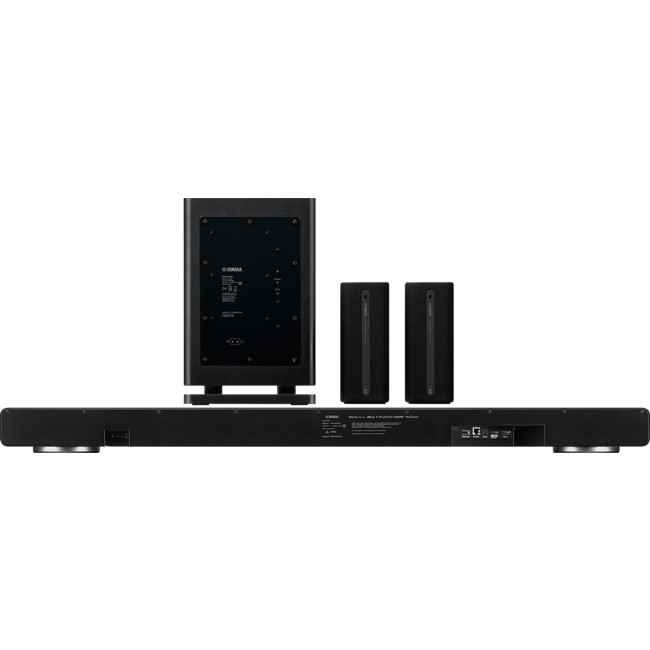

Input / Output HDMI 1 in / 1 out (eARC)
Digital Optical Yes
Subwoofer output No
Analog Audio No
HDMI 4K Pass-through Yes
CEC Yes
Auto Lip-Sync max 500 msec
Sound Technology Surround Decoder Dolby Atmos, DTS:X, AURO-3D
Surround Mode SURROUND:AI, 3D Music, Stereo, Straight, All
Clear Voice Yes
Bass Extension Yes
Connectivity Built-in music streaming services Yes
Wi-Fi Yes
AirPlay AirPlay 2
Bluetooth Version/Profile Version: Ver 4.2 / Profiles: A2DP / Codecs: SBC, AAC
Wireless Subwoofer Yes (5 GHz)
True X Surround Yes (5 GHz)
Other Features App Control Yes (MusicCast Controller)





Yamaha soundbar TRUE X90A overview
