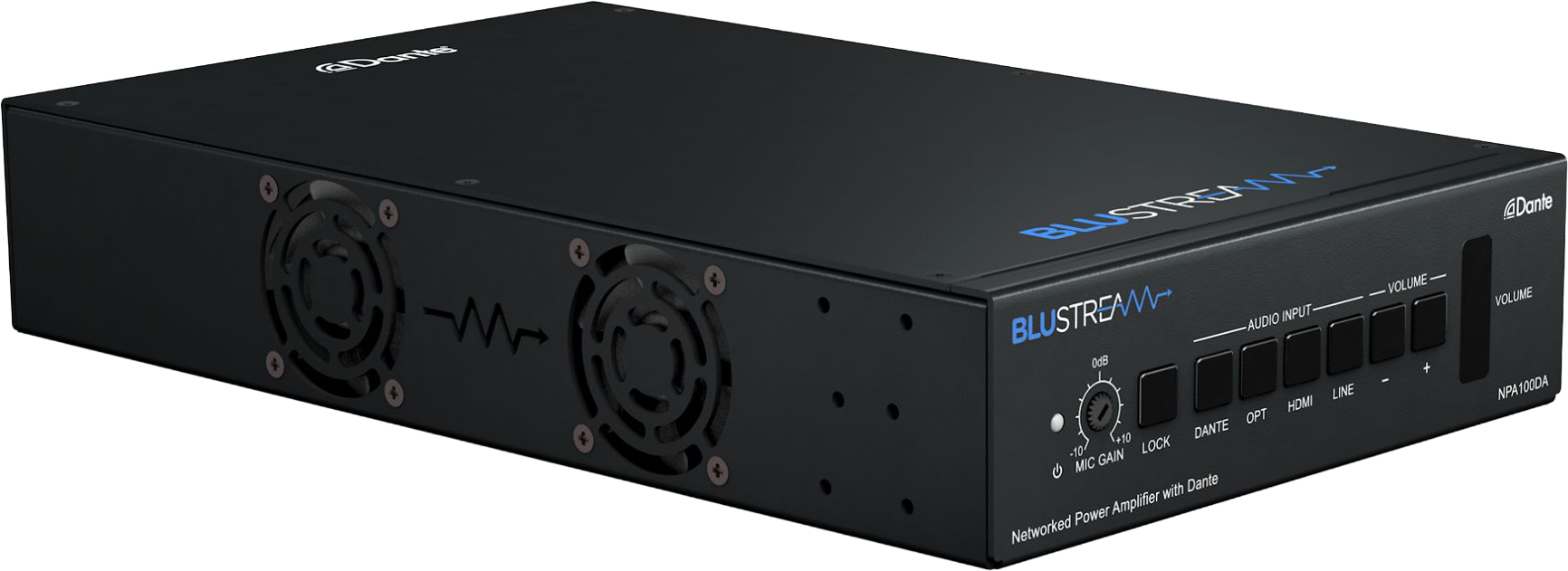

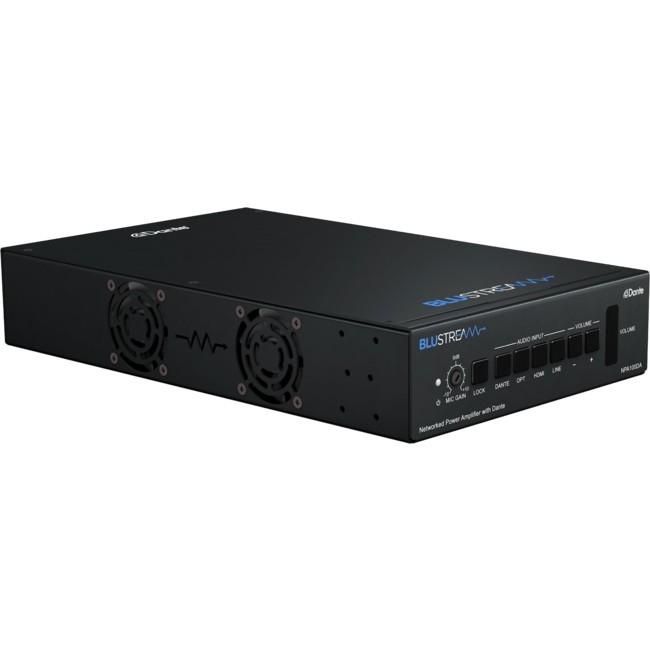

NPA100DA NETWORKED POWER AMPLIFIER WITH DANTE

Blustream NPA100DA Networked Power Amplifier with Dante

Blustreams NPA100DA networked audio zone amplifier delivers advanced audio integration within a commercial or residential AV installation.

The NPA100DA features a 2x 50W digital amplifier (1 x 100W mono) or 70V / 100V hi-level constant voltage output, dedicated LFE subwoofer output, Dante audio integration and 2ch balanced / un-balanced audio outputs.

The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI ARC, MIC audio with 48V Phantom power support, optical audio and 2ch balanced / un-balanced analogue audio.

The NPA100DA can be powered via PoE from a compatible network switch, or locally should the switch not support PoE . The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante connections, DSP with a 31 band EQ, audio delay for lip sync correction, independent gain control for audio inputs and control via front panel, IR, RS-232, TCP/IP, Web Gui or 12v trigger.

Key Features

• Advanced network audio amplifier with Dante integration

• Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for multiple speakers with longer cable runs

• Supports power via PoE on Dante LAN connection or via local power supply*

• Dual network option - independent Dante and LAN control ports, or combined to a single LAN port

• Audio inputs include:
  - 2ch Dante/AES67 audio input
  - HDMI ARC with CEC volume control
  - MIC audio input with phantom power and auto-ducking
  - 2ch Analogue audio input – unbalanced & balanced
  - 1 x Optical (S/PDIF) audio input

• Audio outputs include:
  - 2ch Dante/AES67 audio Output
  - 2ch variable/fixed analogue output, balanced/un-balanced
  - 1 x LFE subwoofer output

• Independent gain control for input channels

• DSP with 31 band EQ with /-10dB gain and audio delay

• Local 12V input trigger for automated power control

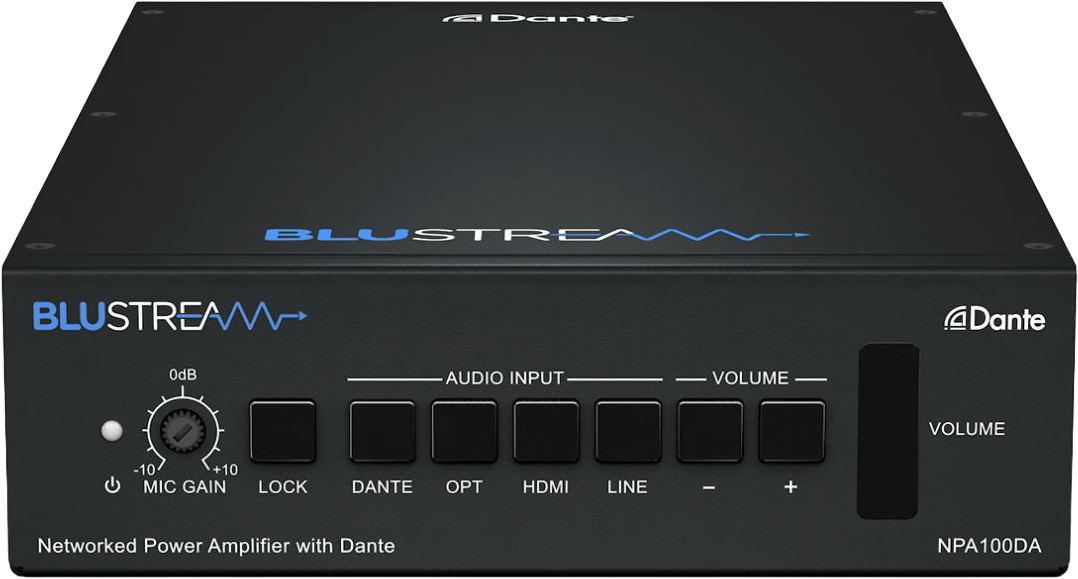

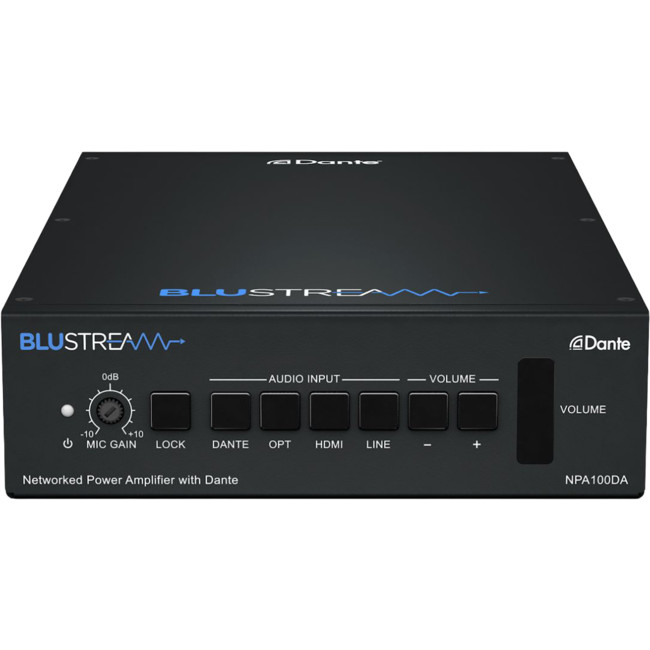

• Control via front panel, IR, RS-232 and IP

• Auto standby mode with signal sensing

• In-built web-GUI for setup and control

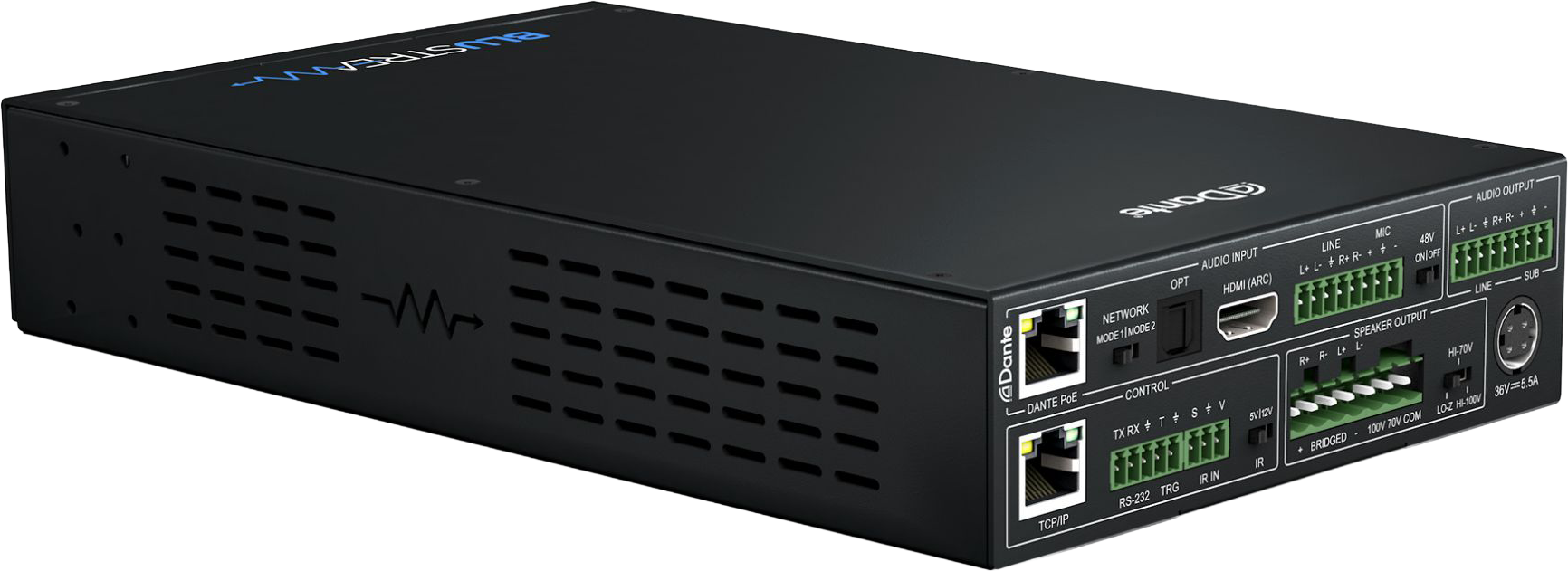

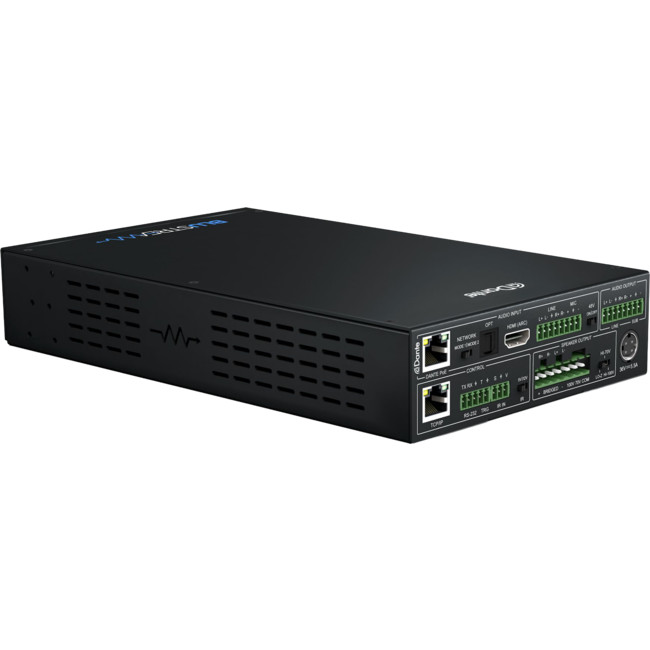

Specifications

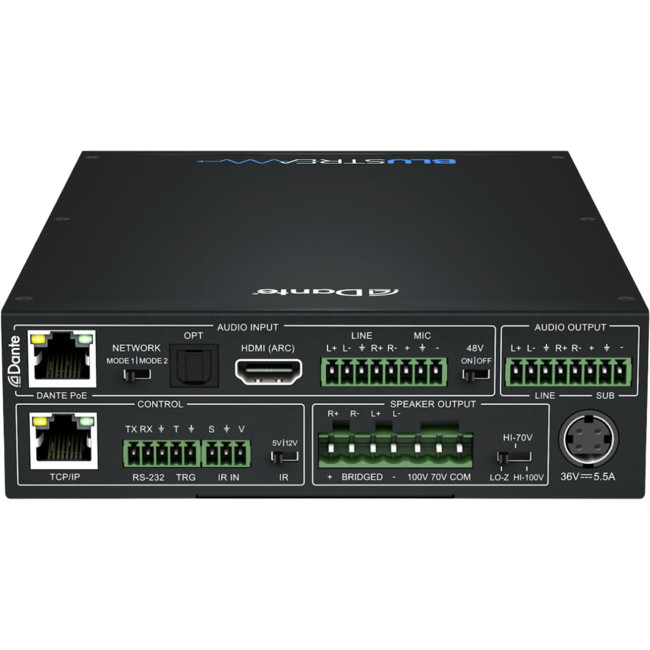

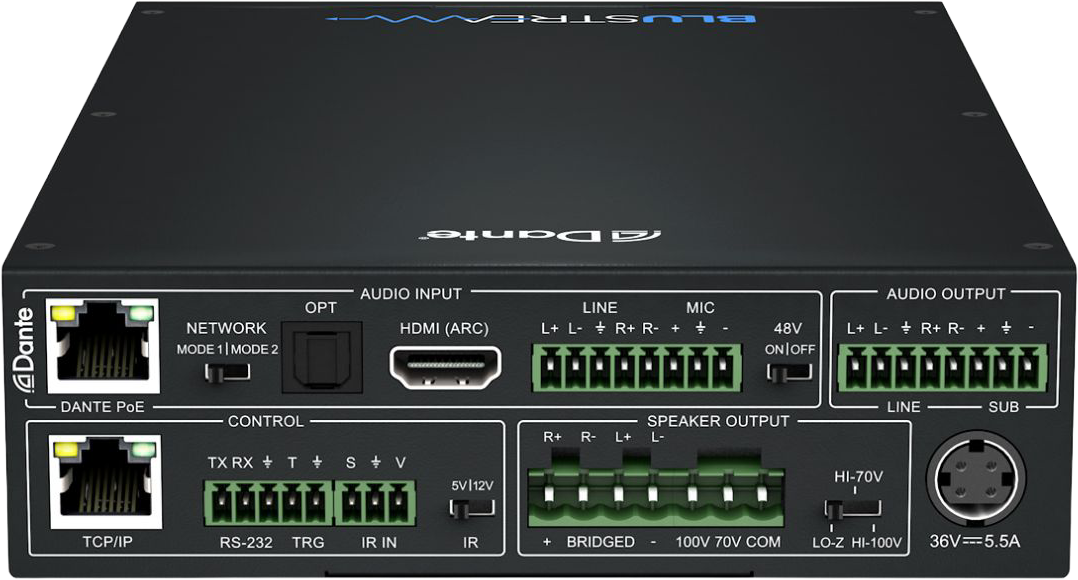

• Audio Inputs: 1 x 5-Pin Phoenix connector (analogue), 1 x 3-Pin Phoenix connector (MIC), 1 x HDMI Type A, 19-pin, female, locking (ARC), 1 x Optical (S/PDIF)

• Audio Outputs: 1 x 4-Pin Phoenix connector (4 / 8 ohm speaker), 1 x 3-Pin Phoenix connector (70 / 100v speaker),
  • 1 x 5-Pin Phoenix Connector (analogue audio), 1 x 2-Pin Phoenix connector (LFE subwoofer)

• Ethernet Port: 1 x LAN RJ45 connector (Dante), 1 x LAN RJ45 connector (Network)

• RS-232 Serial Port: 1 x 3-Pin Phoenix connector

• IR Input: 1 x 3-Pin Phoenix connector

• Trigger Input: 1 x 2-Pin Phoenix connector

• 19" Rack mounting and wall / surface mounting kit included

• Dimensions (W x D x H ): 250mm x 150mm x 45mm

• Dimensions Including Connections (W x D x H ): 252mm x 150mm x 45mm

• Shipping Weight: 2.8kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Power Supply: PoE Type 4, 1 x 36V/5.5A DC

Box Contents

1 x NPA100DA
1 x 36V/5.5A power supply
1 x Remote control
1 x IR receiver
1 x Rack mounting kit
1 x Wall / surface mounting Kit
4 x Rubber feet
1 x Quick reference guide
