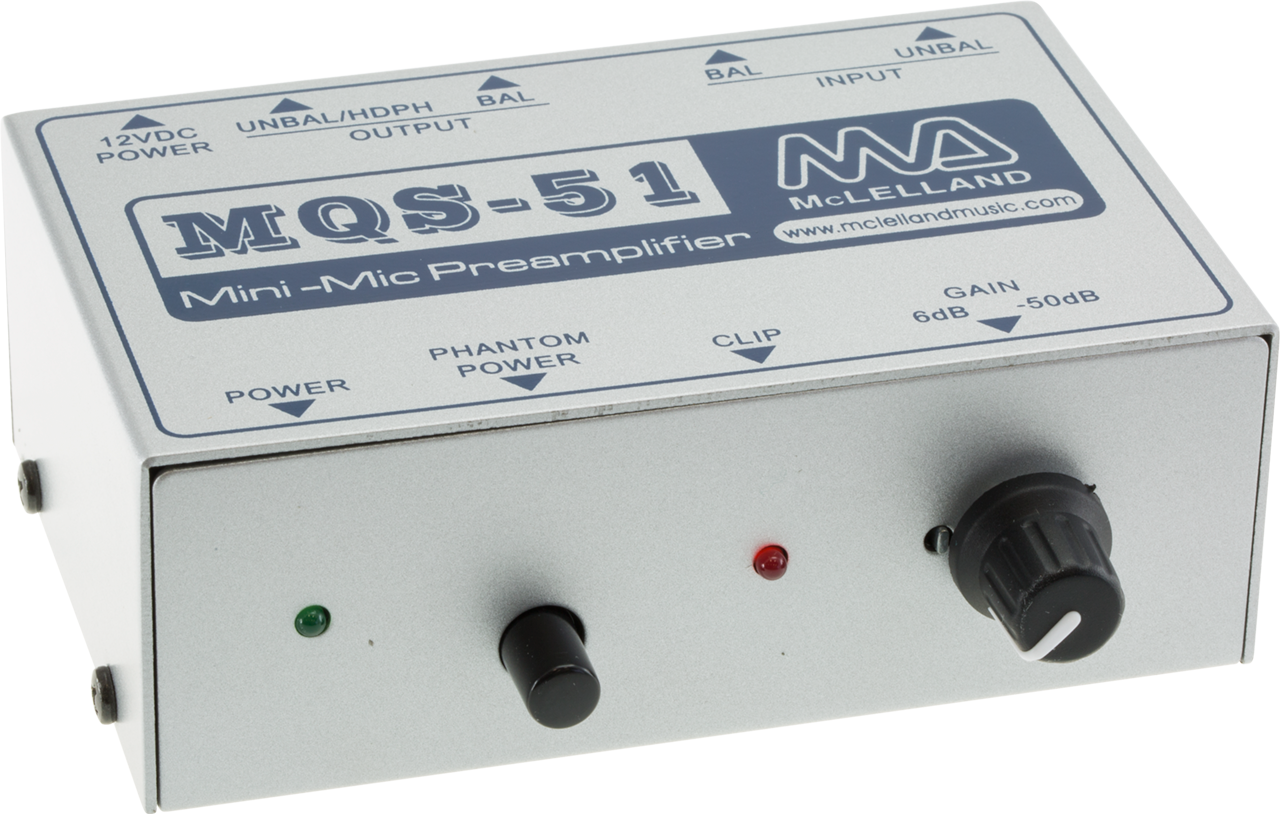

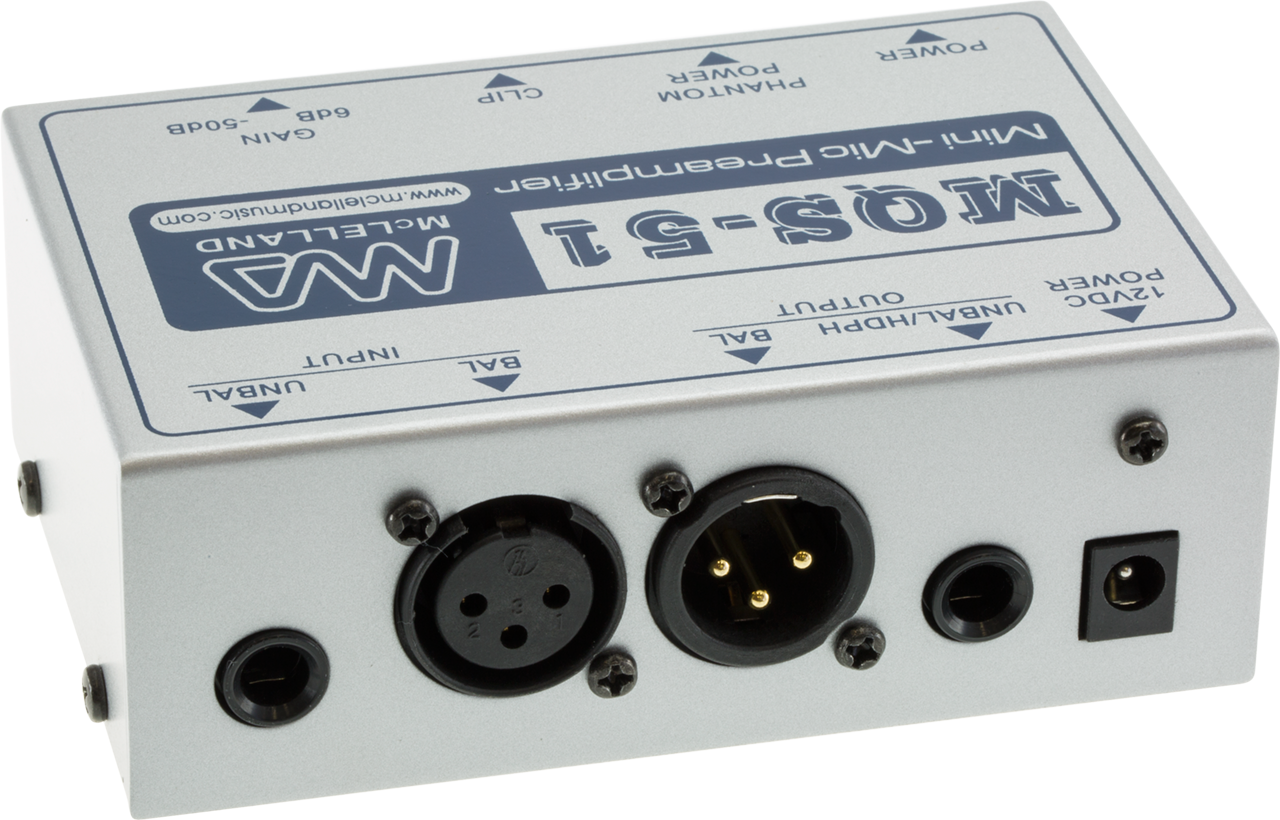

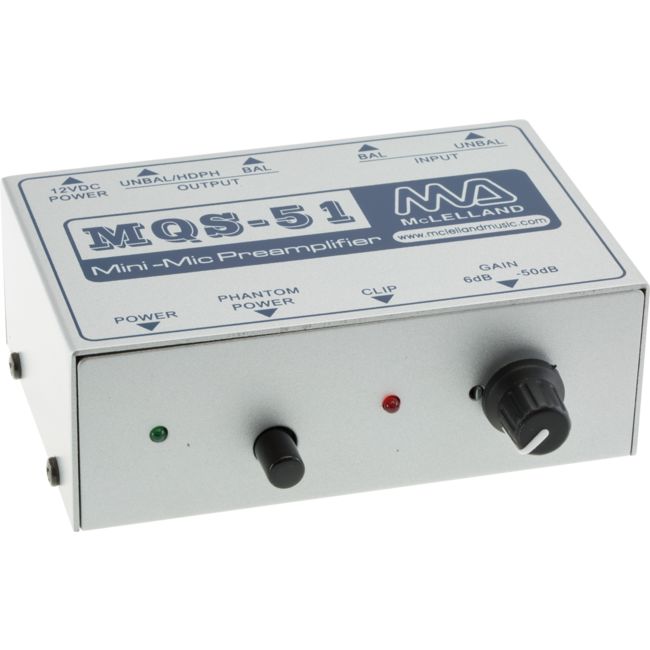

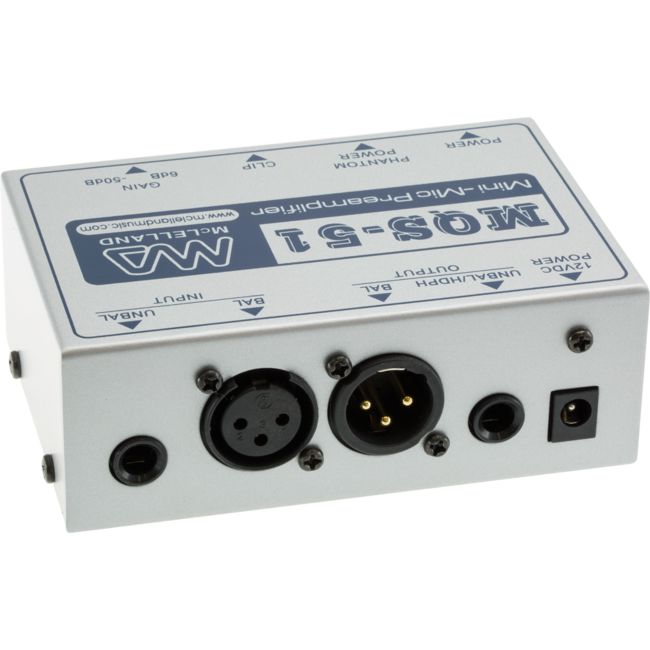

Mini Mic Preamplifier

The MQS-51 is designed to provide a simple, compact and inexpensive microphone preamplification for a variety of applications. The unit has both XLR and 1/4" Inputs and Outputs, and a simgle Gain control with a Clip indicator. Phantom powering is included for the use with a condenser microphone. The 1/4" Output is specially designed for use aseither a mono balanced output, or a stereo headphone output.The unit comes with a power adaptor.

Features

• XLR and 1/4" Inputs and Outputs
• Gain Control
• Clip LED indicator
• 1/4" output drives stereo headphones
• +36V Phantom power

Specifications

• Input Impedance: 10K ohm bal; unbalanced
• Max Input Level: +4dBV XLR (balanced) / +10dBV (unbalanced)
• Max Gain: 50dB (XLR), 44dB (6.3mm)
• Phase Shift: <10 deg. 20Hz-20kHz
• EIN: 129 dB max.
• THD: <0.01%
• IMD (SMPTE): <0.01%
• Power: 12V DC 150mA
• Size: 113mm x 73mm x 40mm
• Weight: 349g
