BAR20109096 BARIX EXSTREAMER 500

Code: 01450810

Each
SPECIAL
BUY-IN
$1320 inc GST
Increase value Decrease value
Qty Each
PDF Flyer
Enter 4 digit postcode

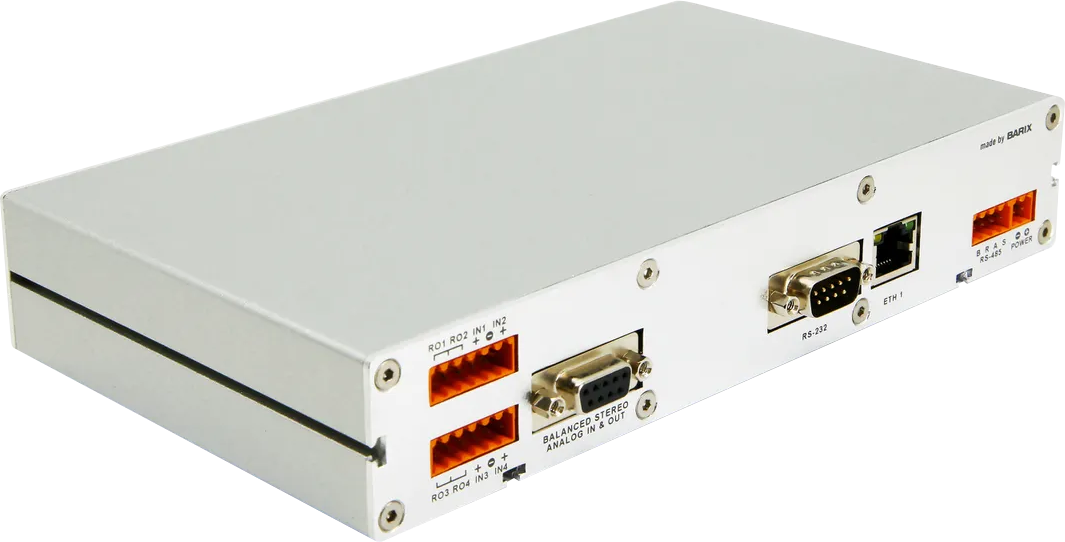

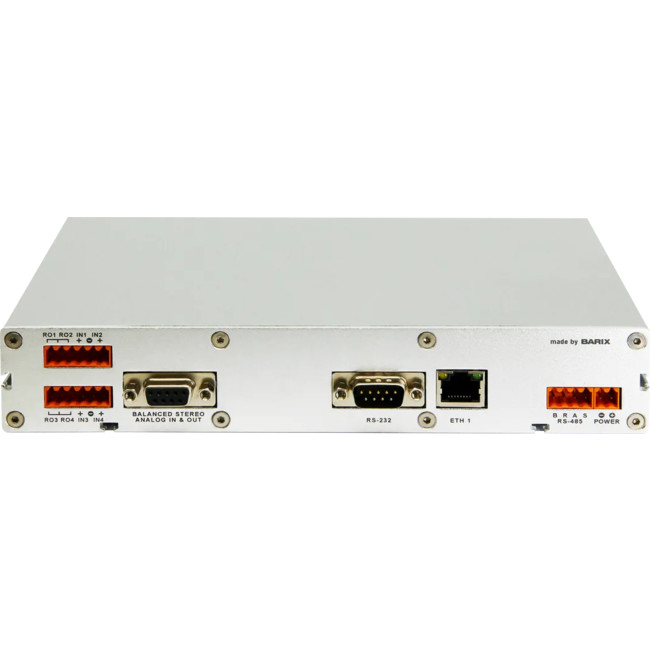

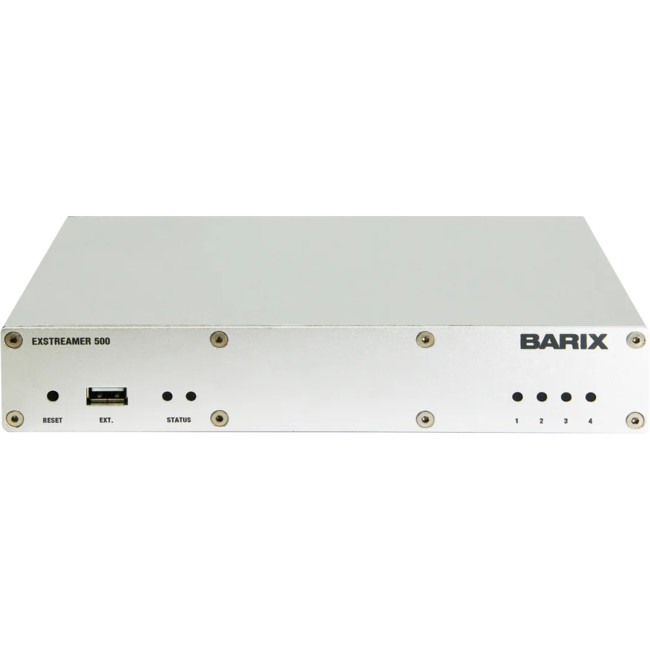

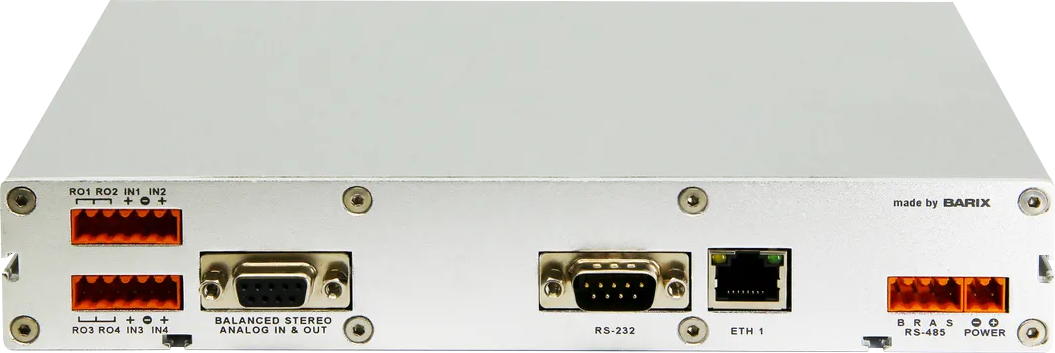

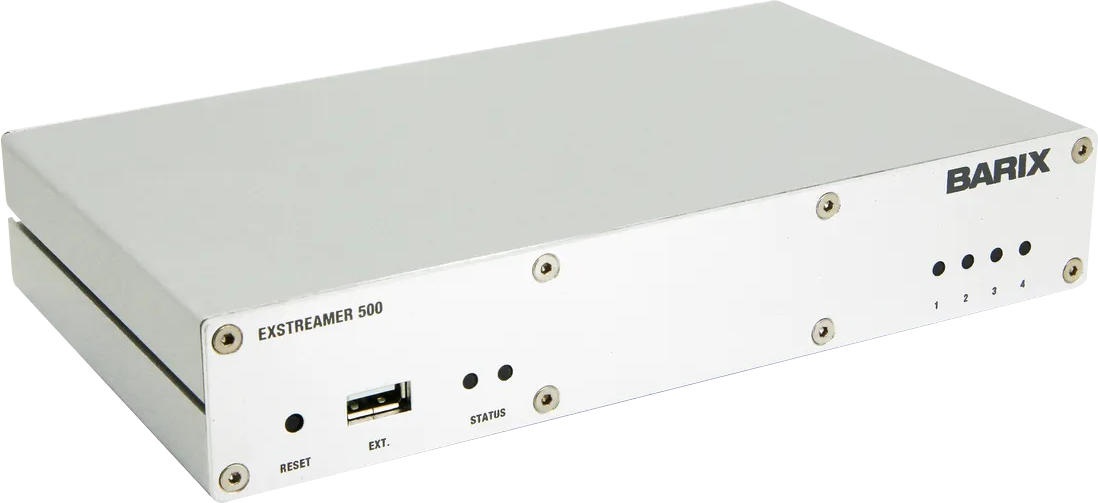

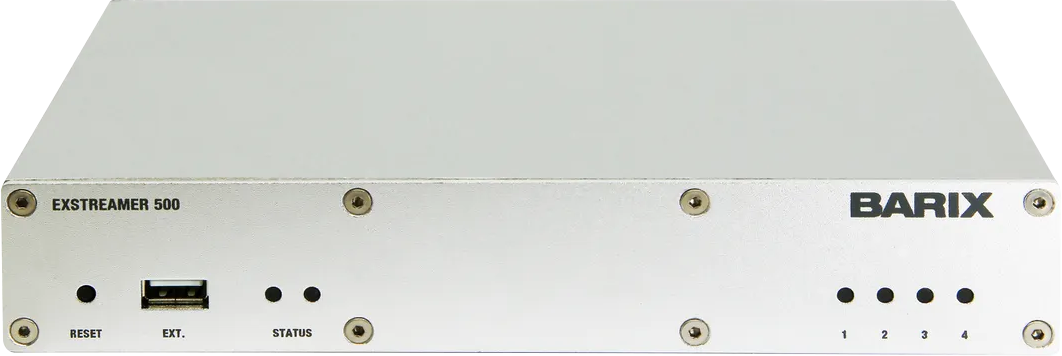

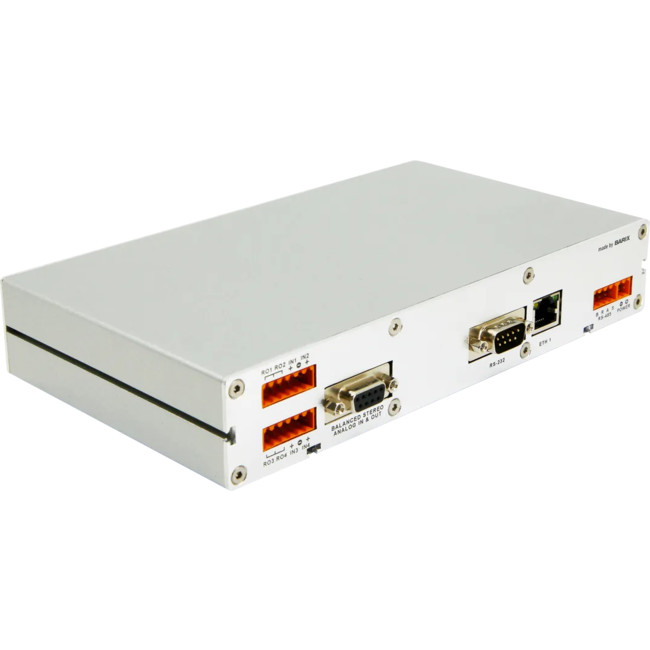

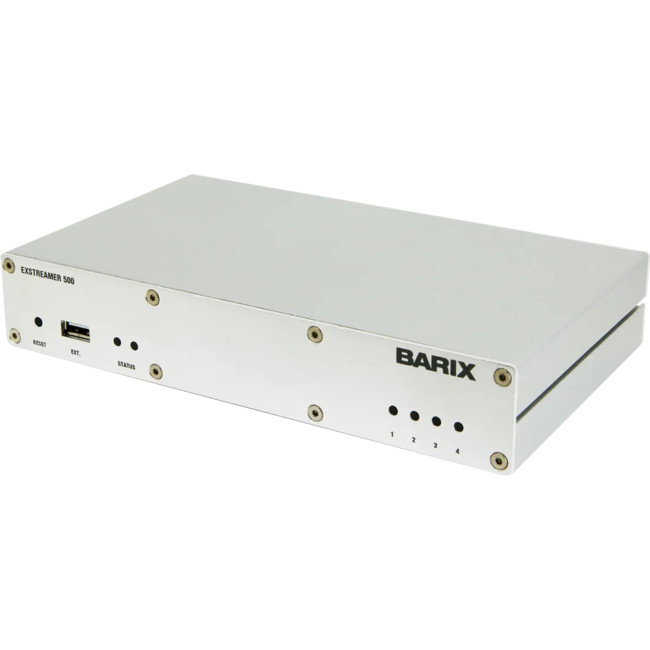

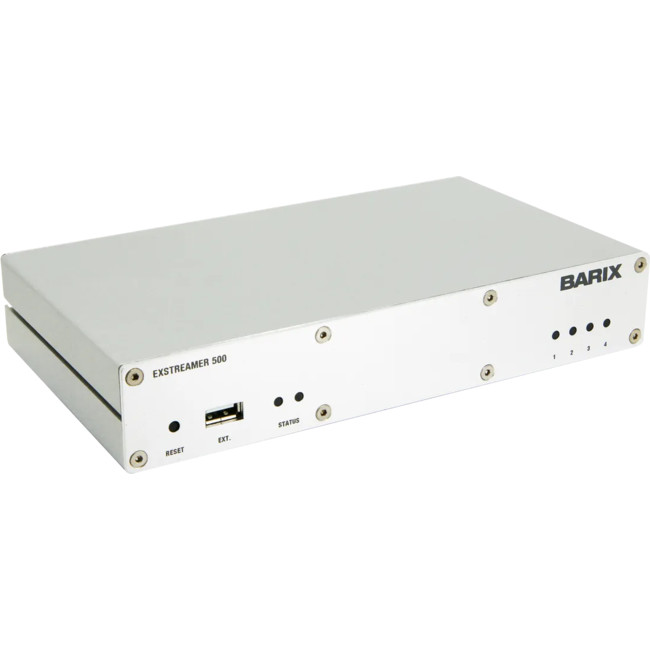

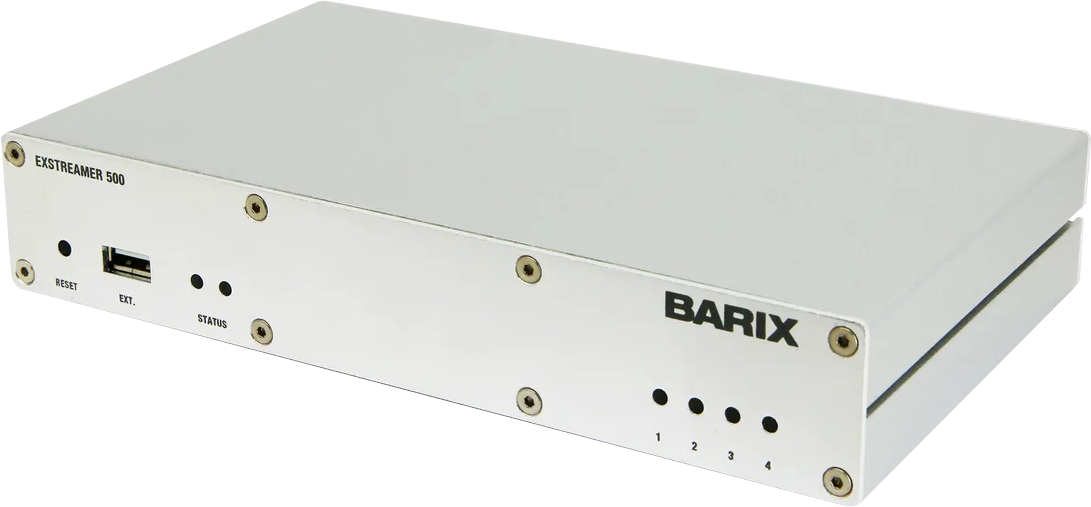

Barix Exstreamer 500 BAR20109096 Barix

Professional Multiprotocol IP Audio de-/encoder with I/O,balanced audio.

Support of Internet Radio and VoIP (SIP, RTP) codecs and protocols make the products the ideal choice for broadcast, professional and VoIP applications.

Applications

  • Live IP Audio Encoder for Streaming Applications
  • Generic, bidirectional full-duplex VoIP module forPaging and Intercom Applications
  • Paging and Audio Distribution with Amplifier control and monitoring
  • Shoutcast/Icecast Source Encoder
  • Confidence Monitoring and Vox Switch for Broadcast Applications
  • Commercial Audio Streaming Applications
  • Multiroom IP Audio System Receiver
  • Low latency IP Audio Encoder for multichannel applications
  • Background Music and Music-on-Hold encoder for VoIP Applications
  • Source Encoder for IP Audio Distribution Applications
  • Digital Annunciator, Message Player, Message Repeater
  • SIP and IP Paging Zone Device Features
  • MP3, G.711, PCM Encoding
  • MP3, G.711, PCM, AACplus*,Ogg Vorbis*, Decoding
  • Shoutcast/Icecast Source capability
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Balanced Line Level Input (Stereo)
  • Balanced Line Level Output (Stereo)
  • Relay Output (4)
  • Contact Closure Input (4)
  • RS-232 / RS-485 Serial Port
  • USB Flash Memory Interface
  • Supply Voltage 24...48 VDC



Specifications

  • Electrical

24 to 48 VDC ± 20%

Power requirement: 8 Watt max.

2 pin screw terminal connector

  • Ethernet

10/100Mbps auto,

RJ-45 connetor with integrated Link & Activity LEDs

Protocols: TCP/IP, UDP, RTP, DHCP, Multicast capable

  • RS-485

4 pin screw terminal connector

300..230‘400 Baud asynchronous, 7/8 bit

  • Analog Inputs & Outputs (stereo)
DB9 female socket
  • Analog Inputs

Differential input, 18kOhm input impedance

Clipping level 15dBu, 12.3 Vpp

Frequency response (-3dB) 20..20‘000 Hz**

Signal to Noise Ratio 87 dB, THD 0.01%

Stereo crosstalk -88 dB

Input level software controllable (-3.. +19.5dB)

  • Analog Outputs

Differential output, 40..60 Ohm output impedance

Output level software controllable

Full scale output voltage: 15dBu, 12.3 Vpp

Frequency response (-3dB) 20..20‘000 Hz**

Signal to Noise Ratio 92dB, THD 0.03%

Stereo crosstalk -66 dB

Formats

Format

Encode Decode
  • PCM
Y Y
  • G.711
Y Y
  • Ogg Vorbis*
- Y
  • AAC+*
- Y
  • MP3
VBR, CBR* VBR, CBR*
  • Discrete I/O

Two 6 pin screw terminal connectors

4 contact closure sensing inputs

4 relay contacts, 24V 0.5A, normally open

  • Mechanical
Aluminum case, 620g, rack mountable using accessory bracket
  • Dimensions (W x H x D)
216x38x125mm (8.5x1.5x4.92 inch)
  • MTBF
Calculation 410 000h (according to MIL217F at 25°C)



* Hardware revision 2 only

** depends on used codec, best results @48kHz PCM
