SM11ARC ADVANCED HDMI 2.0 HDCP 2.3 SIGNAL MANAGER

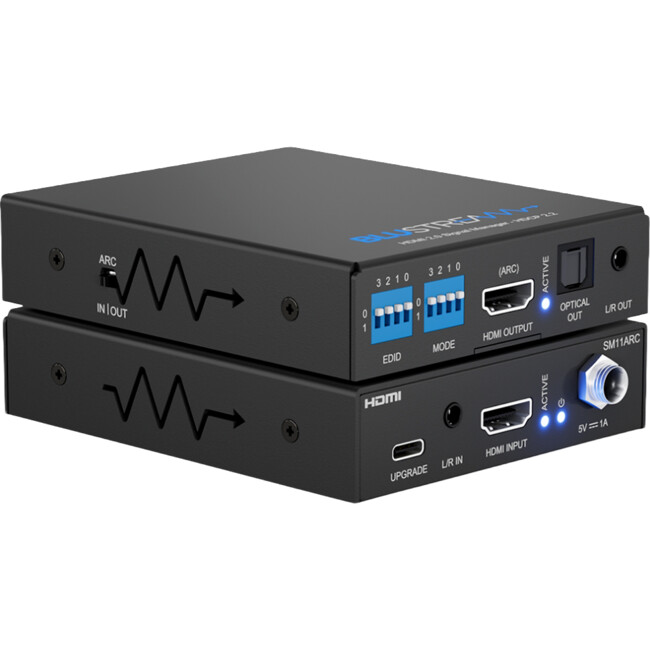

Blustream SM11ARC Advanced HDMI 2.0 HDCP 2.3 Signal Manager with ARC Audio De-Embedder / Embedder

Key Features:

• Can help to solve most HDMI EDID, HDCP, compatibility and handshaking issues

• Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)

• HDCP 2.3 support

• Supports industry standard video resolutions including VGA-WUXGA and 480i-4K 60Hz

• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications

• Can be configured to work as either a HDMI audio de-embedder or an audio embedder

• HDMI audio de-embedded to both analogue L/R audio and optical digital outputs concurrently (analogue audio supports 2ch PCM only)

• Embed analogue L/R 2ch audio input onto HDMI output

• Extract HDMI ARC audio via optical S/PDIF from a connected ARC capable display (5.1ch maximum)

• Extract audio with or without an actual display connected (SM11ARC acts as the HDMI end-point)

• Supports CEC bypass (Consumer Electronics Control)*

  *CEC passthrough active when ARC passthrough is enabled

Specifications:

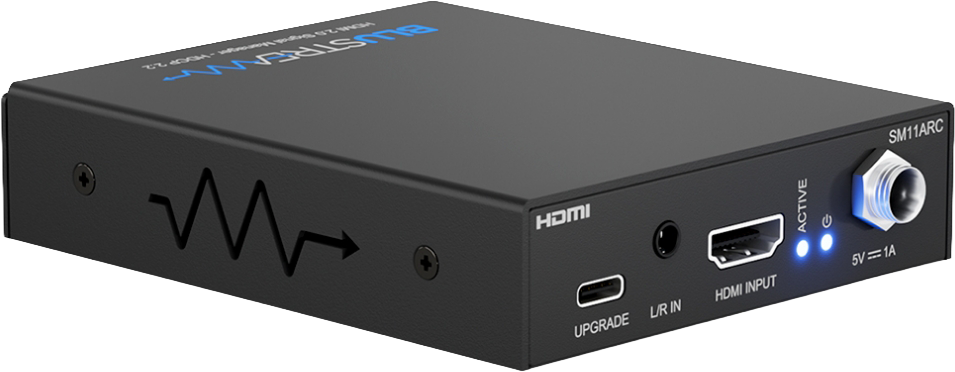

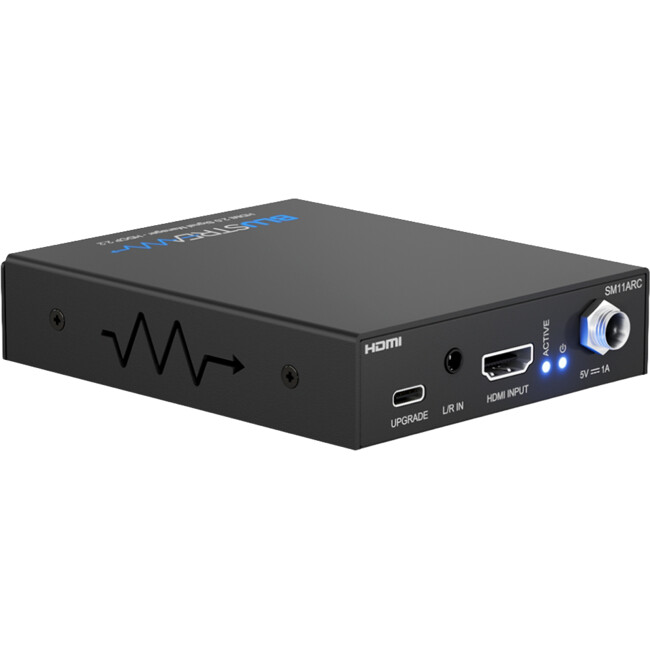

• Video input connectors: 1 x HDMI Type A, 19-pin, female

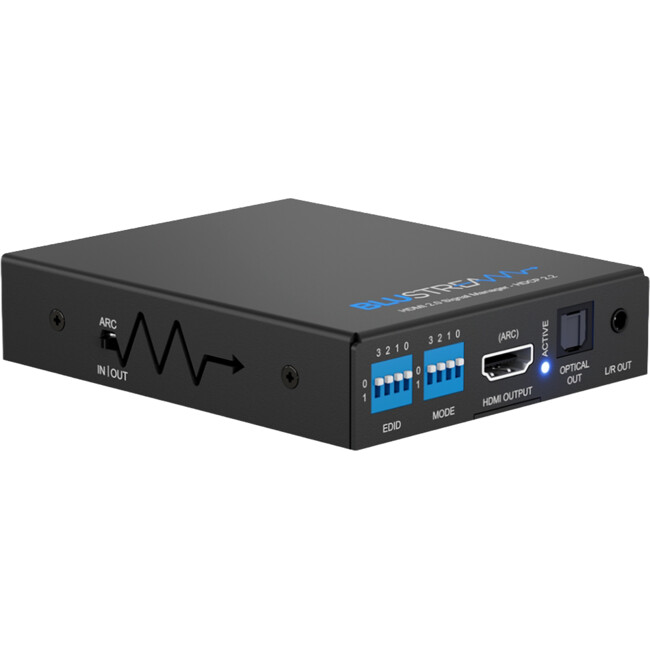

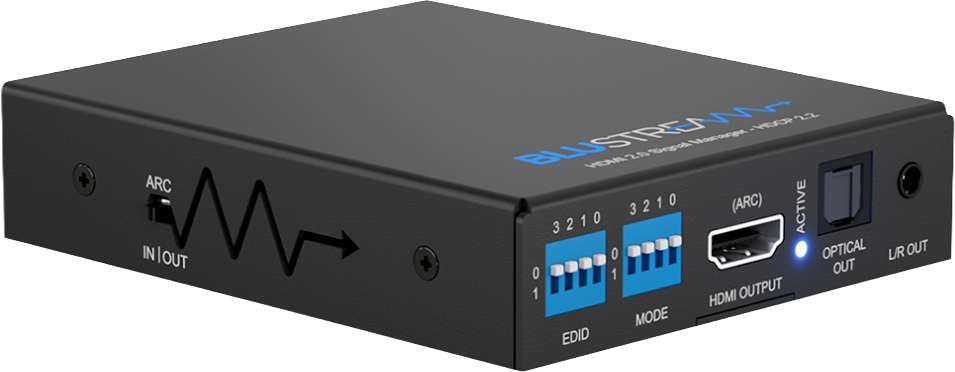

• Video output connectors: 1 x HDMI Type A, 19-pin, female, HDMI ARC capable

• Audio input connectors: 1 x analogue left/right audio (3.5mm stereo jack)

• Audio output connectors: 1 x Optical Toslink (S/PDIF) & 1x analogue left/right audio (3.5mm stereo jack)

• Power Supply: 5V/1A DC

• Casing dimensions (W x H x D): 105mm x 23mm x 88mm

• Dimensions including connections (W x H x D): 114mm x 23mm x 87mm

• Shipping weight: 0.6kg

• Operating temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Box Contents:

1 x SM11ARC
1 x 5V/1A DC power supply
1 x Mounting Kit
1 x Quick Reference Card
