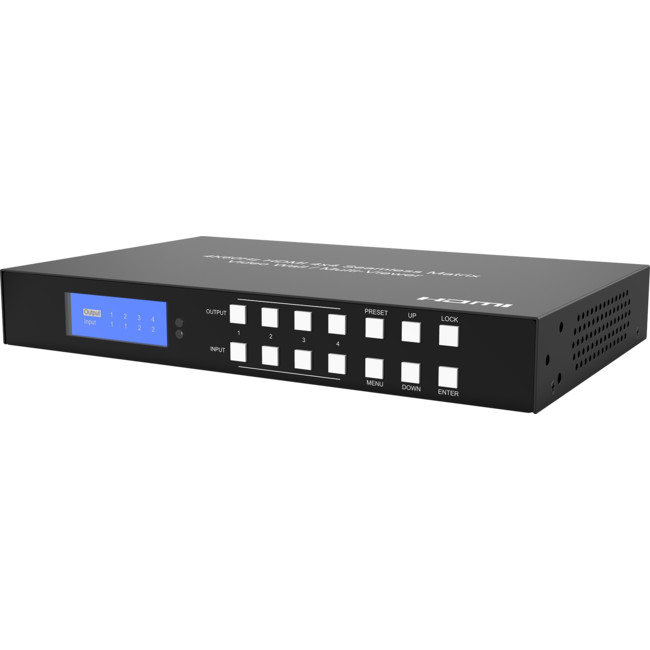

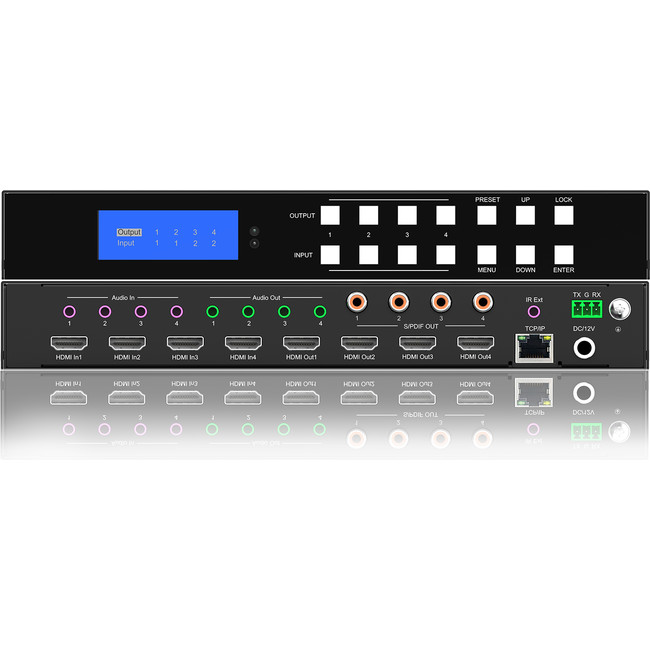

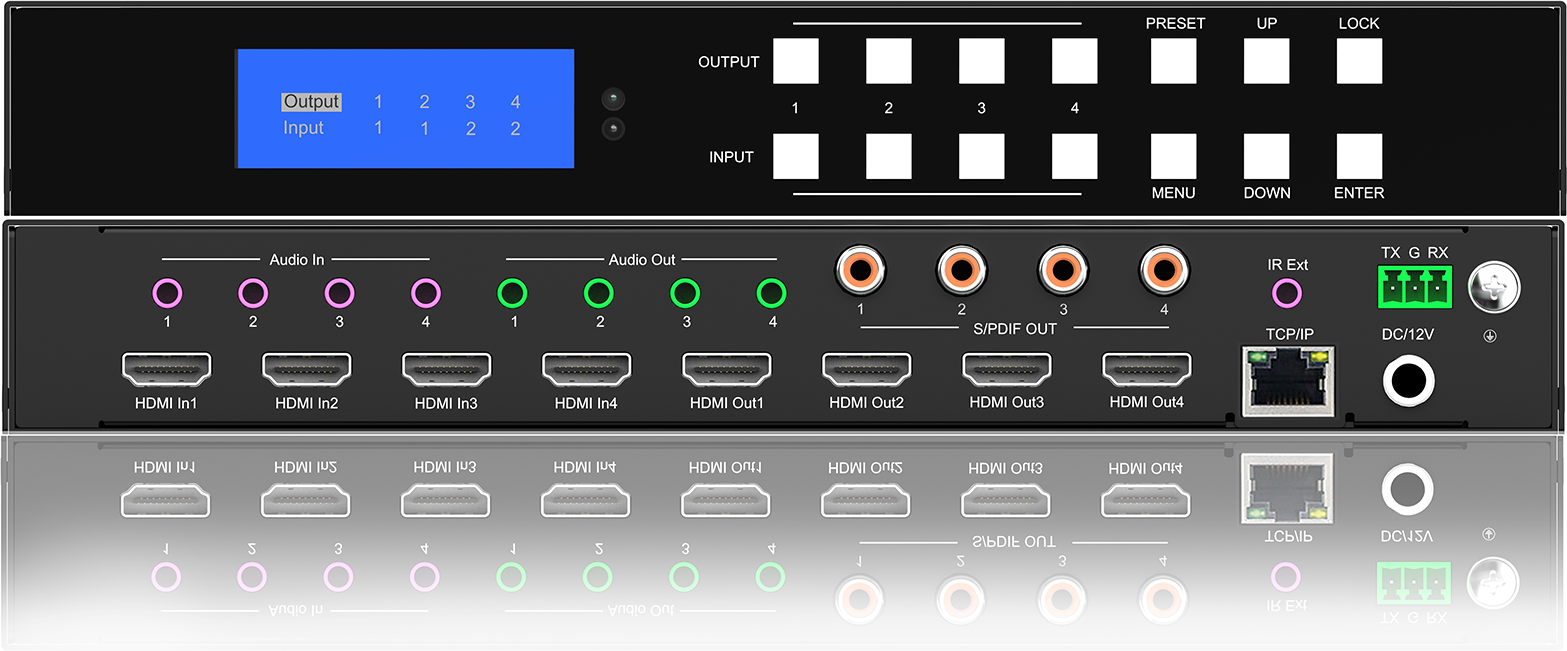

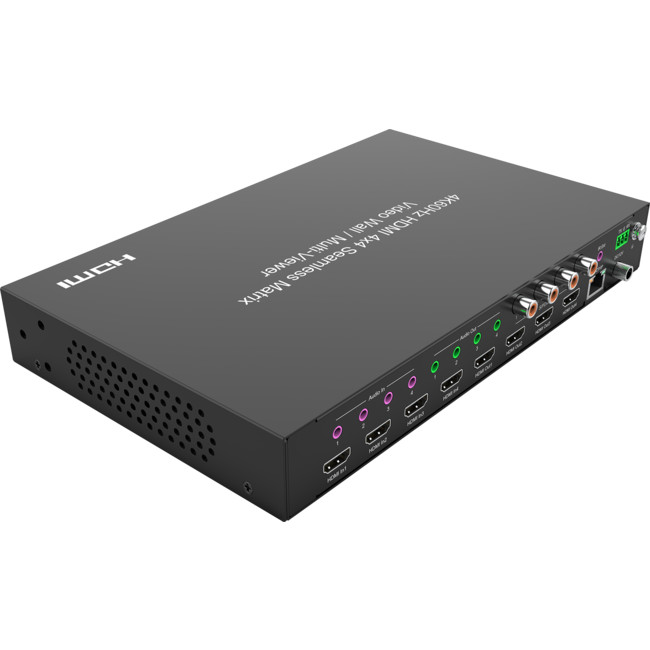

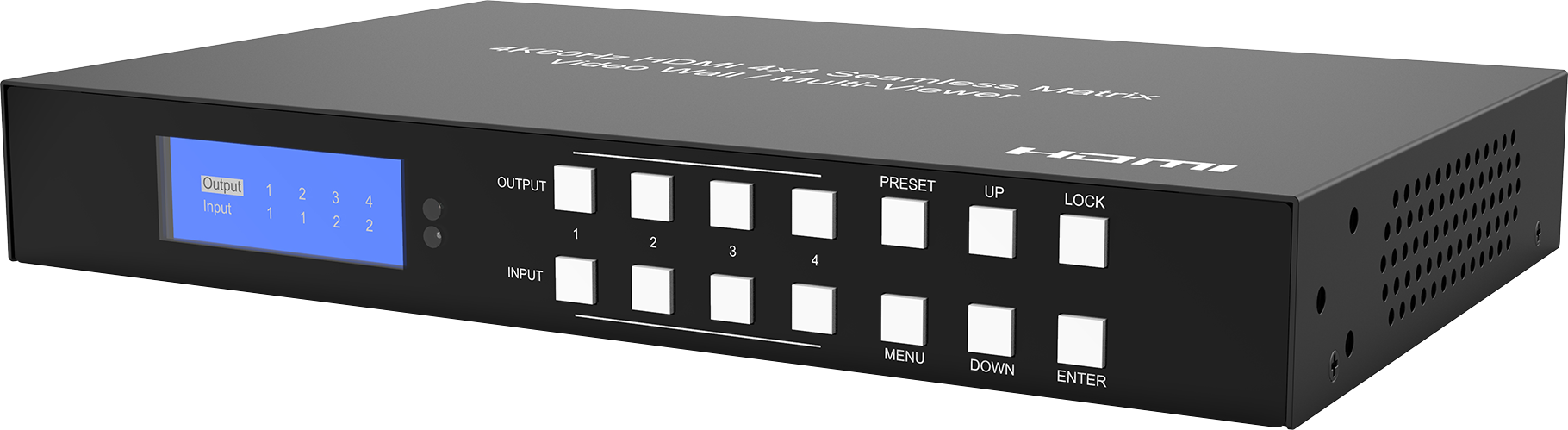

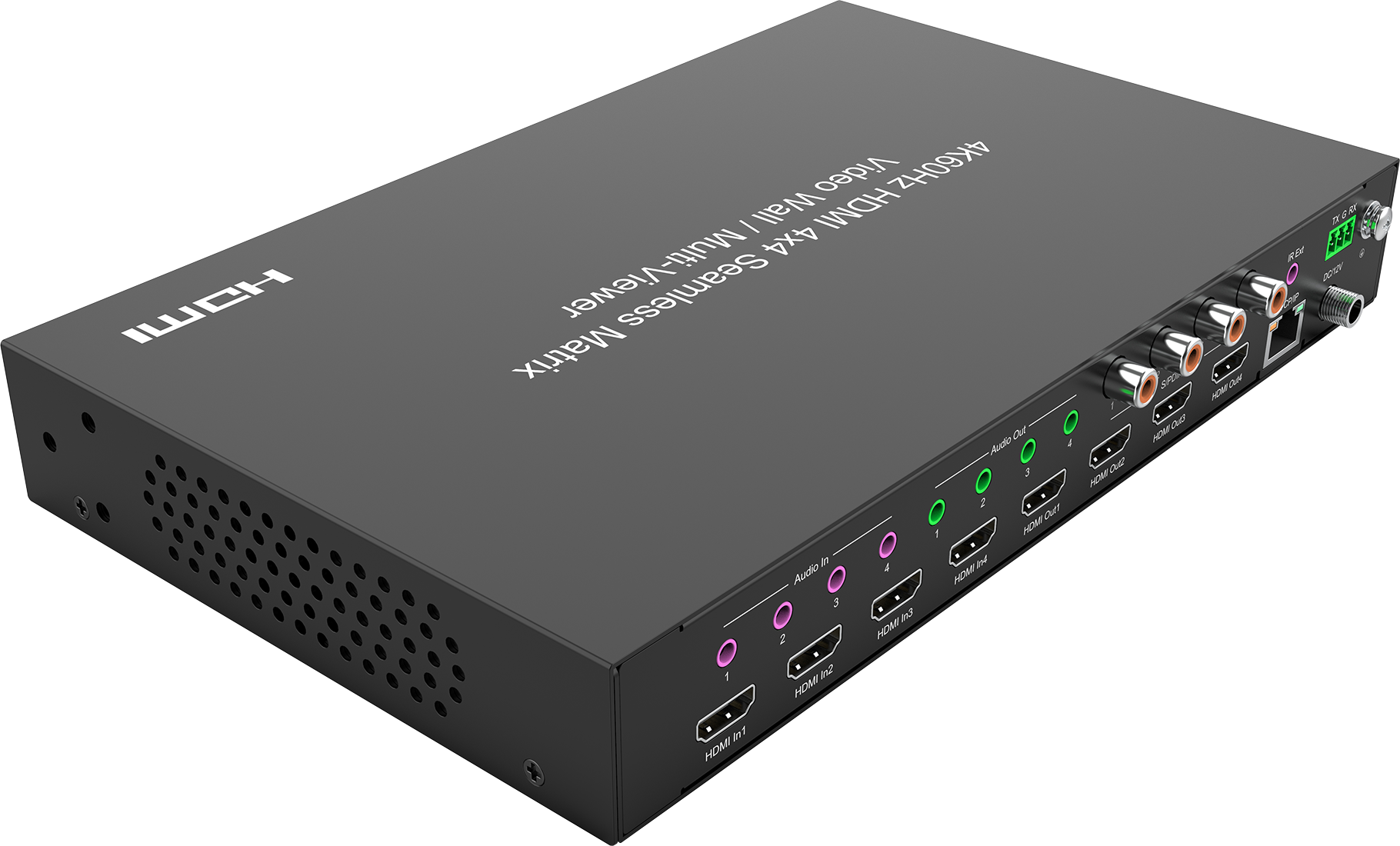

MX44VWCV2 HDMI 4K60 4X4 SEAMLESS MATRIX

MULTIVIEWER VIDEO WALL CONTROL

Code: 64538610

3.60 kg
9328202035608
EACH
2
Low Stock
$995 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

MX44VWCV2 4K60Hz HDMI 4X4 Seamless Matrix Video Wall / Multi-Viewer

Features

  • 4x HDMI Inputs, which can be independently routed to HDMI Outputs. No switching delay or picture loss during transitions
  • Supports resolution up to 4K@60HZ 4:4:4
  • Supports Video Wall up to 7 different modes with each monitor with 4K@60Hz 4:4:4 resolution.
  • It can display 4 pictures on the same screen and has multiple split display modes.
  • Supports HDMI audio formats including Dolby-5.1, DTS-5.1
  • Analog audio extraction, and the audio can be independently switching
  • Compliant HDCP 2.2 with EDID management
  • Control via panel button, Remote Control, RS232 Control, TCP/IP Control

Specifications

Operating Temperature Range -5 to 40°C(23 to 104 °F)
Storage Temperature Range -10 to 60°C(-14 to 140 °F)
Operating Humidity Range 5 to 90 % RH (no condensation)
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Bandwidth 18Gbit/s
Video Format Supported 4K@60Hz,YUV4:4:4 8bit 4k@30Hz/1080P/1080i/720P
Audio Formats Supported HDMI digital audio DTS-5 . 1/Dolby-5 . 1
HDCP Compliant HDCP 2.2 and HDCP 1.4
Input ports 4xHDMI
Output ports 4xHDMI
Matrix mode 4x4 seamless switching
Video wall mode Multiple video wall modes
Multi-viewer mode Multiple multi-viewer modes
Power Consumption 23 watts (Max.)
Dimensions Matrix: L262 x W163 x H36 mm
Mass (Main Unit) 2710g

What is in the box?

  • MX44VWCV2 x 1pc
  • DC 12V/3Apower adapter x 1pc
  • IR Remote control x 1pc
  • Wide-Band IR Extender cable x 1pc
  • CD for user manual & Command list CD x 1pc
  • 3Pin Phoenix terminal plug x 1pc
User Manual PDF file
