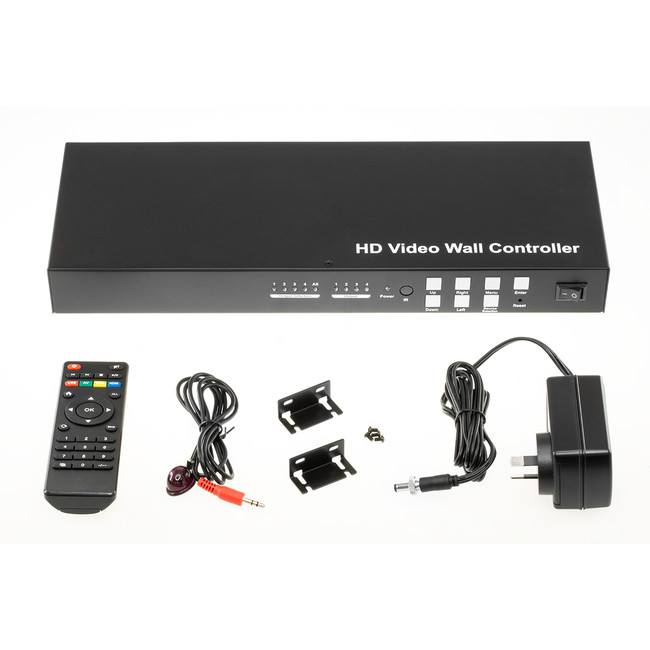

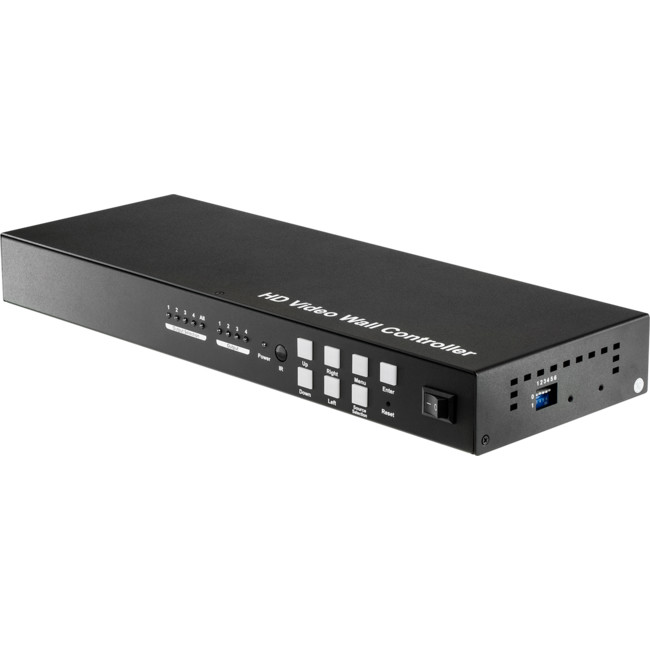

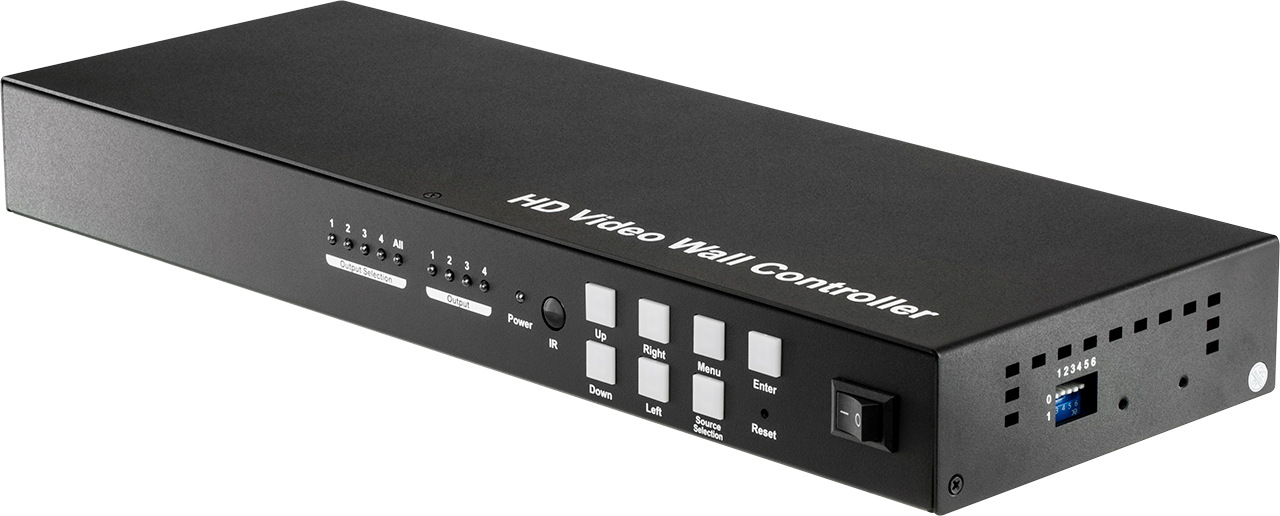

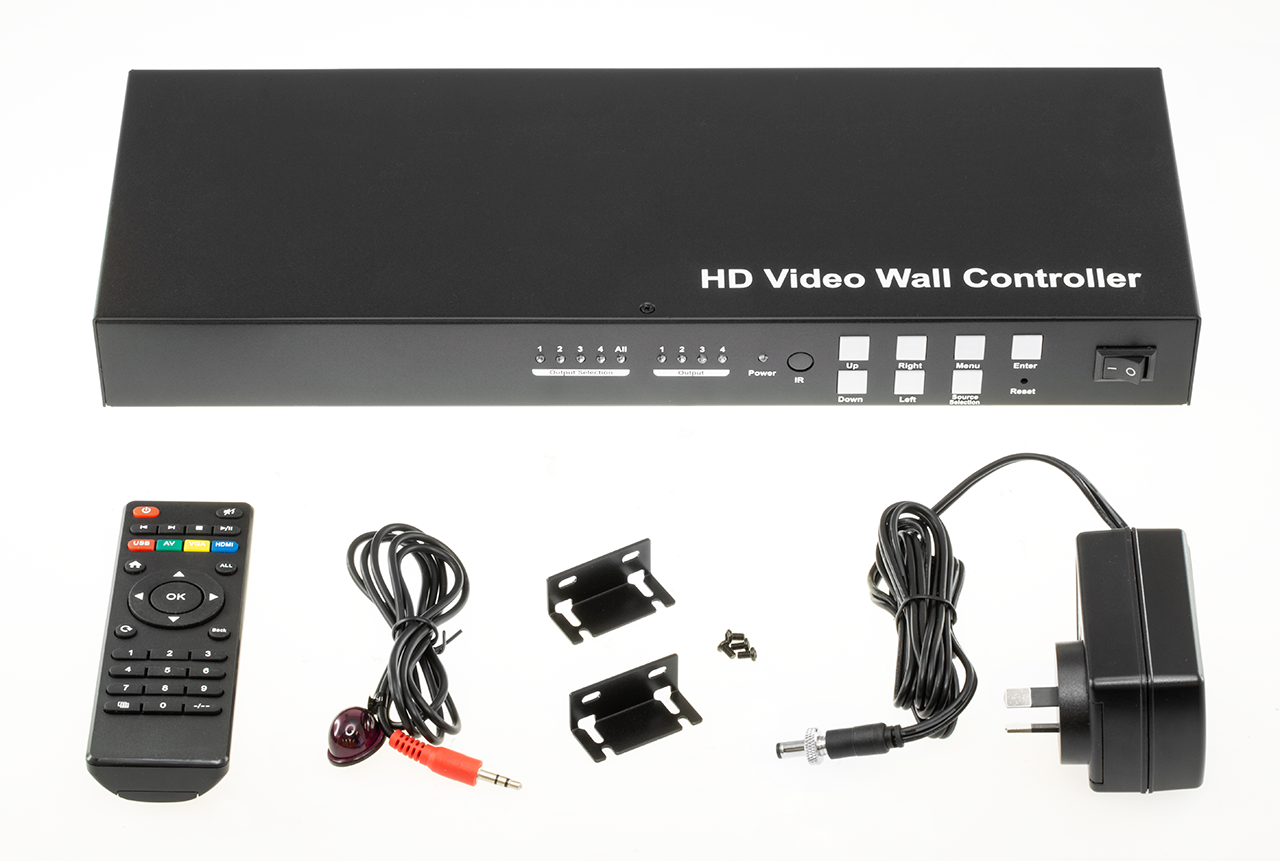

VWC22 2X2 VIDEO WALL CONTROLLER

W/RS232 USB HDMI COMPOSITE VGA

Code: 64538595

2.40 kg
EACH
5
In Stock
DON'T PAY $649
$595 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Full HD Video Wall Controller with Mixed Inputs

NOTE: Please note this controller is not compatible withthe Samsung 4K60hz 18Gbps TV, although the controller is only 1080p output. The HDMI inputs of the Samsung 4K TV drawmore current than the controller outputs designed. Samsung 4K TV will have a black screen intermittently.

FEATURES

  • Support USB/VGA/Composite/HDMI input.
  • Select 1 of 4 source and distribute to 4 displays.
  • Create a 2x2 Video Wall Controller from any source tofour displays.
  • Support multi-level cascading to create 3x3, 4x4...Video Wall (Max 10x10).
  • Support 180° rotation on individual output or all outputs.
  • Support resolution up to 1080p Full HD.

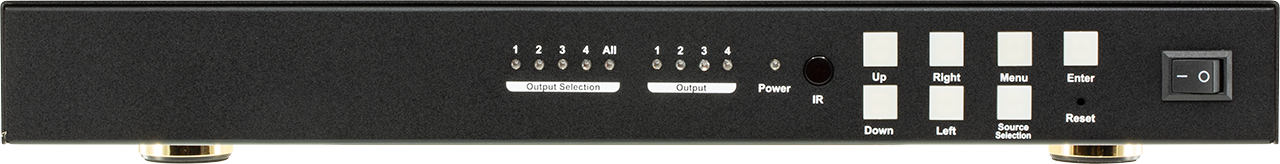

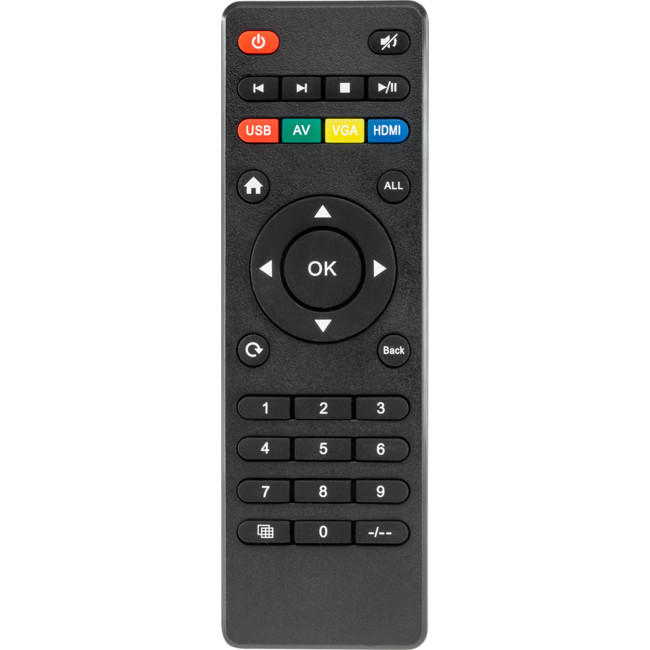

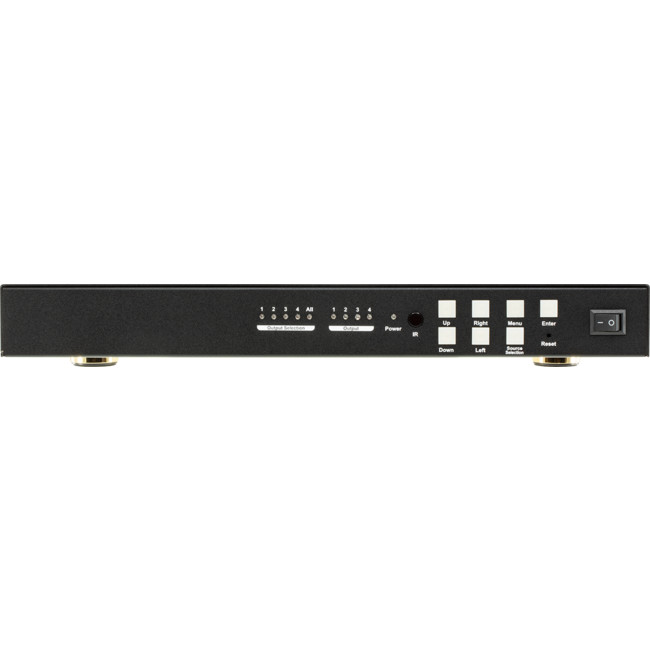

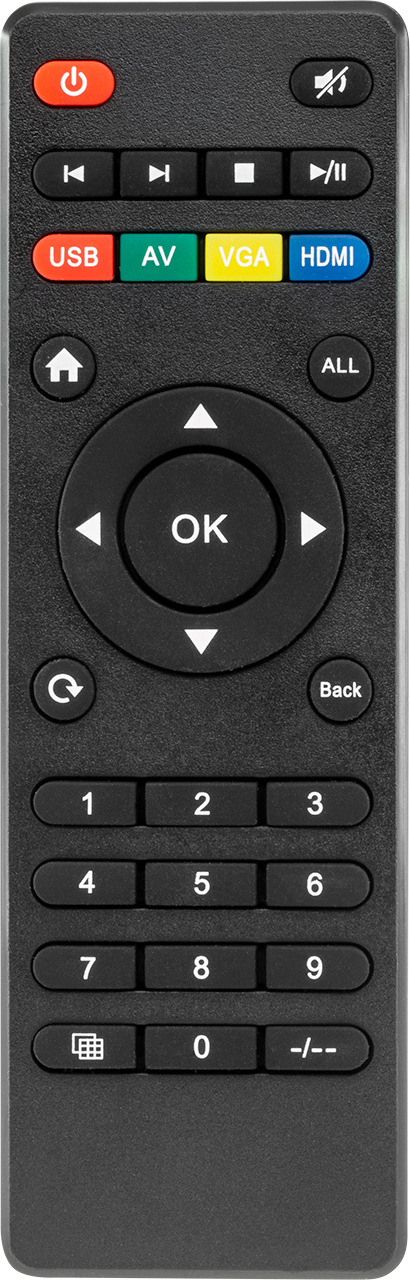

  • Support Panel control, IR control, RS232 control.

SPECIFICATIONS

Operating Temperature Range

0 to 35°C (32 to 95°F)

Operating Humidity Range

5 to 90 % RH (no condensation)

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Video Format Supported

DTV/HDTV: 1080P/1080i/720P/
576P/480P/576i/480i

Audio Format Supported

LPCM

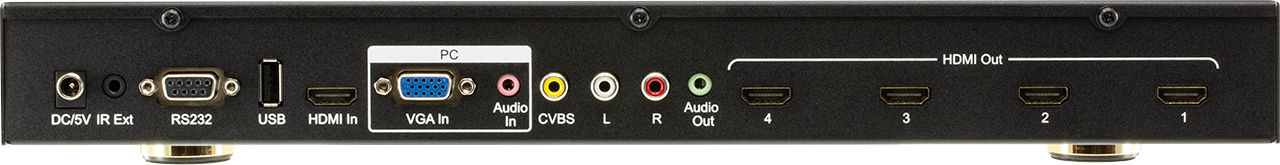

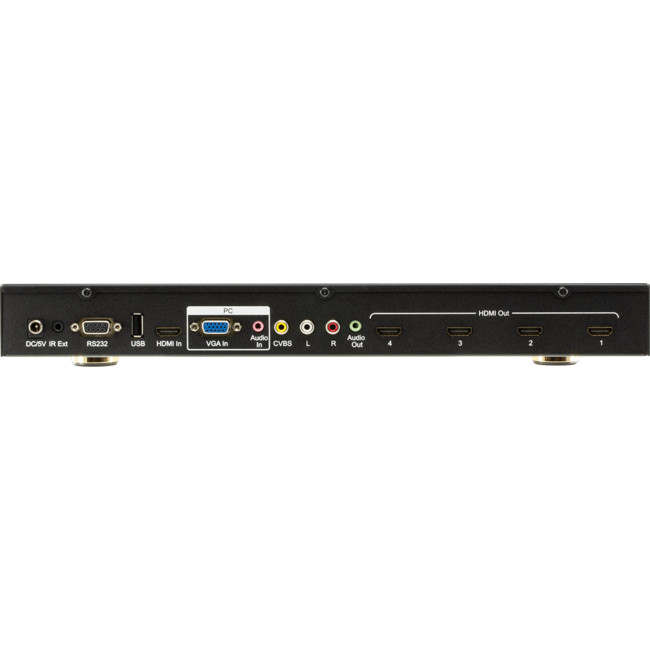

Input ports

1xHDMI, 1xUSB, 1xVGA, 1xAV

Output ports

4xHDMI

Splitter mode

1x4 HDMI Splitter

Video wall mode

2x2,3x3,4x4......10x10 video wall

Control Way

Panel control, IR control, RS232 control

Power consumption

15watts(Maximun)

Dimension (mm)

L380.6XW136.6XH43.5 mm

Weight

1725g



















Application 1: Split a single source to 4 displays

Application 2: 2x2 Video Wall Displaying

Application 3: Multi-Level Cascading (Max 10x10 Video Wall)

Manual PDF file
