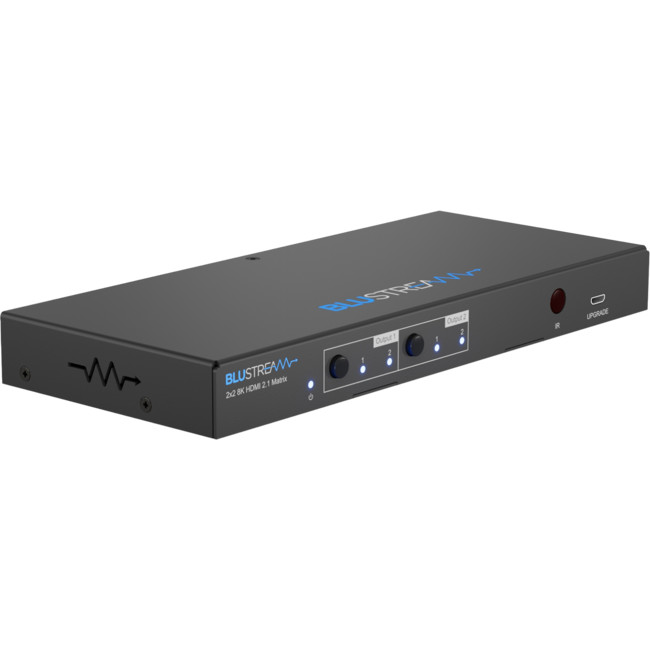

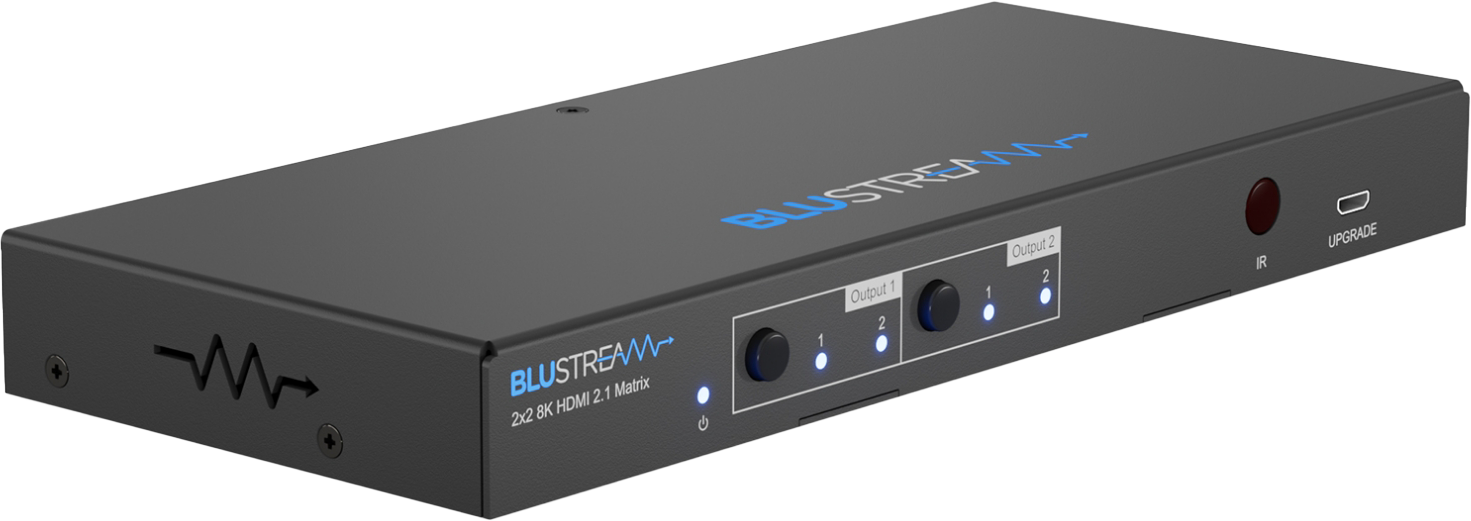

MX22AB-8K 2 X 2 8K HDMI 2.1 MATRIX

Code: 64537932

EACH
Special Buy-In
TRADE ALERT!
$449 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

Blustream MX42AB-8K matrix

The MX22AB-8K HDMI2.1 matrix integrates source and display devices where the features and functionality of the HDMI2.1 chipset are being utilised for 8K 60Hz and 4K 120Hz signals.
Independent routing of 2 x HDMI input sources to 2 x HDMI2.1 displays, the MX22AB-8K can auto-switch based on either detecting a 5V hot plug, or a new TMDS signal; or be manually controlled using RS-232, IR, or from the units front panel.
Analogue and optical digital (S/PDIF) audio breakout allows for audio integration. The MX22AB-8K is HDCP2.3 compliant and has advanced EDID management of source devices connected.

Key Features

  • Features 2 x selectable HDMI2.1 inputs that can be independently routed to 2 x HDMI2.1 outputs
  • Supports HDMI2.1 specification including HDR (40Gbps maximum)
  • Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
  • Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Auto HDMI source switching via 5V and / or TMDS signal sensing

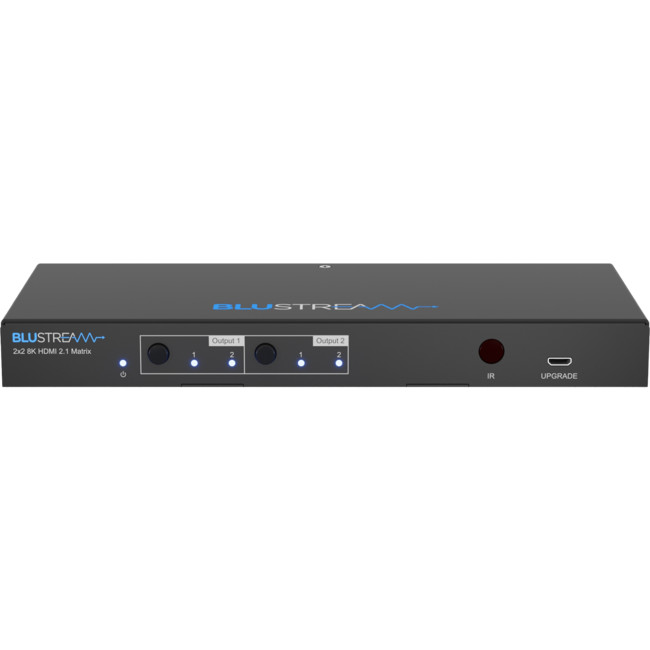

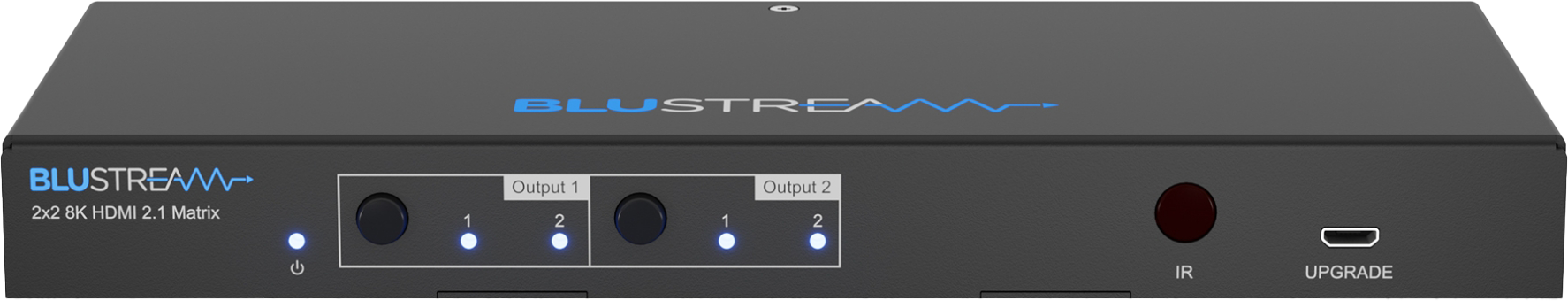

  • Manual HDMI source switching via front panel, IR and RS-232
  • Audio breakout to analogue L/R audio and optical (S/PDIF) digital outputs concurrently
  • 5V / 12V IR Compatible
  • HDCP 2.3 compliant with advanced EDID management

Specifications

  • Dimensions (WxDxH): 218mm x 94mm x 23mm, including connections, without feet (removable)
  • Shipping Weight: 1.0kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 1 x 5V/2A DC


Package Contents

  • 1 x MX22AB-8K
  • 1 x REM42 Remote Control
  • 1 x 5V/2A DC Power Supply
  • 1 x IR Receiver (IRR)
  • 1 x Mounting Bracket Set
  • 4 x Rubber Feet
  • 1 x User Manual

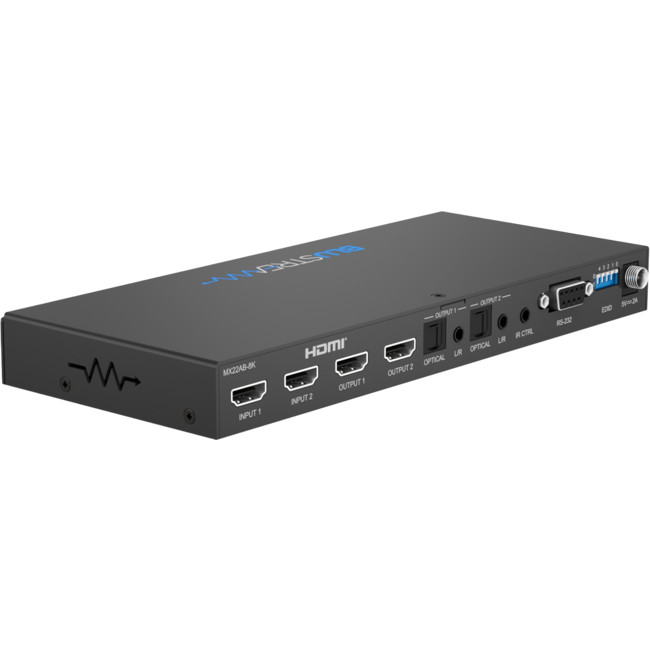

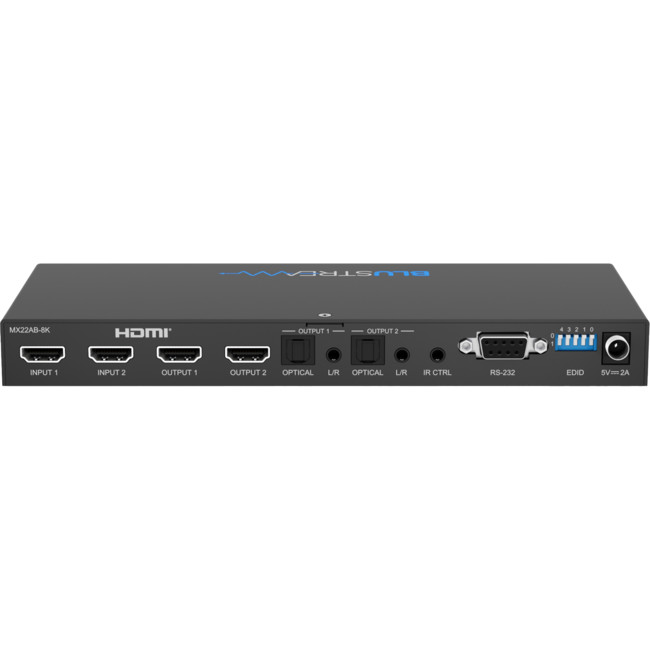

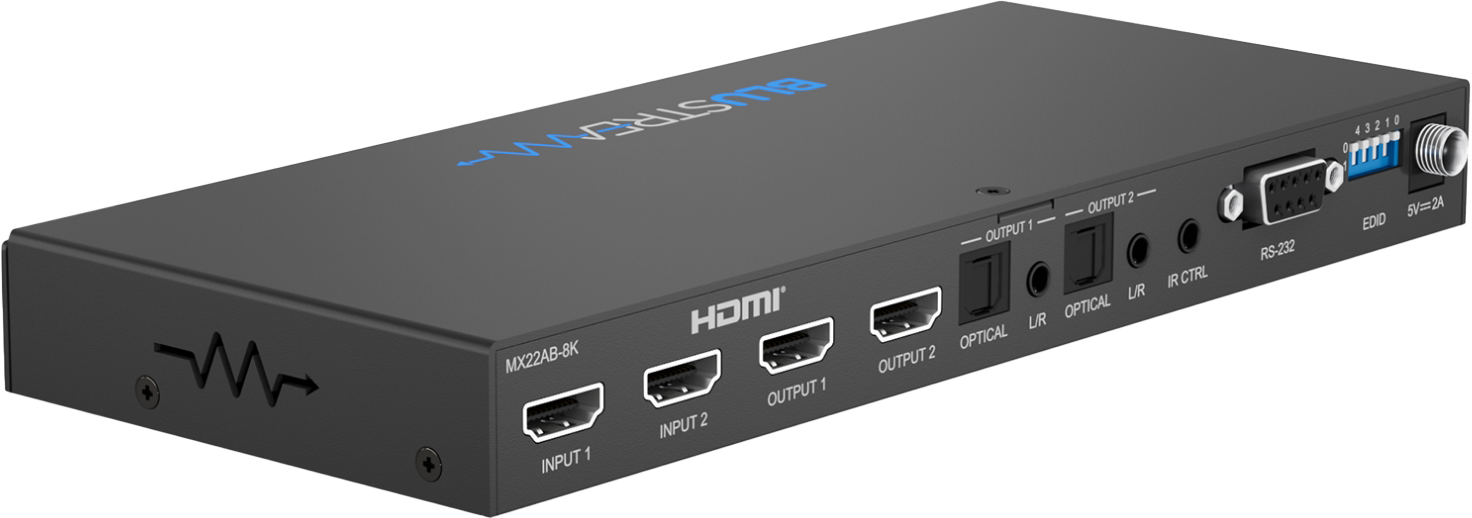

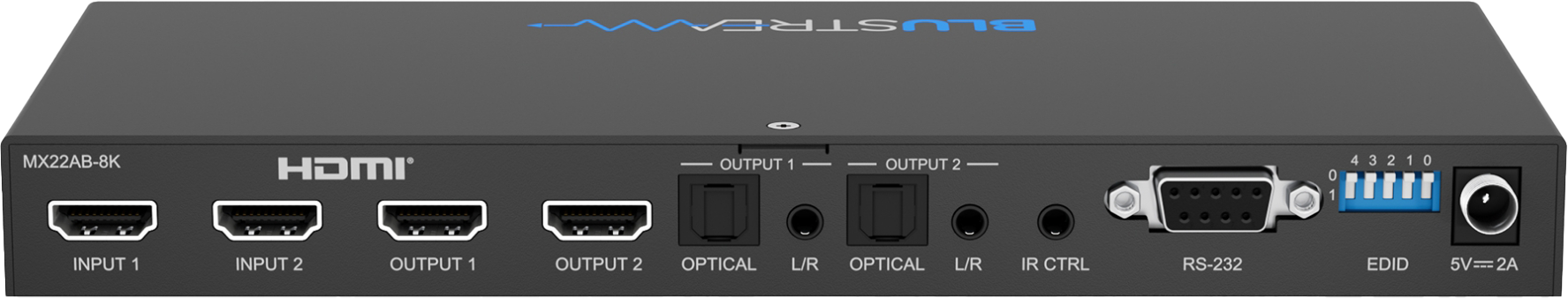

Connectivity

  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 2 x HDMI Type A, 19-pin, female
  • Audio Output Connectors: 2 x Optical (S/PDIF) & 2 x Analogue audio L/R (3.5mm stereo jack)
  • IR Input Ports: 1 x 3.5mm stereo jack
  • RS-232 Serial Port: 1 x DB9, female
