SW41HDBT 4 WAY HDBASET INPUT SWITCH

BLUSTREAM

Code: 64537928

EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
TRADE ALERT!
$1999 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Blustream - SW41HDBT

4-Way HDBaseT™ / HDMI Input Switch - 4K 60Hz 4:4:4,Simultaneous HDMI / HDBaseT™ Output, Manual / Auto Source Switching, PoC to TX & RX, Audio Breakout, Web GUI with CEC Source & Display Control

Blustreams SW41HDBT is a 4-Way HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ switch utilising CSC technology to deliverHDMI and HDBaseT™ inputs to simultaneous HDMI /HDBaseT™ outputs.

The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products,web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP.

The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used in conjunction with our Blustream HDBaseT™ wall-plate solutions.

Key Features

  • Features 2 x HDMI 2.0 and 2 x HDBaseT™ inputs which can be switched to simultaneous HDBaseT™ and HDMI outputs

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

  • Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 4K 30Hz 4:4:4/4K 60Hz 4:2:0 or 1080p on HDBaseT™

  • HDBaseT™ input supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), HDBaseT™ output supports 4K UHD video upto 40m (3840 x 2160 @60Hz 4:4:4) with compatible CSC receiver*

  • Extends HDMI 1080p up to a distance of 70m from Transmitter to SW41HDBT, and up to 70m from SW41HDBT to Receiver

  • Supports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Supports PoC when used with compatible 12V HDBaseT™ transmitters and receivers*

  • Compatible with all Blustream HDBaseT™ transmitters and receivers*

  • Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently

  • Web interface module for configuration and control ofswitch

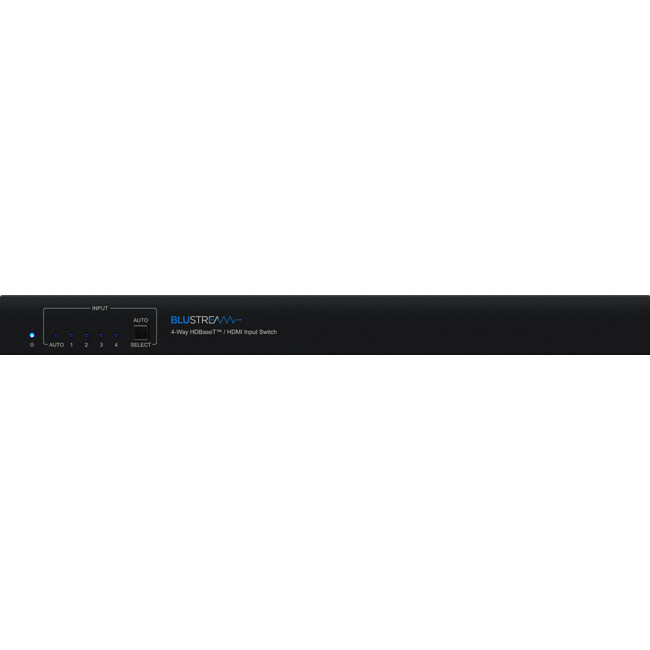

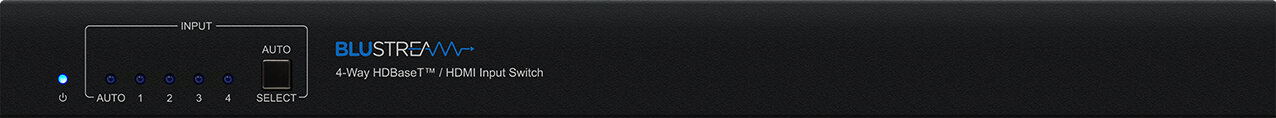

  • Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP

  • Auto source selection supported by compatible Blustream HDBaseT™ transmitters only*

  • HDCP 2.2 compliant with advanced EDID management

    * Technical performance is subject to the featuressupported on the connected HDBaseT™ transmitter / receiver

Specifications

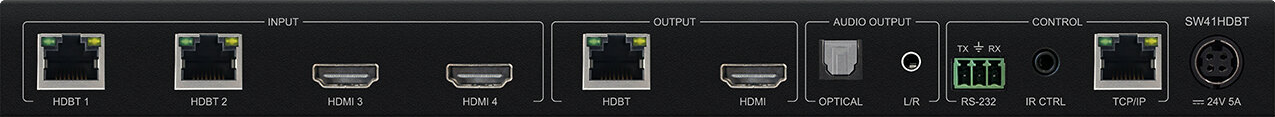

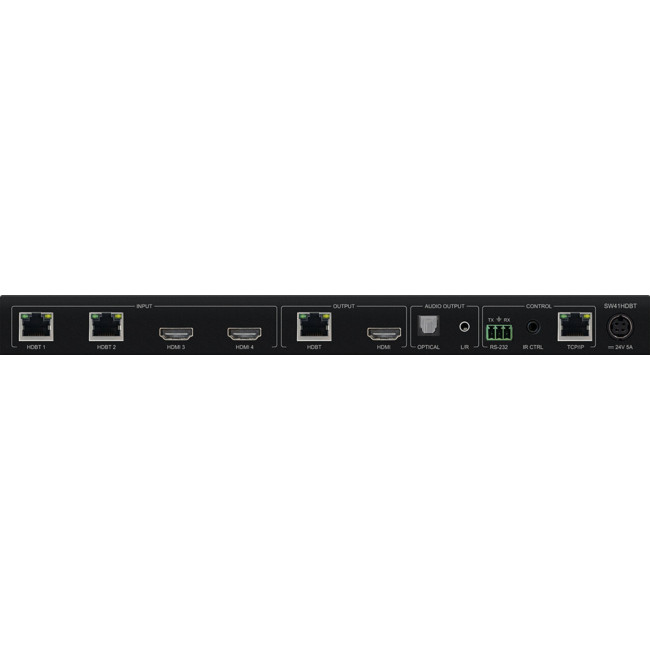

  • Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector

  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, 19-pin, female

  • Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio

  • RS-232 Serial Port: 1 x 3-Pin Phoenix connector

  • TCP/IP Control: 1 x RJ45, female

  • IR Input Ports: 2 x 3.5mm stereo jack

  • Casing Dimensions (W x H x D): 305mm x 28mm x 220mm

  • Shipping Weight: 1.5kg

  • Operating Temperature: 32°F to 104°F (-5°C to 55°C)

  • Storage Temperature: -4°F to 140°F (-25°Cto 70°C)

  • Power Supply: 24V/5A DC



Box Contents

1 x SW41HDBT
1 x 24V/5A DC Power Supply
1 x IR Receiver
1 x IR Control Cable - 3.5mm - 3.5mm
1 x RS-232 Control Cable
1 x Mounting Kit
1 x Quick Reference Guide



Colour Space Conversion (CSC) Technology in HDBaseT™

Due to the data rate of HDBaseT™ technology being capped at 10.2Gbps, it is unable to pass the latest native 4K UHD resolutions of 4K 60Hz 4:4:4.

There is now a requirement to integrate video resolutions with data speeds up to 18Gbps across a multi-zone AV environment.

Blustream have implementedCSC (Colour Space Conversion) technology into our latest products to ensure 4K HDR signals can now be supported over the limited infrastructure of HDBaseT™.

Colour Space Conversion reduces the data rate of the HDMI signal by converting the colour space from 4:4:4 or 4:2:2 to a lower format.

Within Colour Space Conversion technology the native resolution and frame rate remain constant from end to end.

The only part of the signal that is converted during transmission is the colour. Blustream CSC products do not support HDR10 or the dynamic variation of Dolby Vision due to the way these specific variations of dynamic HDR (dHDR) are encoded.

These codecs transmit repeated metadata packets throughout the transmission of anymedia making it impossible at this stage to convert in the same way using CSC technology.
