WMF72 ADVANCED WIRELESS MULTI FORMAT PRESENTATION SWITCH

With AirPlay, Chromecast & Miracast

Code: 64537912

EACH
Special
Buy-In
TRADE ALERT!
$2399 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Interested in purchasing this product?
This product is a special buy-in. Special buy-in products are goods especially bought in on customer's request. After acceptance, special buy-in products cannot be cancelled or the goods returned, unless Radio Parts and its supplier agrees to the cancellation of the corresponding order and return of goods. Prices are subject to change and in the event that our purchase price has changed, we will notify you before finalising your order. Please call us on (03) 93218300 for availability, ETA, or if you have further questions.
Click here if you agree to these terms and to show the Add To Cart button.
View Product
Enter 4 digit postcode

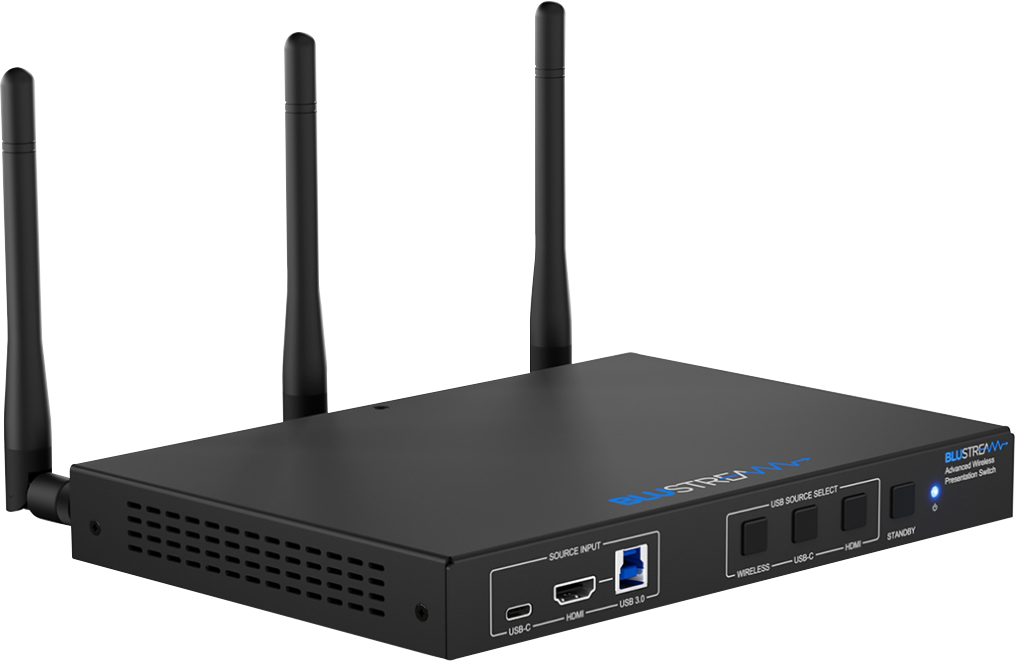

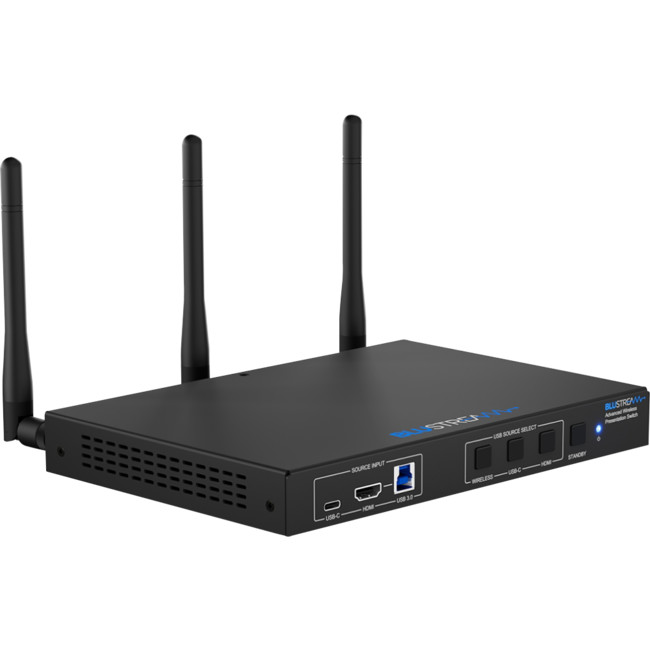

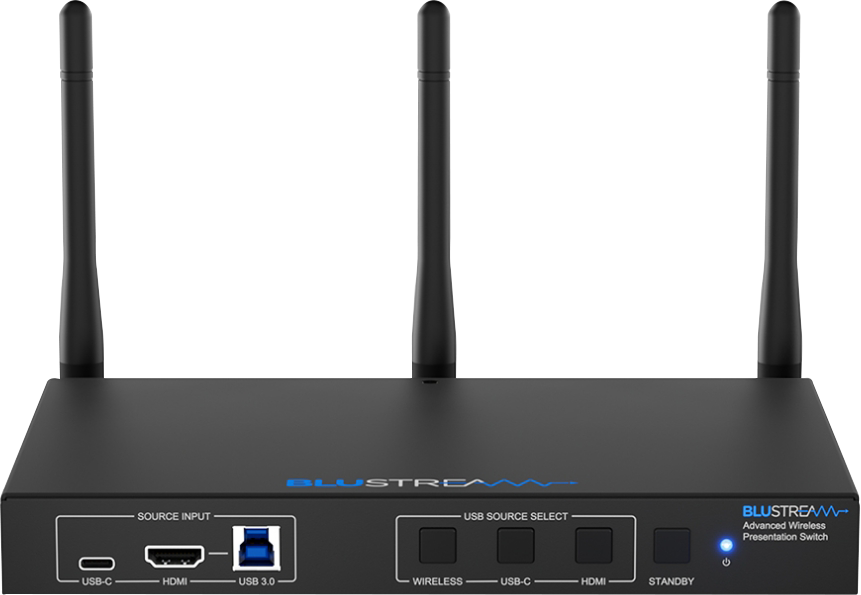

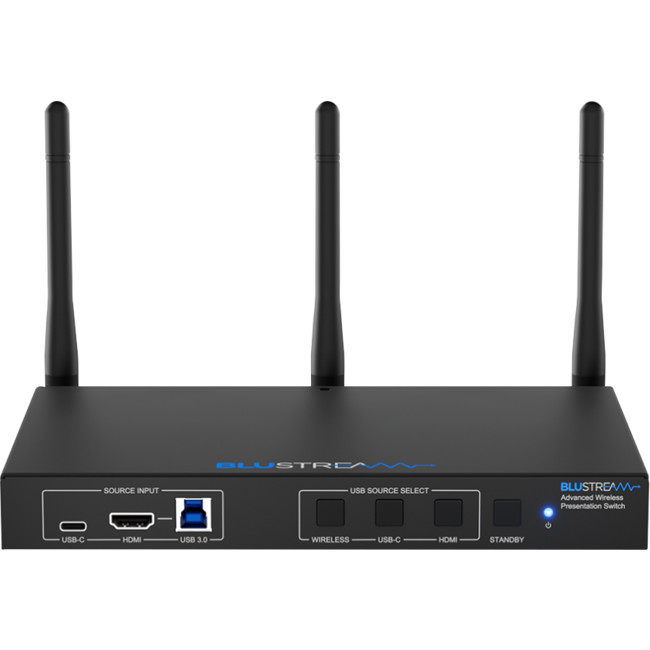

Blustream WMF72 Advanced Wireless Multi-Format Presentation Switch

The WMF72 is an advanced 4K multi-format presentation switch featuring wired HDMI and USB-C, AirPlay, Miracast® and Chromecast® inputs to dual HDMI outputs.

The WMF72 provides enhanced features including dual HDMI output for mirrored or managed source control with multiview presentation, video scaling and web-GUI for control and configuration, localised 2.4/5G WiFi hotspot, and dual LAN connection. The WMF72 also features OSD control, USB camera and MIC over WiFi, USB touch-back to connected host device, whiteboard and screen overlay annotation, manual or automated source selection, and control via front panel, RS-232 and TCP/IP.

The WMF72 is also compatible with Blustream WMF-USBC-D and WMF-HDMI-D plug & play wireless dongles, providing an ideal BYOD solution for your boardroom, classroom or huddle-space application.



4K Multiview Video Scaling WEB GUI Wireless Presentation Dongle Mouse Roaming

Features

  • 4K multi-format multi-view presentation switch.
  • Features HDMI, USB-C, AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to dual HDMI outputs.
  • Dual HDMI output supports mirror or desktop extension for managed soure control within advanced video conferencing set-ups.
  • Multiview presentation with up to 5 concurrent video signals and configurable screen layout.
  • In-built video scaler with output timing up to 4K 60Hz 4:4:4.
  • USB-C connection for BYOM, with DP, USB, 1Gbps network and up to 65W power charging.
  • HDMI & USB Type B connection for BYOM, with USB and 1Gbps network via USB Type B connection.
  • Localised 2.4G/5G Wi-Fi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p 30Hz).
  • Dual LAN connection for integration to existing network infratructures.
  • Supports USB camera and MIC over Wi-Fi up (1080p 30Hz).
  • Supports USB touch-back feature via WMF-USBC-D and WMF-HDMI-D dongles and Miracast®*.
  • Audio breakout to balanced / unbalanced analogue L/R audio.
  • Web interface module for control and configuration of switch.
  • OSD control with preview function.
  • Whiteboard and screen overlay annotation feature.
  • Control via front panel, RS-232 and TCP/IP with manual or auto source selection.

*Miracast touch-back compatibility subject to Windows features


Specifications

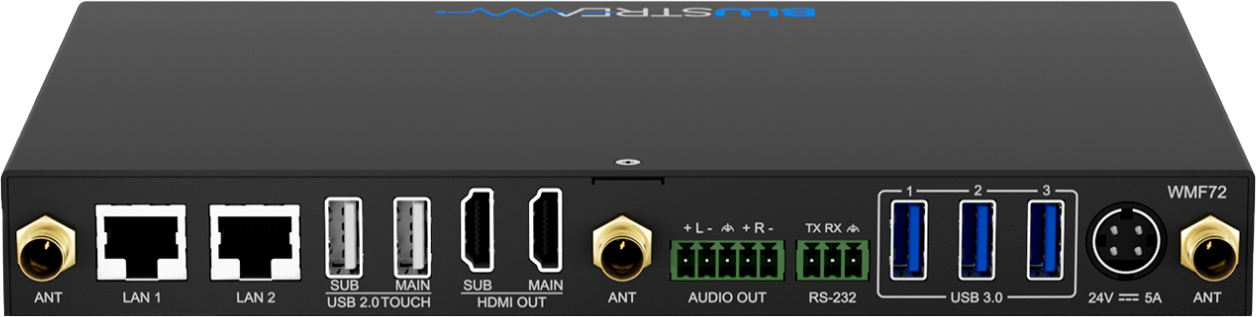

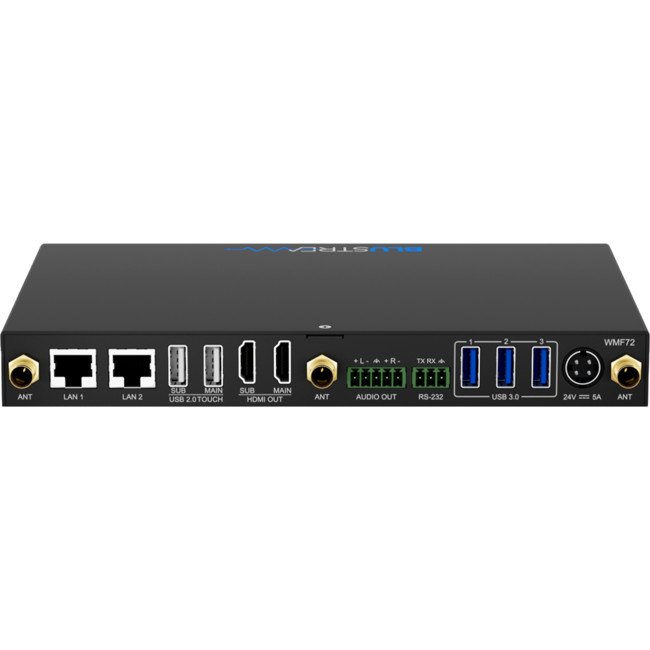

Video Input
  • 1 × HDMI Type A, female
  • 1 × USB Type C, female
Video Output Connectors 2 × HDMI Type A, 19-pin, female
Audio Output Connectors 5-Pin Phoenix connector (2ch balanced/un-balanced analogue audio)
RS-232 Serial Port 1 × 3-Pin Phoenix connector
TCP/IP Control 2 × RJ45, female (1000Mbps × 2)
USB Connectors
  • 3 × USB3.0 Type A female
  • 1 × USB3.0 Type B female
USB Touchback Connectors 2 × USB2.0 Type A female
USB Pairing Connectors
  • 1 × USB2.0 Type A female
  • 1 × USB-C2.0 Type C
Wi-Fi 3 × SMA, female connector, MIMO antennas (2.4G & 5G, Wi-Fi IEEE 802.11 b/g/n/ac up to 1200Mbps)
Wi-Fi Encryption AES WPA PSK, WPA2 PSK
Casing Dimensions (W×H×D) 220mm × 27mm × 161mm (excluding antennas)
Shipping Weight 2kg
Operating Temperature 0°C to 45°C (32°F to +113°F)
Storage Temperature −20°C to 70°C (−4°F to +158°F)
Power Supply 24V/5A DC


Box Contents

  • 1 × WMF72
  • 1 × 24V/5A DC power supply
  • 1 × 3-pin phoenix connector (RS-232)
  • 1 × 5-pin phoenix connector (Audio)
  • 3 × Antenna
  • 1 × Mounting Kit
  • 1 × Quick Reference Card
