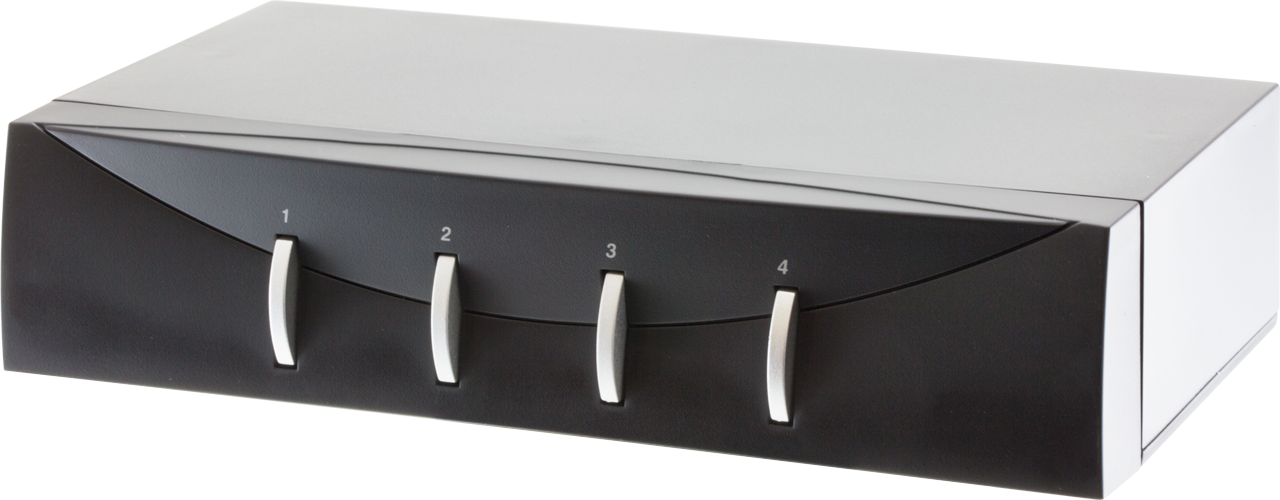

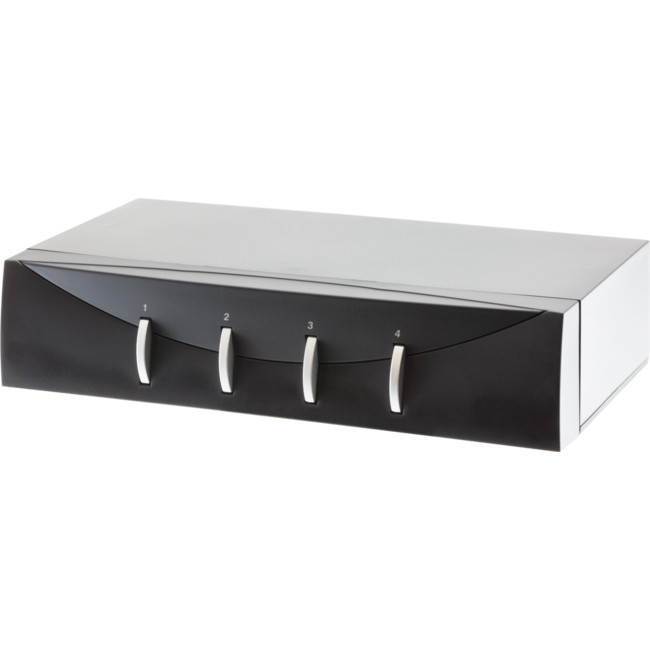

PRO1048 4-WAY AV S-VIDEO SELECTOR

4 IN 1 OUT COMPOSITE SVIDEO

Code: 64531006

0.3960 kg
9328202018755
EACH
20
Out of Stock!
TRADE ALERT!
$25 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

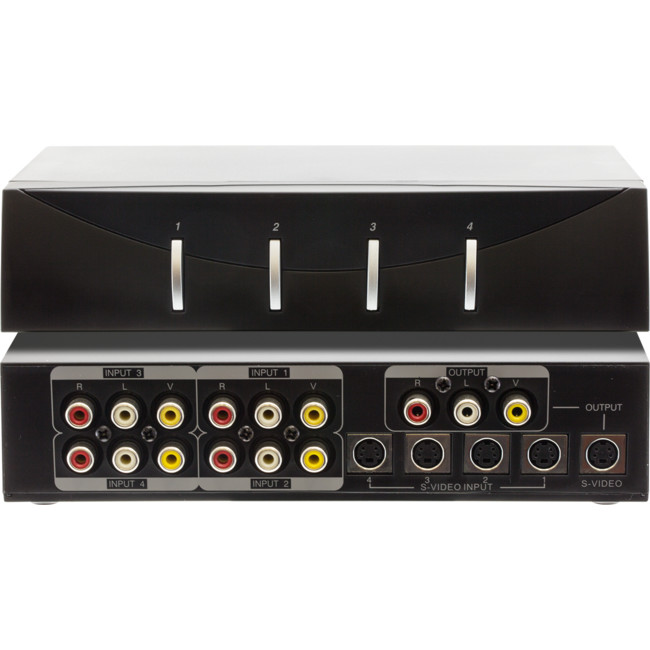

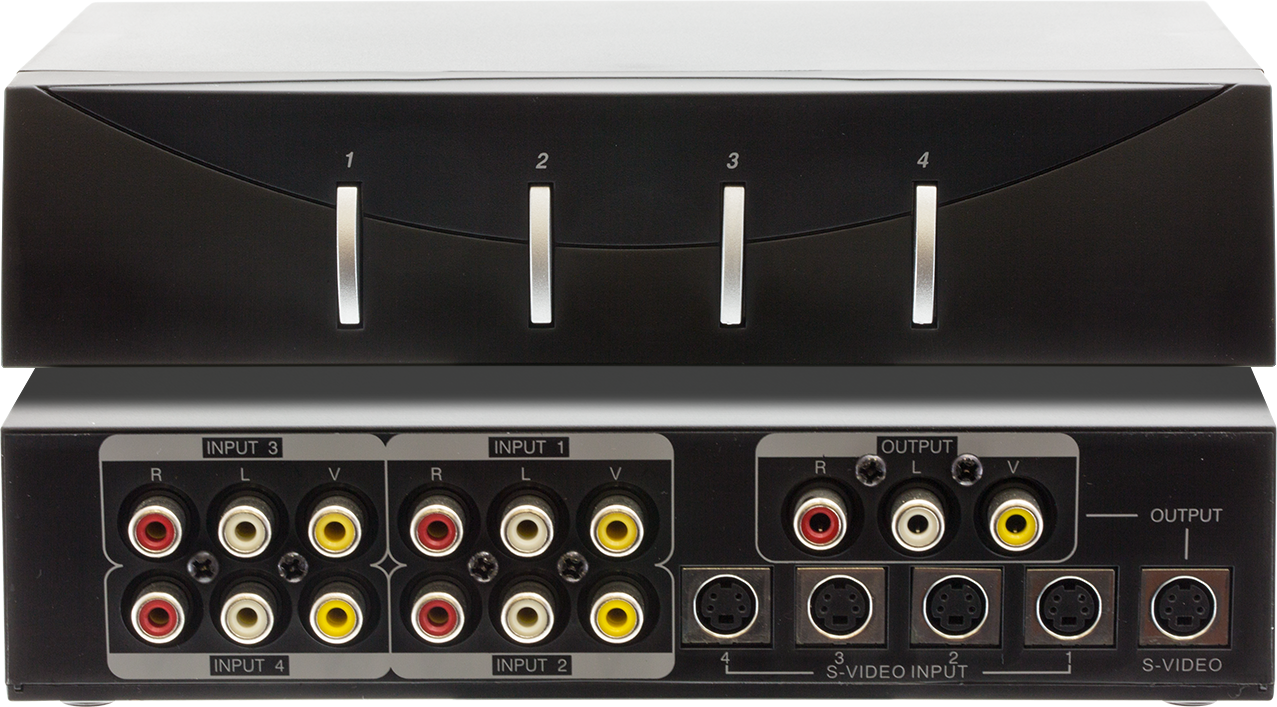

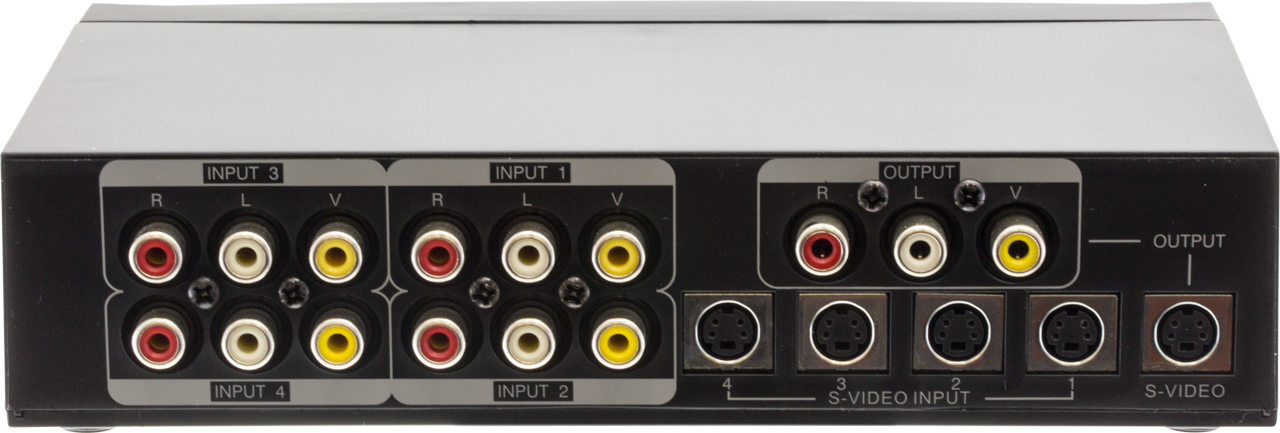

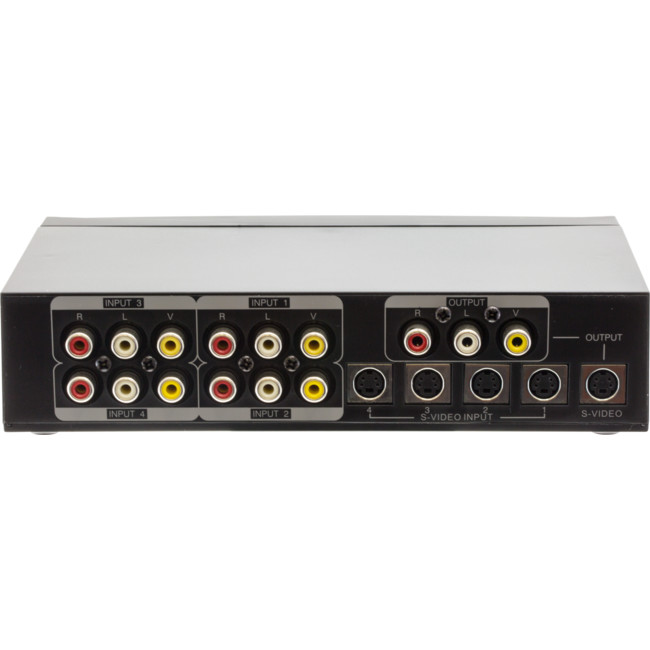

This 4 way AV svideo selector connects up to four AV devices such as DVD players, VCRs or gaming consoles with a single output to your TV and switch between them as required. Inputs can be either composite or S-video.

Specifications

Audio :

Frequency range 10Hz-20K Hz
Insertion Loss 0.5 dB limited
Channel Separation(@1K Hz)

50 dB normal

45dB limited
Crosstalk Between Function(@1K Hz)

60dB normal

55dB limited

Note:

  1. The generator impedance should be 600 ohm.
  2. Signal output reading is taken across a 47K ohm load.
  3. Product Input 4.7K ohm terminated. (on testing channel
    separation and crosstalk)



Video :

Frequency Range 0.3M-6M Hz
Insertion Loss 1 dB limited
Isolation Loss 35 dB limited



Chrominance :

Frequency Range 4.43M±0.5M Hz
Insertion Loss 1dB limited.
Isolation Loss 35dB limited.



Luminance :

Frequency Range 0.3M-1M Hz
Insertion Lloss 1dB limited.
Isolation Loss 35dB limited.



Composite/S-Video signal conversion :

Video Input 1V P-P
Luminance Output 0.9V P-P
Chrominance Output 0.286V P-P

Note:

  1. The generator impedance should be 75 ohm.
  2. Input 75 ohm terminated.
