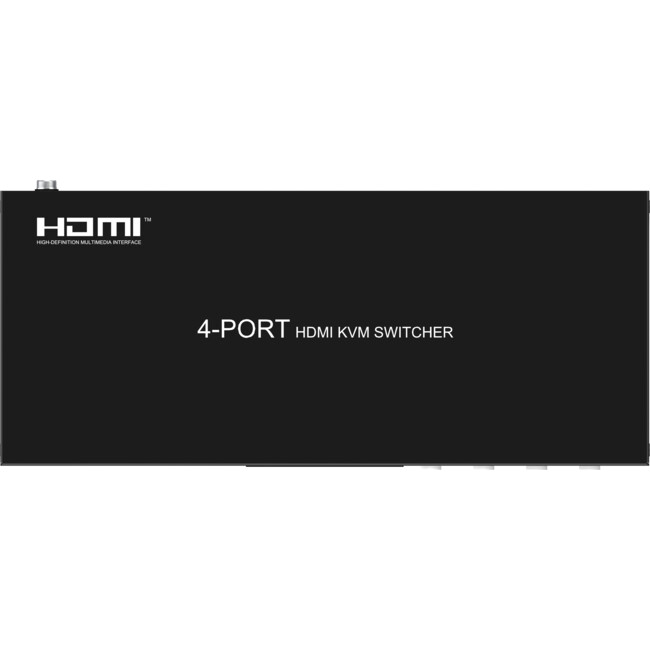

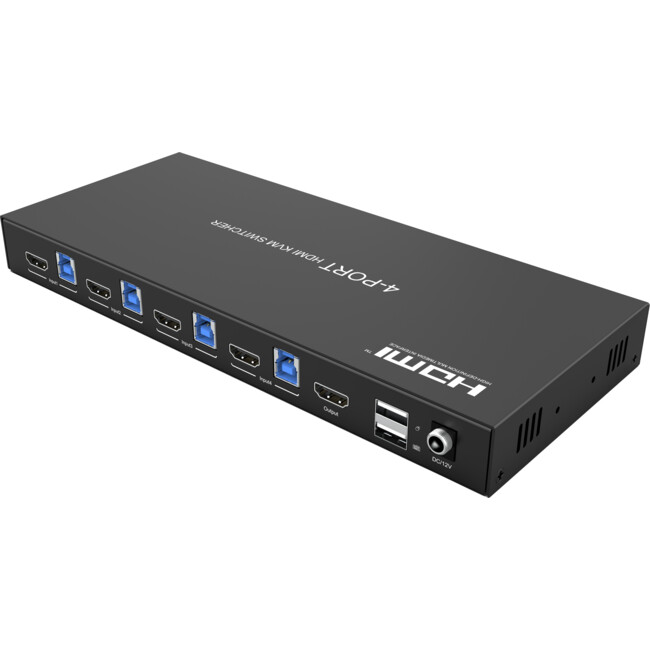

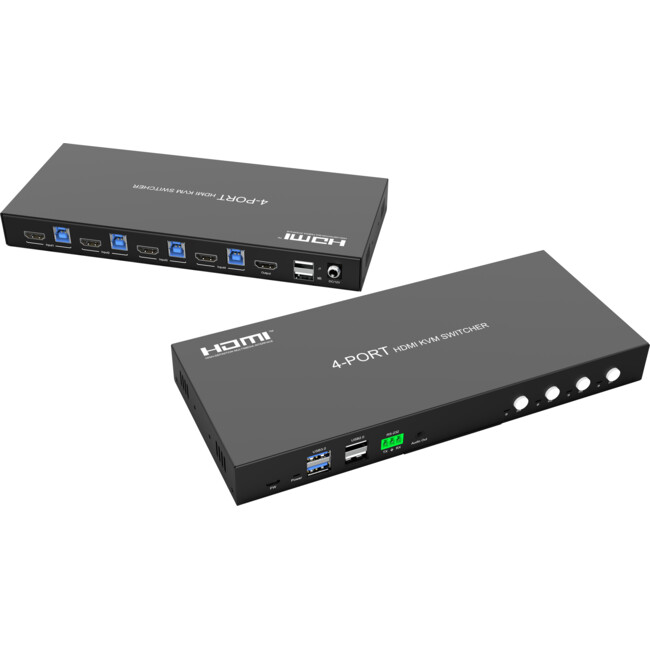

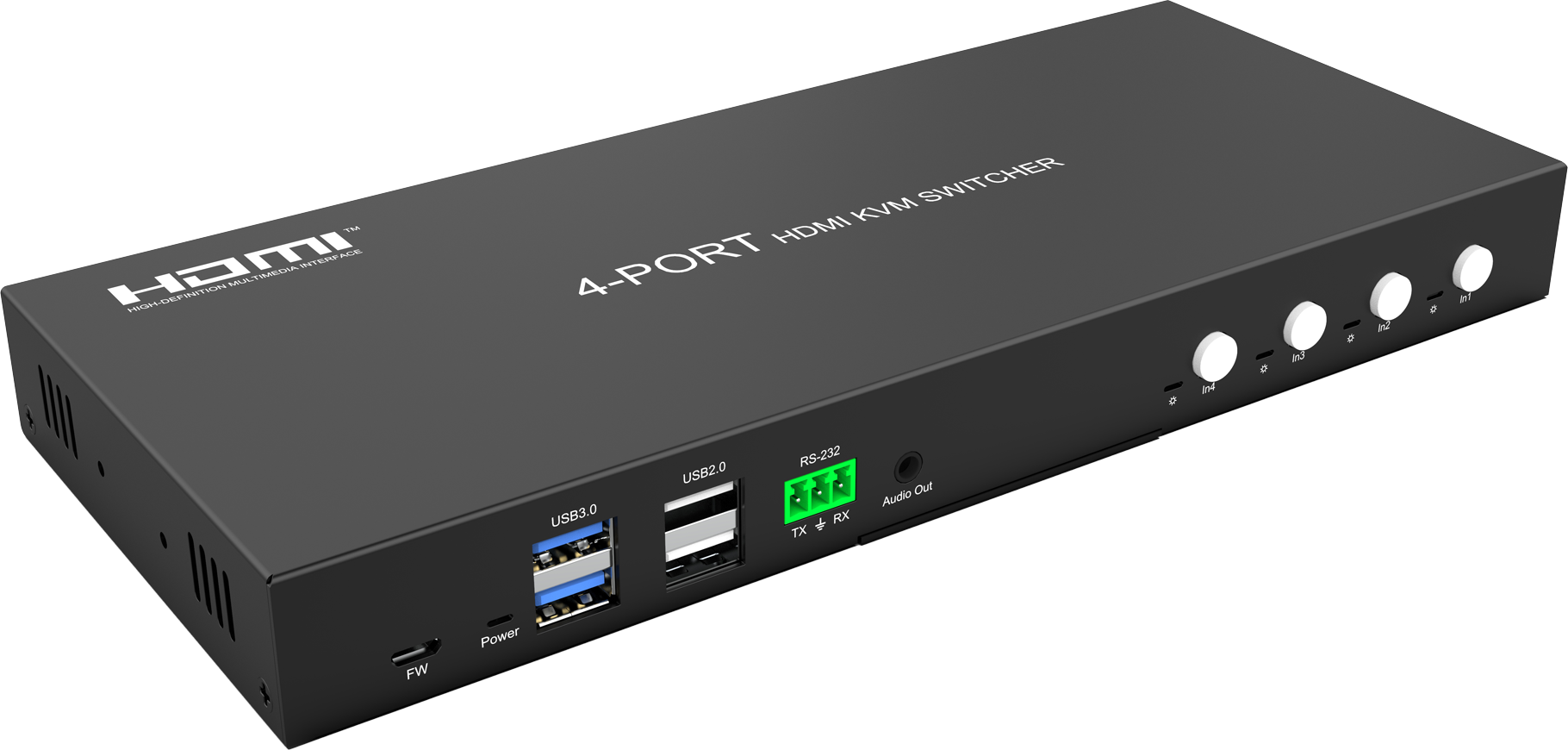

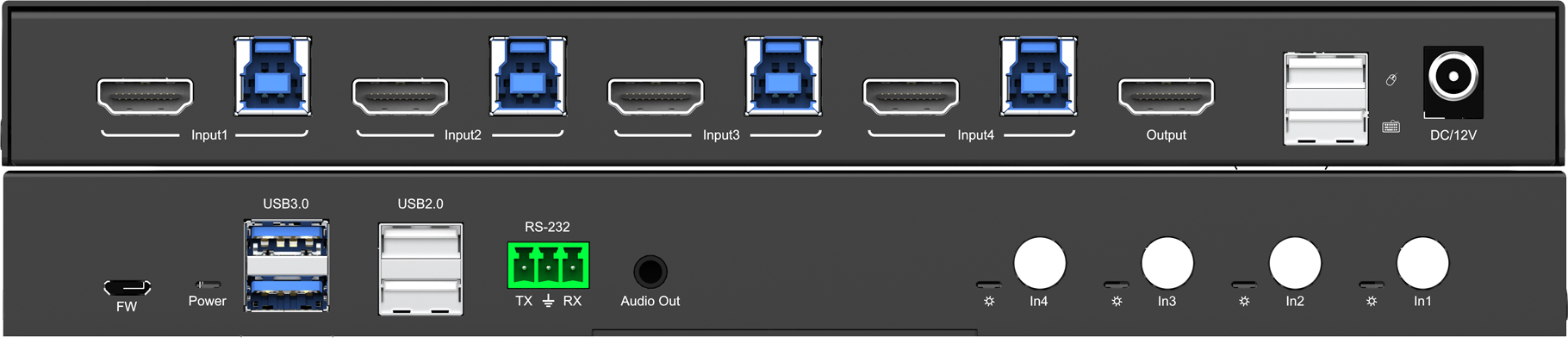

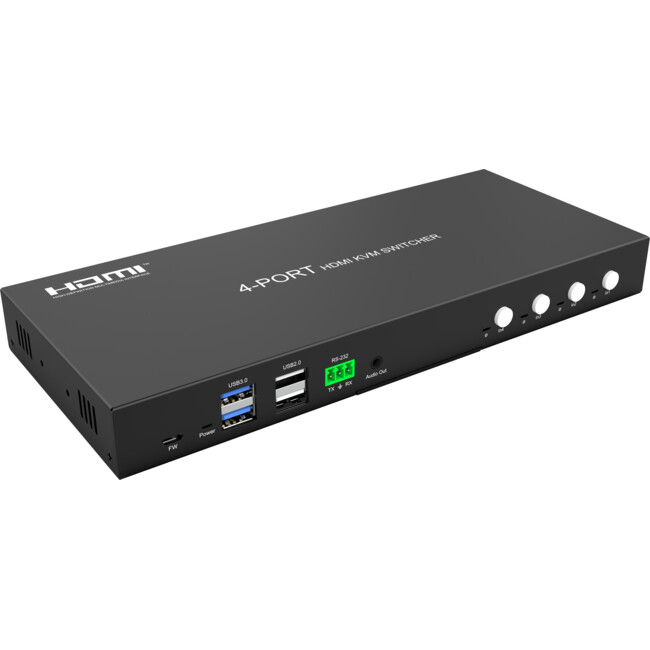

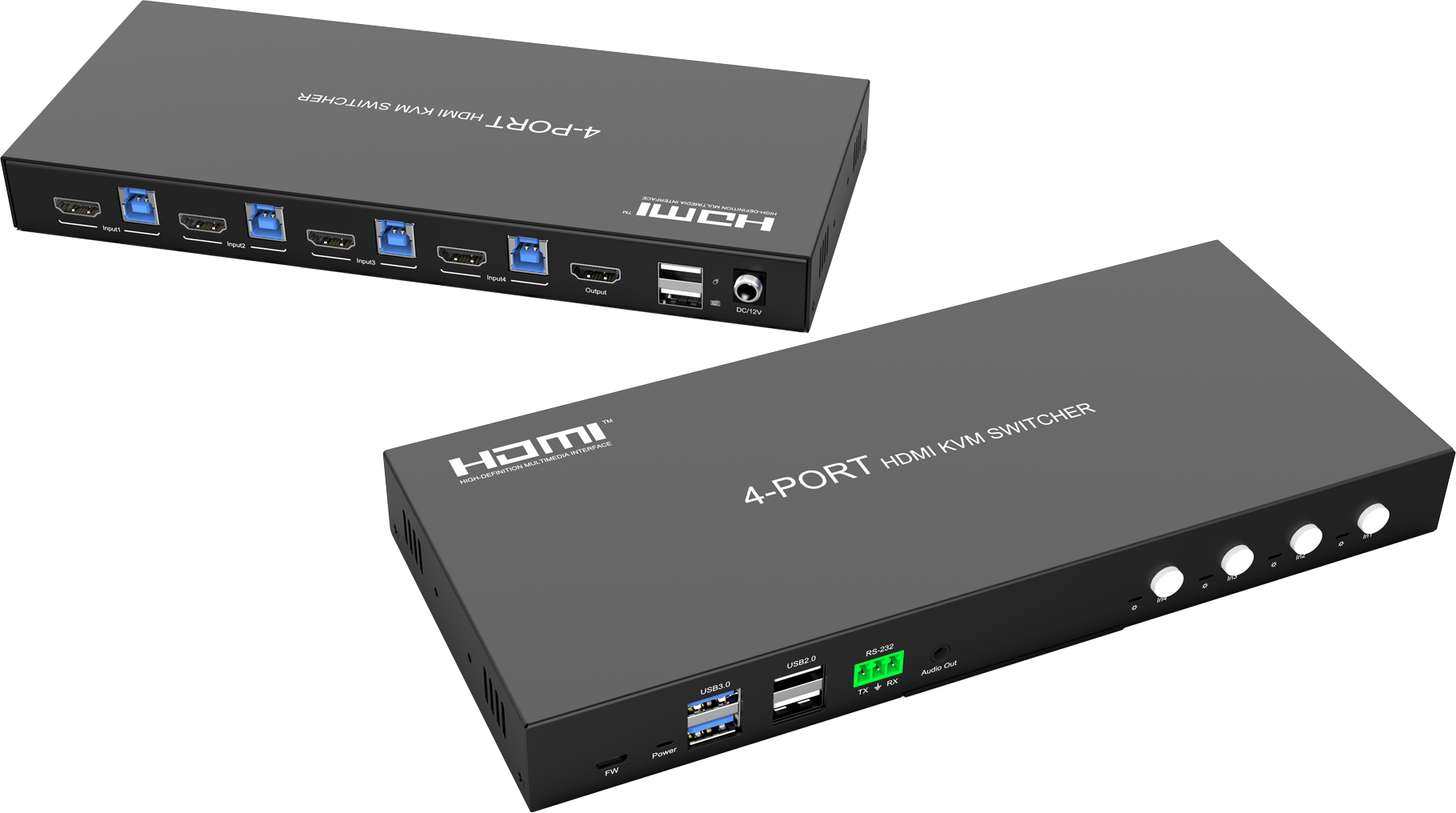

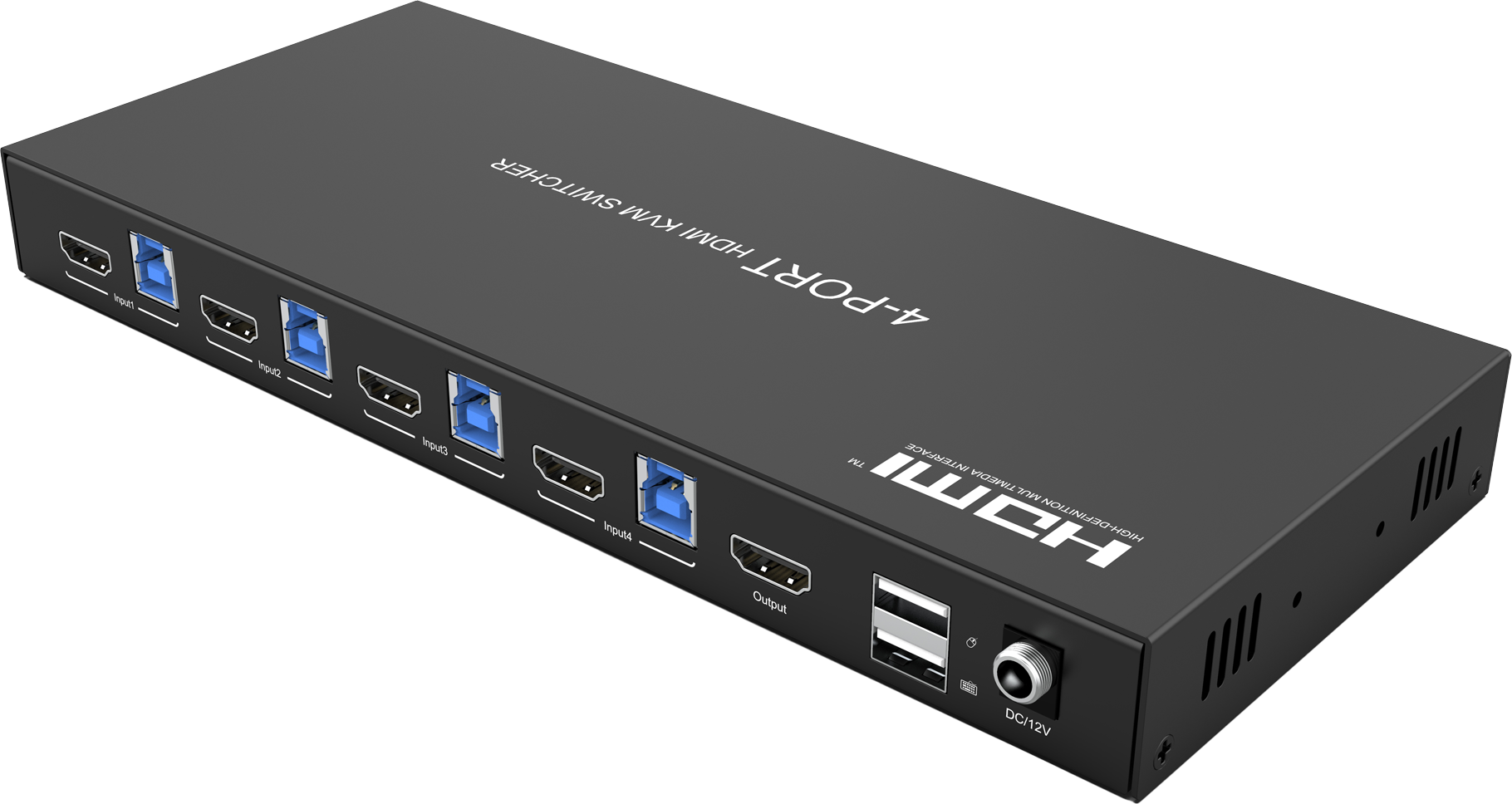

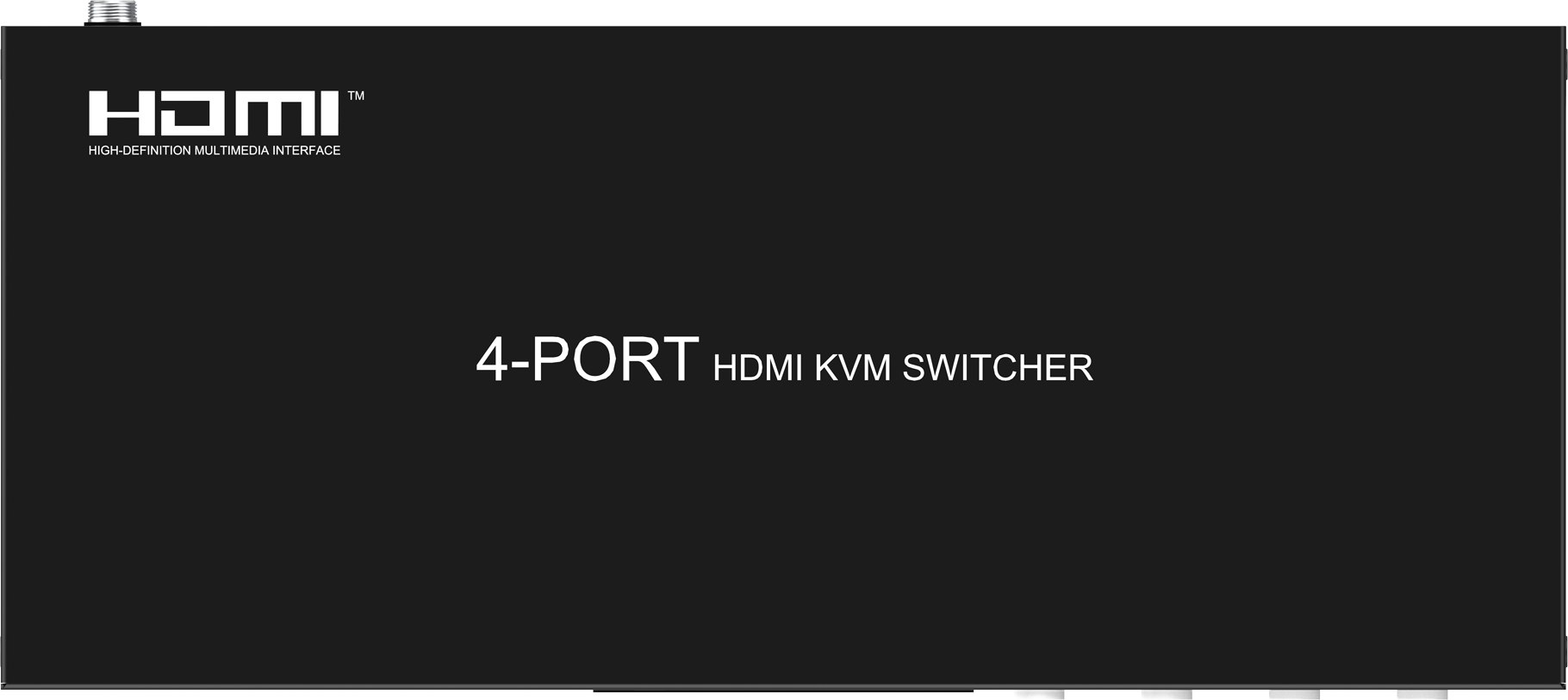

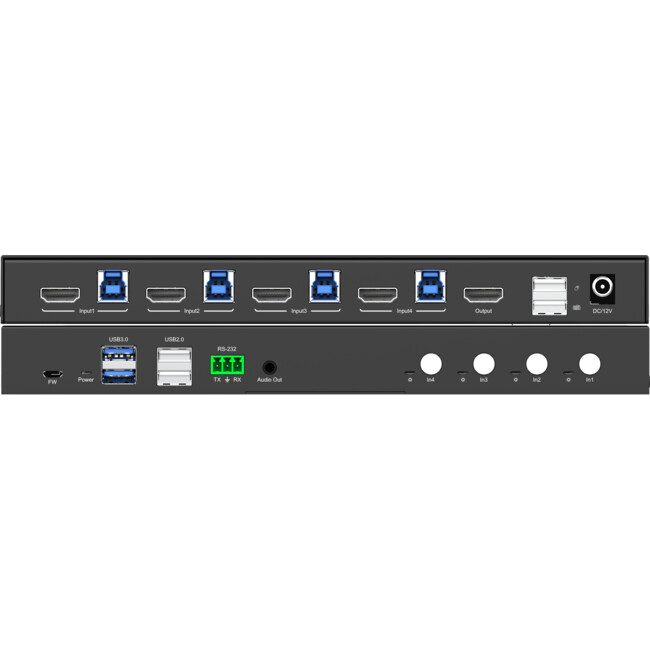

KVM4S 4 PORT 4K HDMI KVM SWITCH

USB3.0 18GBPS 4K@60HZ

Code: 64510408

9328202036582
EACH
5
Low Stock
$249.95 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

  • HDMI 2.0, 18Gbps, resolution up to 4K@60hz 4:4:4, HDR
  • 4x USB 3.0 Type B Inputs and 2x USB 3.0 Type A Outputs and USB 2.0 Type A outputs for KVMcontrol
  • Support keyboard hotkey? device panel button and RS232 control
  • Support LPCM up to 7.1/24-bit/96 kHz, Dolby Atmos and DTS-X
  • Support Dolby Vision? HDR10? HLG
  • Supports HDCP2.2 and HDCP1.4
  • Support deep color up to 12 bit
  • Support auto switching, power-off memory function
  • Support analog audio extraction
  • Operating system support WIN7/WIN10/WIN11/Apple/Ubuntu,etc
  • Support Micro USB for firmware updating
  • With mounting ears
  • USB hot-plugging supported
  • Input switching via RS232 supported

Specifications

Operating Temperature0°C to +40°C (+32°F to +104°F)
Operating Humidity5 to 90%RH (No Condensation)
HDMI input/output5x HDMI Type A
HDMI versionHDMI 2.0
HDCPHDCP2.2 and HDCP1.4
Resolution1920x1200/1080P@60Hz, 12bit Deep Color
4096x2160@60Hz (4:4:4)
3840x2160@60Hz (4:4:4)
VESA: 2560*1600@60Hz/1920*1440@60Hz/1680*1050@60Hz
Maximum data rate18Gbps (6Gbps per color)
Maximum pixel clock600MHz
Colour gamutRGB, YUV 4:4:4, 4:2:2, 4:2:0
Digital audioLPCM up to 7.1/24-bit/96 kHz, Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Digital 5.1, Dolby Digital 2/0 Surround, Dolby Digital 2/0, DTS-HD Master Audio, DTS-HD, DTS ES Discrete 6.1, DTS ES Matrix 6.1, DTS Digital Surround 5.1
Analog audioPCM 2-channel, 16/20/24 bit depths, 32/44.1/48 kHz sampling
Refresh Rate24Hz/30Hz/50Hz/60Hz
USB HostUSB TYPE B x4
USB devicesUSB Type A x6
Transmission DistanceHDMI Input : 5m
HDMI Output : 4K/60Hz 5m
4K/30Hz and 1080P/60Hz 15m
USB cable: 1.8m
Operating systemUbuntu, Win7, Win10, Win11,Mac os, etc

What is in the box?

  • HDMI KVM switch x 1pc
  • User manual x 1pc
  • 12V DC 3A Power Supply x 1pc
  • Mounting ear x 1pair.
KVM4S Manual PDF file
