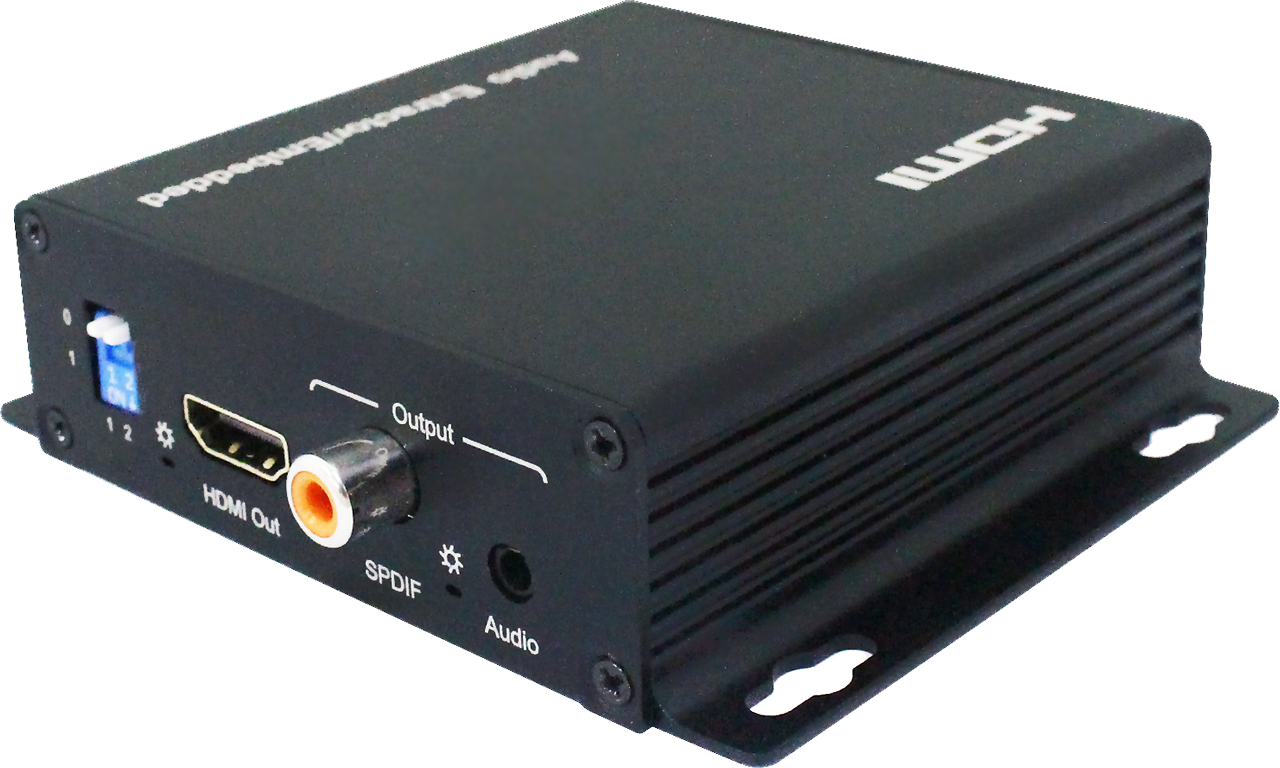

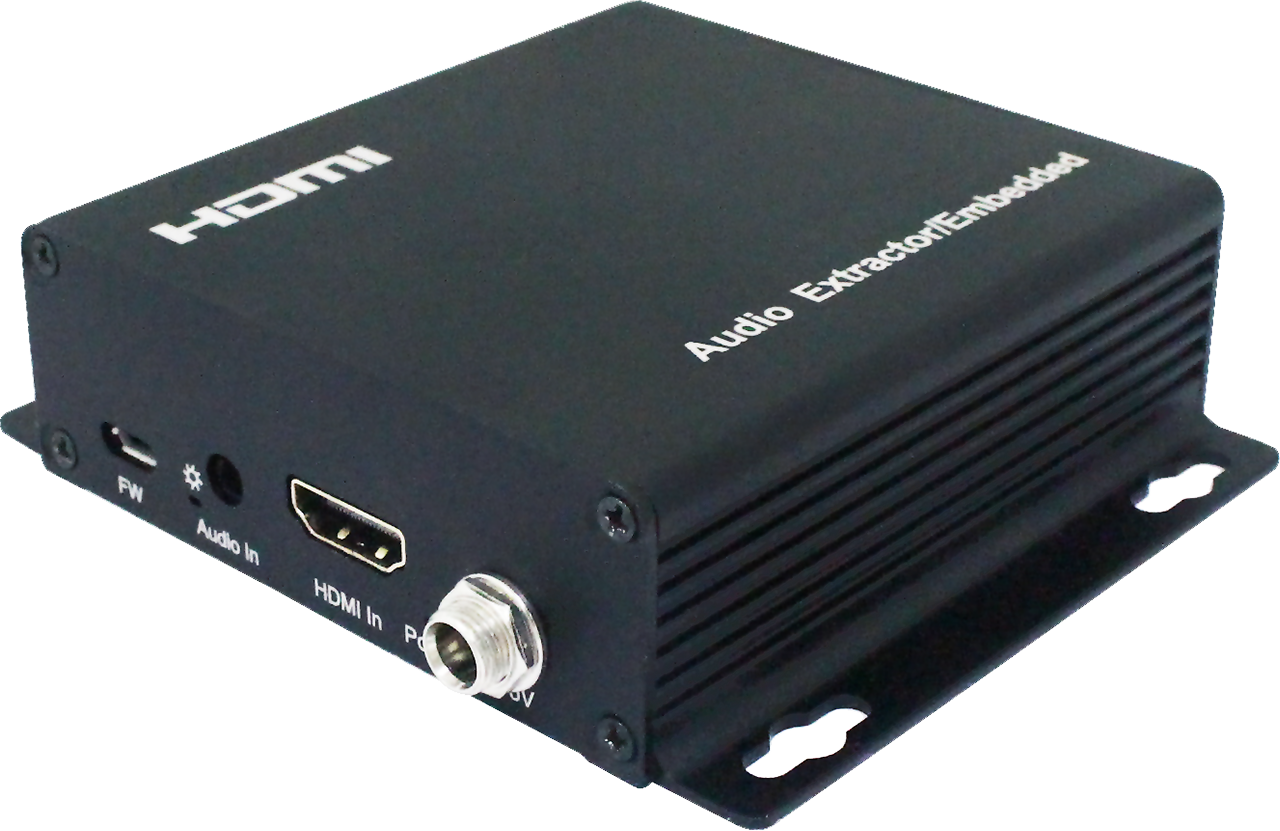

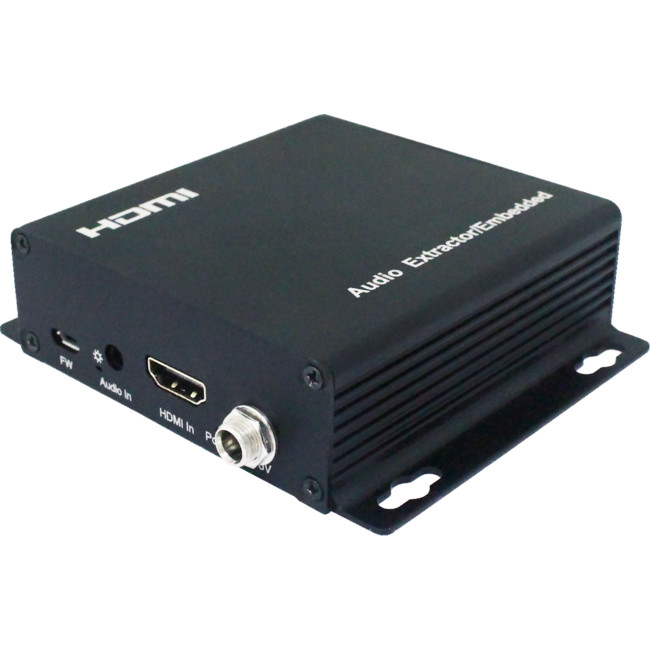

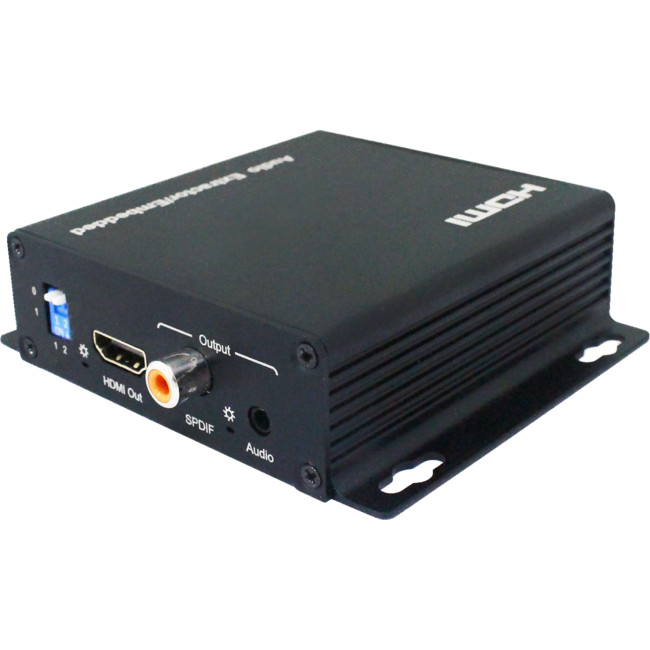

HA03 HDMI AUDIO INSERTER EXTRACTOR

Insert the HA03 between your source and display, embed orextract the audio to 2 ch or 5.1 ch via dip switch on the side.

Features

• Support audio embedding, AUTO, SPDIF5.1, Analog Audio PCM2.0 output
• Support 2 DIP switch to extract the digital HDMI audiosignal from the HDMI input to 2 channel analog stereo outputor 5.1 channel audio output
• Support audio uncompressed PCM, Dolby, DTS
• Supports resolution up to 4K2K60HZ, bandwidth 18Gbps
• HDCP2.2/1.4 Compliant
• Support CEC
• Support firmware updating through the USB port

Specifications

• Operating Temperature Range: -5°C to 40°C( 23°F to 104°F)
• Operating Humidity Range 5 to 90%RH (No Condensation)
• Input Video Signal 0.5-1.0 Volts P-P
• Input DDC Signal 5 volts p-p(TTL)
• Support Video format
• 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
• 3D video
• Support Video Color Format xv-YCC/deep color 36bit
• Support Audio Format PCM, DTS-HD Master Audio, Dolby true-HD, etc.
• Data transfer speed rate 18Gbps (Maximum)
• HDCP Compliant HDCP2.2/1.4
• Power consumption: 5V 1.5watts(Maximum)
• Dimension (LxWxH) 104.4x89x28.3mm
• Net Weight 155g
