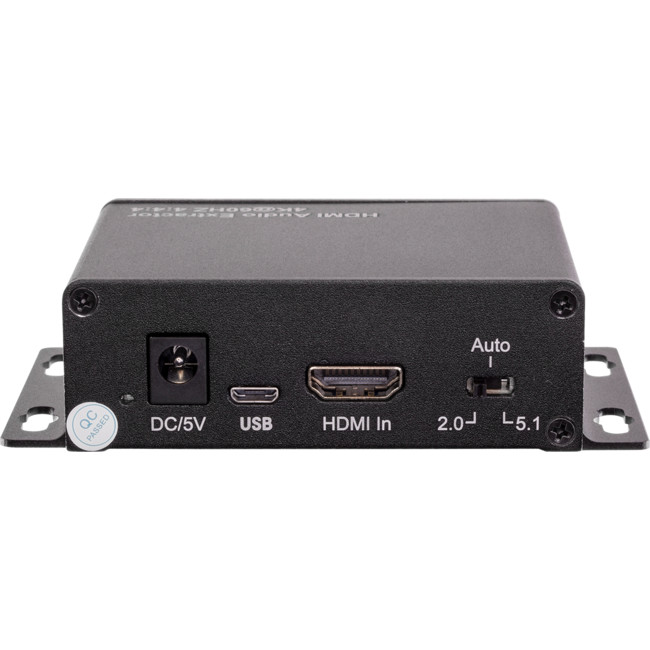

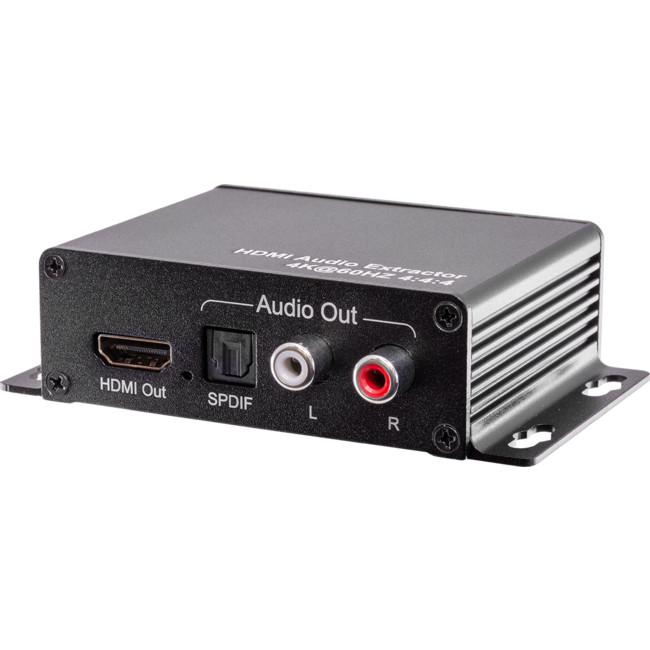

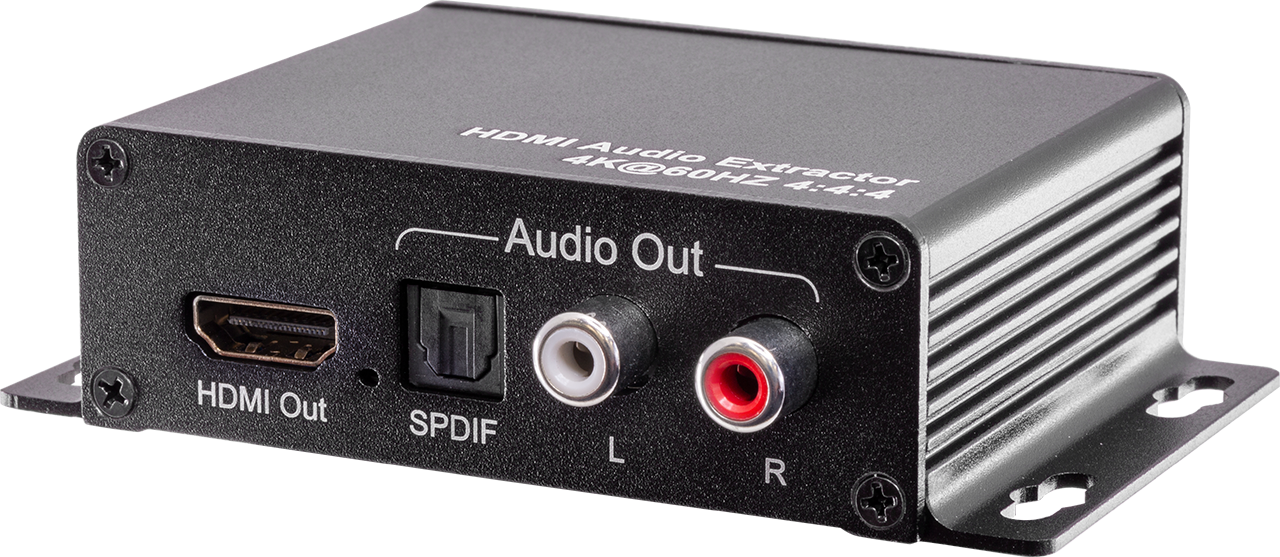

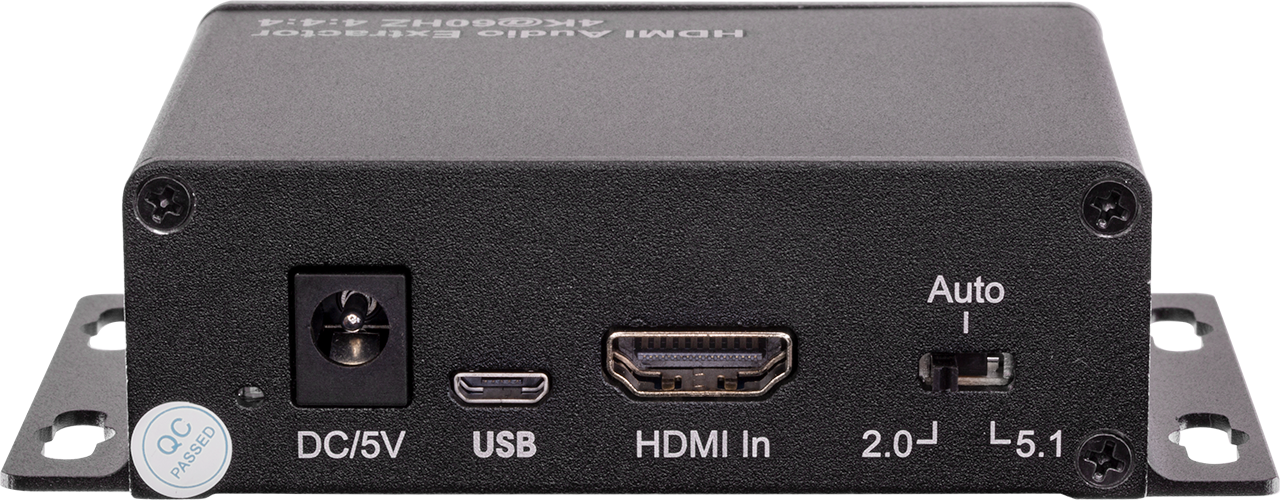

HA02 HDMI AUDIO EXTRACTOR

18G

Code: 64510385

0.3940 kg
9328202031112
EACH
In Stock
$109 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

FEATURES

  • Three Audio EDID Settings: Auto/2.0 CH/5.1CH
  • Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
  • Support PCM and Dolby DTS
  • Supports resolution up to 4K@60Hz YUV4:4:4
  • Supports deep colour up to 36bit
  • HDCP2.2/1.4 Compliant
  • Support CEC
  • Support firmware updating through USB port

    • SPECIFICATIONS


    Operating Temperature Range

    -5 to 35

    Operating Humidity Range

    5 to 90%RH (No Condensation)

    Input Video Signal

    0.5-1.0 Volts P-P

    Input DDC Signal

    5 volts p-p(TTL)

    Support Video format

    4Kx2K/1080P/1080i/720P/576P/576i/480P/480i
    3D video

    Support Video Colour Format

    xv-YCC/deep colour 36bit

    Support Audio Format

    PCM / DTS-HD Master Audio / Dolbytrue-HD etc.

    Data transfer speed rate

    18Gbps (Maximum)

    Power consumption

    2watts(Maximum)

    Dimension (LxWxH)

    104.4x64x28.3mm

    Net Weight

    175g

    Note: Specifications are subject to change without notice. Mass and dimensions are approximate.

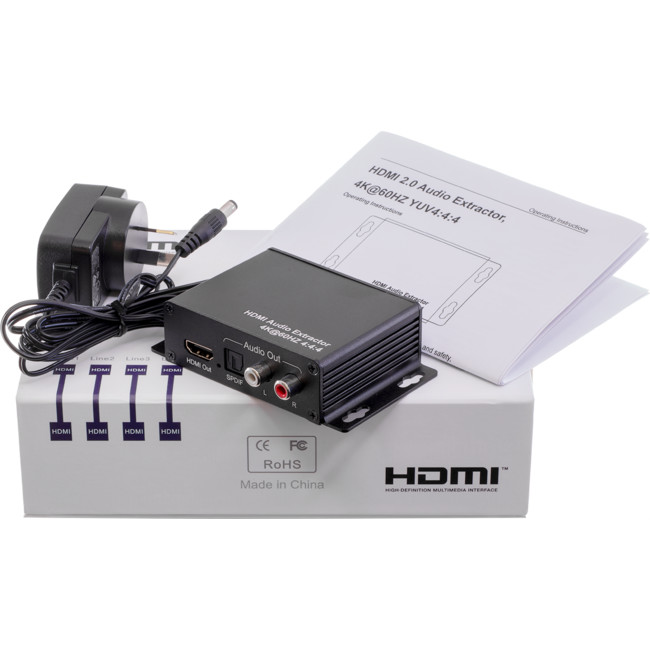

    PACKING CONTENTS

    1. Main Unit. Mini 4K HDMI Audio Extractor
    2. DC 5V Power Supply
    3. Operating Instructions
