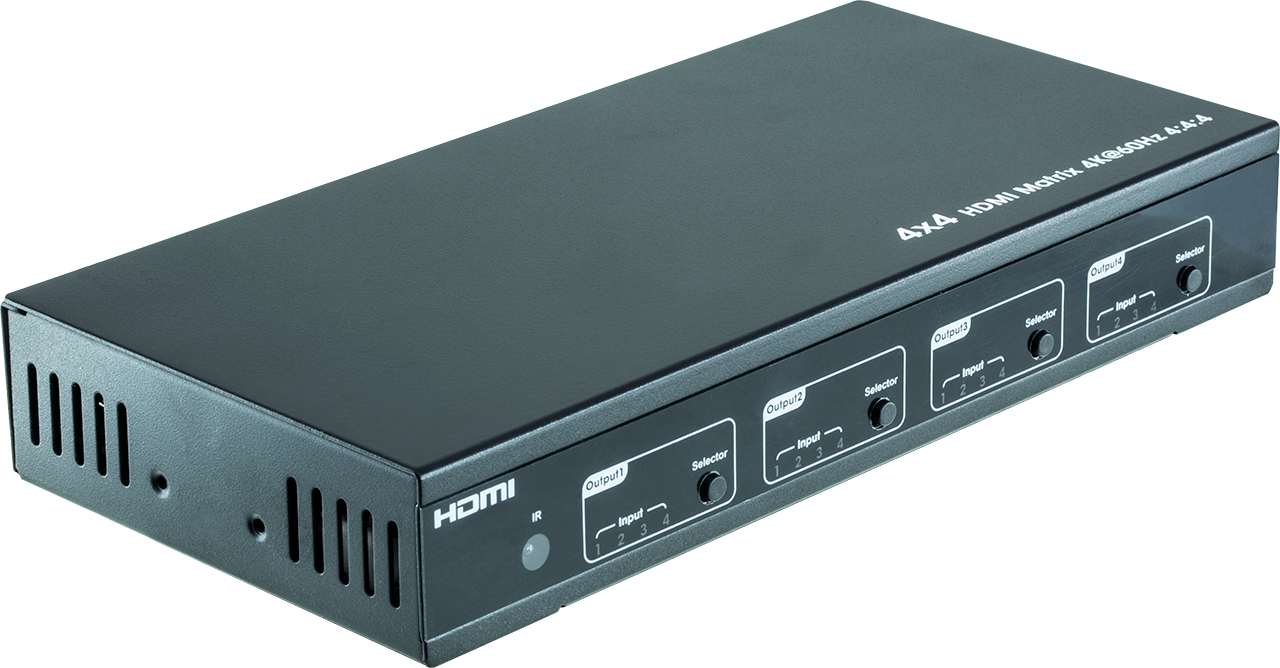

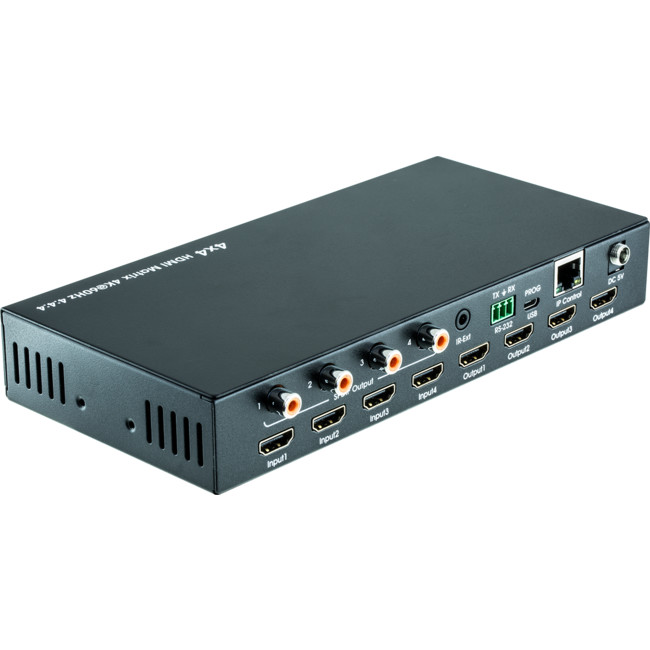

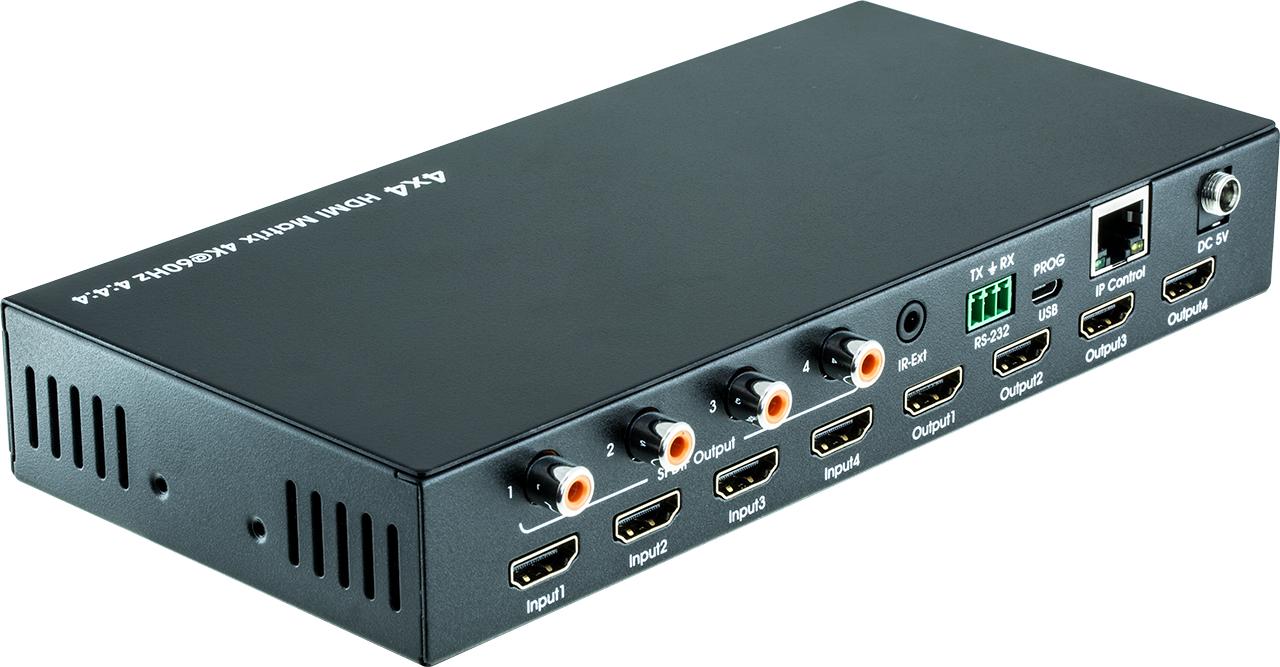

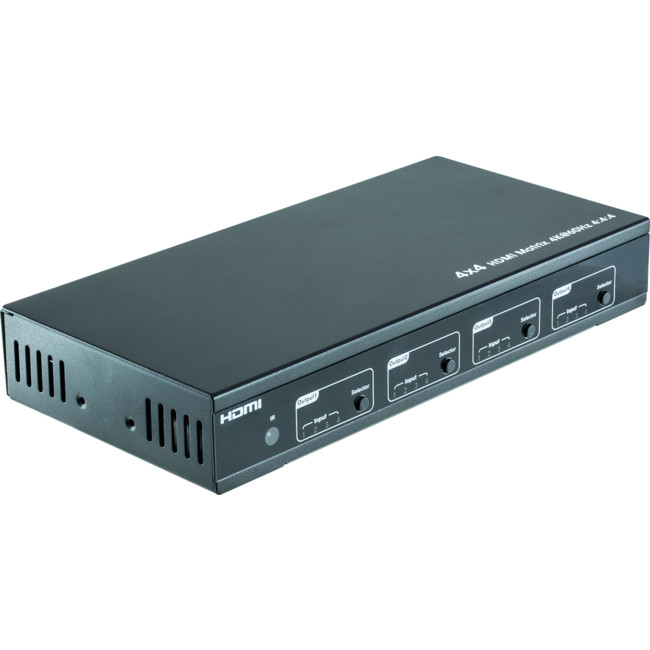

HDMIMX44V18G HDMI 4X4 18G MATRIX

Features

• HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
• Bandwidth upto 18Gbps

• HDCP2.2 input ,HDCP2.2 output

• HDCP1.4 input, HDCP1.4 output

• Support HDR10

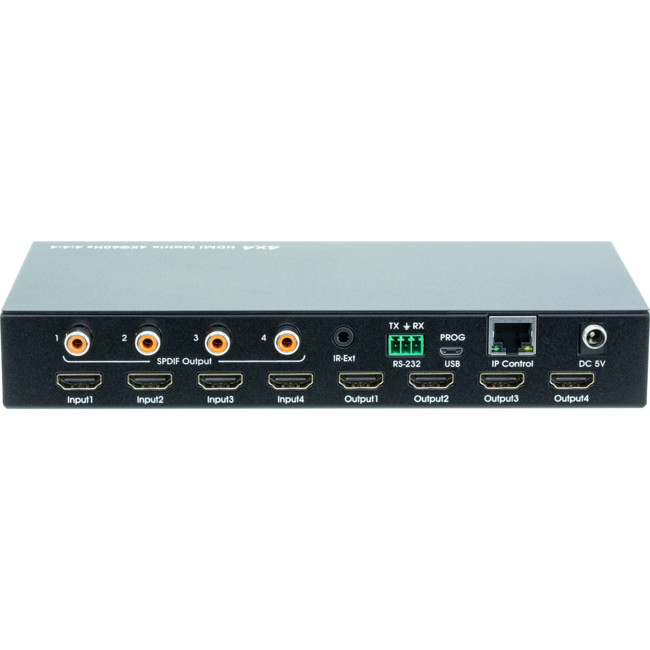

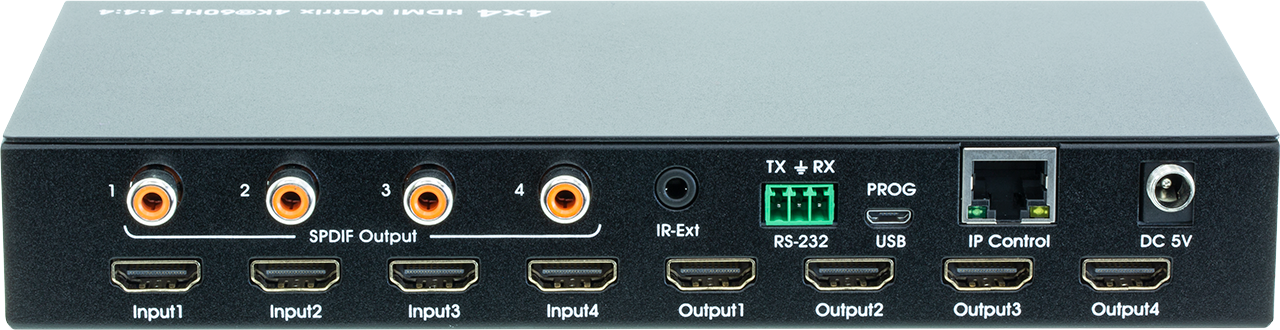

• 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio

• Any one of the 4 Ultra HD sources to any one of the 4Ultra HD displays

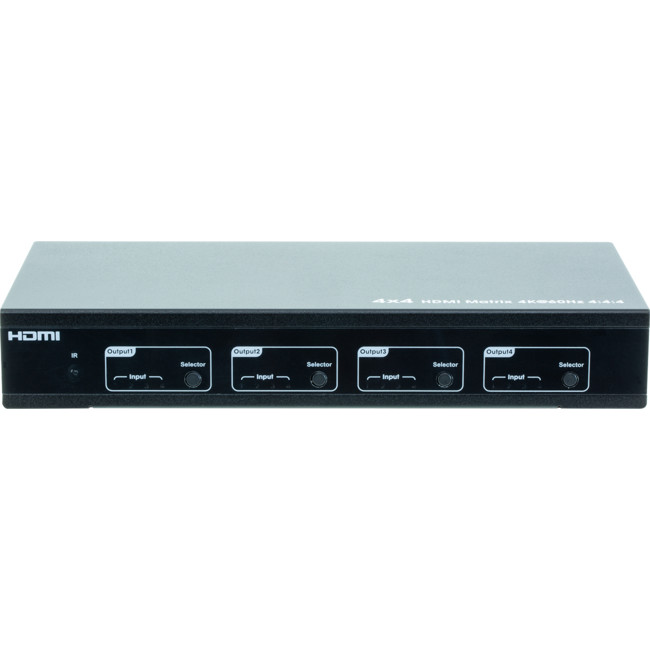

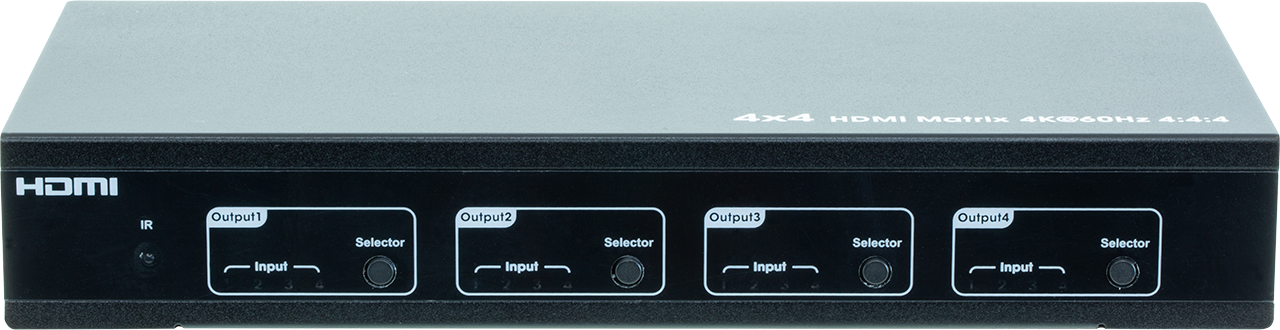

• Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control

• Support Dolby True HD and DTS-HD master audio, Dolby Atmos under copy EDID mode

• Support firmware updating through USB port

• Unit size: L216XW105XH34mm

Specifications

• Operating Temperature: 23°F to 113°F (-5°C to 45°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Resolution: 480p@60hz,576P@50hz,720P@60hz,1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz,4K@60hz YUV4:2:0, 4K@ 60hz YUV4:4:4

• HDCP Compliant: HDCP2.2 and HDCP1.4

• Output: Video HDMI2.0 and HDMI 1.4

• Audio Format: Supported PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos

• RS-232 serial port: 3PIN terminal block connectors

• Ethernet port: (IP control) RJ45, female

• IR Ext port: 1x3.5mm stereo jack

• USB port: Micro 5P female

• Bandwidth: 18 Gbps

• Default IP: 192.168.1.168

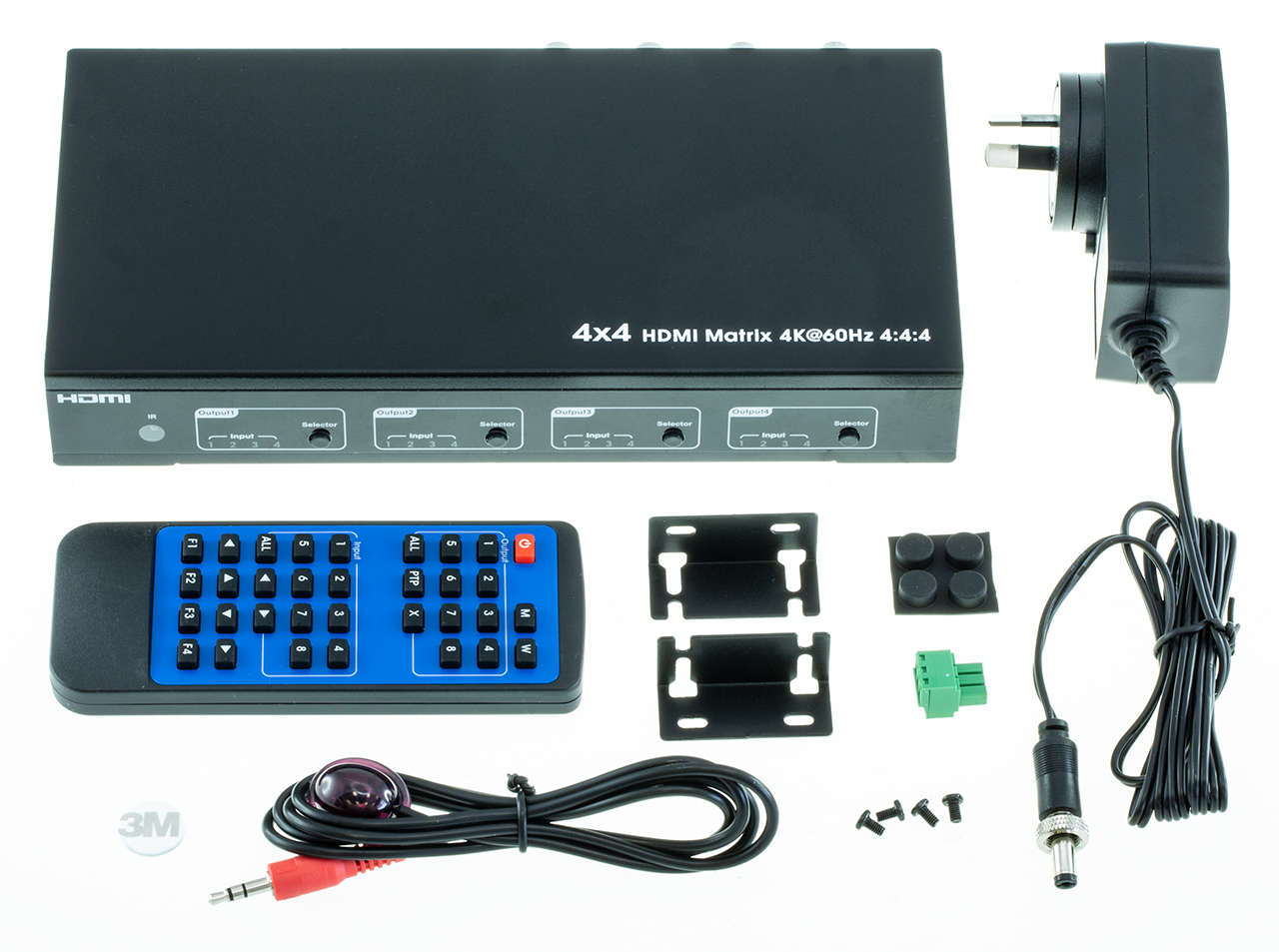

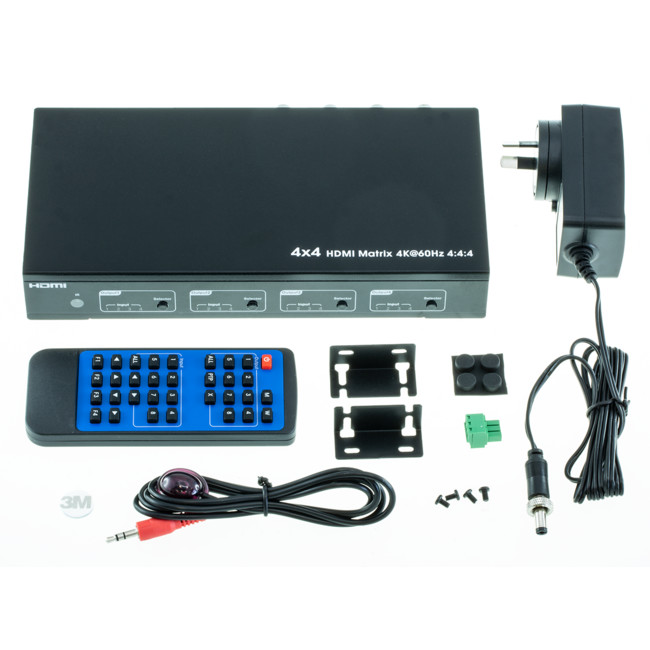

• Rack-Mountable Rack ears included

• Dimensions(WxHxD): L216XW105XH34mm

• Net Weight: 0.72kg

• Power consumption:13W(Max)

Wiring diagram
