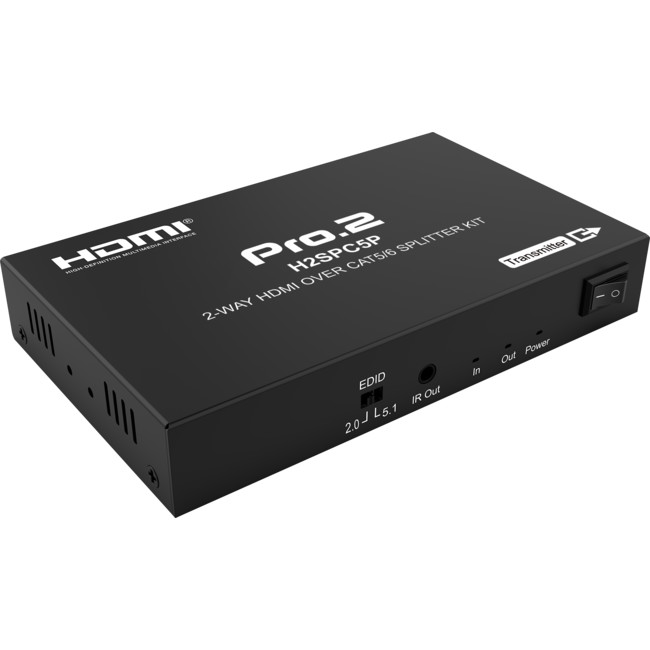

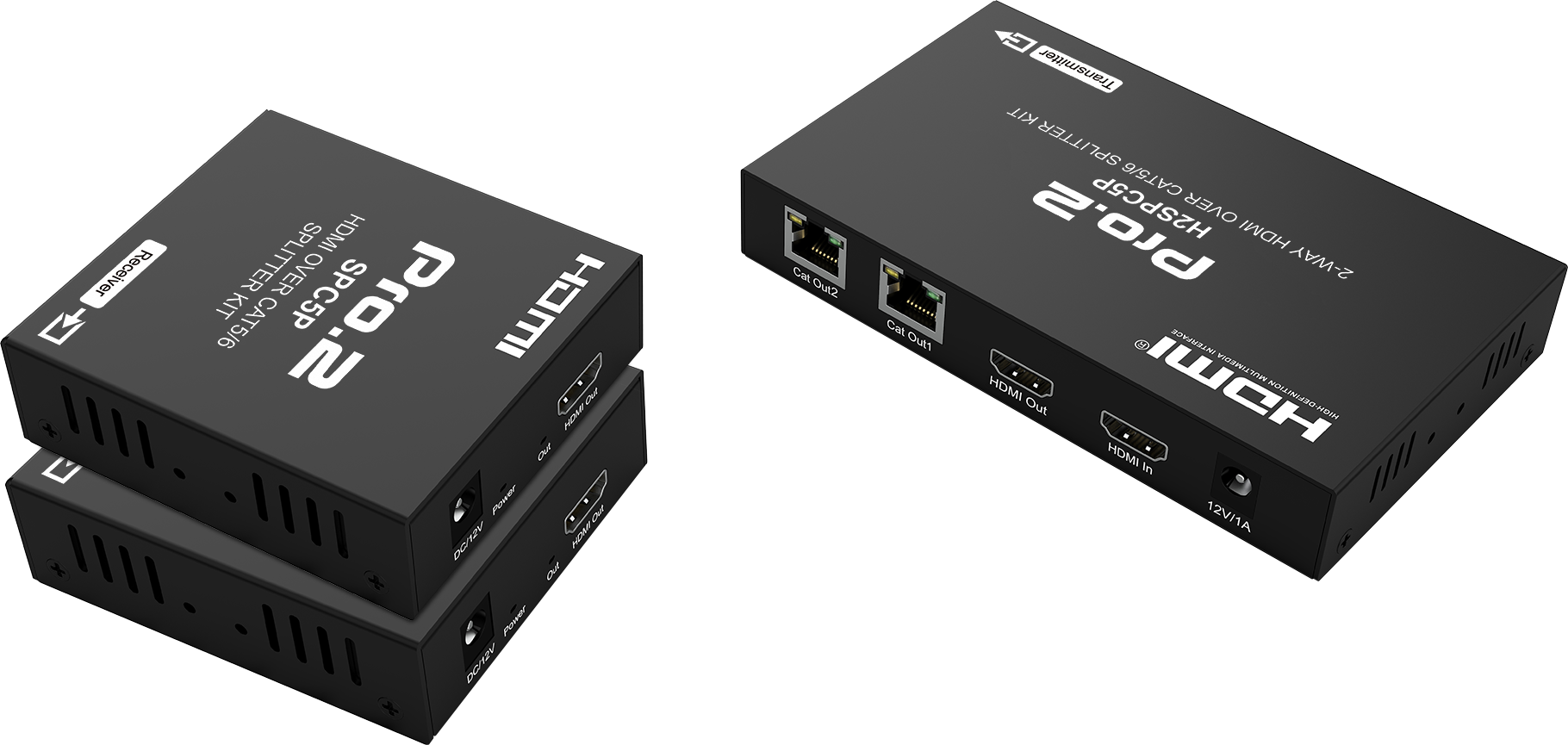

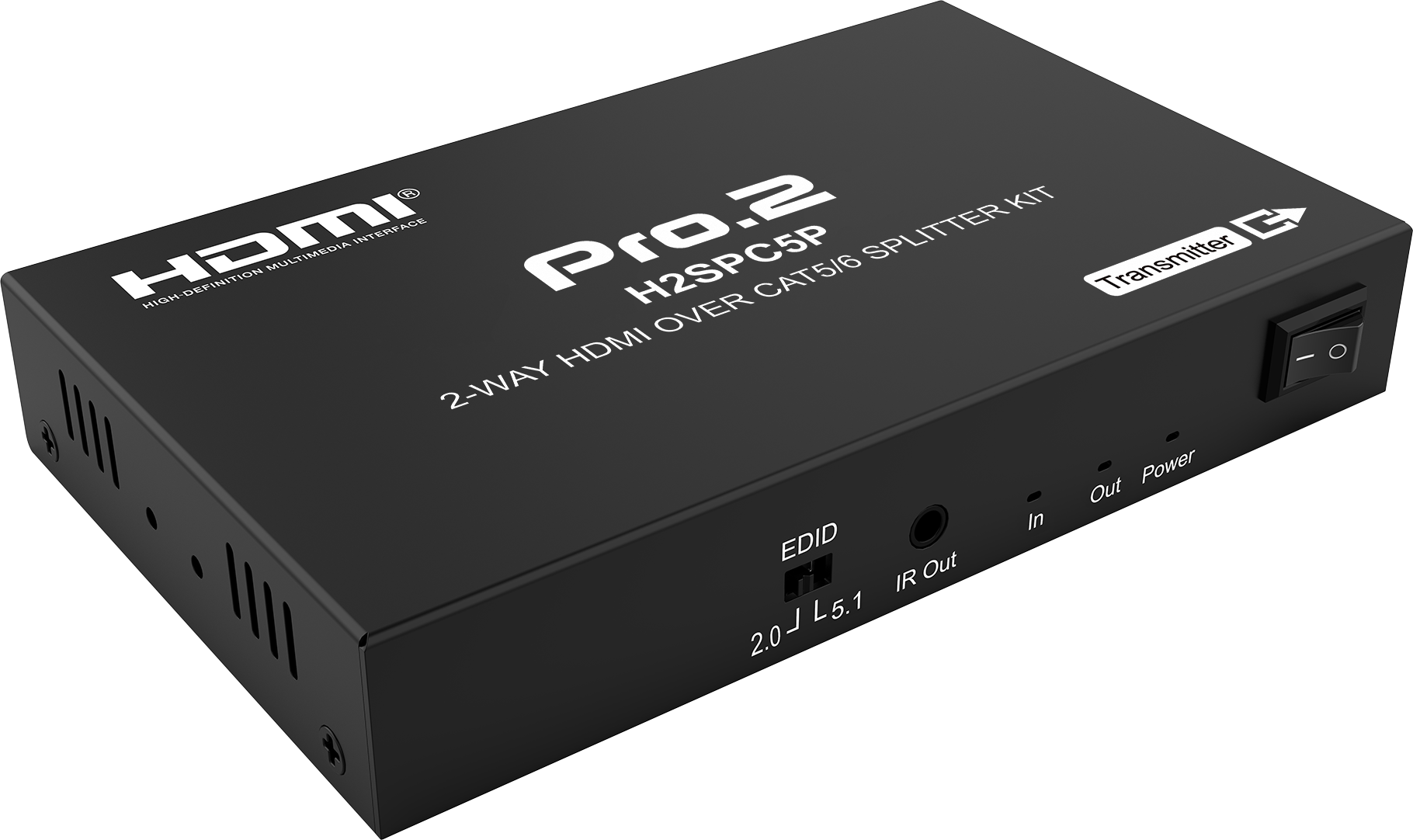

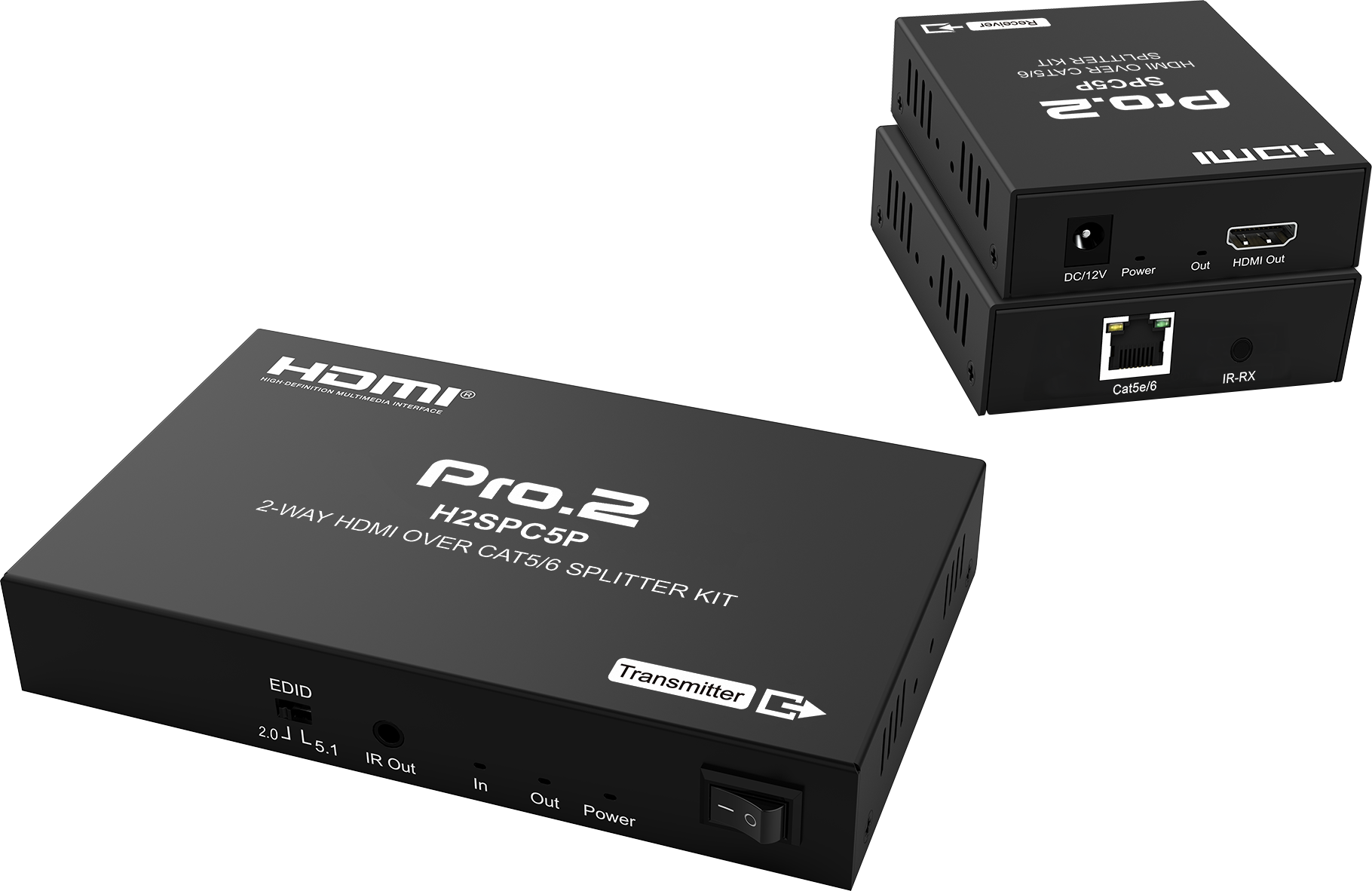

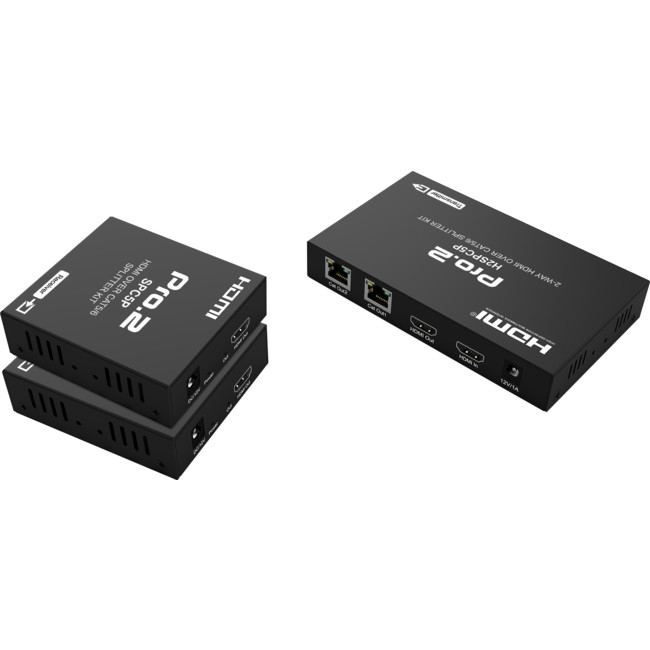

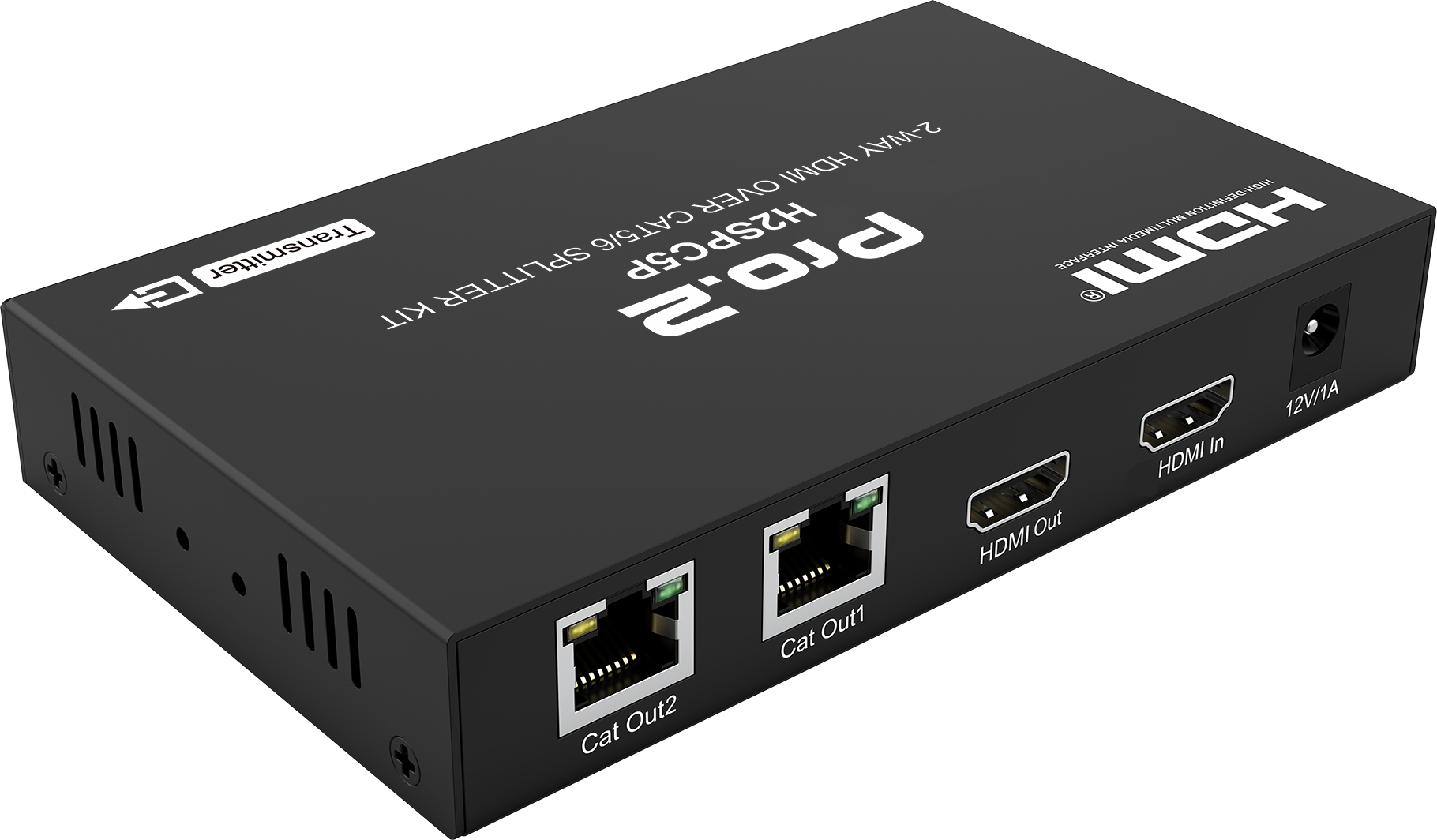

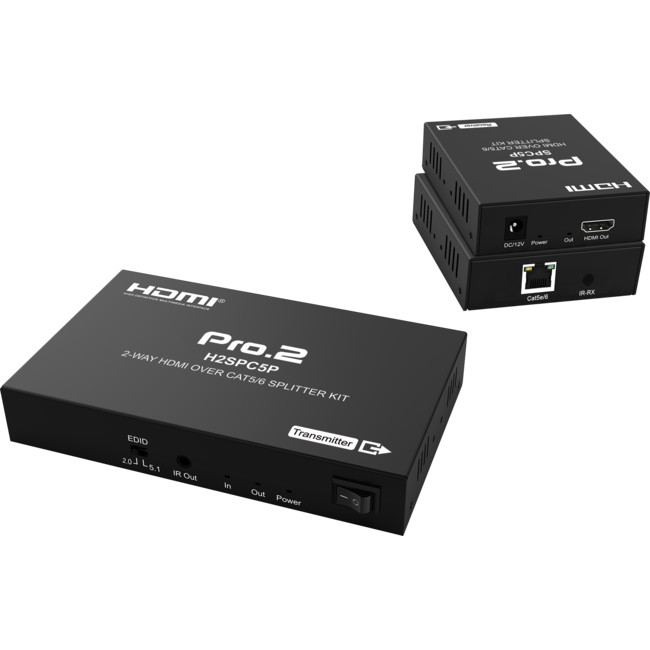

Distribute a single HDMI source to up to two displays with ease. Ideal for Blu-ray players, HD TVs, Pay TV (Foxtel) and other HDMI source devices.

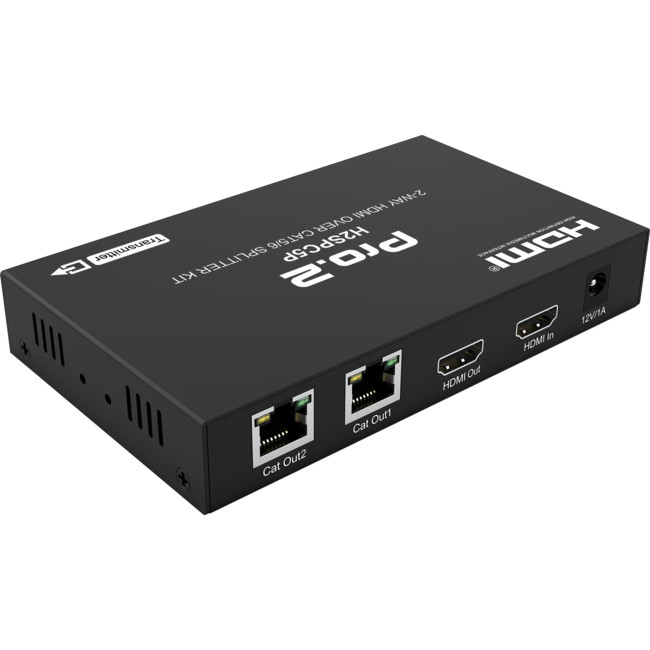

Transmit a high-quality HDMI signal up to 50 metres using a single Cat5e or Cat6 cable, providing a reliable and cost-effective solution for multi-room installations.
Key Features:

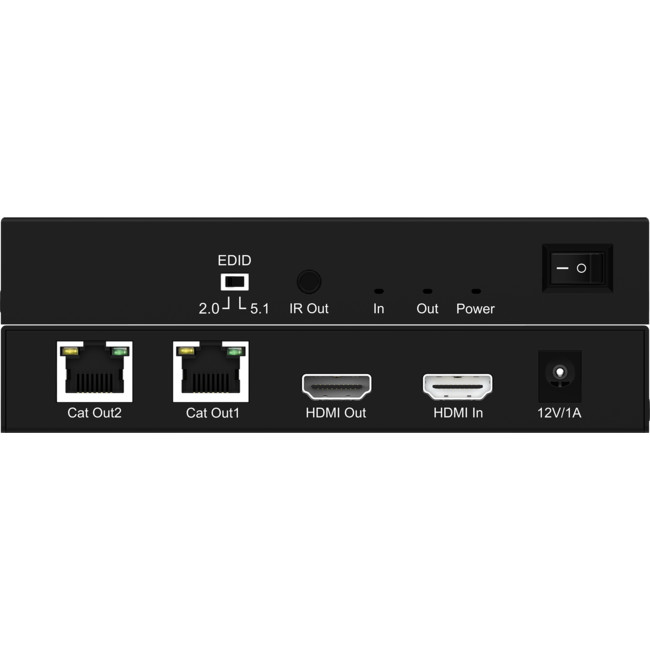

HDMI Loop-Out Allows the HDMI signal to be extended over Ethernet while maintaining a direct connection to a local display at the source.
Expandable & Cascadable Design Supports cascading up to 4 transmitter layers, enabling connection of up to 8 receivers for larger distribution setups.
Full HD Performance Supports video resolutions up to 1080p Full HD, including 3D content.
Advanced Audio Support Compatible with stereo and 5.1-channel audio, with EDID control for easy audio format selection.

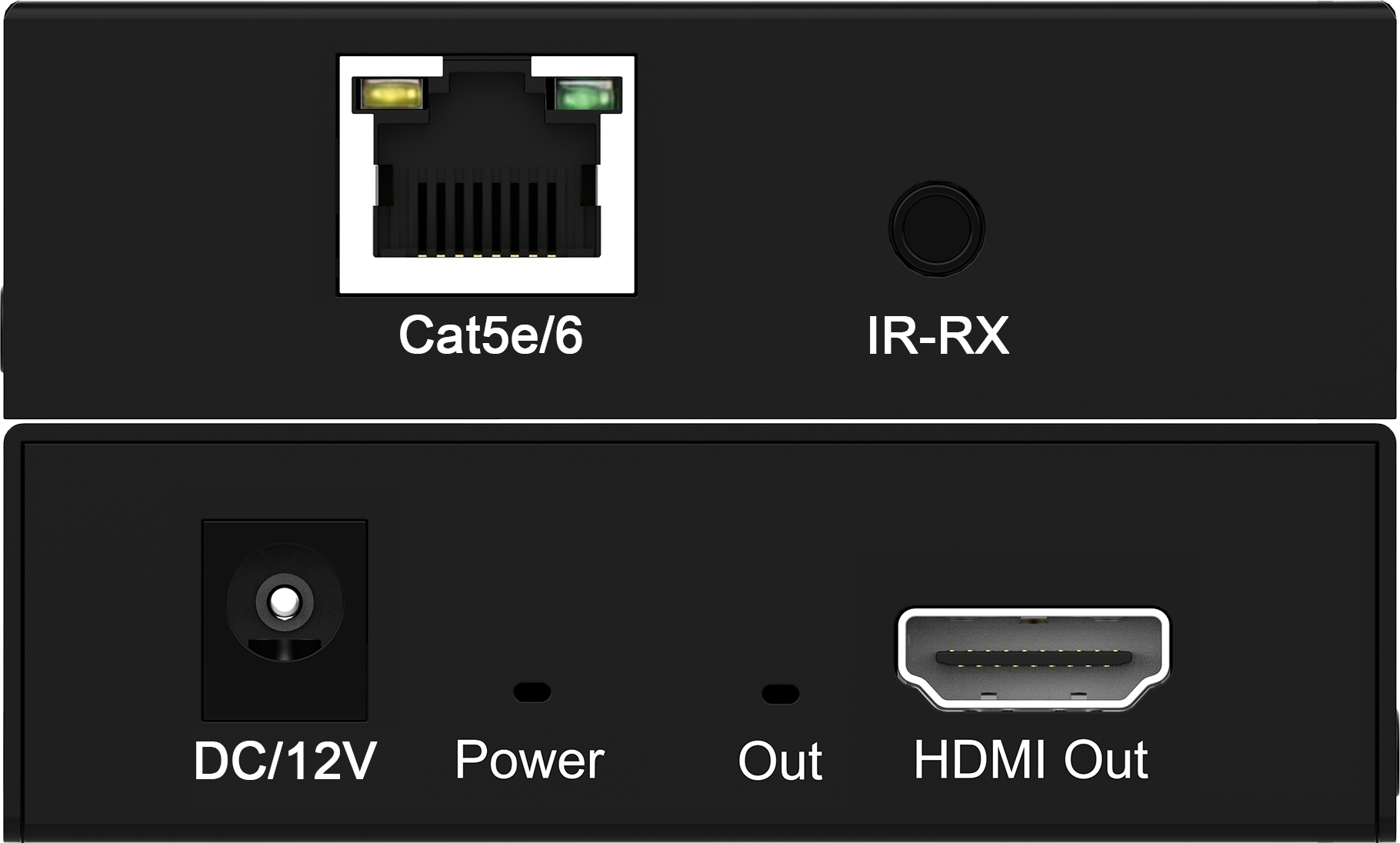

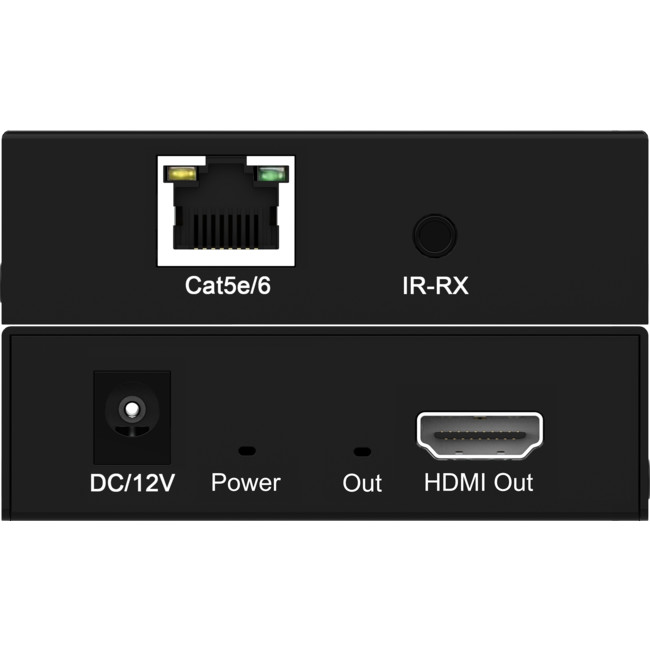

Power over Cable (PoC) Receivers are powered directly from the transmitter, reducing the need for additional power supplies.
One-Way IR Control Includes 2× IR receivers and 1× IR emitter, allowing remote control of the source device from the transmitter location.
In the Box
-10°C-40°C(+14-140°F)
Operating Humidity Range
5 to 90%RH (No Condensation)
Video Amplifier Bandwidth
140MHz
Input Video Signal
0.5-1.0 Volts P-P
Input DDC Signal
5 volts p-p(TTL)
Data transfer speed rate
6 Gbps(Maximum)

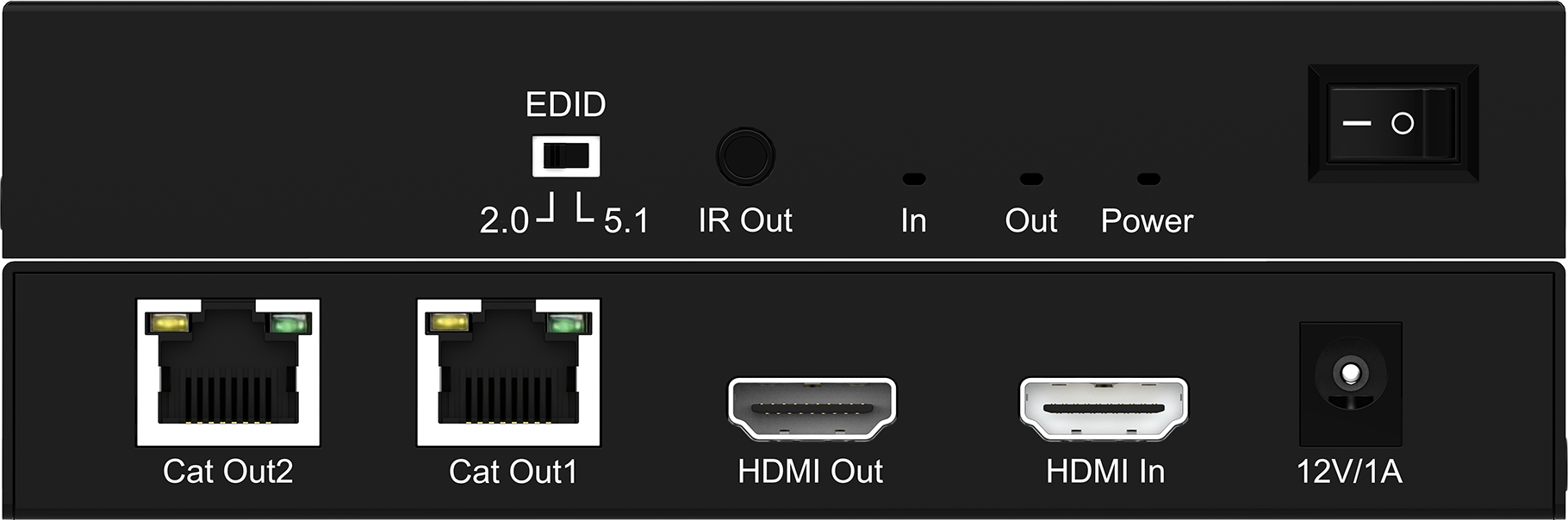

Input port
1xHDMI
Output ports
2xCat5e/6, 1xHDMI
Video Format Supported
DTV/HDTV: 720P/1080i/1080P 3D video support
Vertical Frequency range
60Hz
Support Audio Format
2.0/5.1
Transmission Distance
1080P60-8bit 50m Over single cat5e or cat6 cable/24AWG/Solid
Dimension (L×W×H)
L143.3xW84.1xH23.1mm
