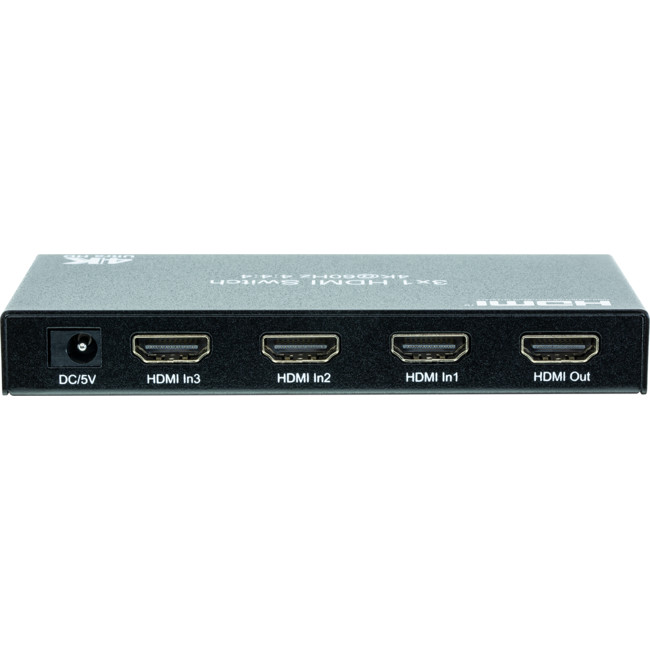

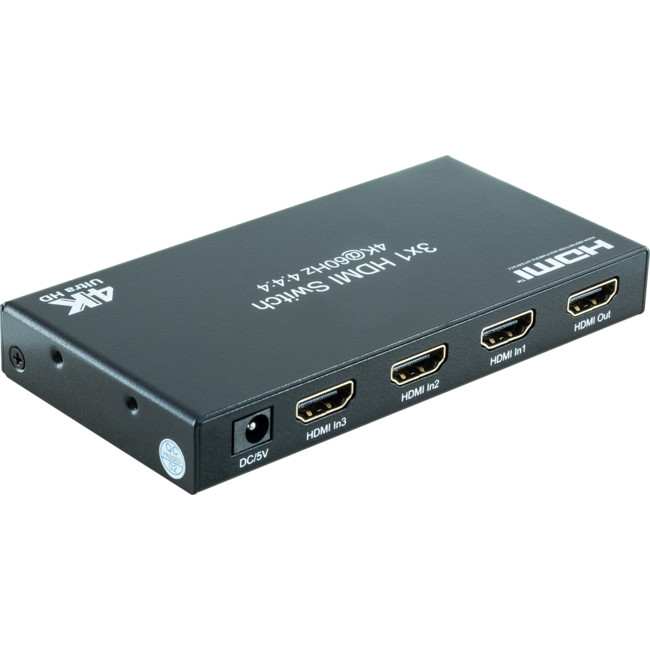

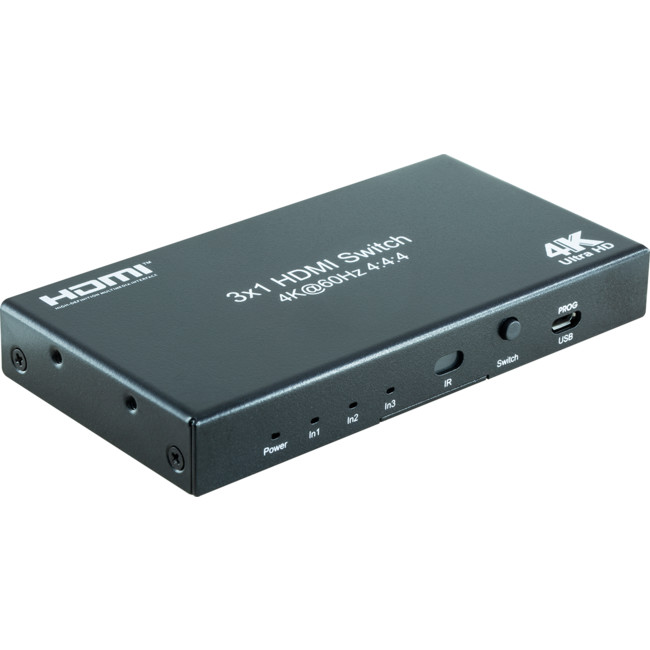

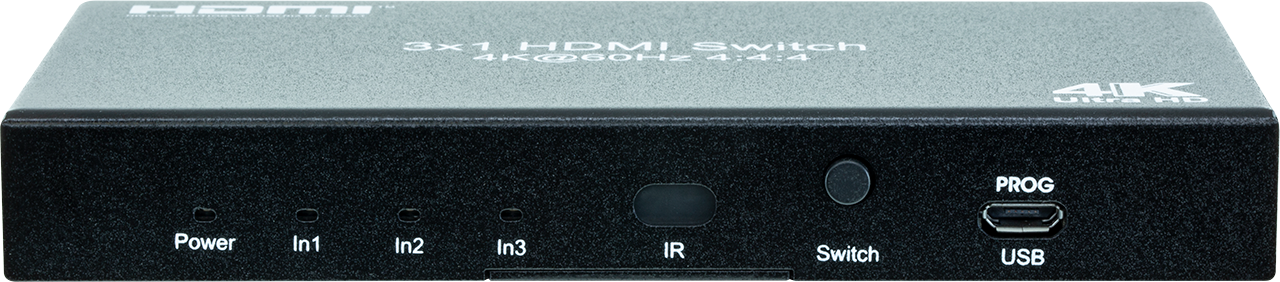

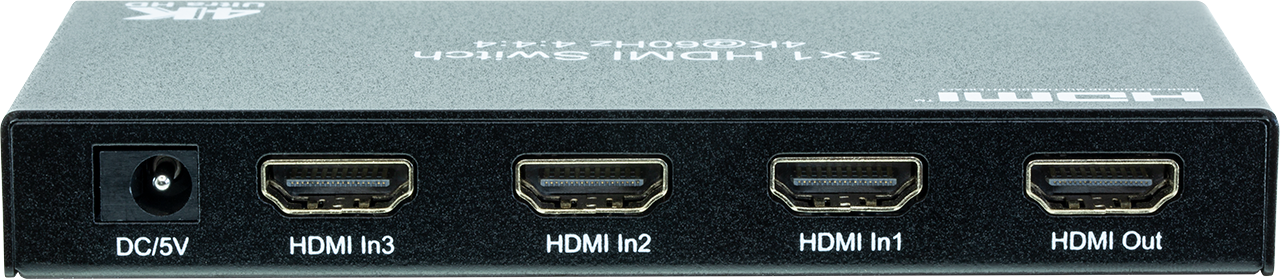

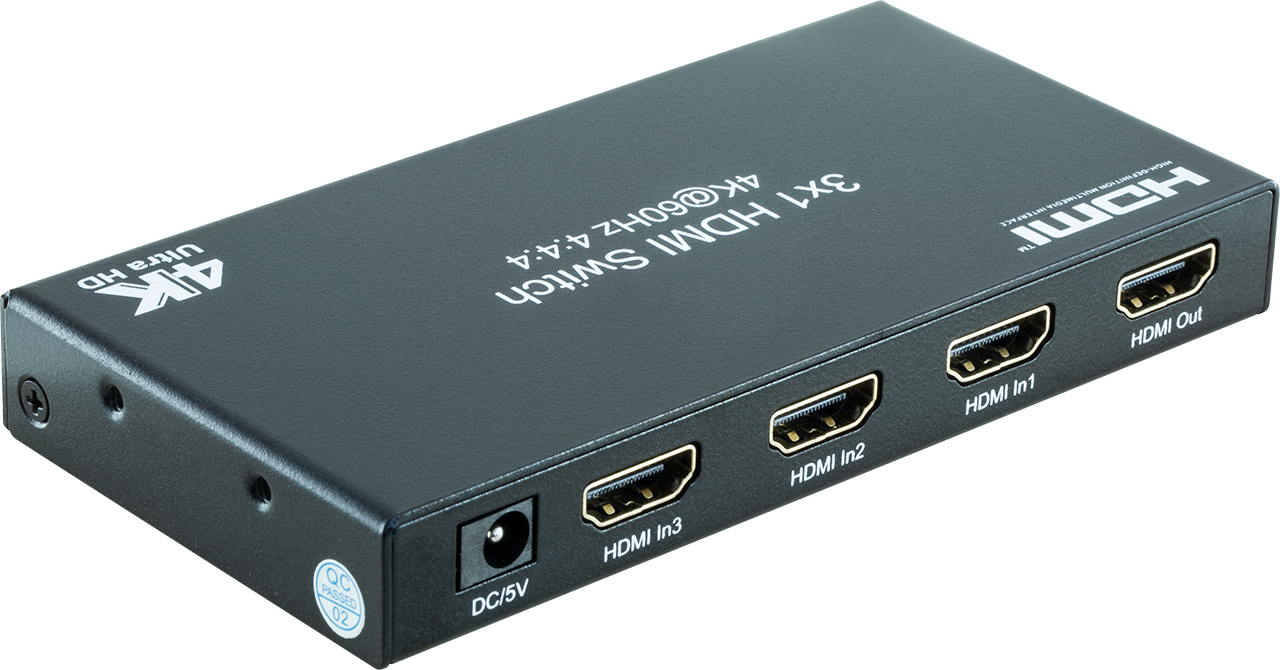

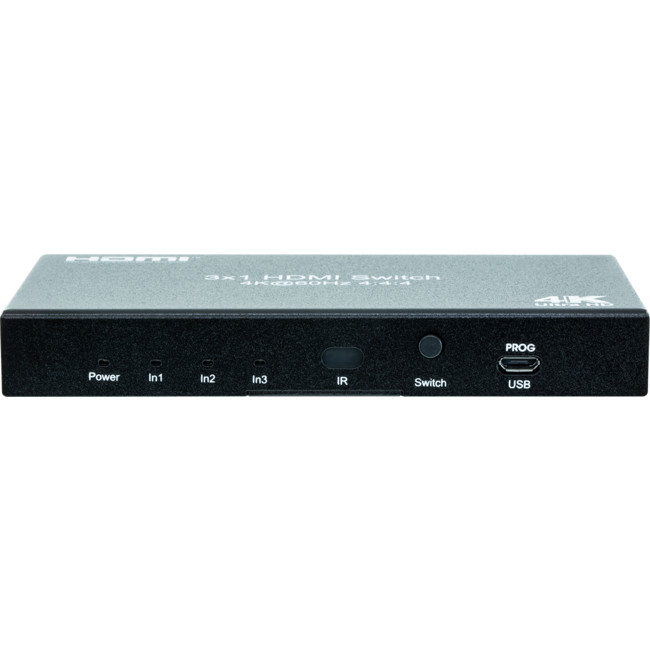

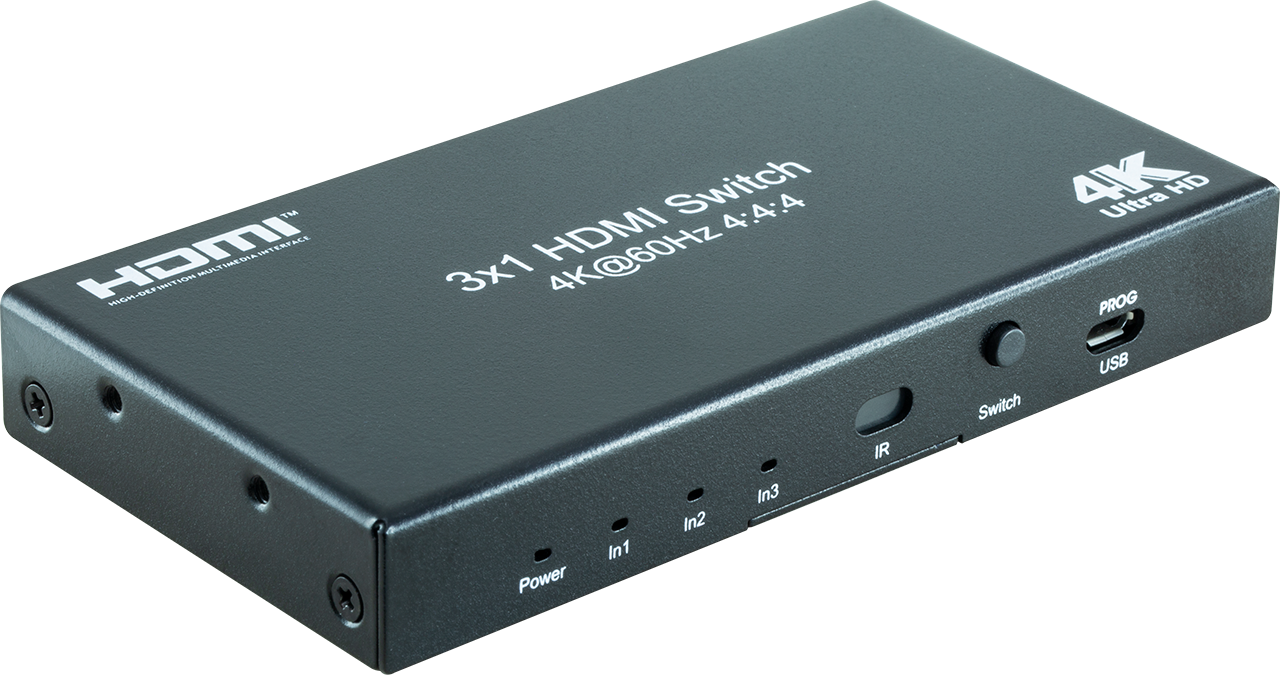

HDMI3S18G 3 IN 1 OUT 18GBPS HDMI SWITCH

Features

• Switch between 3 HDMI inputs to 1 HDMI output
• HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
• Bandwidth up to 18Gbps
• HDCP2.2/ HDCP1.4, CEC
• Support HDR10
• Uses IR remote control or switch button to choose thesource
• Micro USB interface for the user to upgrade firmware
• Keeps memory of the last power state when switching different HDMI channels

Specifications

• Operating Temperature Range: -5 to 40°C( 23 to 104°F)
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Power supply: 5V 1A
• Minimum power: 182mA (work under 480p60hz)
• Maximum power: 277mA (work under 4K2K/60hz)
• Max resolution: 4k@60hz YUV4:4:4
• Function: HDR10 and CEC
• HDMI version: HDMI 2.0
• HDCP version: HDCP2.2 / HDCP1.4(Auto choose depends onTV version)
• Control ways: Switch button and IR remoter control
• Distance: 1080P 20m, 4k@30hz 10m, 4k@60hz under HDR can support 3m
• Dimensions(LxWxH): 125x64.2x17mm

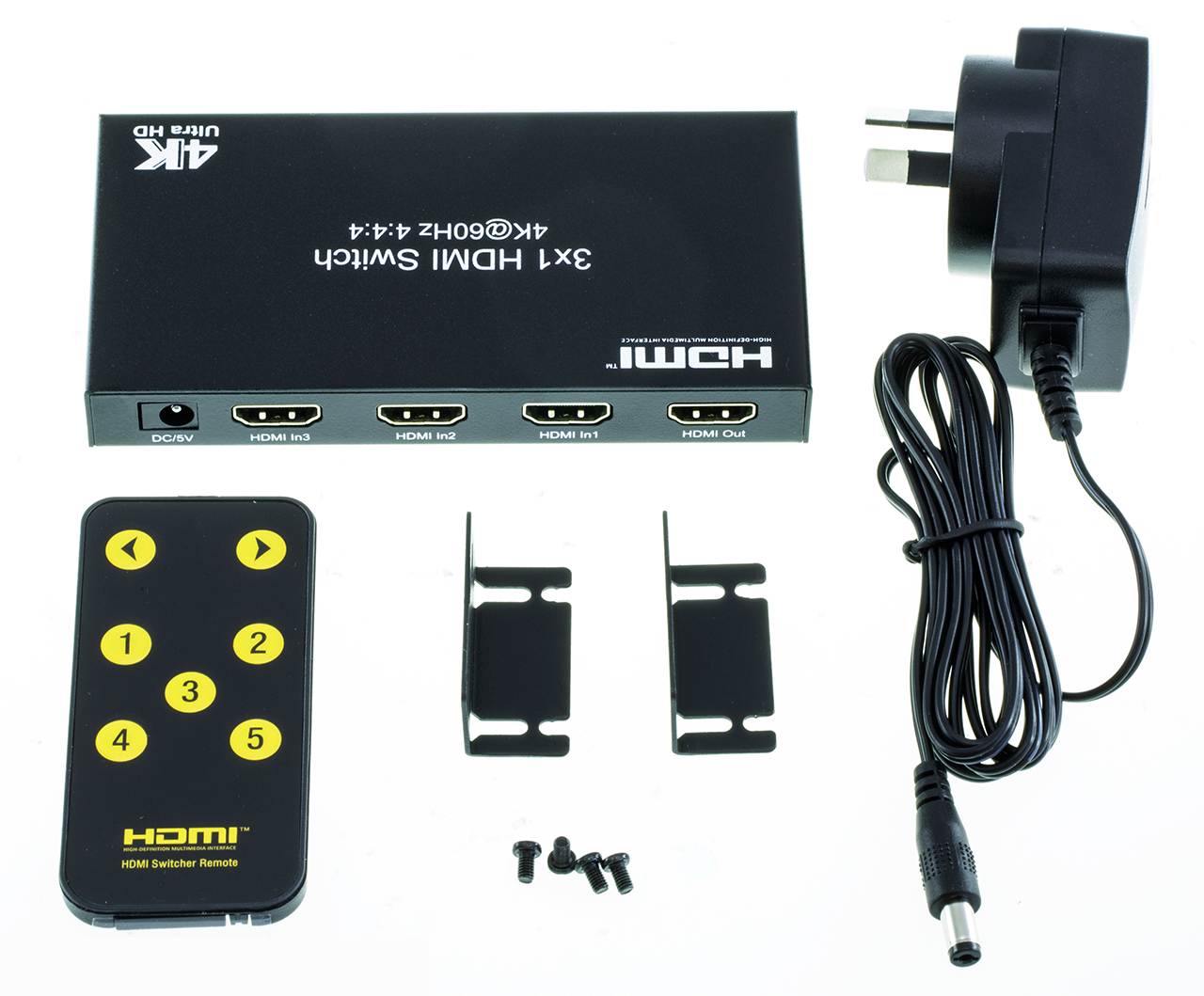

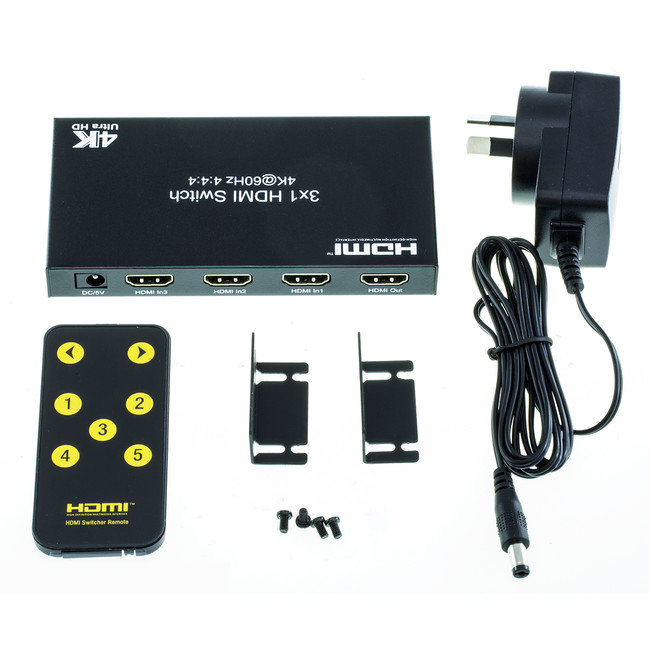

Package Contents

• 1x HDMI Switch
• 1x 5V 1A DC power adapter
• 1x User manual
• 1x IR Remote controller
