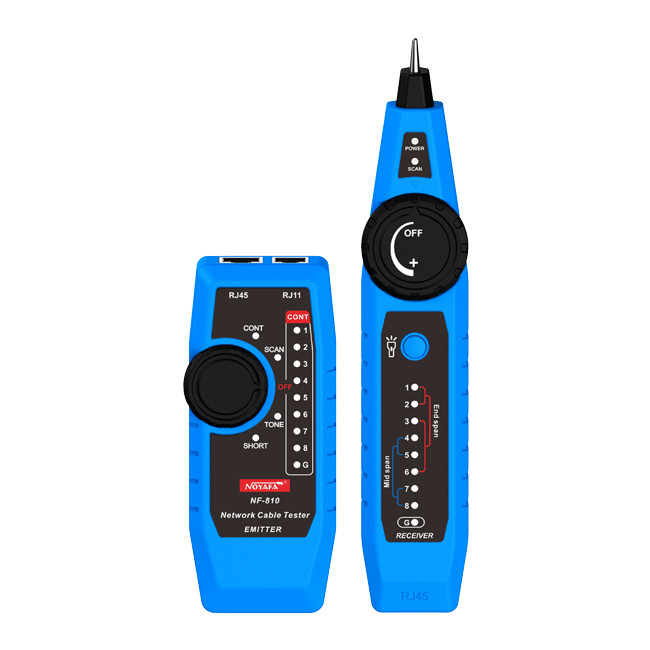

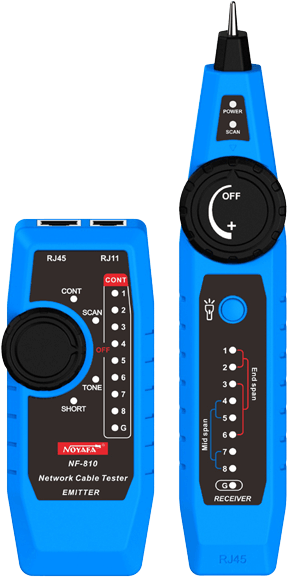

NF810 MULTIFUNCTION CABLE DETECTOR

Multi-Function Network Tester, NF810

RJ11 Tracing / RJ45 Tracing / Electronic wire Tracing / PoE Tracing / Wiremap/ Against 60V / PoE Testing / TEL Testing / Lighting / Earphone.

Features

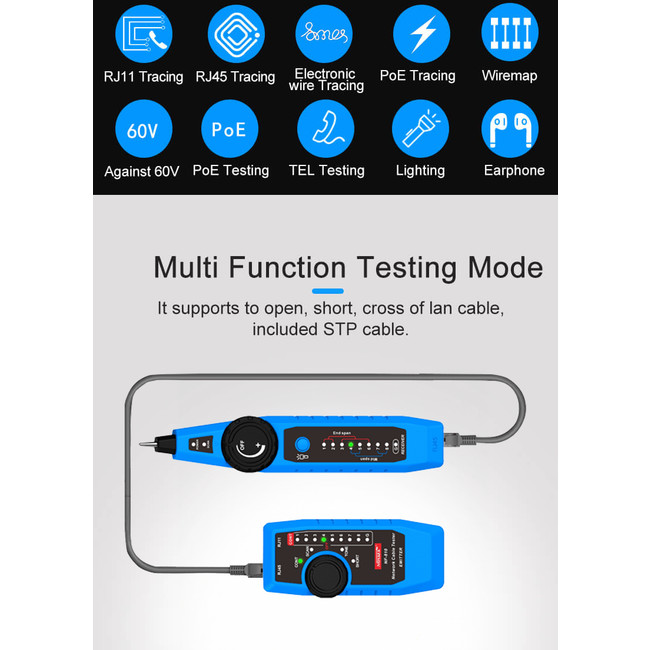

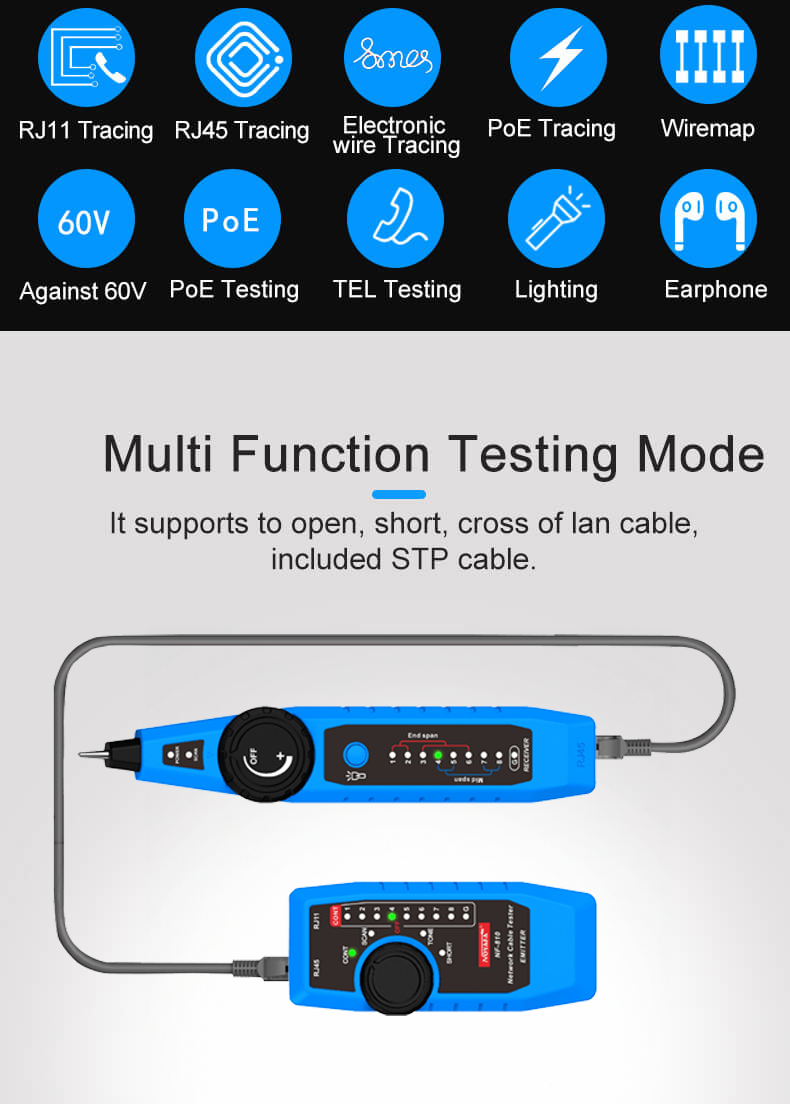

• Multi-Function Testing Mode

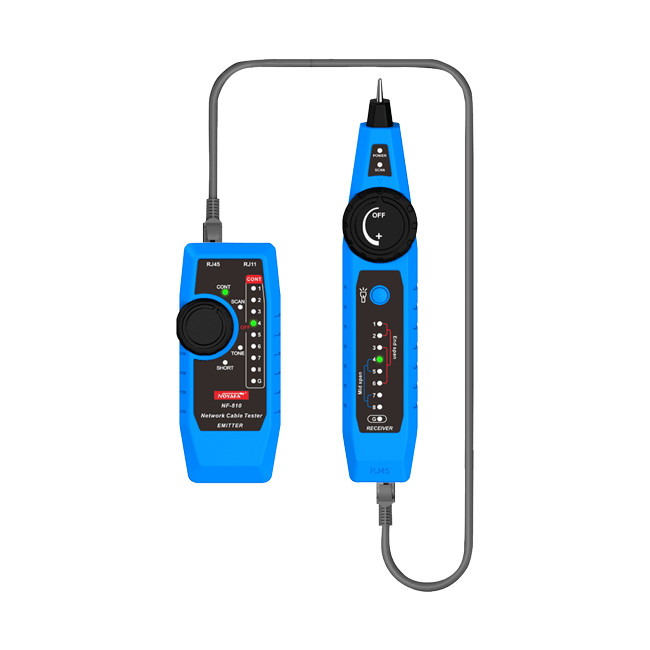

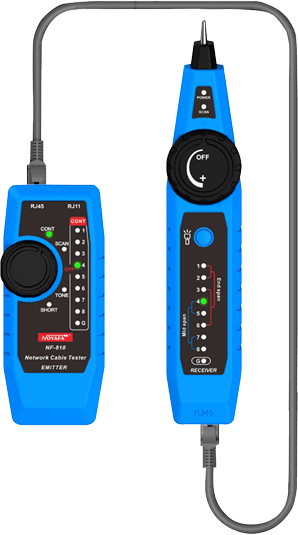

• Wiremap function   Mainly used to detect the wire sequence, short circuit, open circuit, and cross of the network cable includes the STP cable and displays the test results in the form of wire sequence lights.

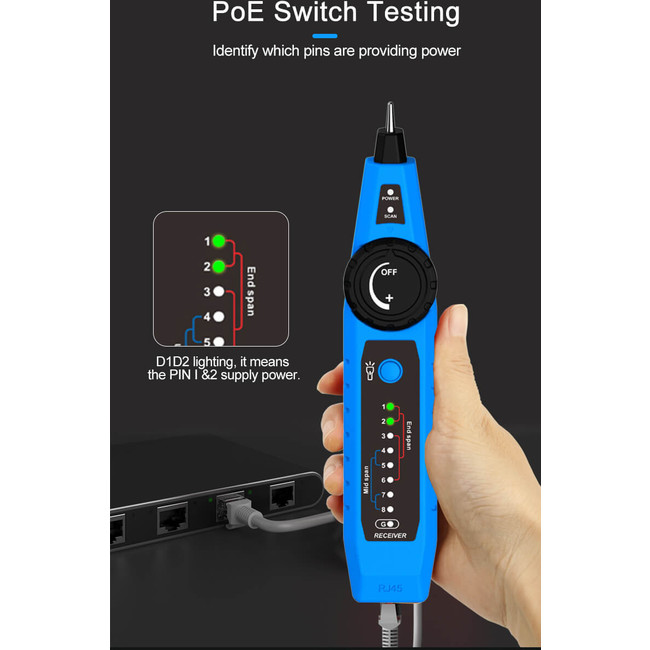

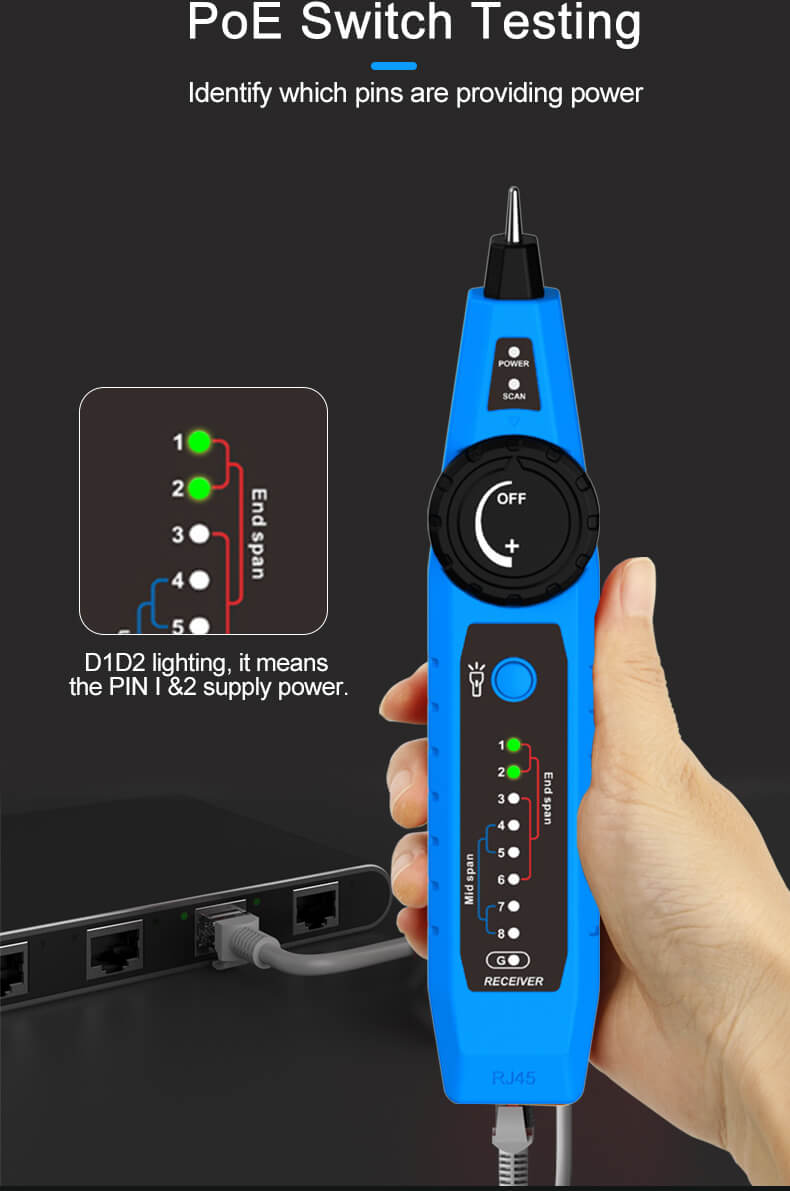

• POE Switch Testing Identify which pins are providing power. when D1 D2 lighting, it means the Pin 1 and Pin2 supply power.

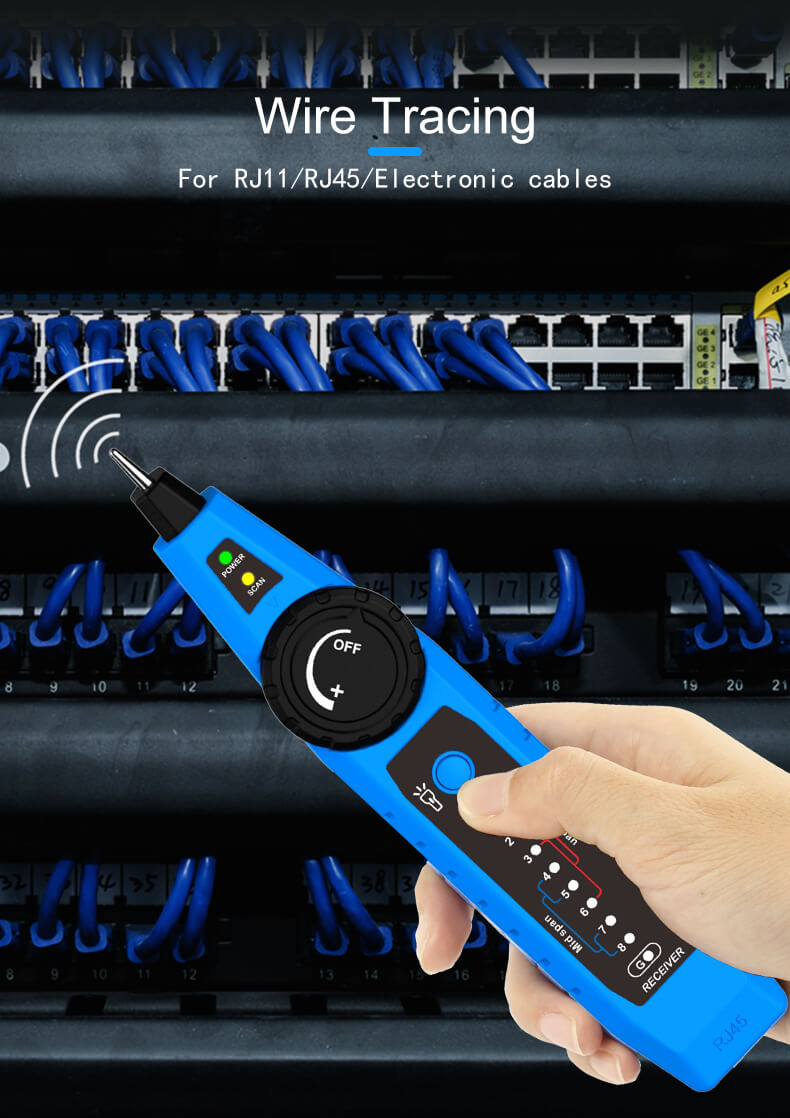

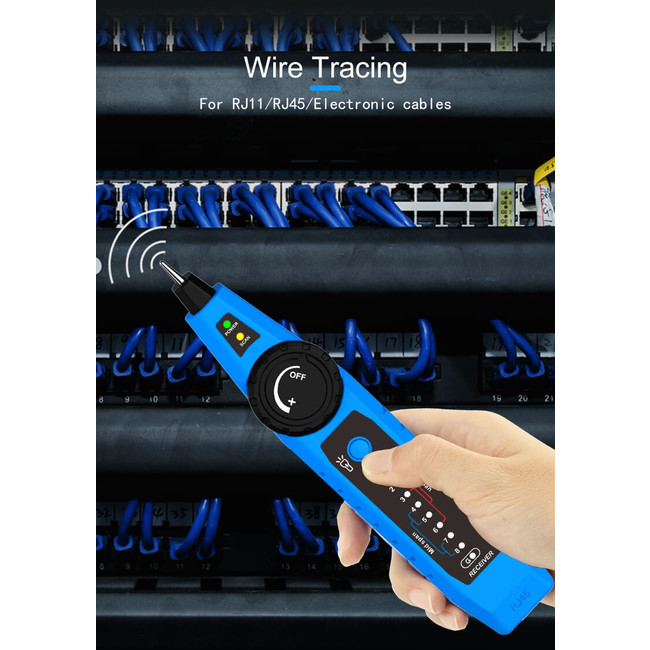

• Wire Tracing Looking for RJ11/RJ15/Electronic cables through the sound of the receiver and the yellow-green signal indicator, the target line position can be easily located.

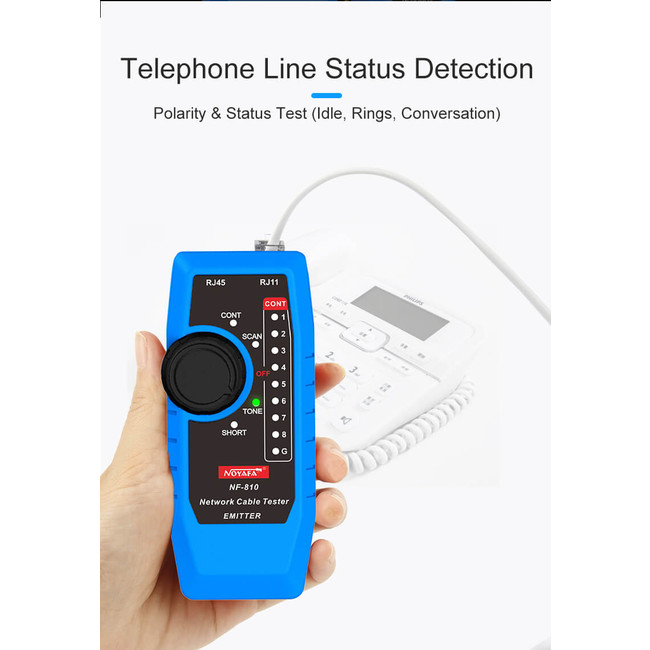

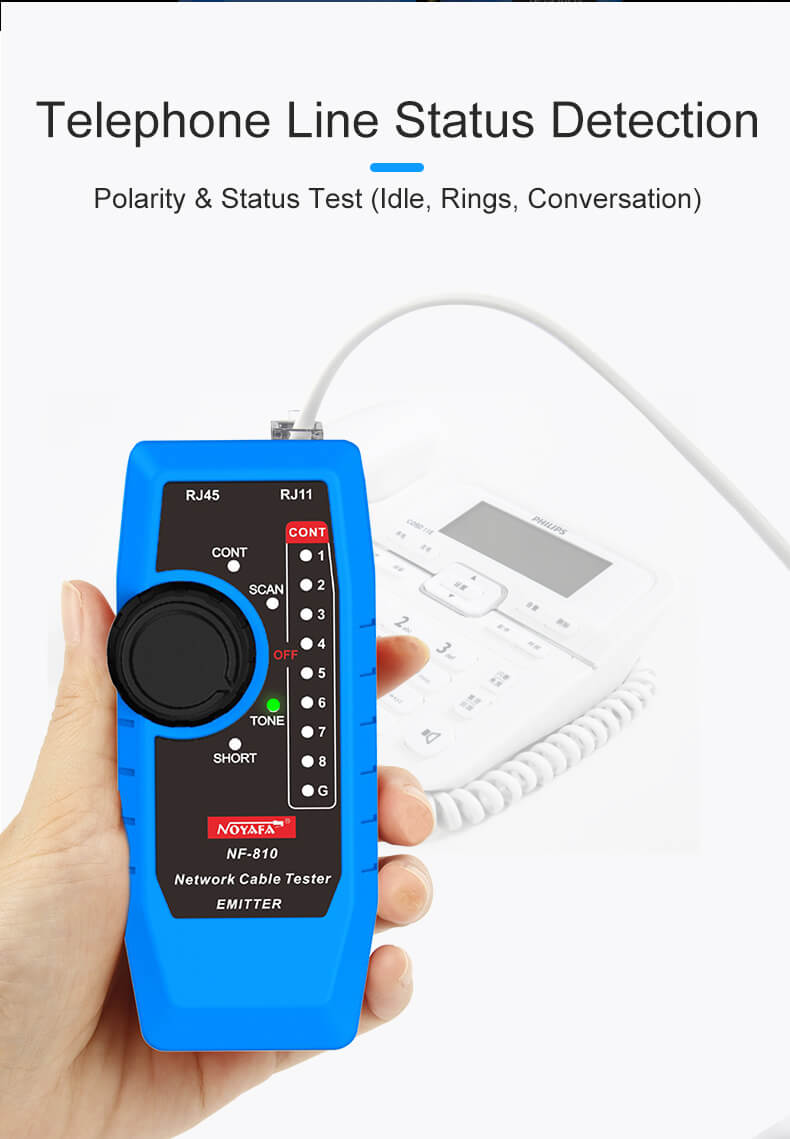

• Telephone Line Status Detection Tests the polarity and on-off of the telephone line and detects the status of the telephone line, such as idle, ringing, and conversation.
• LED Lighting Easy to work in a dark environment.
• External Earphone Function Helps you to work well in a noisy environment.

Specifications

What is in the box?

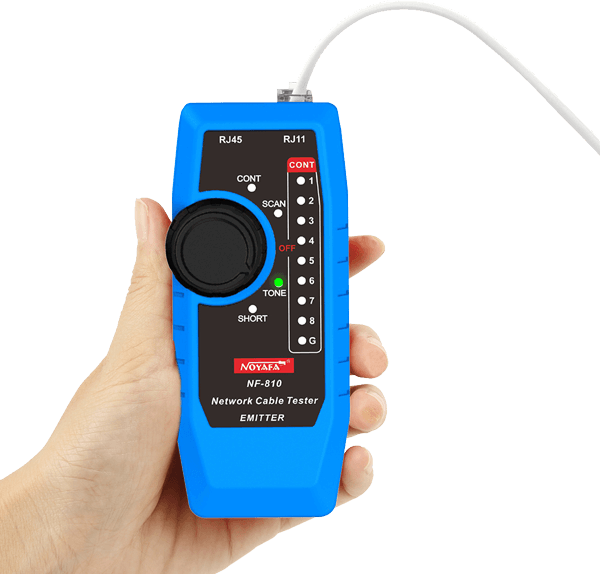

• NF810 transmitter x1pc
• NF810 receiver x 1pc
• Earphone x 1pc
• Short RJ45 cable x 1pc
• Short RJ11 cable x 1pc
• Alligator clip adapter cable x 1pc
• Pouch x 1pc
• 9V Battery x 2pcs
• Manual x 1pc


NF810 video
