LA1012 CABLE LOCATOR SET WITH CASE

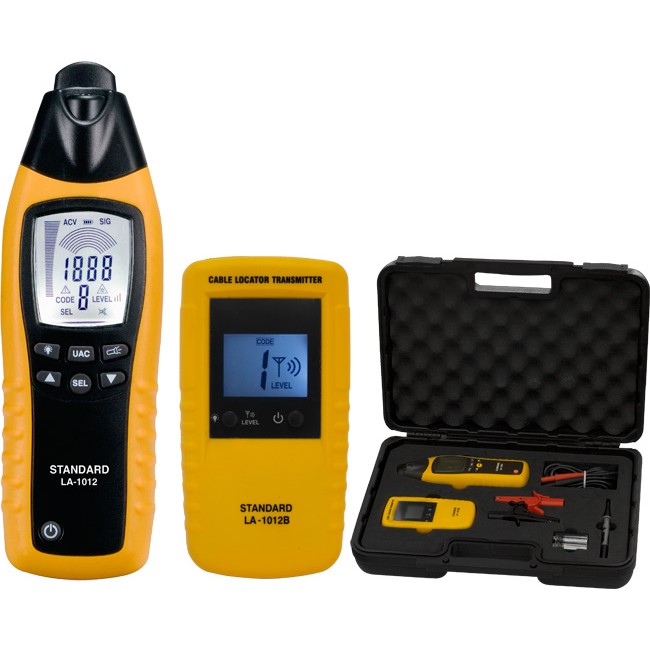

This professional general purpose cable locator is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose made carry case. The receiver also incorporates a torch function for working in dim light location.

Features:

• For all applications ( live or dead cable ) without additional instruments
• Set includes a transmitter and a receiver
• Proven digitally coded sender signal guarantees clear signal identification
• Transmitter with LCD-display for transmitting level, transmitting code and external voltage
• Receiver with back light LCD display for level of receiving signal, code of receiving signal and live voltage indication
• Automatic or manual adjustment of receiving signal sensitivity
• Acoustical receiving signal switchable
• Auto power off
• Additional torch lamp function for working in dark environment

Specifications:

• Voltage measurement range: Transmitter: 12V, 50V, 120V, 230V, 400V
• Frequency range: Transmitter: 0~60Hz
• Output signal: Transmitter: 125kHz
• Voltage: Transmitter: up to 400V AC/DC
• Tracing depth cable location: Receiver: 0~2.5m wall/underground cables
• Main voltage detection: Receiver: 0~0.4m
• Size (H x W x D): 190mm x 60mm x 37mm
• Weight: 229g

Environment Specifications:

• Operating temperature: Transmitter: 0 to 40 °C,Receiver: 0 to 40 °C
• Storage temperature: Transmitter: -20 °C to 60 °C, Receiver: -20 °C to 60 °C
• Humidity (without condensation: Transmitter: Max. 80% relative, Receiver: Max. 80% relative
• Operating Altitude: Transmitter up to 2000m, receiver up to 2000m

Safety Specifications:

• Electrical safety: EN61010-1
• Overvoltage category: CAT III 300V
