600V 100AMP AC/DC MULTI TESTER

  • Code:

    47054045
  • Model:

    T5600
  • Brand:

  • Unit:

    Each
  • Weight:

    0.3860kg
  • Stock:

    1
  • +
Be the first to review!

Freight Estimator Enter 4 digit postcode


Your Price
$275.00

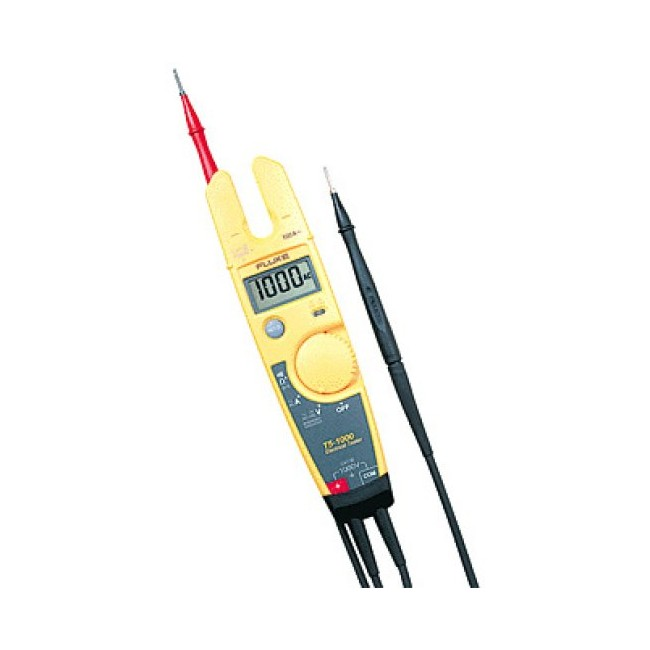

Electrical tester with OpenJaw? Current

The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and thetester does the rest. OpenJaw? current lets you check current up to 100A - without breaking the circuit. Its toughtest leads stow neatly in the back of the tester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach? test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optionalH5 holster lets you clip the T5 onto your belt.

  • 600V Voltage, Continuity and Current Tester
  • Automatically measures volts ac and volts dc with precise digital resolution
  • Displays resistance to 1000O
  • Easy and accurate OpenJaw? current measurement
  • Continuity beeper
  • Compact design with neat probe storage
  • Rugged enough to withstand a 10-foot (3m) drop
  • Detachable SlimReach? probe tips are customized for national electrical standards
  • Test leads accept Fluke accessory test clips
  • Can stay connected much longer than solenoid type tester
  • Auto off mode to conserve battery life
  • Optional holster attaches to a belt and neatly stows test leads

Safety Conformance

All inputs of the T5-600 are protected to EN61010-1 CATIII 600V. UL, CSA and VDE listed.

Specifications
Continuity beeper
Threshold:   On at <25 O, off at >400 O
Volts indicator LED
Threshold:  Guaranteed on by 30V ac
Environmental Specifications
Operating Temperature
 -10 °C to 50 °C
Storage Temperature
 -30 °C to 60 °C
Humidity (Without Condensation)
 0% to 95% (5 °C to 30 °C)
 0% to 75% (30 °C to 40 °C)
 0% to 45% (40 °C to 50 °C)
Dust/water resistance
 Yes
Operating Altitude
 2000 meters max
Temperature Coefficient
 0.1 x (specified accuracy)/degree C (<18°C or >28 °C)
Safety Specifications
Overvoltage category
T5-600:   600V ac/dc, CAT III
T5-1000:  1000V ac/dc, CAT III
600V ac/dc, CAT IV
Agency Approvals
 UL, CSA, and VDE
Maximum voltage
 between any terminal and earth ground
Mechanical & General Specifications
Size
 30.5 x 51 x 203 mm
Weight
 300g
Warranty
 2 years
Battery Life
 200 hour zinc chloride, 400 hour alkaline
Battery type
 Two AA zinc chloride
Low battery indicator
 Yes
Current sensor opening
 12.9 mm
Calibration cycle
 1 year
Test leads
Type:  Heavy duty, flexible leads rated for 1000V use.
 Field replaceable leads terminate in male shrouded banana plugs
Probes:  One red, one black. of two tip
 Detachable Slim-ReachT probe tips in one
Styles:  TP1 Slim Reach Test Probes
