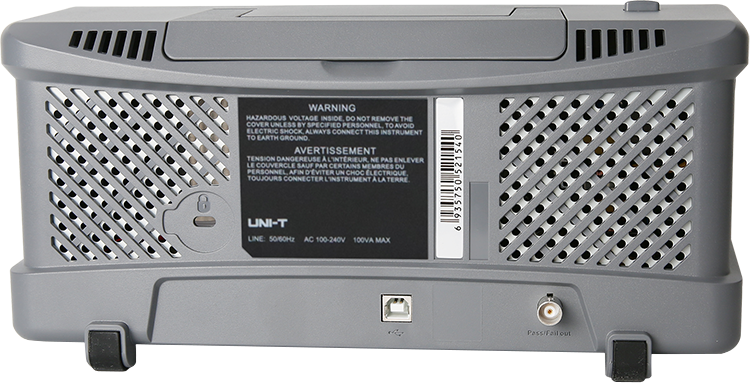

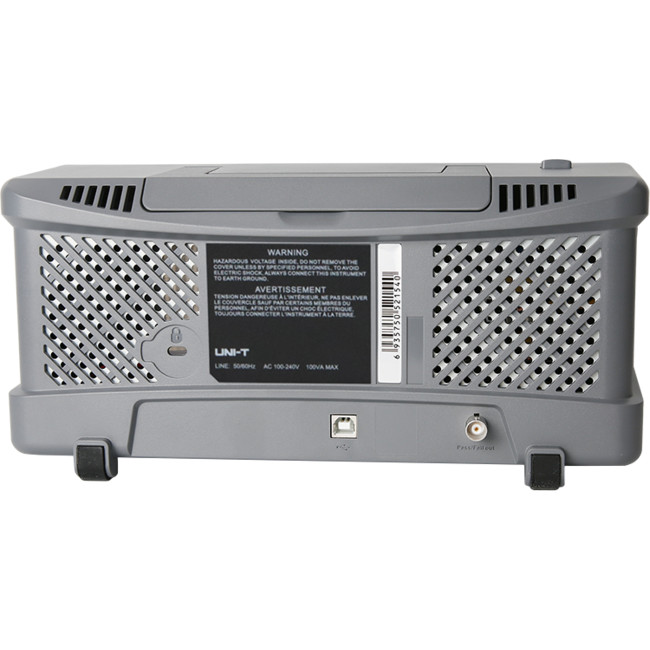

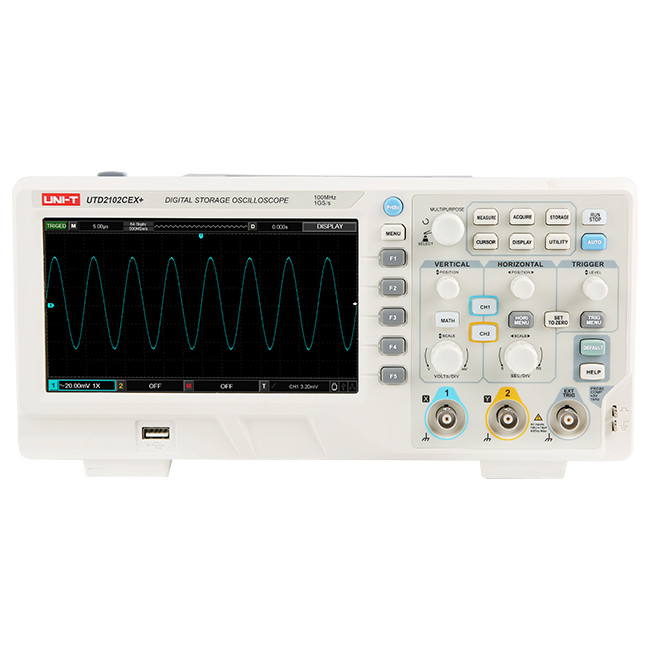

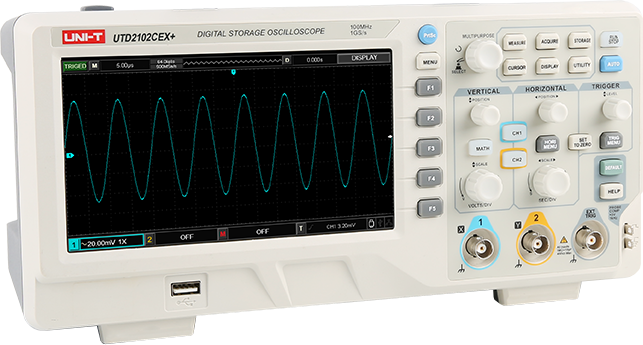

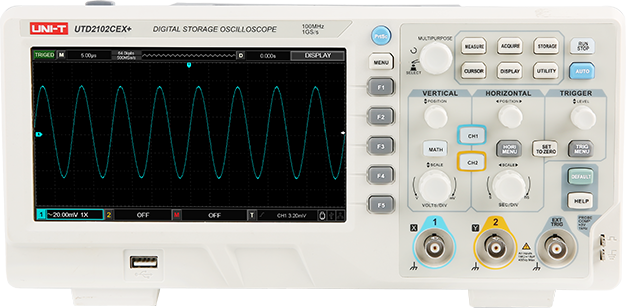

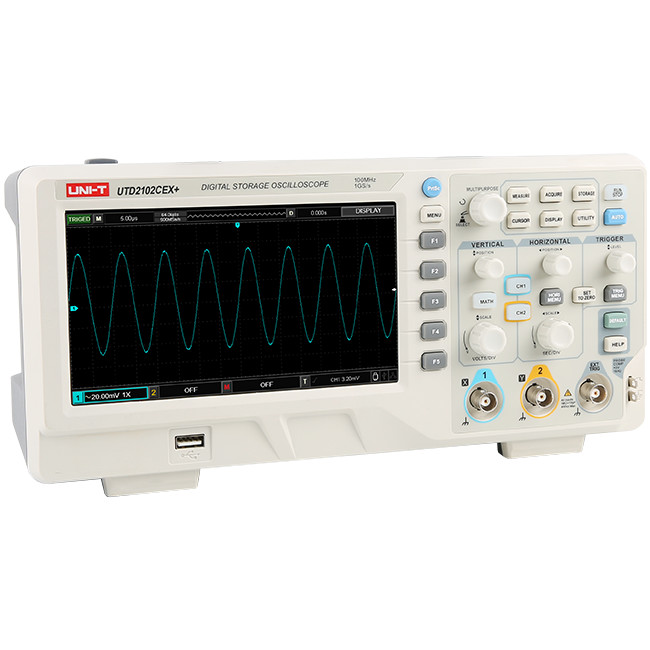

UTD2102CEX+ COLOUR OSCILLOSCOPE 100MHZ

DIGITAL STORAGE UNI-T

Code: 46412025

3.30 kg
6935750591215
EACH
2
Low Stock
$495 inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Features

  1. 100MHz bandwidth
  2. Measurement channel: 2 analogchannels
  3. Real-timesamplingrate: 1GS/S
  4. Storagedepth: 64kpts
  5. Waveformcapturerate: 5,000wfms/s
  6. Auto measurement: 34 waveform types
  7. Abundant trigger: Edge * Pulse width * Slope trigger * Video trigger * Alternatingtrigger
  8. Display:7-inch WVGA (800X 480) TFT LCD, super-widescreen, clean display
  9. Peripheralinterface: Standard USB Host, USB Device, Pass/Fail
Applications:
Serial data analysis, jitter analysis, data storage device testing, electric vehicle and electronics equipment design, evaluating frequency response of sound equipment, troubleshooting automotive engines, electronics technician repair and maintenance.



Wider display range and multiple frequency square wave options

The UTD2000CEX series display range is 8divX16div,and has a new AUTOSET strategy, which can easily copewith complex test scenarios.

Multi-language optional, multi-frequency square wave optional

With 9 languages, it can meet the needs of users in more countries. Output standard square wave 10Hz, 100Hz, 1kHz, 10kz optional.

Various parameter measurement and waveform recording functions

The UTD2000CEX series supports 34 kinds of automatic measurement functions and waveform recording functions.which can record up to 1000 frames, and canachieve better waveform analysis effects through playback and storage functions.





Specifications
Model UTD2102CEX
Bandwidth 100MHz
Channels 2
Sampling rate 1GS/s
Rise time 3.5ns
Memory depth 64kpts
Waveform capture rate ≥5000 wfms/s
Time base scale 2ns/div-50s/div
Storage methods Setup, Waveform, Bitmap
Trigger specifications
Frequency counter 6 bits
Trigger types Edge, pulse width, slope, video, alternate
Interfaces Pass/Fail , USB Device, Standard USB Host,
General Characteristics
Power 100V-240V 45-440Hz
Display 7-inch TFT LCD, WVGA (800x480)
Product color White and grey
Product net weight 3.5kg
Product size 336mm x 164mm x 108mm
Standard accessories Probe x 2 (1x, 10x switchable), power cord, USB interface cable
Standard individual packing Carton box
Standard quantity per carton 2pcs
