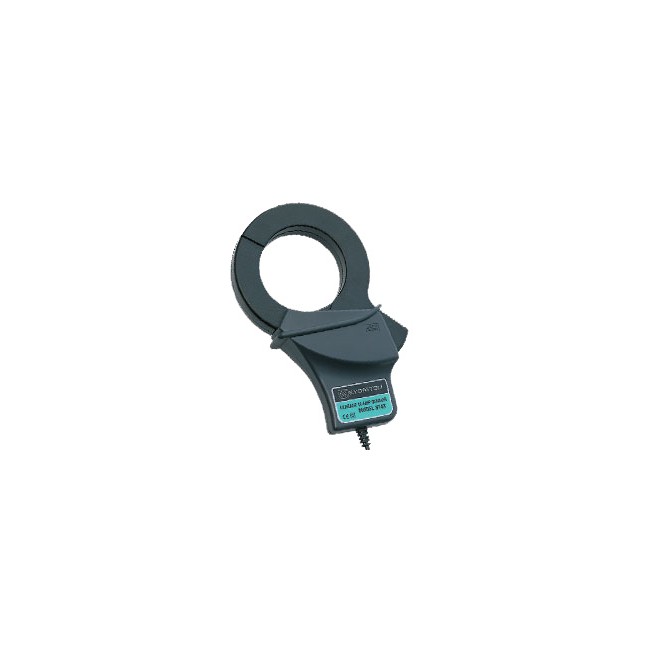

8143KY ROUND LEAKAGE CURRENT SENSOR

1000MA 68MM O/D CLAMP KYORITSU

Code: 46010236

EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
P.O.A. inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Applicable models: 5000/5001, 5010/5020, 6310
* Cannot be used for power measurement

Conductor size F68
Rated current AC 1000mA
Output voltage AC 100mV/1000mA (AC 100mV/A)
Accuracy (50/60Hz)
Hz)
Withstand voltage AC 3540V (50/60Hz) for 5 seconds
Cable length Approx. 2m
Output connector MINI DIN 6pin
Operating temperatureranges 0~50 C, less than 85%RH (without condensation)
Output impedance Approx. 120O
Applicable standards IEC 61010-1,
IEC 61010-2-032,
CAT.III 300V pollution degree 2
Dimensions 186(L) x 129(W) x 53(D) mm
Weight Approx.490g
Accessories 9094 (Portable case),Instruction manual
Option 7146 (Banana F4 adjuster plug)
7185 (Extension Cable)
