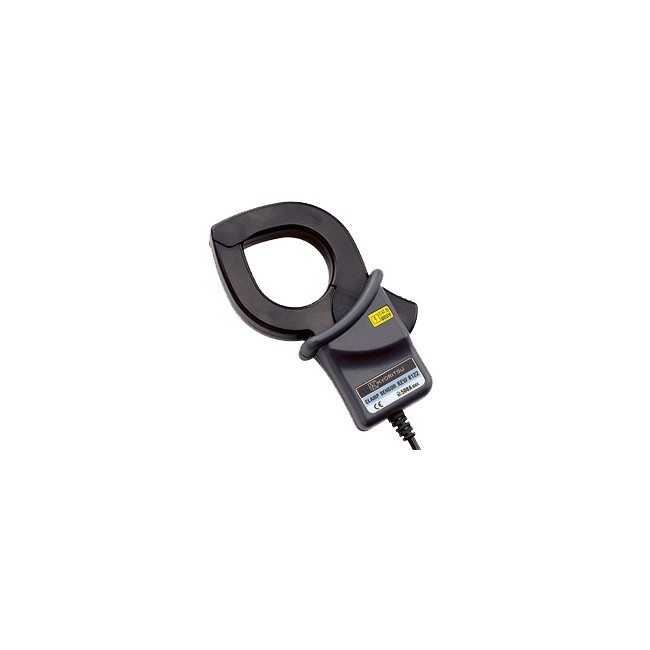

8122KY 500AMP AC LOAD CURRENT SENSOR

40MM O/D CLAMP - KYORITSU

Code: 46010206

EACH
SPECIAL
BUY-IN
Please note: Special Buy-In Items are non-returnable. By purchasing this item, you agree to the terms.
P.O.A. inc GST
Increase value Decrease value
Qty Each (inc GST) Each
Request Price Match
Enter 4 digit postcode

Applicable model: 5010/5020

Conductor size F40
Rated current AC 500A
Output voltage AC 500mV/500A (AC 1mV/A)
Accuracy (50/60Hz)
1kHz)
Withstand voltage AC 5350V for 5 seconds
Cable length Approx. 2m
Output connector MINI DIN 6pin
Operating temperature ranges 0~40 C, less than 85% RH (without condensation)
Output impedance Approx. 1.9O
Applicable standards IEC 61010-1:2001,
IEC 61010-2-032:2002,
CAT.III 600V pollution degree 2
Dimensions 128(L) x 81(W) x 36(D) mm
Weight Approx.260g
Accessories 9095 (Portable case), Instruction manual, Cable marker
Option 7146 (Banana F4 adjuster plug)
7185 (Extension Cable)
